4K Ultra HD Video Wall Controller 3X3 HDMI/DP/VGA/USB Type-C Input 9-Channel Output 1U Rack Design
Introduction

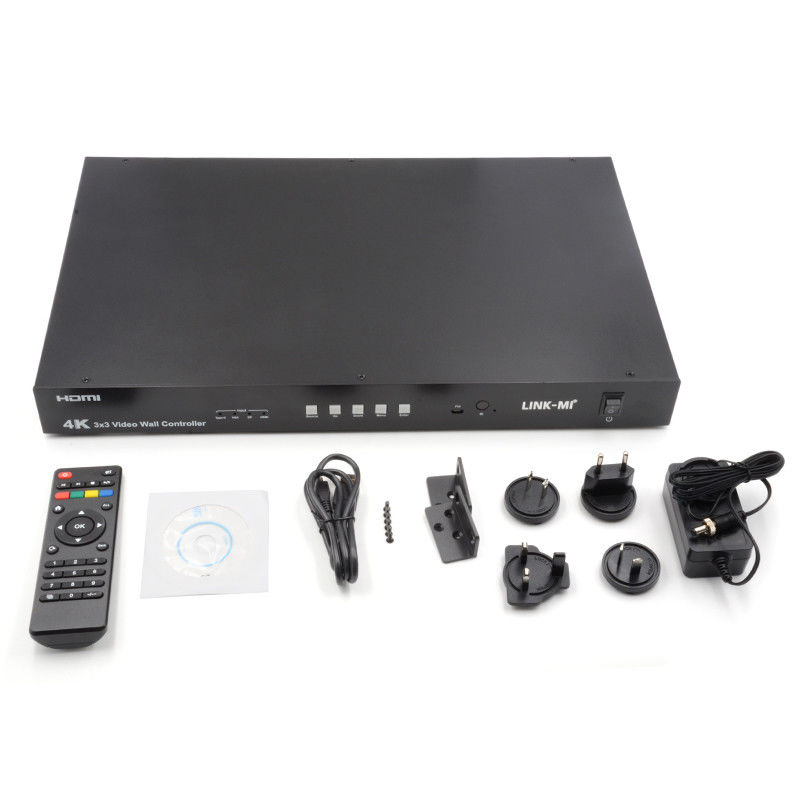

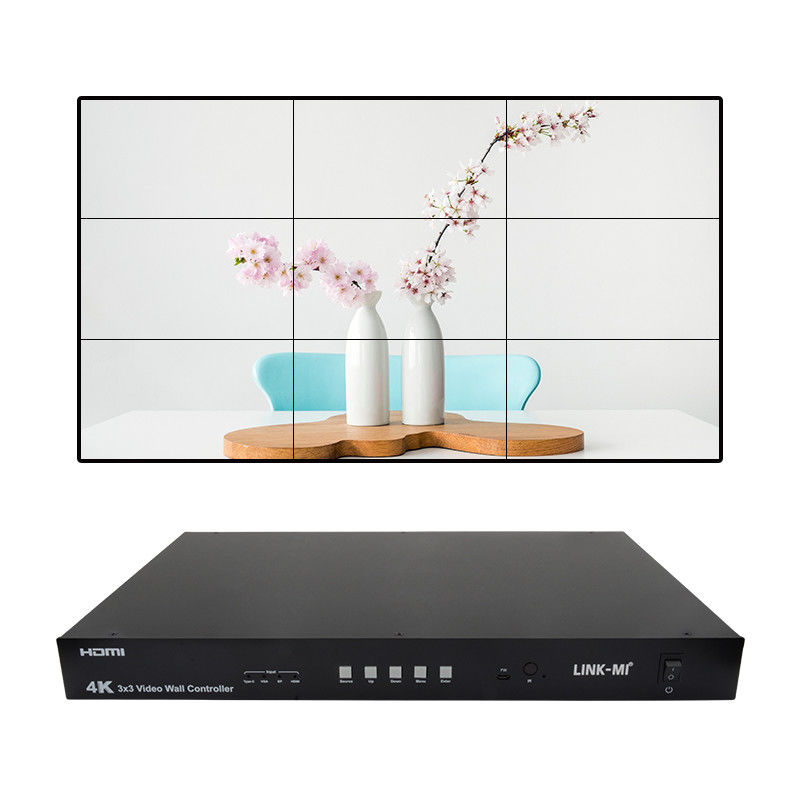

LINK-MI LM-VW03 is a professional 9-channel ultra HD 4K Video Wall Controller. It's used to distribute signals to multiple display units for splicing display. It comes with 4 input signals like 1 HDMI / 1 USB Type C / 1 DP / 1 VGA; with 9 channels HDMI outputs, and extra 1 HDMI Loop output for single display or cascading. User can switch any one of the 4 input signals to display on 9 TV monitors to make a large 3x3 video wall or 1x1, 1x3, 1x4, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2...display modes, and cascade 3x4, 4x3, 4x4, 5x5, 6x6...max 10x10 video wall in cascading connection.
Meanwhile, it also supports 1x9 HDMI splitter mode, SPDIF and Analog audio extraction, highest UHD resolution up to 3840x2160@30Hz, 180° rotation, EDID management. User can control it easily via remote, panel buttons, RS232 command, Web GUI control and third-party platform control. It's in 1U rack design, easy to install.
Features
1. Support USB TYPE-C /VGA/DP / HDMI input.
2. Support 4K 3x3 video wall, cascading to create 3x4, 4x5, 5X6 and max 10x10 video wall.
3. Support output image 180° rotation.
4. Support highest resolution up to 4K30HZ 4:4:4.
5. Support EDID management: Two default EDID: 4K30HZ, 1080P.
6. Support HDCP2.2/1.4.
7. Support panel button; IR remote; RS232 command and Web GUI to control.
8. Support SPDIF andAnalog audio extraction
9. Support third-party platform control via RS232 port or Lan.
10. 1U rack design, easy installment.
Specification
| Model No. |
LINK-MI LM-VW03 |
| Input Ports |
1x USB TYPE-C, 1x DP, 1x VGA, 1x HDMI
|
| Output Ports |
9x HDMI, 1x HDMI Loop out for single display or cascade connection)
1x SPDIF, 1x Analog Stereo Audio
|
| Control Ports |
1x RS232, 1x Ethernet |
| HDCP |
HDCP 2.2/1.4 |
| Input Video Signal |
0.5-1.0 volts p-p |
| Input DDC Signal |
5 volts p-p (TTL) |
|
Video Format
|
Ultra HD TV/FH DTV: 4K@30Hz/1080P |
|
Audio Format
|
LPCM 16bit, 24bit, 44.1KHz/48KHz |
| Control Methods |
Panel buttons; IR remote; RS232 command, Web GUI, third-party platform control |
| Video Wall Modes |
1x1, 1x3, 1x4, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2...
Cascade to make 4x3-1; 4x3-2; 3x4-1; 3x4-2; 4x4-1; 4x4-2
Cascade: 4x3, 4x4, 5x5, 6x6...and so on, max 10x10 video wall
|
| Other Functions |
1x9 HDMI Splitter Mode, 180° rotation, EDID Management, Audio Extraction... |
| Power Supply |
DC 24V 2A |
| Power Consumption |
33watts (Maximun) |
| Operating Temperature |
0 to +40°C (32 to +104°F) |
| Operating Humidity |
5 to 90 % RH (no condensation) |
| Material |
Metal Enclosure |
| Color |
Black |
| Dimension |
438mm(L)x274mm(W)x44mm(H) |
| Weight |
4KG |
| Note: Specifications are subject to change without notice |
Connection Diagram

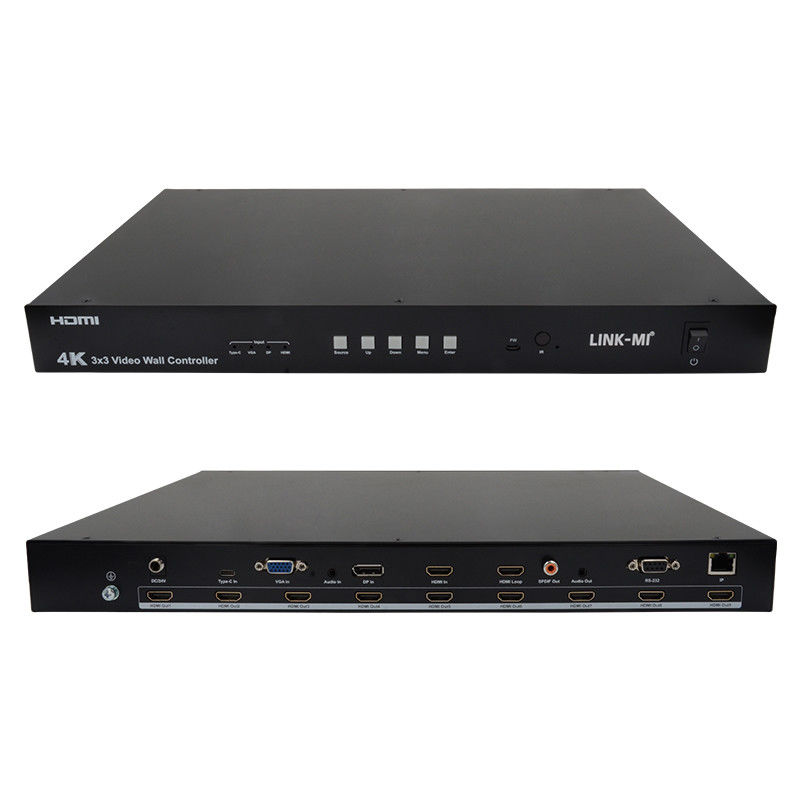

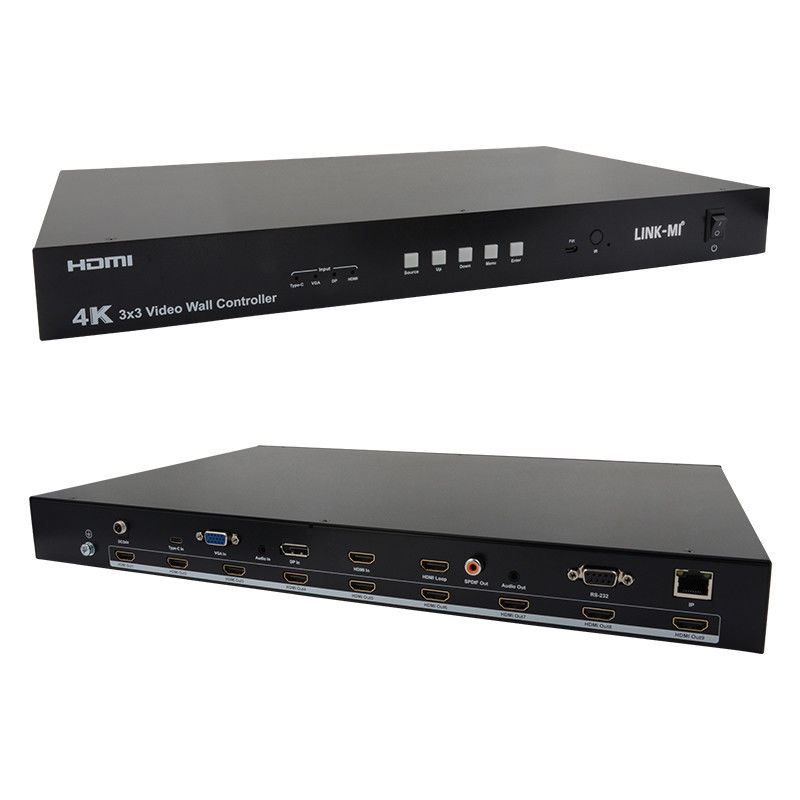

Panel Description
