2X2 Video Wall Controller Support HDMI USB Signal Input 1080P For Advertising
Introduction

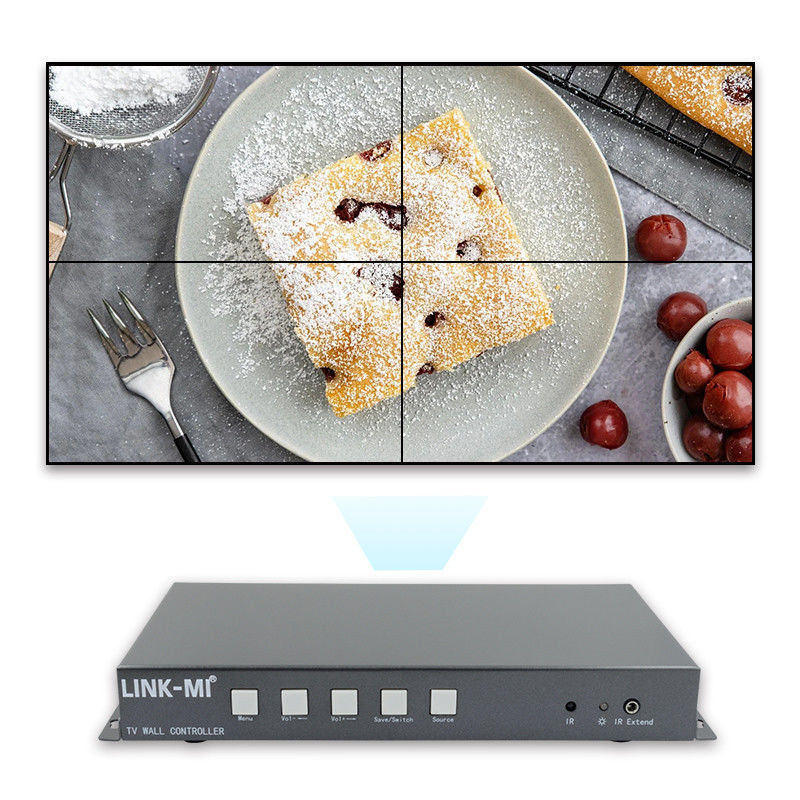

LINK-MI LM-TV04S is a professional 4-channel Full HD Video Wall Controller. It's used to distribute signals to multiple display units for splicing display. It comes with 2 input signals like HDMI+USB and 4 channels HDMI outputs. User can switch any one of the 2 input signals to display on max. 4 TV monitors to make a large video wall.
It supports all splicing modes for 4 displays, such as 2x2, 1x4, 1x3, 1x2, 2x1, 3x1, 4x1. And it supports high resolution up to 1080P@60Hz and supports 180° rotation. User can control it easily via remote or front buttons.
Features
1. Support multiple video wall modes like 2x2, 1x4, 1x3, 1x2, 2x1, 3x1, 4x1
2. Support HDMI / USB Input signal
3. Support Mirror Function
4. Edge shielding function
5. U disk playback function
6. Remote control function
Specification
| Model No. |
LINK-MI LM-TV04S |
| Input Signals |
| HDMI Input |
HDMI 1.3, DVI 1.0, HDMI embedded audio |
| USB Input |
USB 2.0 Port;
Support video, pictures, MP3, TXT format playback,
Support video coding format:
Mpeg1,2,4 (1920*1080@30P and below),
Divx, Xvid (1920*1080@30P and below),
RM, RMVB (1920*1080@25P and below),
H.264 (1920*1080@30P and below),
VC-1 (1920*1080@30P and below),
MJPEG (640*480@30P)
|
| Output Signals |
| HDMI Output |
4 channels HDMI outputs:
Support 1920x1080P@60Hz,1280x720@60Hz, 1024x768@60Hz
|
| Audio Output |
3.5mm audio interface, support left and right channel
stereo, audio and video signal sync switch
|
| Functions |
| Control Methods |
Remote control, panel buttons control |
| Splicing Modes |
2x2, 1x4, 1x3, 1x2, 2x1, 3x1, 4x1 |
| Other Functions |
1x4 Splitter Mode, 180° Rotation, Edge Shielding... |
| Mechanical |
| Power Supply |
DC 12V 3A |
| Power Consumption |
20W |
| Housing |
| Dimension |
234mm(L)x140mm(W)x32mm(H) |
| Weight |
0.85kg |
| Note: Specifications are subject to change without notice |
Connection Diagram

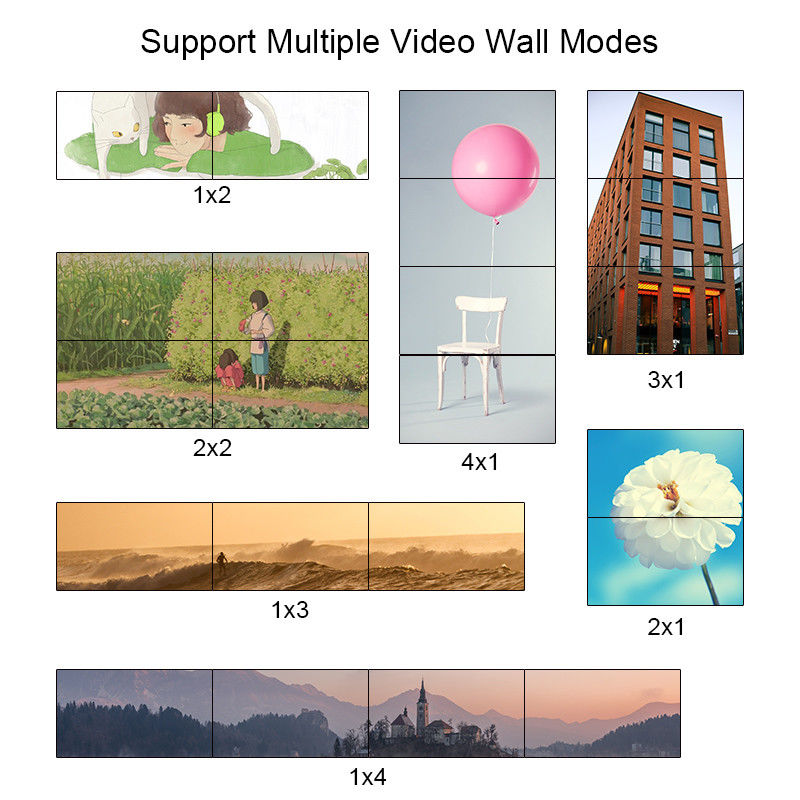

Video Wall Modes

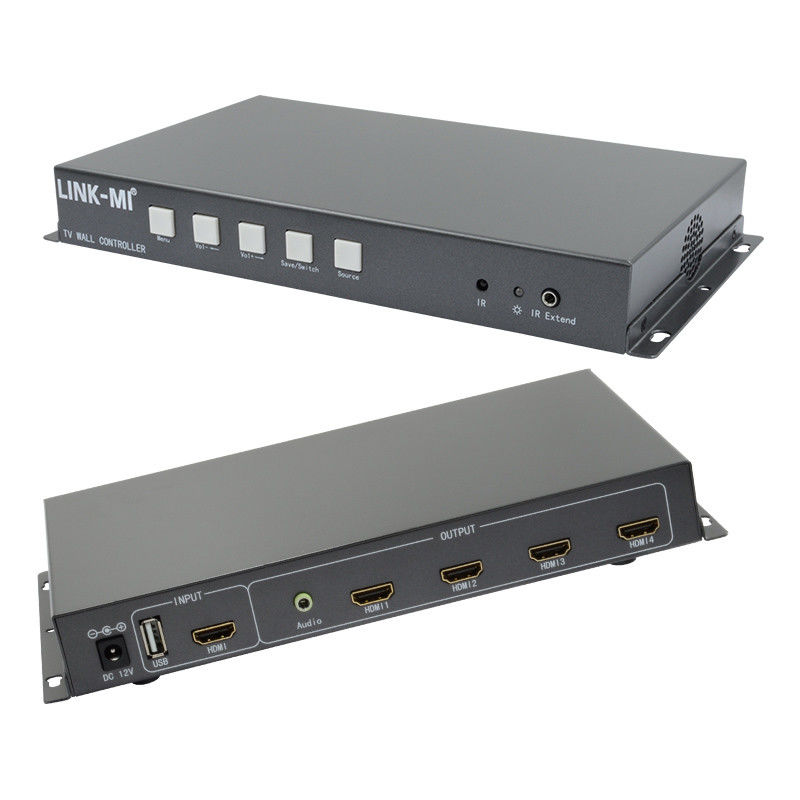

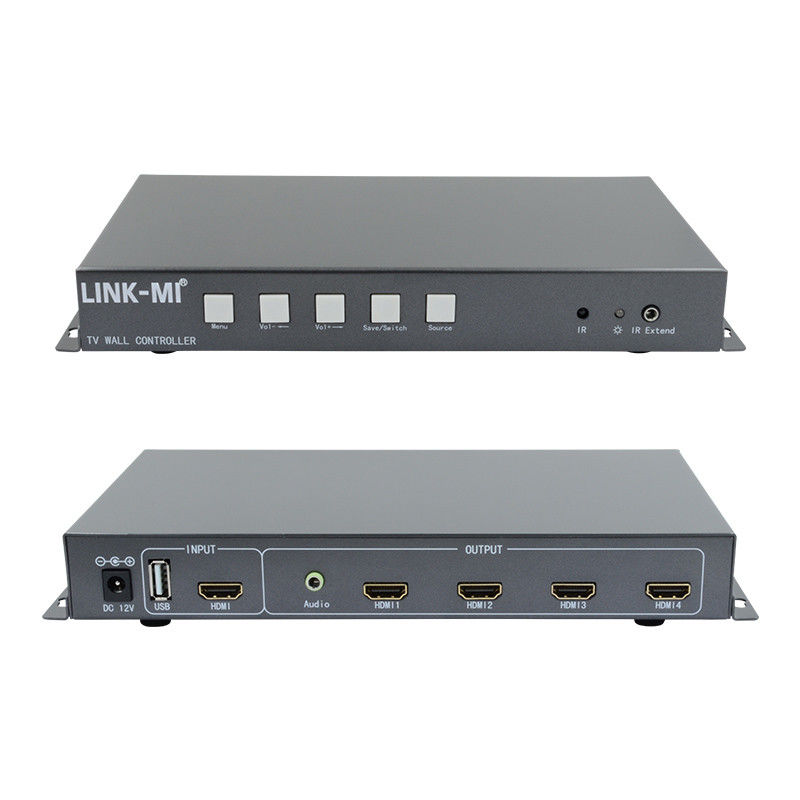

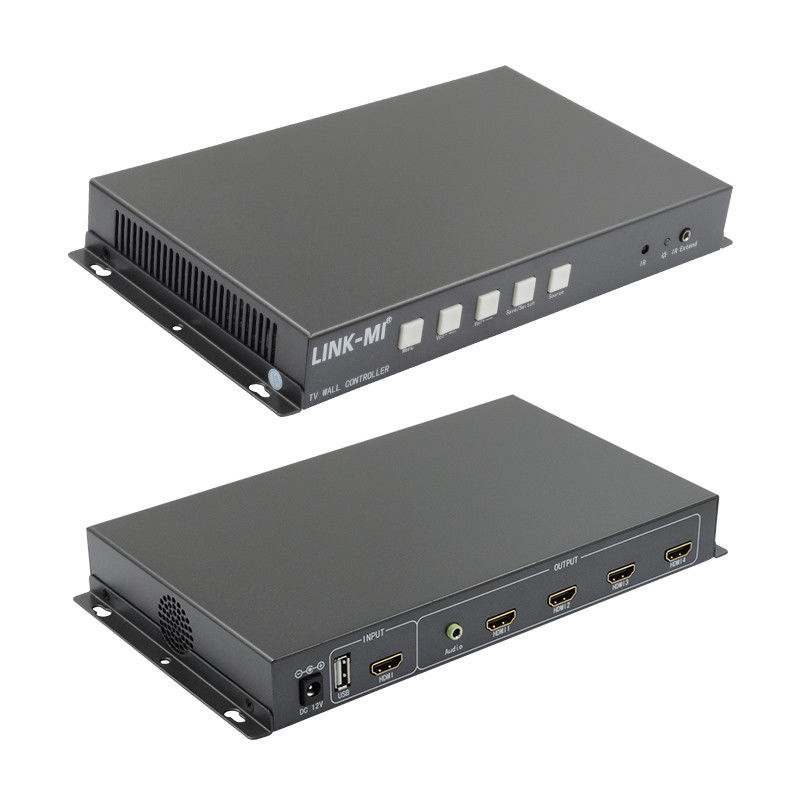

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-TV04S 2x2 Video Wall Controller.pdf
