4K 4x1 HDMI Multi Viewer UHD Video Audio Switching Seamless Switch
Introduction
LINK-MI LM-MVS02 HDMI 4x1 Multi-viewer supports four UHD screen segmentation and seamless switching. It can display 4 UHD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 UHD input signal synchronously. The control methods of the switch is flexible, it can be switched via Button and IR control. It's a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.
Features
1. Support 4x HDMI input, 1x HDMI output

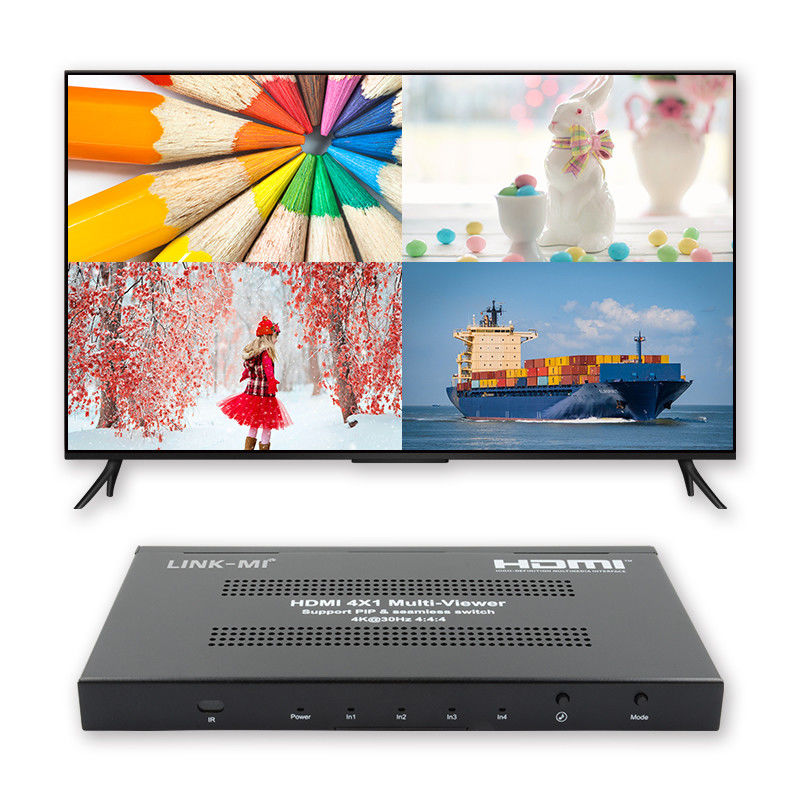

2. Support 4 channels HDMI signal screen segmentation; Four frames can be combined into more than ten modes
3. Support 4 channels HDMI signal seamless switching
4. Support Audio Switching
5. Resolution up to 4K@30Hz YUV4:4:4

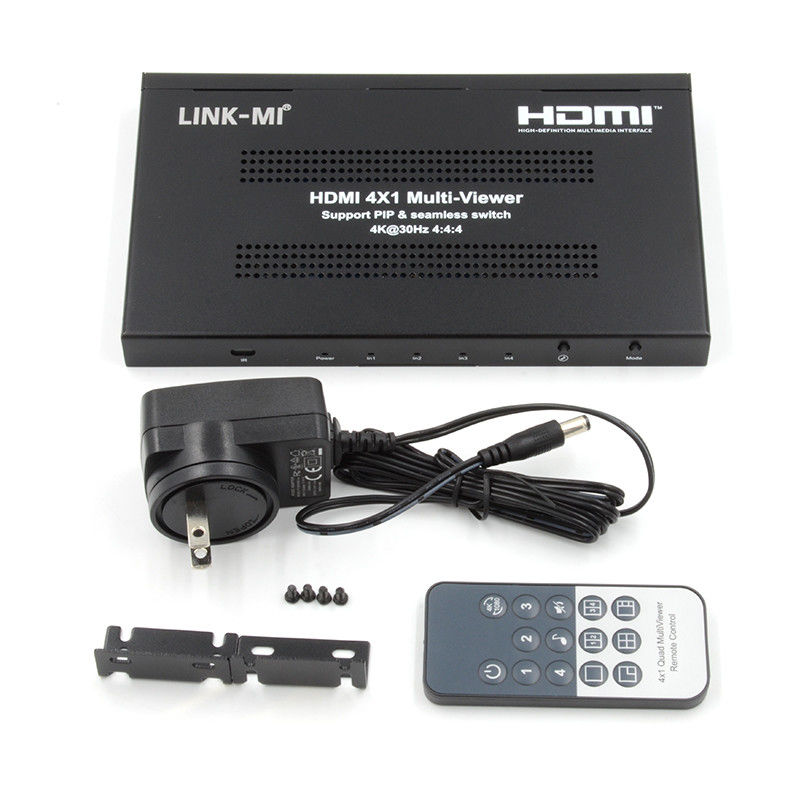

6. Support IR control and Panel Button Control
7. Support maximum audio sampling rate of 48kHZ
Specification
| Model No. |
LM-MVS02 |
| Input Ports |
4x HDMI inputs (female) |
| Output Ports |
1x HDMI output (female) |
| Bandwidth Frequency |
6.75Gbps |
| TV Resolution |
50Hz |
576i; 576P; 720P; 1080i; 1080P |
| 60Hz/59.94Hz |
480P; 720P; 1080P |
| 30/29.97/24/25Hz |
720P; 1080P; 4K/3840x2160@30Hz YUV4:4:4 |
| Audio Sampling Rate |
48kHZ |
| Transmission Distance |
Input 8m, Output 10m (Maximum) over standard HDMI cable/26AWG |
| Control Ways |
IR Remote, Panel Buttons |
| Video Switching |
13 Display Modes (4x1 Switch, 2x1/4x1...Multiviewer) |
| Audio Switching |
Switch by default 1→2→3→4→mute→1 |
| Seamless Switching |
Support |
| Operating Temperature Range |
0 to +40℃ (32 to +104℉) |
| Operating Temperature Range |
5 to 90% RH (No Condensation) |
| Power Consumption |
8W (MAX) |
| Power Supply |
DC 12V 1A |
| Dimension (LxWxH) |
190.4x113x17mm |
| Net Weight |
480g |
| Note: Specifications are subject to change without notice |
Connection Diagram

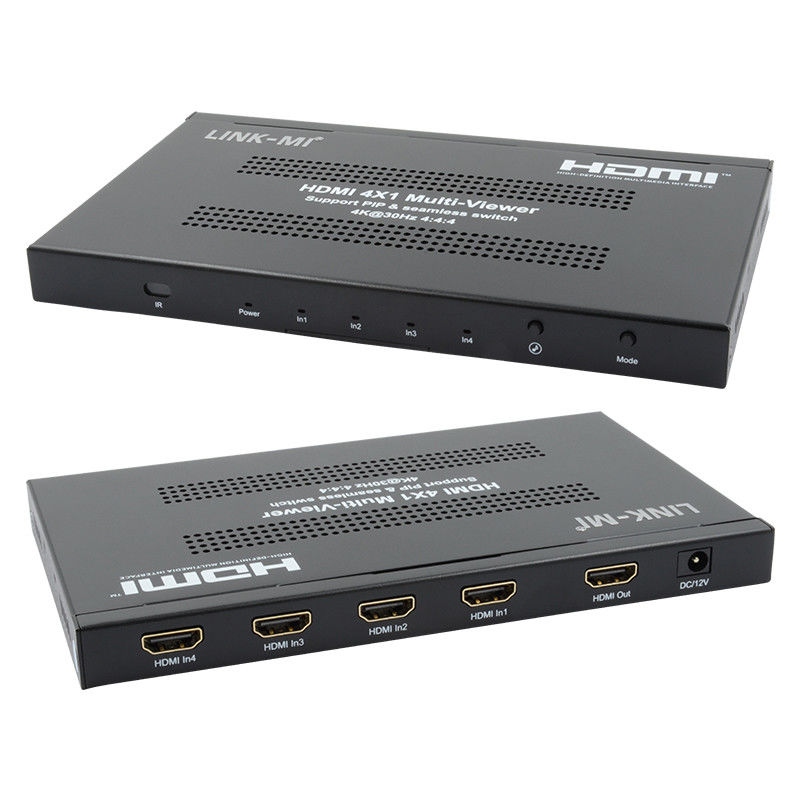

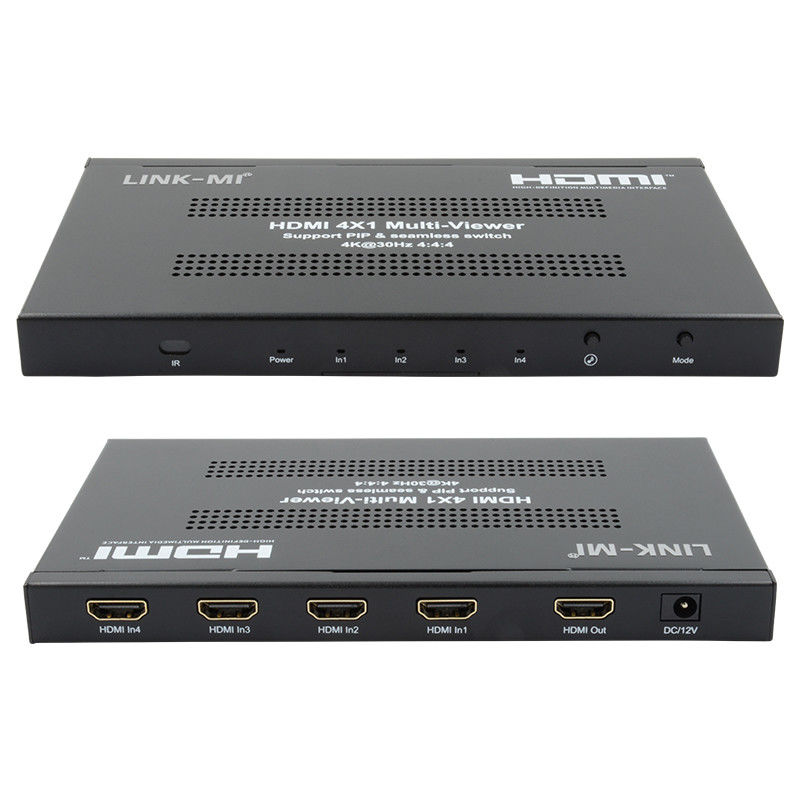

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-MVS02 4K 4x1 HDMI Multi-viewer PIP & Seamless S...
