8X1 HDMI Multi viewer Support 1080P Multiple Signal VGA CVBS Input Auto Identify Signal
Introduction

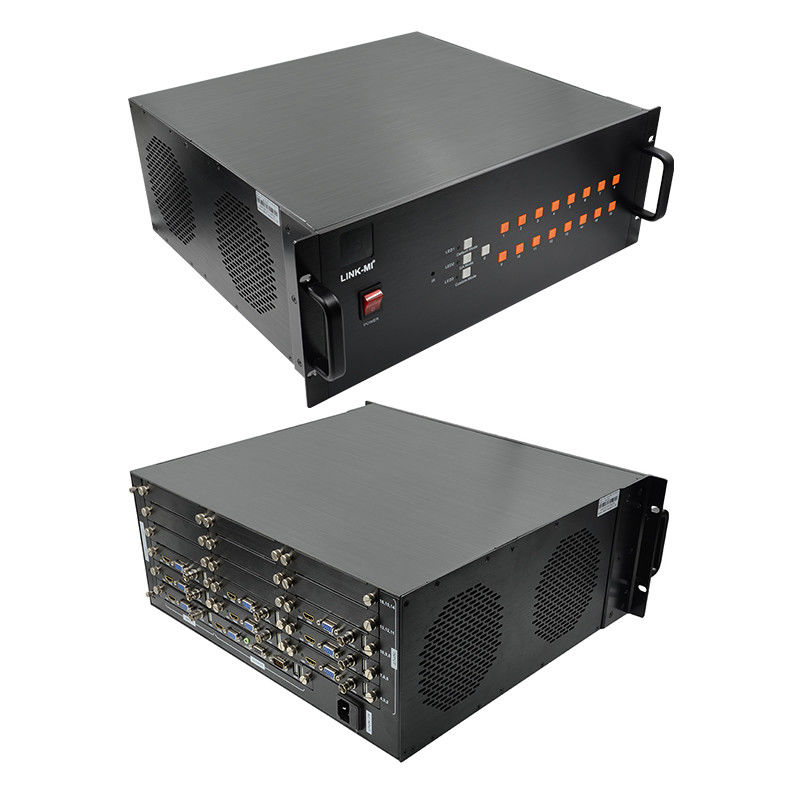

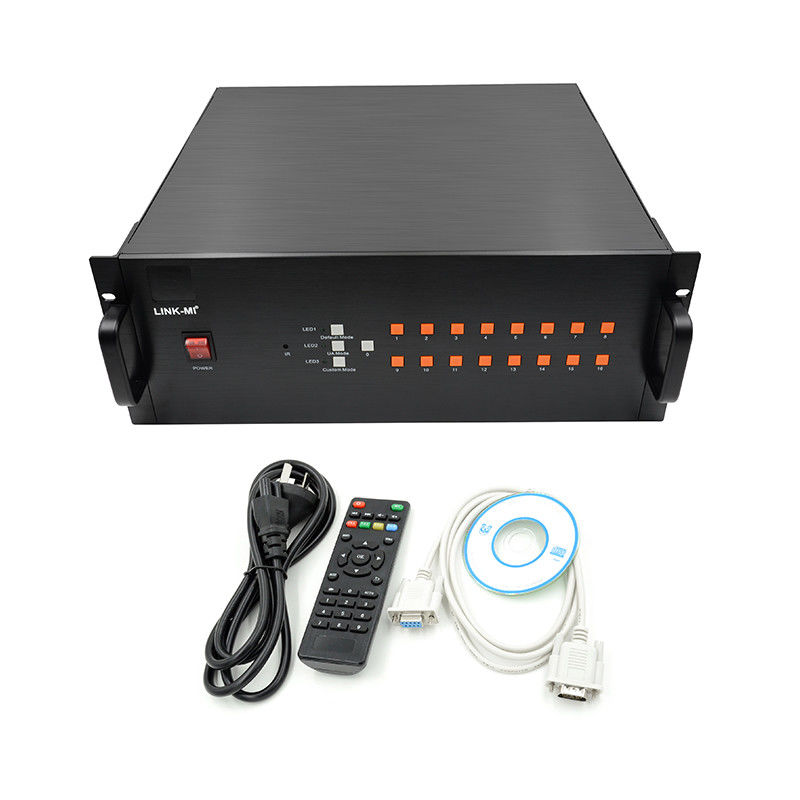

LINK-MI LM-LM-SH81 is a high-performance HD video multiplexer, the main function is to enter 8 BNC/VGA/HDMI signals into one HDMI/VGA output and make 8 signals at the same time display on a single HD displaying unit. HD video multiplexers support projectors, LCD, DLP, plasma, full-color LED displaying unit etc with high-definition interface.
Features

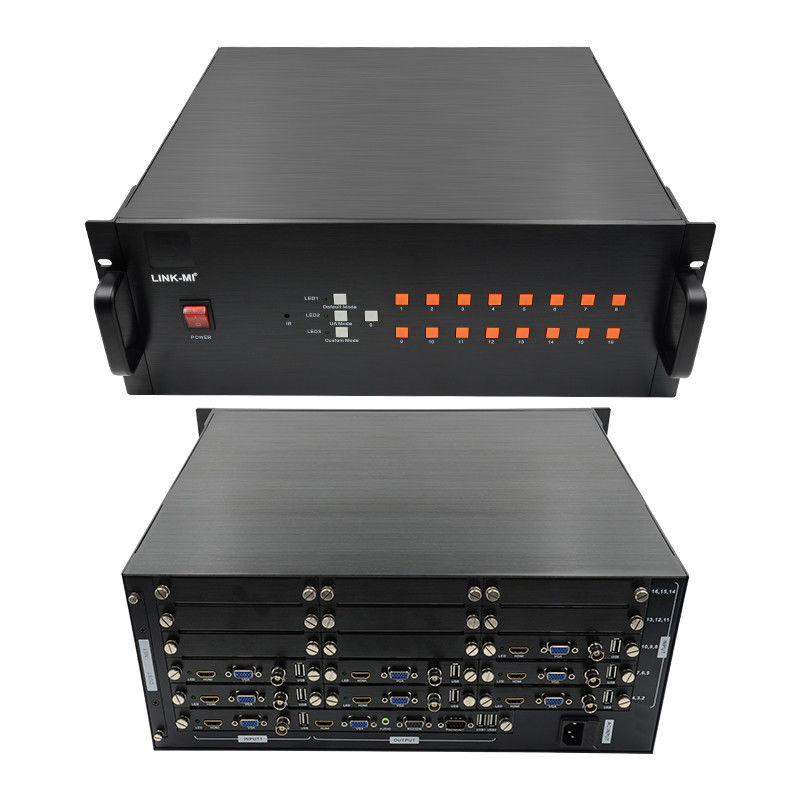

1. Input signal support 8xHDMI, 8xVGA, 8xCVBS, 8xUSB
2. Output signal support 1xHDMI, 1xVGA, 2xUSB
3. Support multiple display modes
4. Pure hardware architecture
5. Faroudja image processing technology
6. High precision sampling of the analog input signal
7. Strong data processing ability
8. Control function: remote, front buttons, RS232
9. Support a variety of formats and input and output ultra-high resolution, up to 1920x1080@60Hz
Specification
| Model No. |
LINK-MI LM-SH81 |
| Input Ports |
8x HDMI, 8x VGA, 8x CVBS 8x USB |
| Output Ports |
1x HDMI, 1x VGA |
| Control Ports |
1x RS232 |
| HDMI |
HDMI 1.0, HDCP 1.3, DVI 1.0 |
| CVBS |
NTSC, PAL or SECAM |
| Input Resolution |
Support 480I~1080P, HDMI and VGA signal support 640x480 to 1920x1080 |
| Output Resolution |
Max 1920x1080@60Hz |
| Color Depth |
24bit, 16.7M |
| Control Ways |
Panel buttons, Remote, RS232 |
| Display Modes |

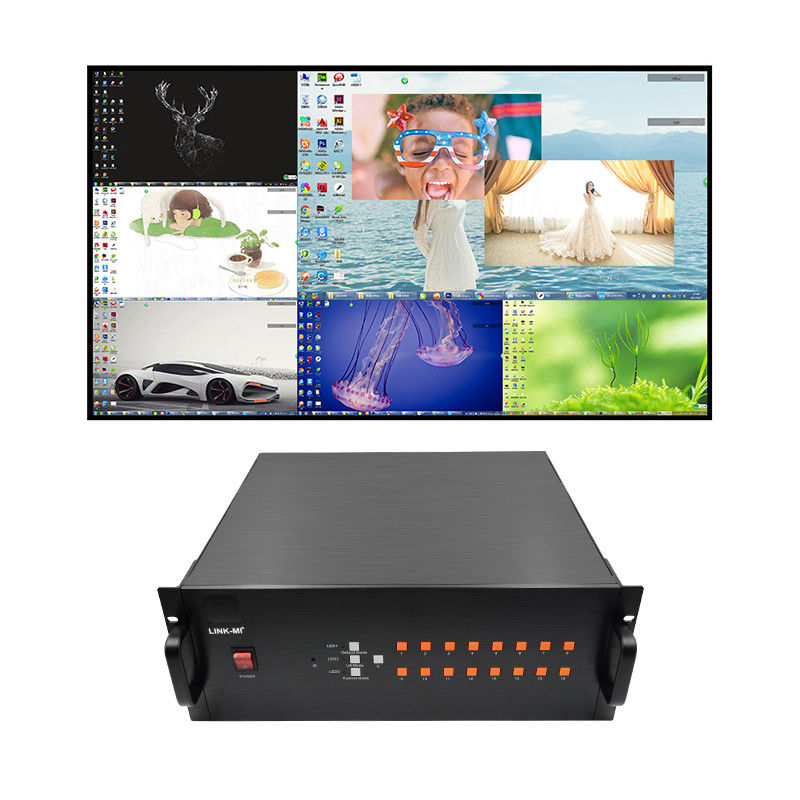

8x1, 7x1, 6x1, 5x1 4x1, 3x1, 2x1 Multi-viewer Modes or 1 signal Full Screen Display; PIP, POP, window, overlay, roam, images of any size and location Multi-viewer Modes or 1 signal Full Screen Display |
| Signal identification |
Auto identify |
| Image Adjustment |
Zoom, Move, Adjustment of brightness, contrast, transparency, color temperature... |
| Power Supply |
AC 100-240V |
| Power Consumption |
≤15W |
| Dimension |
440mm(L)x177mm(H)x403mm(W) |
| Weight |
8.2kg |
| Note: Specifications are subject to change without notice |
