HDMI 2x1 Multi-Viewer with PIP 2 in 1 out HDMI Switch
Introduction

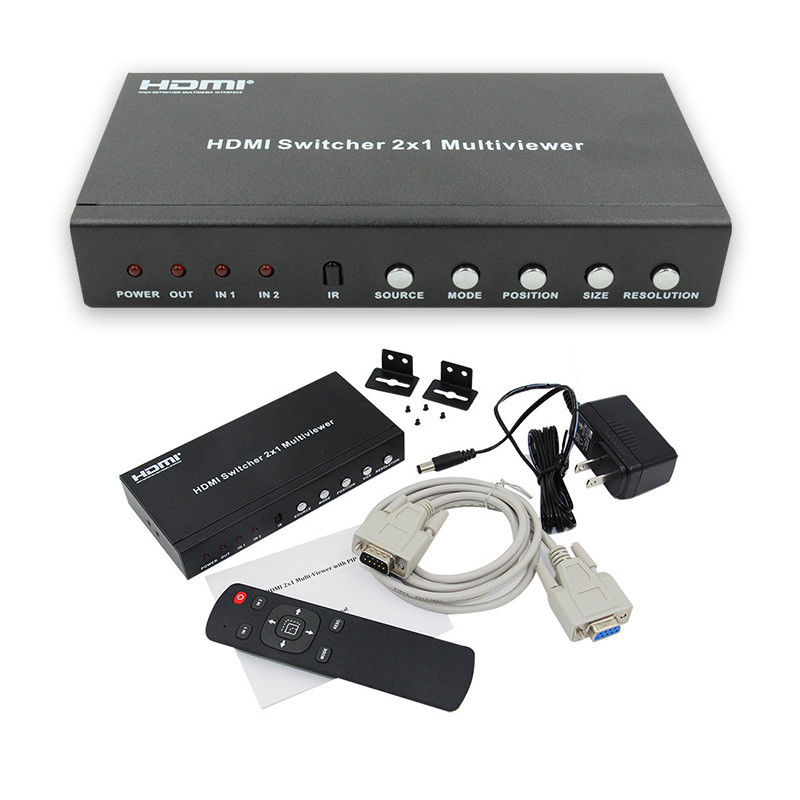

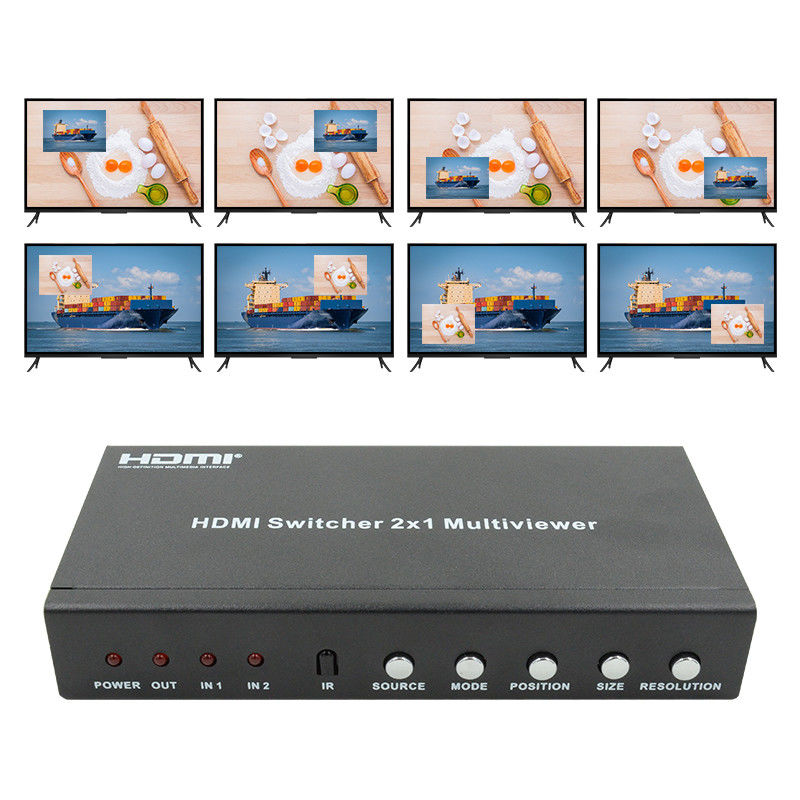

LINK-MI LM-S21R This product is a high performance 2 by 1 Multi-Viewer. It supports two High definition input source display on one screen. As a Multi-Viewer, it can display on one screen in 4 modes.
Features
1. Compliant with HDMI 1.3a,HDCP 1.2；
2. Supports multiplexed HDMI 2-input and 1-output and 4 display modes；
3. Supports up to 1080p High Definition resolution；
4. Support scaler up, scaler down function；
5. Support multi output resolution；
6. Support digital audio format LPCM/AC3/DTS
Specification
| Video Bandwidth |
225MHz[6.75Gbps] |
| Input Ports |
2 × HDMI (Female type) |
| Output Ports |
1 × HDMI (Female type) |
| Audio output |
PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 |
| Input Resolution |
480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz
1080i50/60Hz,1080p24/30/50/60Hz,800x600@60,
1024x768@60,1280x720@60,1920x1080@60
|
| Output Resolution |
1080p, 720p, 1080i,1024x768,1360x768 |
| ESD Protection |
Human Body model: ±8 kV (air-gap discharge)
±4 kV (contact discharge)
|
| Power Supply |
5V/1A DC (US/EU standards, CE/FCC/UL certified) |
| Dimensions |
70 mm (W)×140mm (D)×25 mm (H) |
| Weight |
300 g |
| Chassis Material |
Metal |
| Silkscreen Color |
Black |
| Operating Temperature |
0 °C~40 °C/ 32 °F~104 °F |
| Storage Temperature |
−20 °C ~ 60 °C/−4 °F ~140 °F |
| Relative Humidity |
20~90 % RH (non-condensing) |
| Power Consumption (Max) |
10W |
| Note: Specifications are subject to change without notice. |
Connection Diagram

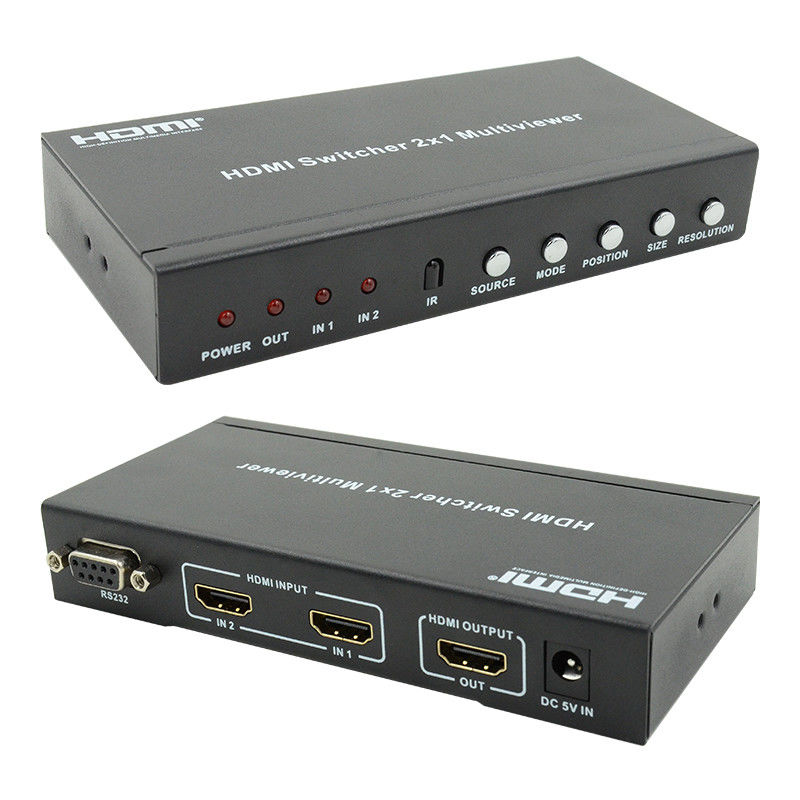

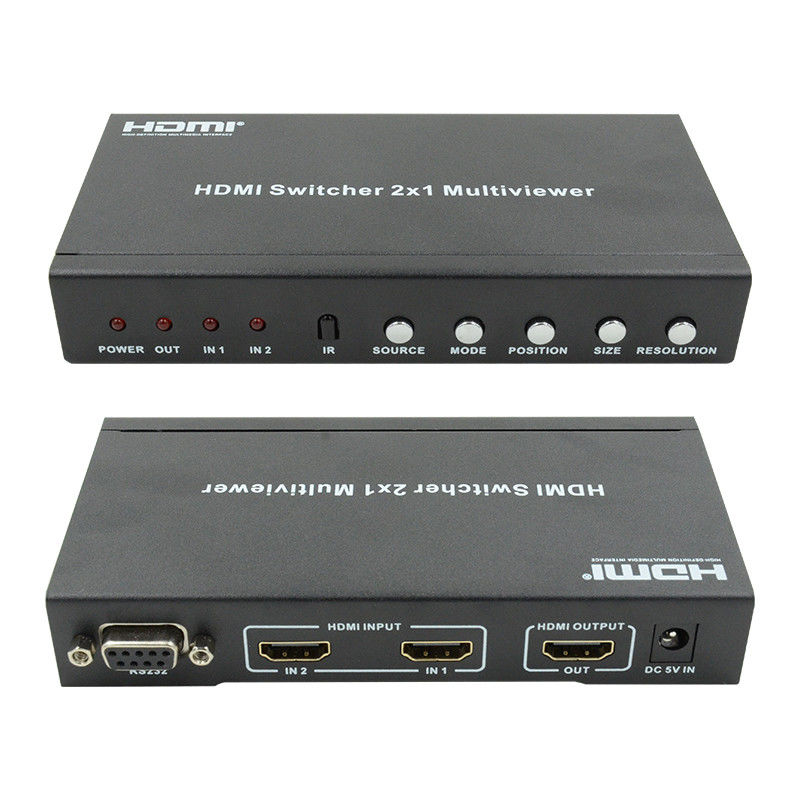

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-S21R HDMI 2x1 Multi-Viewer with PIP.pdf
