HDMI 4x1 Quad Multi-Viewer
Introduction

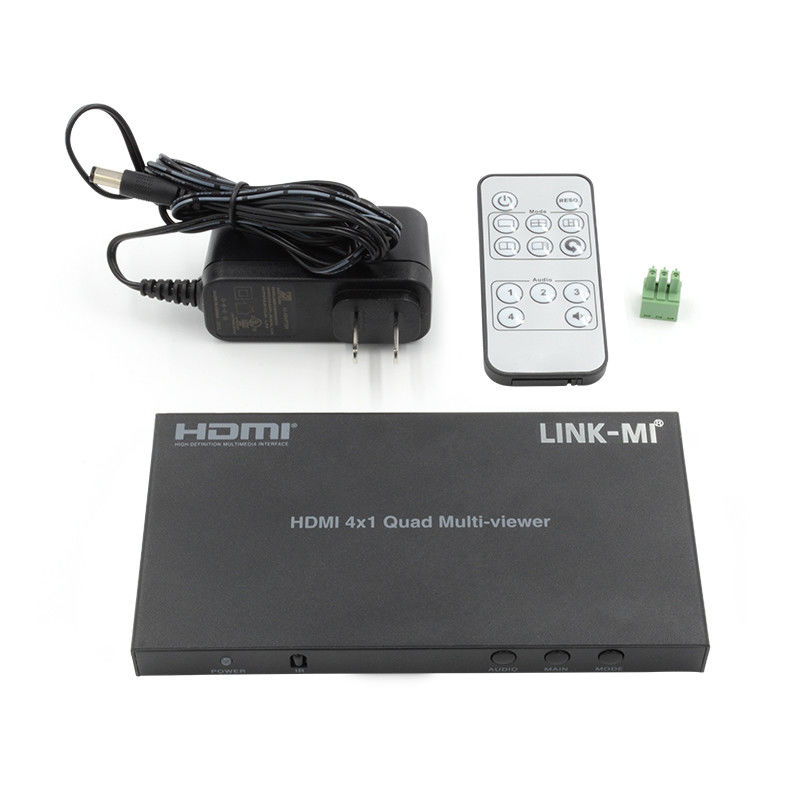

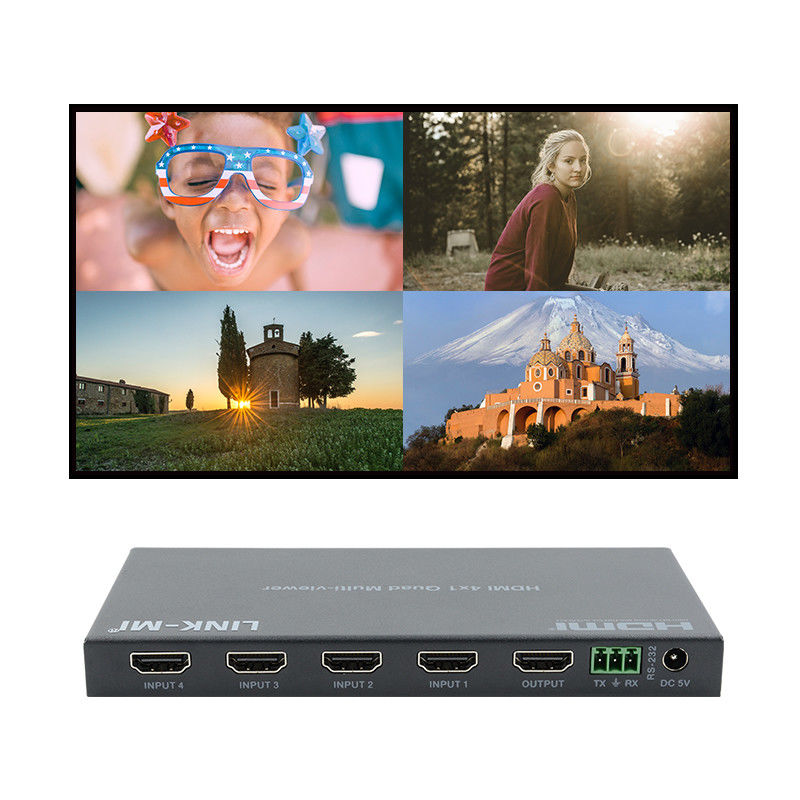

The high performance 4x1 quad multi-viewer supports four high definition input contents be displayed on one screen simultaneously, and five multi-viewer display modes can be selected. The product can be controlled via the front panel button, remote control and RS-232.
Features
1.HDMI 1.4b, HDCP 1.4 and DVI compliant
2.Video resolutions up to 1080P@60Hz
3.Audio supports LPCM 2/5.1/7.1CH, Dolby 5.1CH, Dolby True HD,DTS-HD
4.Quad multi-viewer with five display modes supported
5.Audio output can be selected come from any one of input sources
6.Button, IR remote, RS-232 control
Specification
| Model No. |
LINK-MI LM-S41R |
| Technical |
| HDMI Compliance |
HDMI 1.4b, compliant with DVI 1.0 |
| HDCP Compliance |
HDCP 1.4 |
| Video Bandwidth |
6.75Gbps |
| Video Resolutions |
1080P@60Hz, 720p@60Hz, 480P@60Hz |
| Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth |
10-bit, 12-bit |
|
HDMI Audio Formats
(Pass-through)
|
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections |
| Inputs |
4x HDMI Type A [19-pin female] |
| Output |
1x HDMI Type A [19-pin female]
1x RS-232 [3.81mm Phoenix connector]
|
| Mechanical |
| Housing |
Metal Enclosure |
| Color |
Black |
| Dimensions |
160.2mm [W] x 84mm [D] x 15.5mm [H] |
| Weight |
337g |
| Power Supply |
Input: AC100 - 240V 50/60Hz
Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
|
| Power Consumption |
6W(Max) |
| Operation Temperature |
32 - 104°F / 0 - 40°C |
| Storage temperature |
-4 - 140°F / -20 - 60°C |
| Relative Humidity |
20 - 90% RH (no condensation) |

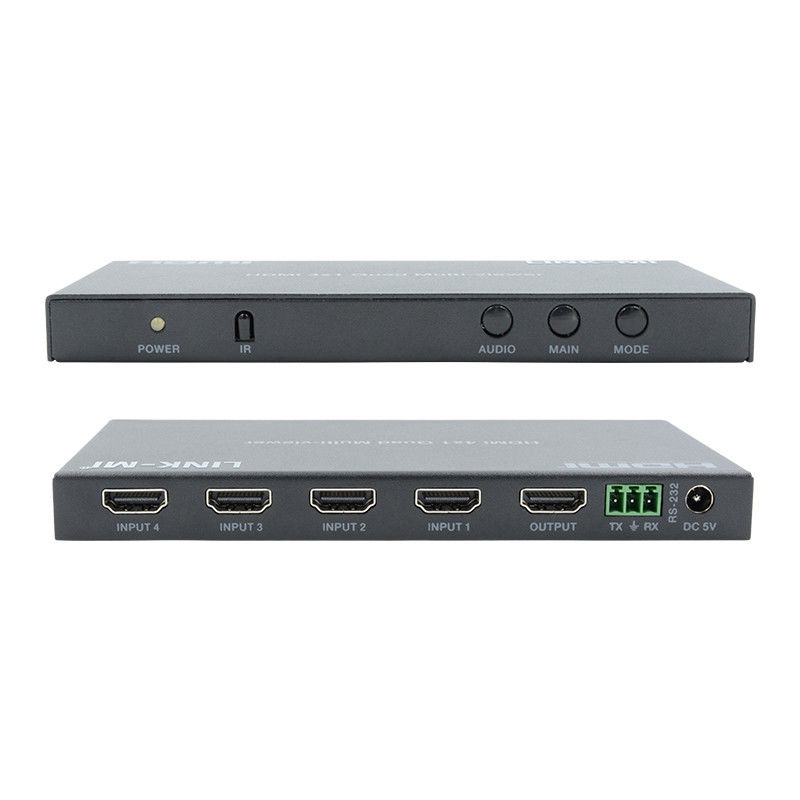

Connection Diagram

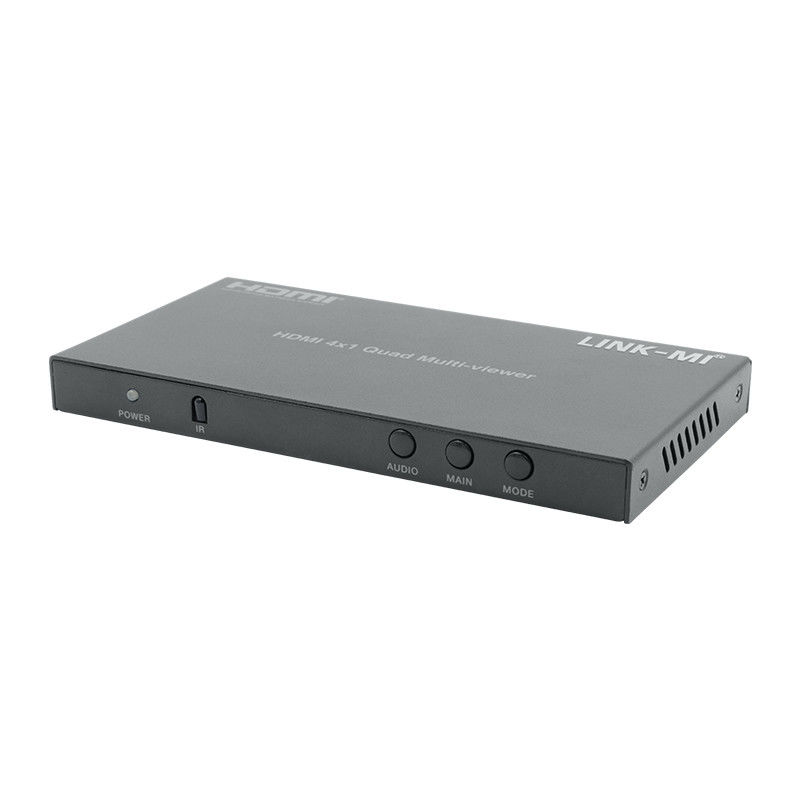

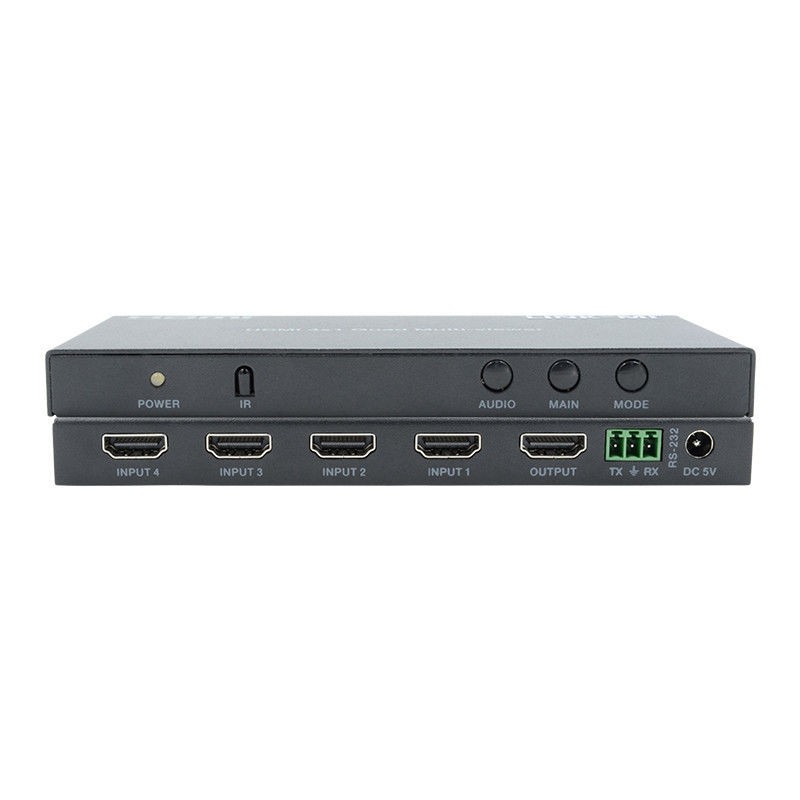

Panel Description
