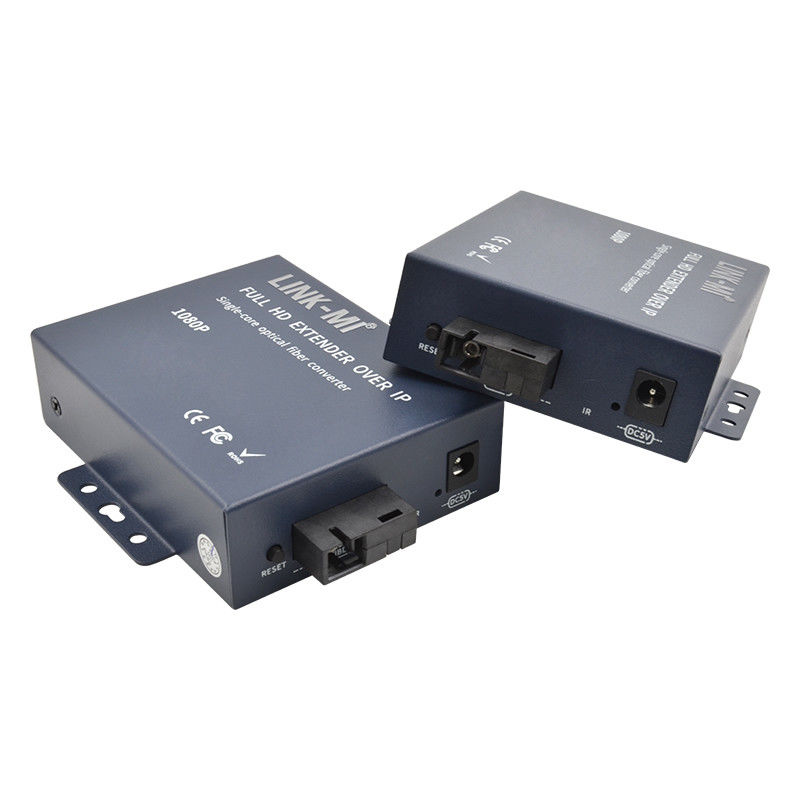

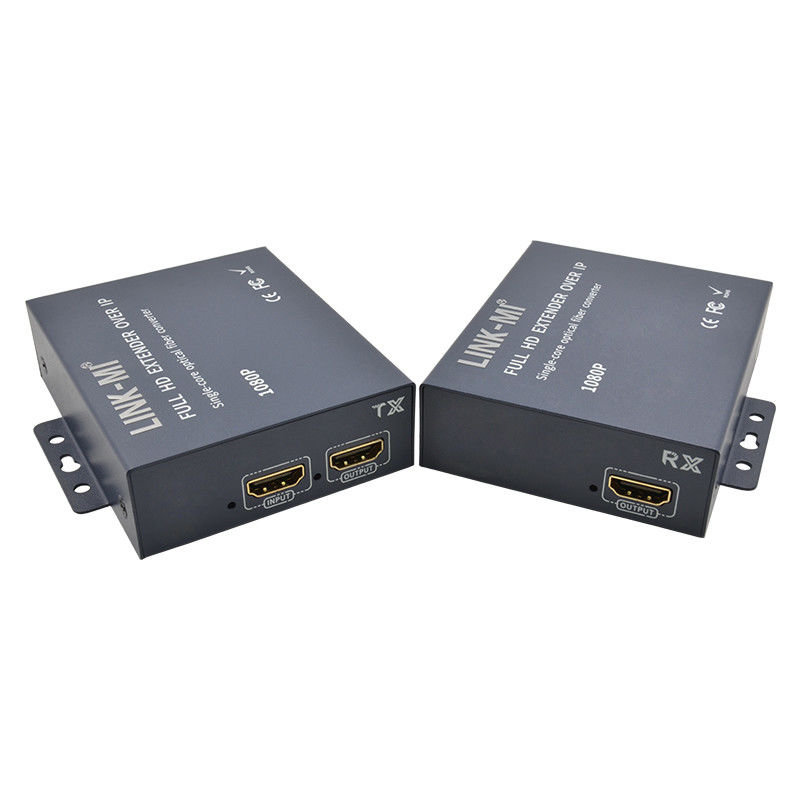

20KM HDMI Extender Over Fiber with Loop out Support 1080P SC/FC Fiber Module
Introduction
LINK-MI LM-20HF is a HDMI Extender Over Fiber. It comes with HDMI loop out. It supports 1080P and optional SC/FC Fiber Module. The standard transmission distance is up to 20KM. Longer distance can be customizable.
Features
1. Support HDCP1.4
2. Support local loop out
3. Support 20km long distance transmission
4. Optional IR function
5. Decoding Mode MJPEG
6. 802.3 Ethernet standard
7. Pure hardware design, plug and play, no additional software is required
Specification
|
Resolutions
|
480p,720p,1080p
|
|
Audio
|
Sample rate:32kHz,44.1kHz and 48kHz code l
|
|
Fiber optic interface
|
SC/FC optional
|
|
Fiber optic transmission distance
|
20KM as standard, 40KM/80KM etc. can be customized
|
|
Adapter
|
DC:5V/1A
|
|
The Max Power consumption
|
HDMI sender:3W HDMI receiver:3W
|
|
Size(L-W-H)
|
98*78*28mm
|
|
Weight
|
200g × 2
|
|
Operating Temperature/Humidity
|
0℃-45℃/10%-80%RH(no condensation)
|
|
Storage Temperature/Humidity
|
-10℃-70℃/5%-90%RH(no condensation)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

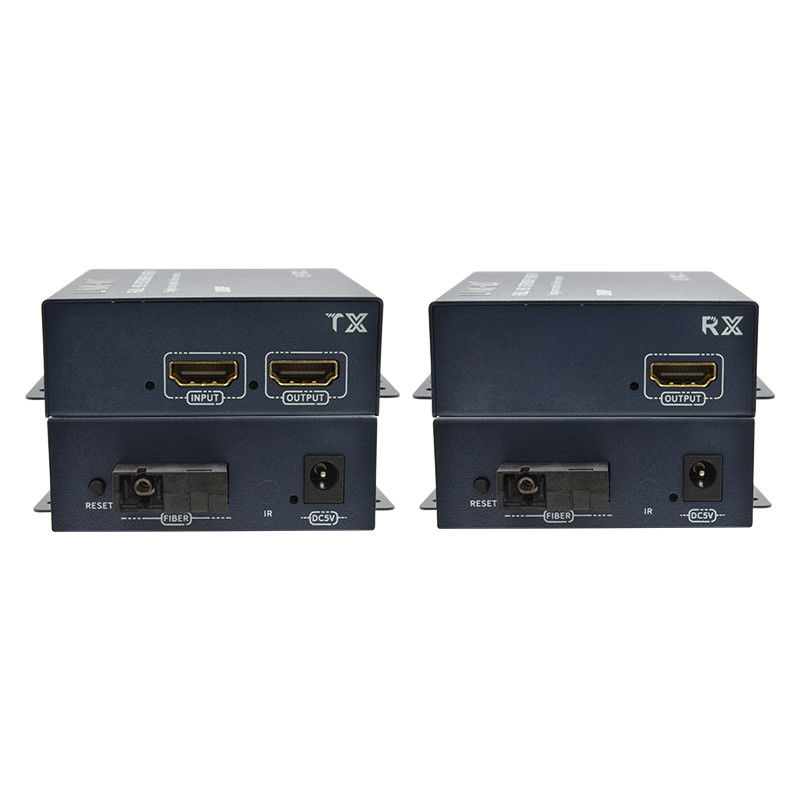

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
