4x2 HDMI Matrix Support 4K@60hz YUV4:4:4 18Gbps HDCP2.2 4 in 2 out Matrix Switch HDMI

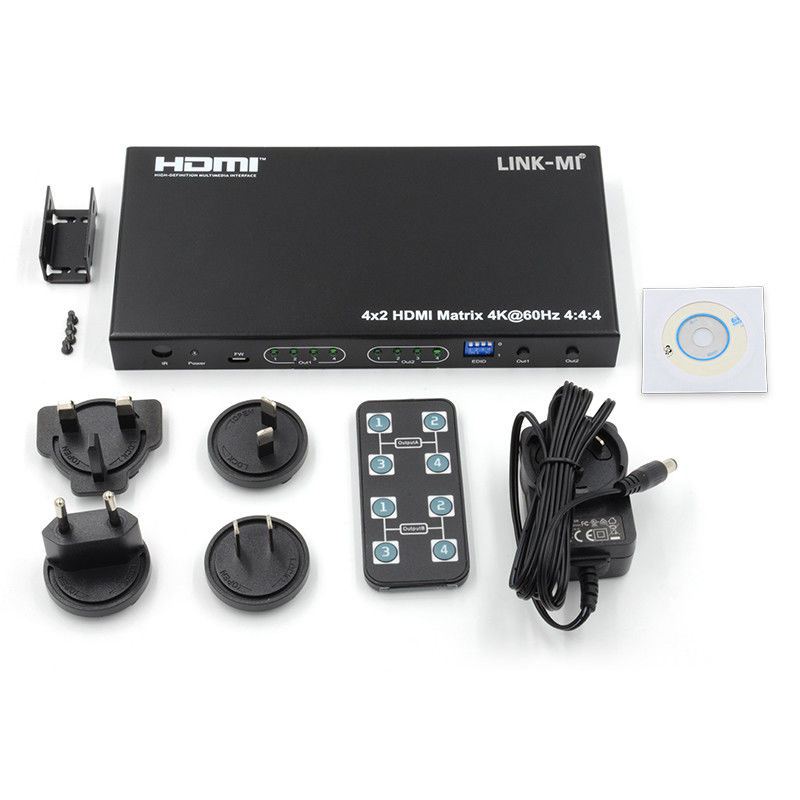

Introduction
LINK-MI LM-MX13 is a high performance HDMI Matrix with four HDMI inputs & two outputs, it allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the two displays simultaneously, and supports 4K×2K. With its 18Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution. It support panel button and IR remote control.
Features
1. 4×2 HDMI Matrix,4×HDMI Inputs,2×HDMI Output
2. HDMI 2.0 version(Support 4K@60Hz YUV4:4:4)
3. Bandwidth up to 18 Gbps
4. HDCP 2.2/HDCP1.4 compliant
5. Support Panel button,IR control
6. With micro USB port for firmware upgrade
7. Support Analog audio 2.0 extraction for HDMI output2 port
8. Support Dolby Vision and HDR10
9. Support OVP over voltage protection mode(When input voltage over DC 6V)
10. Unit size: L205XW103.8XH22mm
Specification
| Model No. |
LM-MX13 |
| Bandwidth |
18 Gbps |
| Resolution |
480p@60hz,576P@50hz,720P@60hz,
1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
| Input Video Signal |
0.5-1.0 volts p-p |
| Input DDC Signal |
5 volts p-p (TTL) |
| Input Ports |
4x HDMI |
| Output Ports |
2x HDMI |
| Analog Audio Ext port |
1x3.5mm audio jack |
| Output Video |
HDMI 2.0+HDCP1.4/2.2 |
| Output Audio |
Support PCM,analog audio 2.0(L/R)
Support DTS-HD, Dolby-HD under EDID copy mode |
| Power Consumption |
2W(Max) |
| Dimensions(WxHxD) |
L205XW103.8XH22mm |
| Net Weight |
0.61kg |
| Operating Temperature Range |
-5 to +40°C (23 to +104°F) |
| Operating Humidity Range |
5 to 90 % RH (no condensation) |
| Note: Specifications are subject to change without notice |
Connection Diagram

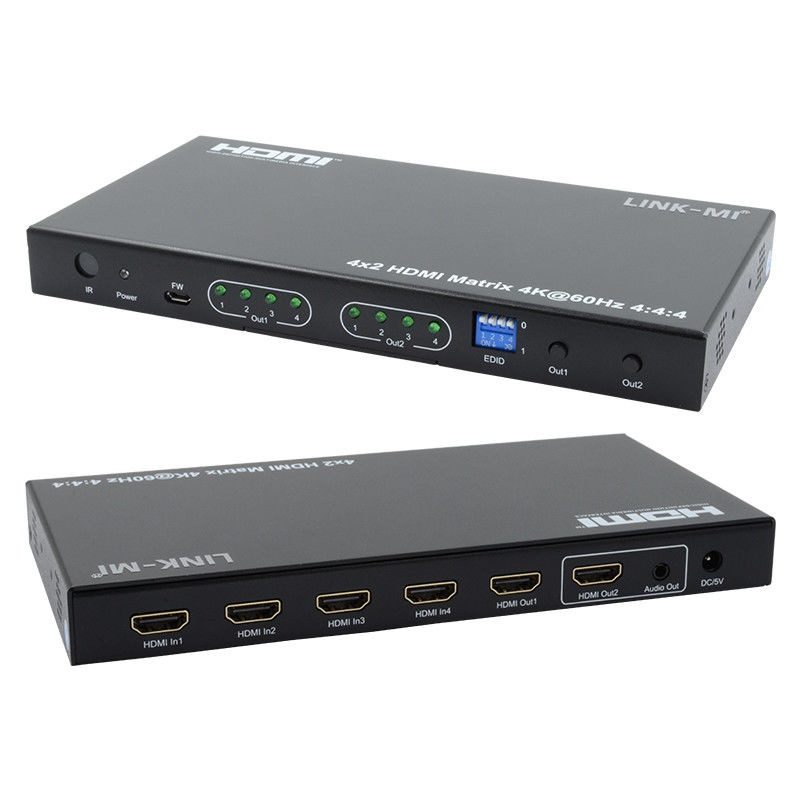

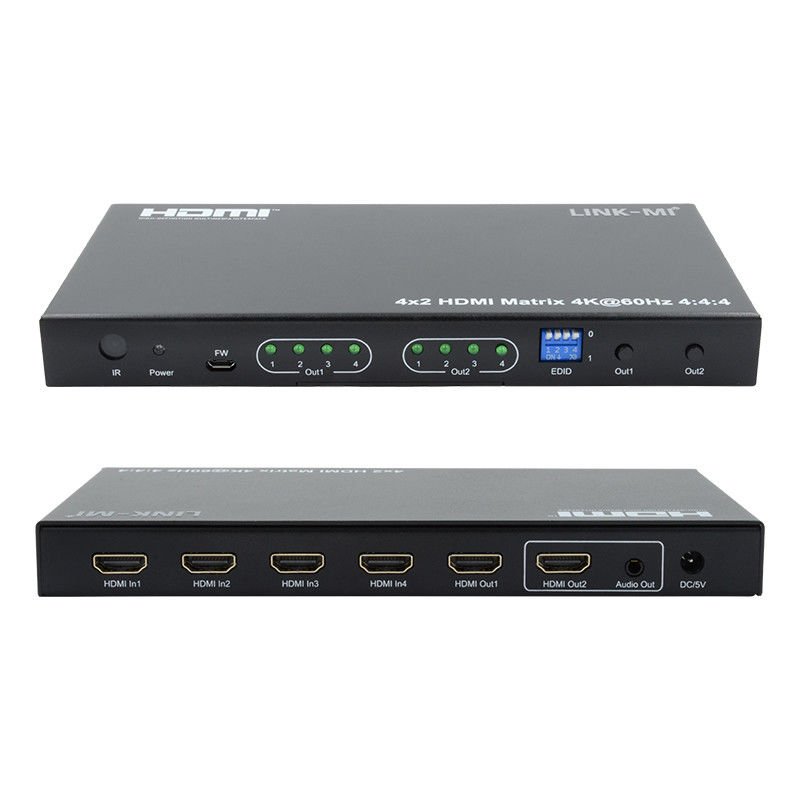

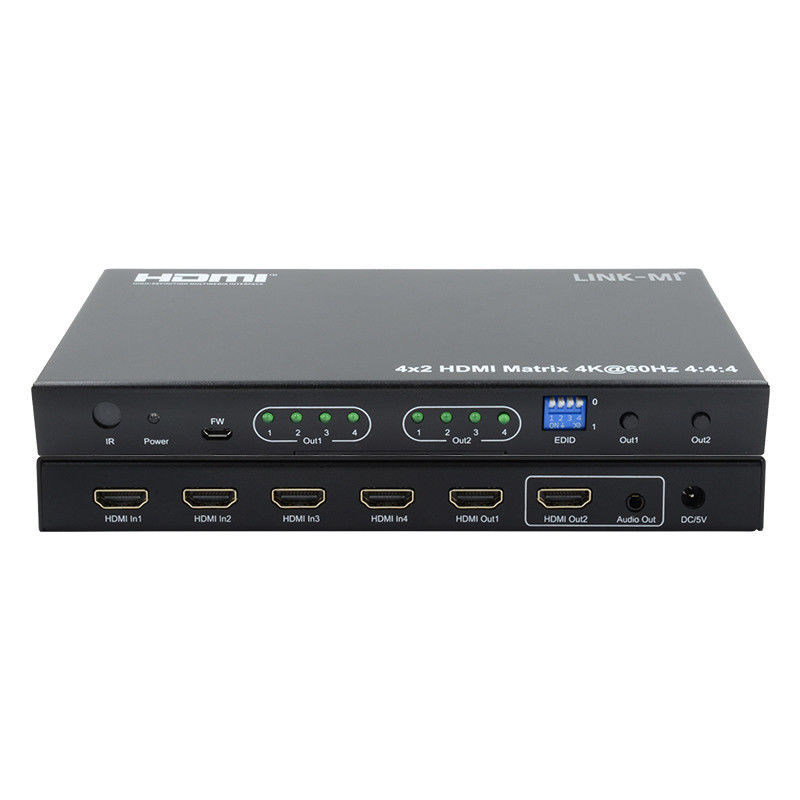

Panel Description
