4x4 HDMI Matrix Switch Support 4K@60Hz 18Gbps EDID 4 to 4 HDMI Video Switch

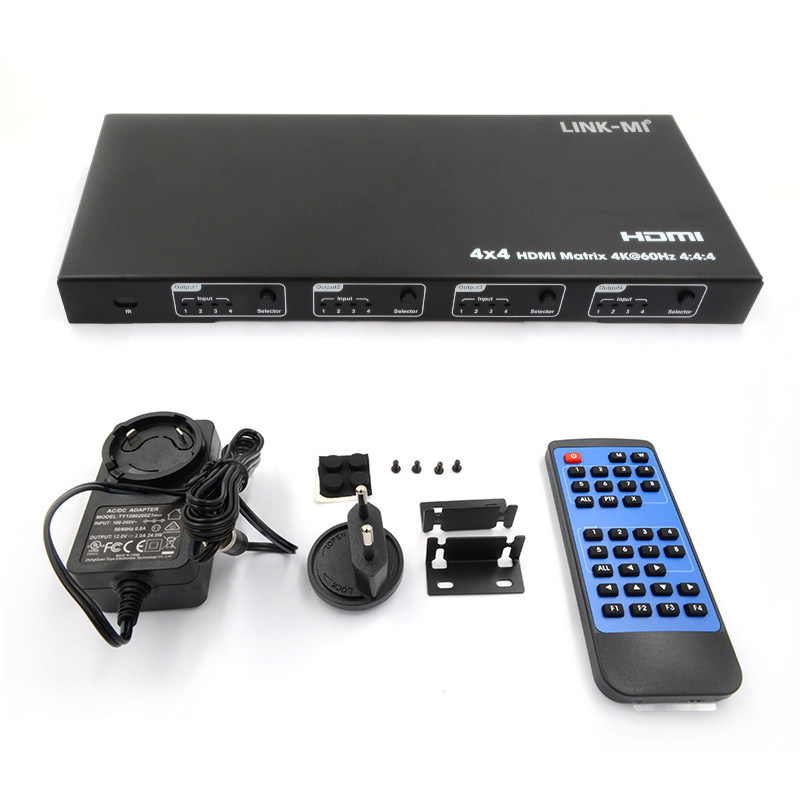

Introduction
LINK-MI LM-MX14 is a 4x4 HDMI Matrix Switch which support 4K@60Hz YUV4:4:4, 18Gbps, HDCP2.2. It comes with many functions like EDID management, downscaler, firmware upgrade...etc.
Features
1. 4x4 HDMI Matrix, 4x HDMI Inputs, 4x HDMI Outputs
2. Support upto 4K@60Hz YUV4:4:4 8bit
3. Bandwidth up to 18 Gbps
4. HDCP 2.2 / HDCP1.4 compliant
5. Support Panel button, IR remote control
6. Support Micro USB port for firmware upgrade
7. Support HDR10, HDR, Dolby vision, deep color upto 12bit
8. Support LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X
9. Support EDID management(Copy EDID,Build-in EDID)
10. Support 4K60Hz input downscaler to 1080p
Specification
| Model No. |
LM-MX14 |
|
Bandwidth
|
18 Gbps
|
|
Resolution
|
480p@60hz,576P@50hz,720P@60hz,
1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
|
|
Operating Temperature Range
|
0 to +40°C (32 to +104°F)
|
|
Operating Humidity Range
|
5 to 90 % RH (no condensation)
|
|
Input Video Signal
|
0.5-1.0 volts p-p
|
|
Input DDC Signal
|
5 volts p-p (TTL)
|
|
Support
|
HDR10,HDR,Dolby vision
|
|
Deep color
|
8bit,10bit,12bit
|
|
Output Video
|
HDMI 2.0+HDCP1.4/2.2
|
|
Output Audio
|
Support LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X
|
|
Dimensions(WxHxD)
|
L239.2XW105.8XH20mm
|
|
Net Weight
|
0.76 kg
|
|
Power consumption
|
12.3W(Max)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

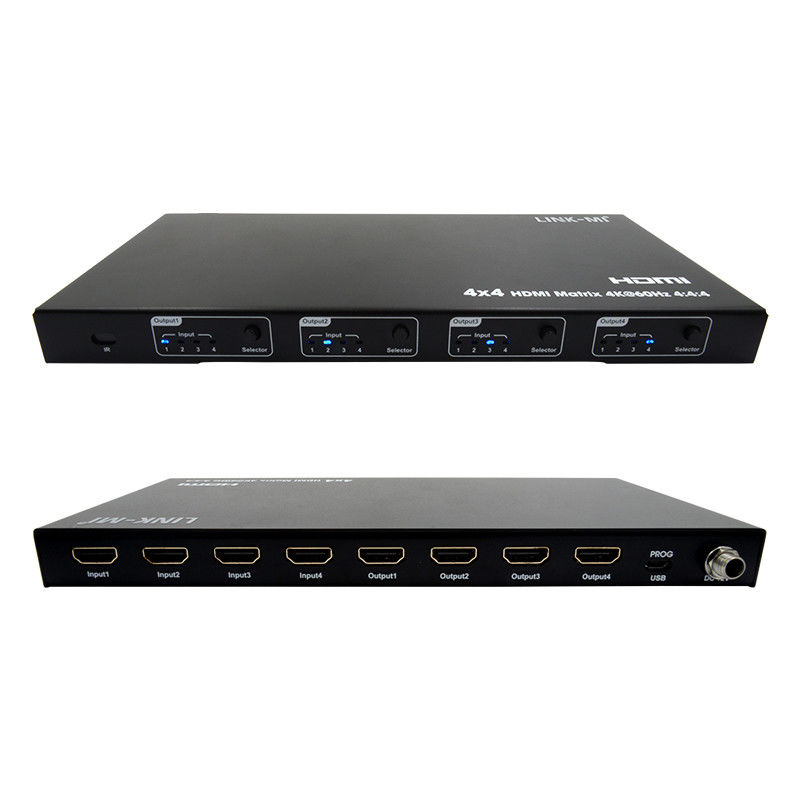

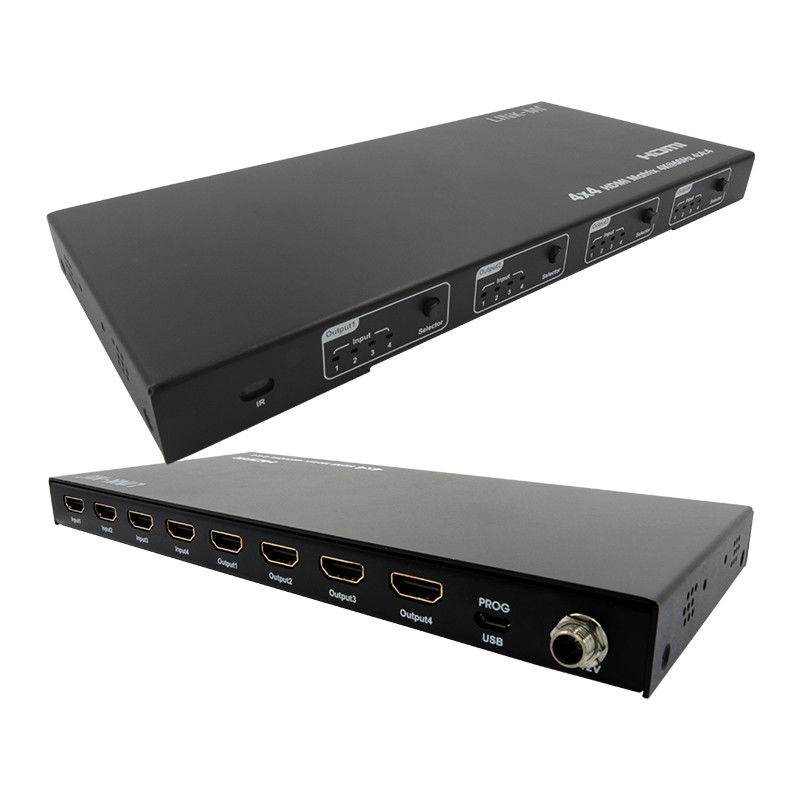

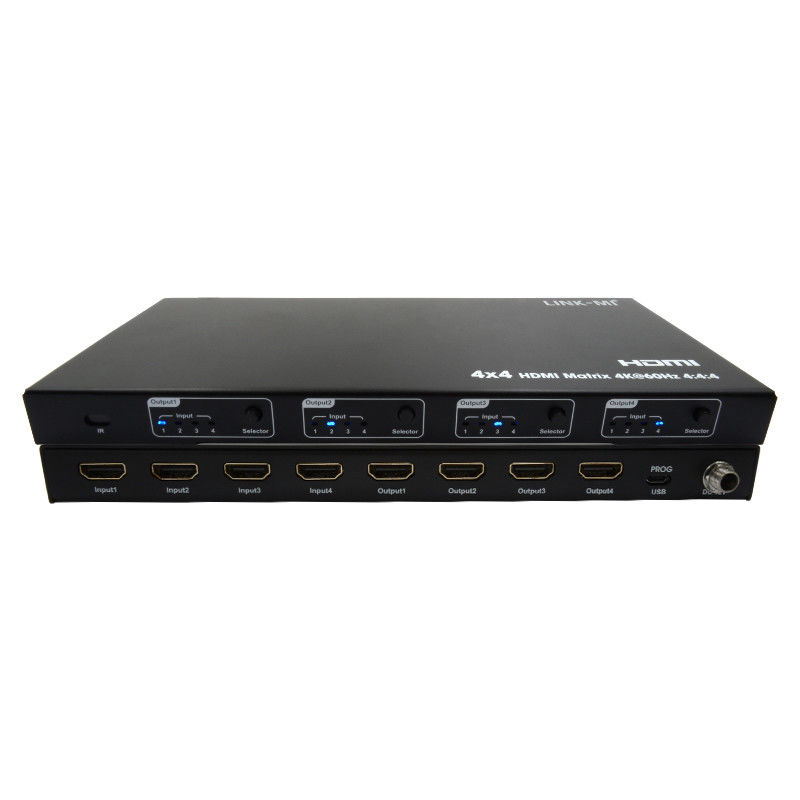

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-MX14 4x4 HDMI2.0 Matrix Support 4K@60hz YUV444,...
