70m 4x4 HDMI Matrix Extender with 4 HDMI loop out 4K HDMI Matrix Switch

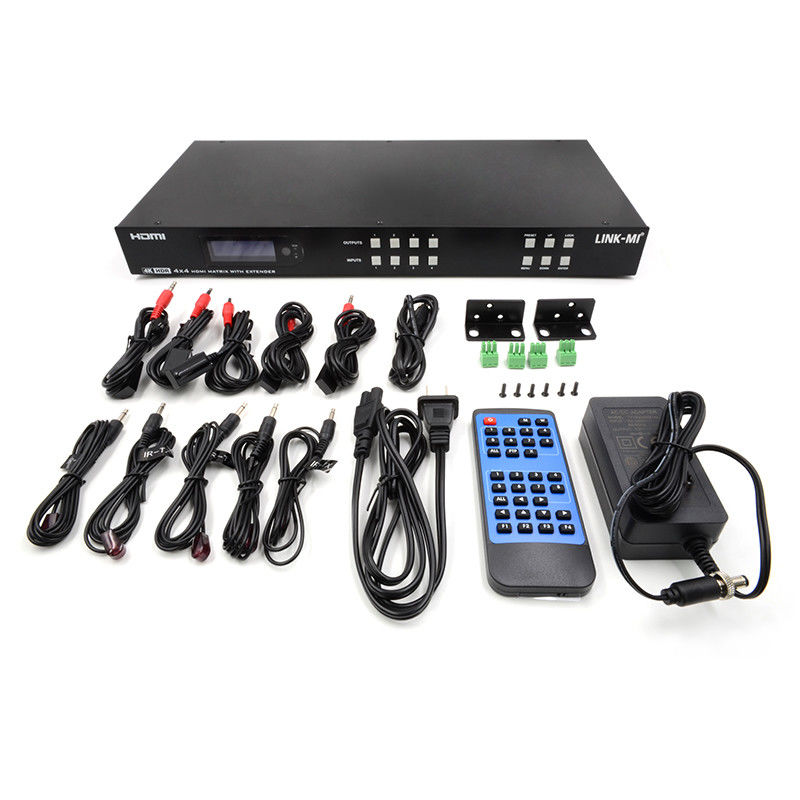

Introduction
LINK-MI LM-MX19 is a 70m 4x4 HDMI 2.0 Matrix Extender with 4 HDMI loop out. It supports 4x Analog audio extraction and 4x SPDIF audio extraction. It supports resolution up to 4K60Hz, 18Gbps.
Features
1. 4x HDMI input and 4x Ethernet output with 4x HDMI Loop out
2. HDMI 2.0 version support 4K@60Hz YUV4:4:4, 8bit, 18G, HDR-HLG
3. Extending 4K60Hz video signal to distances up to 70m over single Cat6 Ethernet cable
4. HDCP 2.2/1.4 compliant
5. With wide-band Bi-Direction IR routed control(38~56KHz)
6. Support 4x Analog Audio extraction (3pin phoenix port)
7. Support 4x SPDIF Audio extraction output
8. Support Panel Button with LCD, IR Remote control, RS232 Control, TCP/IP Control
9. Includes smart EDID management
10. Support Micro USB for FW updating
Specification
| Model No. |
LM-MX19 |
|
Operating Temperature Range
|
-5 to +40°C(23 to +104 °F)
|
|
Operating Humidity Range
|
5 to 90 % RH (no condensation)
|
|
Input Video Signal
|
0.5-1.0 volts p-p
|
|
Input DDC Signal
|
5 volts p-p (TTL)
|
|
Bandwidth
|
18Gbit/s
|
|
HDCP Compliant
|
HDCP2.2 and HDCP 1.4
|
|
Video Format Supported
|
4K@60Hz,YUV4:4:4 8bit4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i |
|
Output Video
|
HDMI 2.0 Version
|
|
Audio Format Supported
|
PCM, Dolby5.1, DTS5.1 digital audio
|
|
Maximum Transmission Distance
|
70m
|
|
Power Consumption
|
45 watts (Max.)
|
|
Dimensions
|
Matrix: L438 x W394 x H44 mm
Receiver: L110.2xW68.3xH18 mm
|
|
Mass (Main Unit)
|
3 KG
|
| Note: Specifications are subject to change without notice |
Connection Diagram

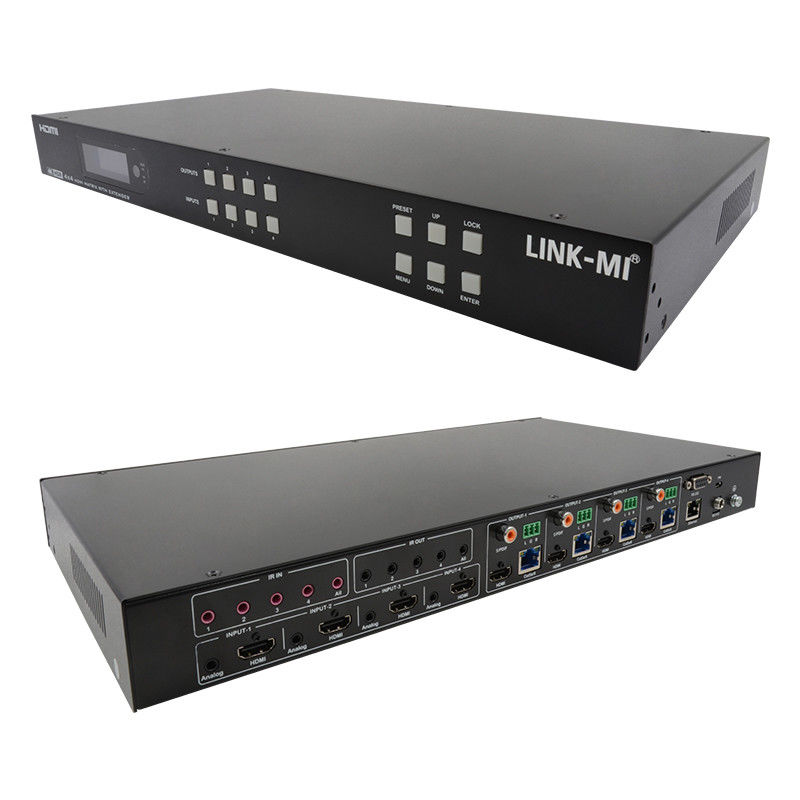

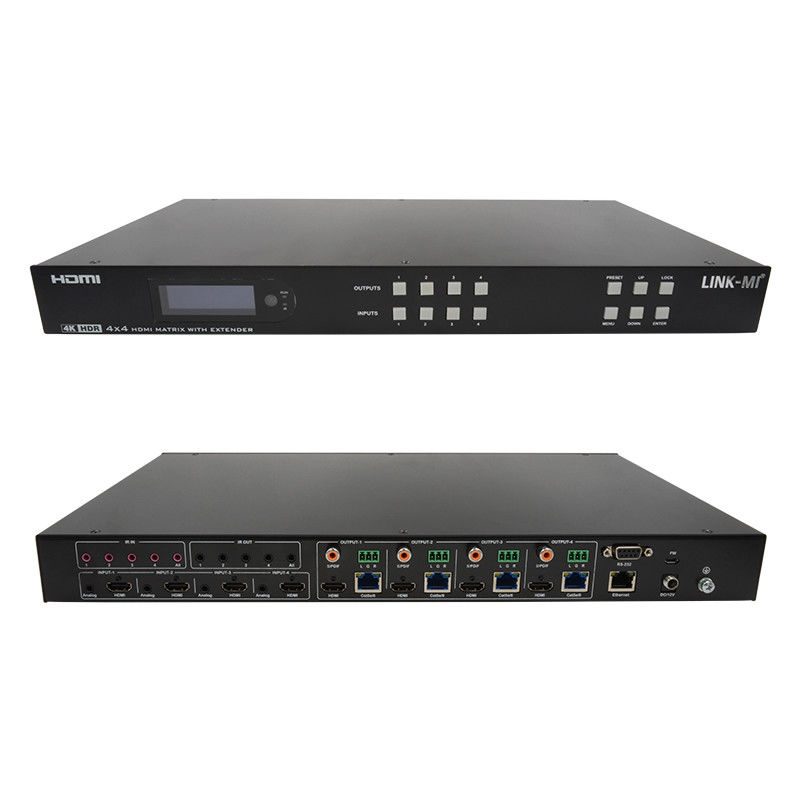

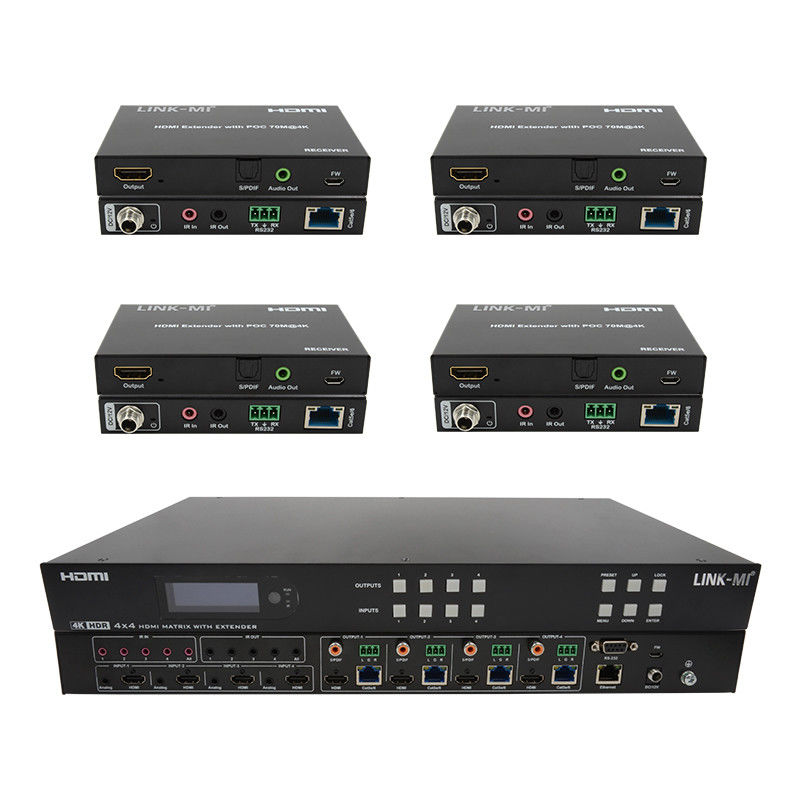

Panel Description
