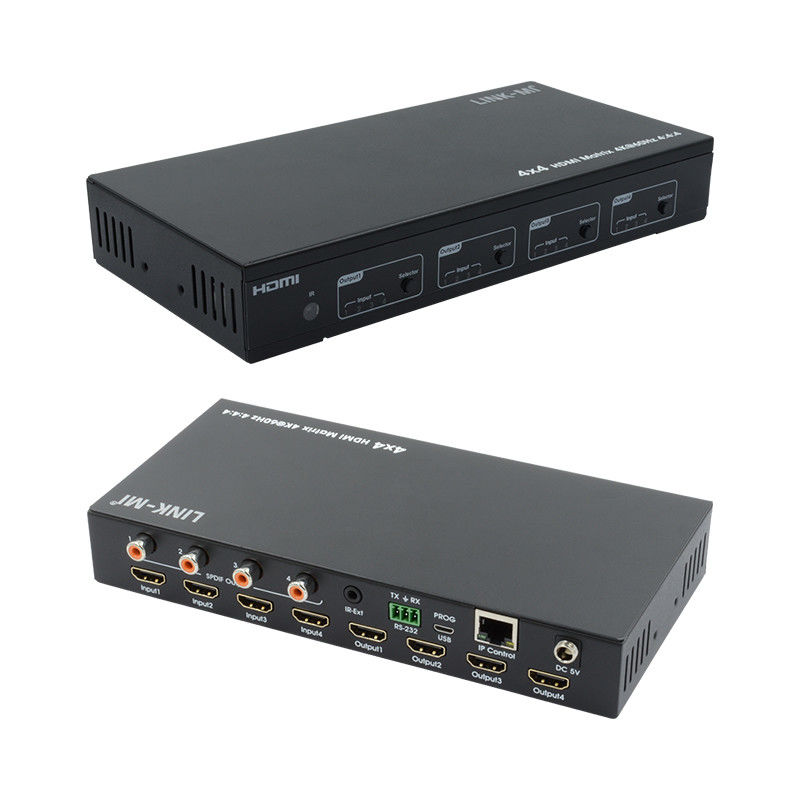

4X4 HDMI Matrix Switcher 4K60Hz with SPDIF Audio AV Matrix for 4 Ultra HD Displays
Introduction
LINK-MI LM-MX09B is a high performance HDMI Matrix with 4 HDMI inputs and 4 HDMI outputs, it allows any source (Blue-Ray player, HD DVD player...etc.) to be shown on the any of the 4 displays simultaneously, and supports HDMI 2.0, 4K@60Hz, HDR10.
Features
1. HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2. Bandwidth upto 18Gbps
3. HDCP2.2 input ,HDCP2.2 output
4. HDCP1.4 input, HDCP1.4 output
5. Support HDR10
6. 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
7. Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
8. Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
9. Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode
10. Support firmware updating through USB port
Specification
| Model No. |
LM-MX09B |
| Resolution |
480p@60hz,576P@50hz,720P@60hz,
1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
| HDCP Compliant |
HDCP2.2 and HDCP1.4 |
| Output Video |
HDMI2.0 and HDMI 1.4 |
| Audio Format Supported |
PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos |
| RS-232 serial port |
3PIN terminal block connectors |
| Ethernet port (IP control) |
RJ45, female |
| IR Ext port |
1x3.5mm stereo jack |
| USB port |
Micro 5P female |
| Bandwidth |
18 Gbps |
| Default IP |
192.168.1.168 |
| Rack-Mountable |

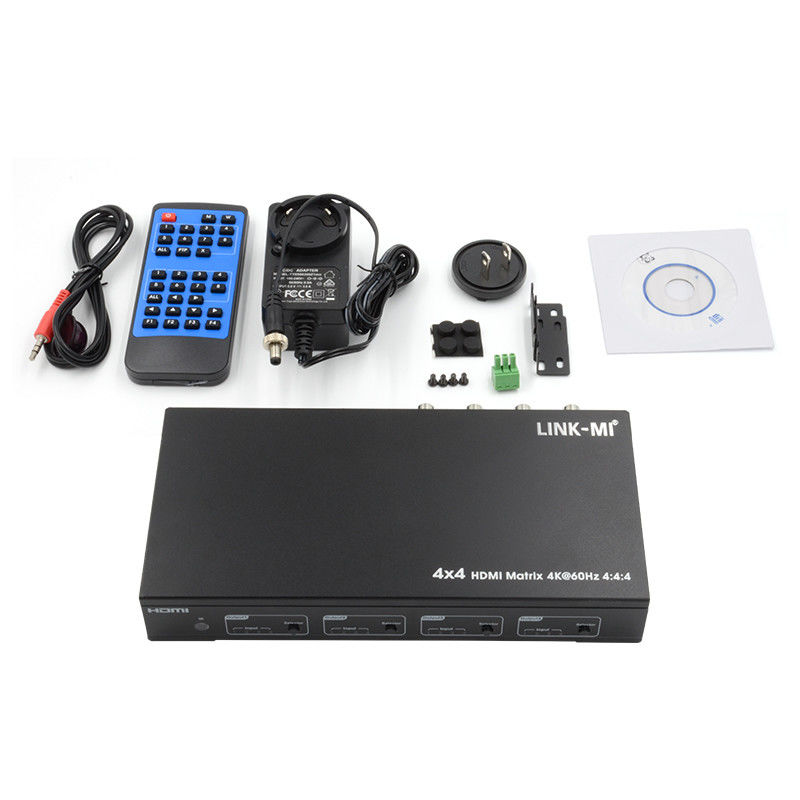

Rack ears included |
| Net Weight |
0.72kg |
| Power consumption |
13W(Max) |
| Dimensions(WxHxD) |
L216XW105XH34mm |
| Operating Temperature |
23°F to 113°F (-5°C to 45°C) |
| Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
| Note: Specifications are subject to change without notice |
Connection Diagram

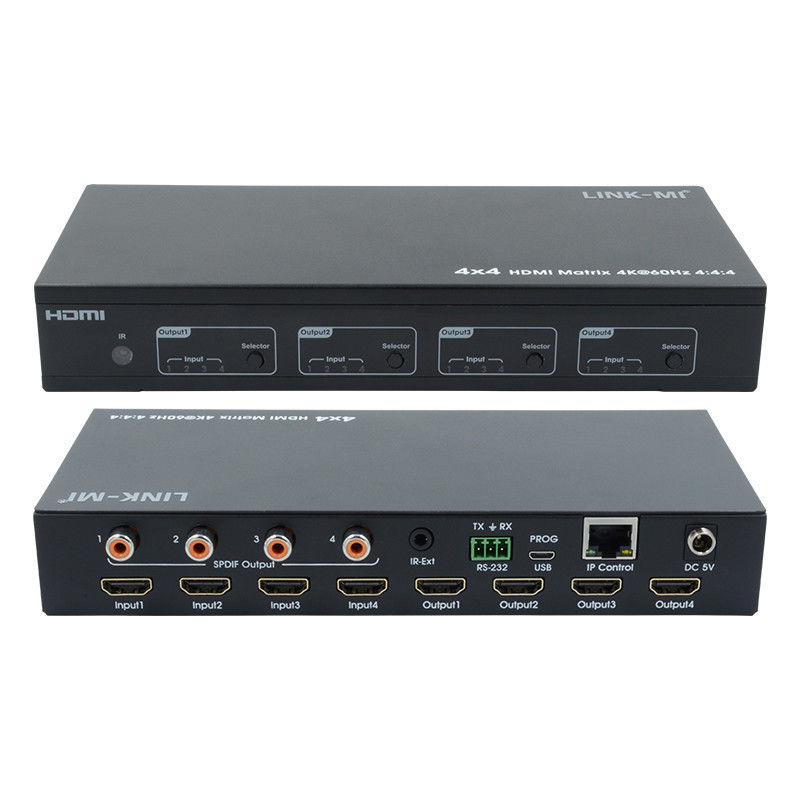

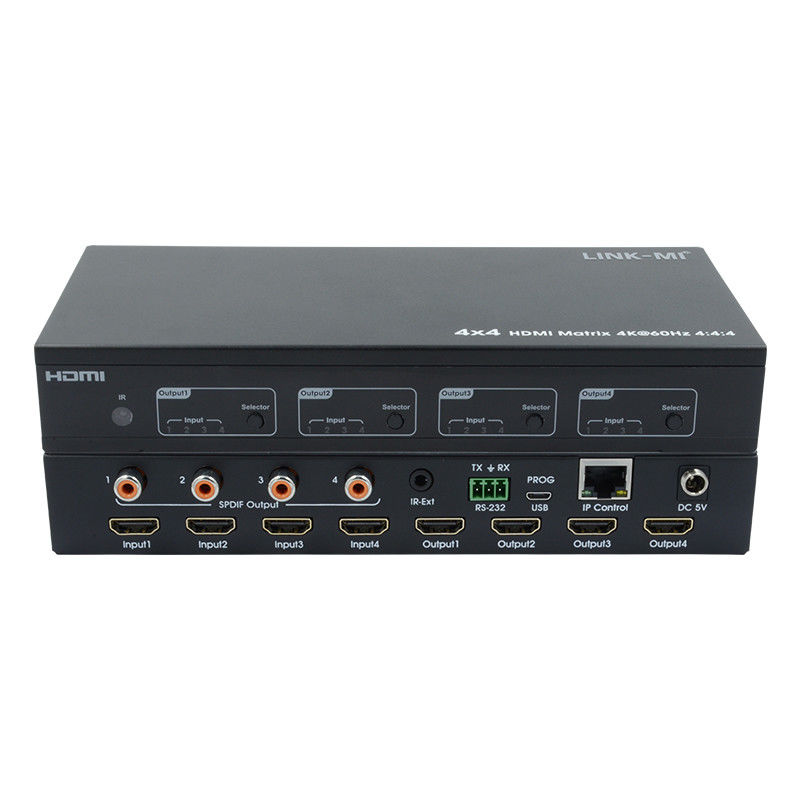

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-MX09B 4x4 HDMI 2.0 Matrix 4K@60Hz, 18Gbps, HDR....
