4X1 HDMI 2.0 Switch 4K@60hz YUV4:4:4 18Gbps support ARC, CEC, HDR
Introduction

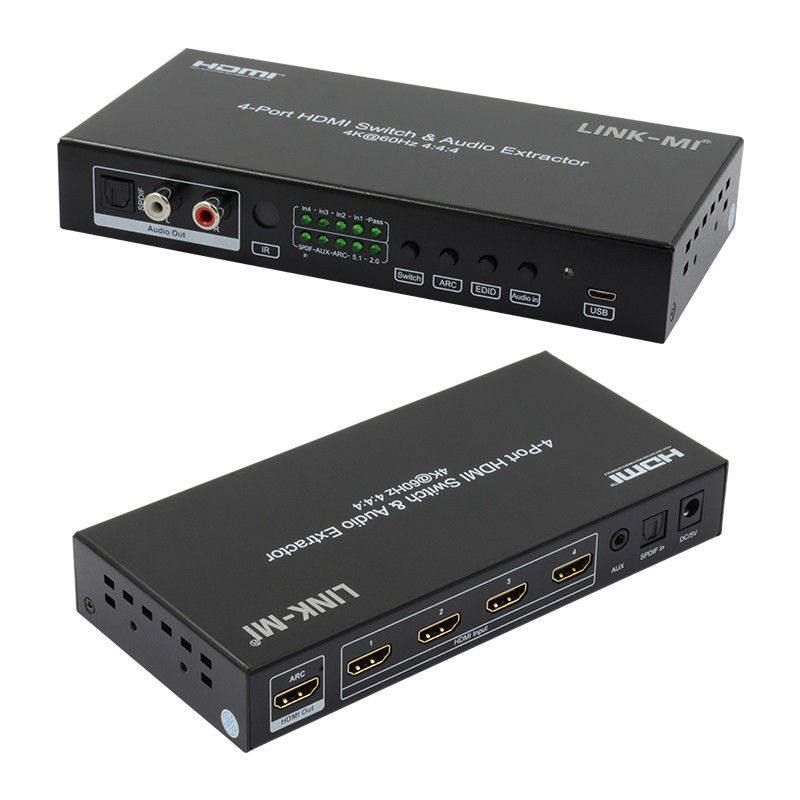

LINK-MI LM-SW07 4X1 HDMI 2.0 Switch 4K@60hz YUV4:4:4 18Gbps support ARC, CEC, HDR
Features
1. HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2. Bandwidth upto 18Gbps
3. HDCP2.2 , CEC,ARC
4. Support HDR10
5. Support 4xHDMI in, IR or switch button to choose source out
6. Support output with audio extraction,RCA2.0 SPDIF 5.1
7. Support audio mixing,Aux 2.0, SPDIF 5.1(by pass mode)
8. Support Dolby True HD and DTS-HD master audio
Specification
|
Operating Temperature Range
|
-5 to +40℃(+23 to +104℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Country of origin
|
China
|
|
Power supply
|
5V |
|
Minimum power
(work under 480p60hz)
|
256mA
|
|
Maximum power
(work under 4K2K/60hz)
|
383mA
|
|
Max resolution
|
4k@60hz YUV4:4:4
|
|
ARC HDR10 and CEC(only input)
|
Function
|
|
HDMI version
|
HDMI 2.0
|
|
HDCP version
|
HDCP2.2 HDCP1.4(Auto choose depend TV version)
|
|
Control ways
|

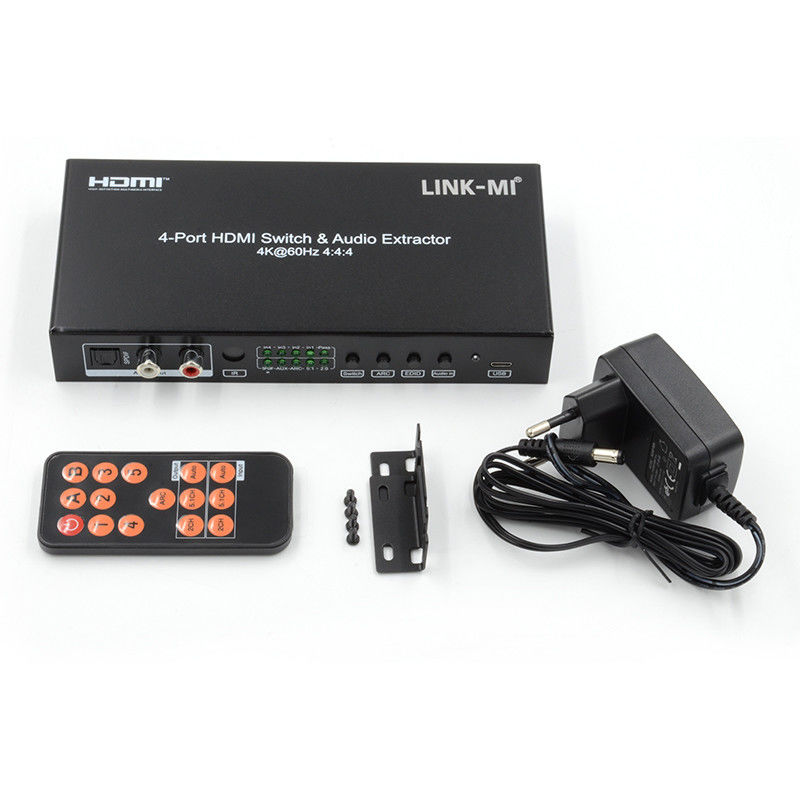

Switch button and remoter control
|
| Audio |
Analog audio 2.0, SPDIF 5.1, audio extraction |
| Distance |
1080P 20m, 4k@30hz 10m,
4k@60hz under HDR can support 3m
|
|
3D
|
No
|
|
Dimensions(LxWxH)
|
178x84.1x28.1mm
|
|
Audio format
|
Dolby True HD and DTS-HD master audio(HDMI out)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

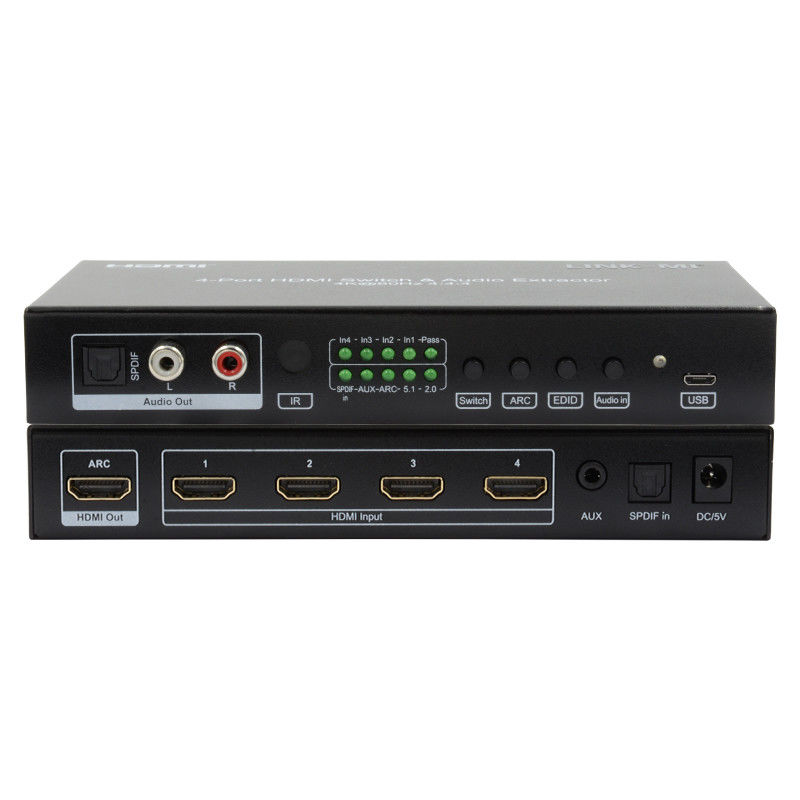

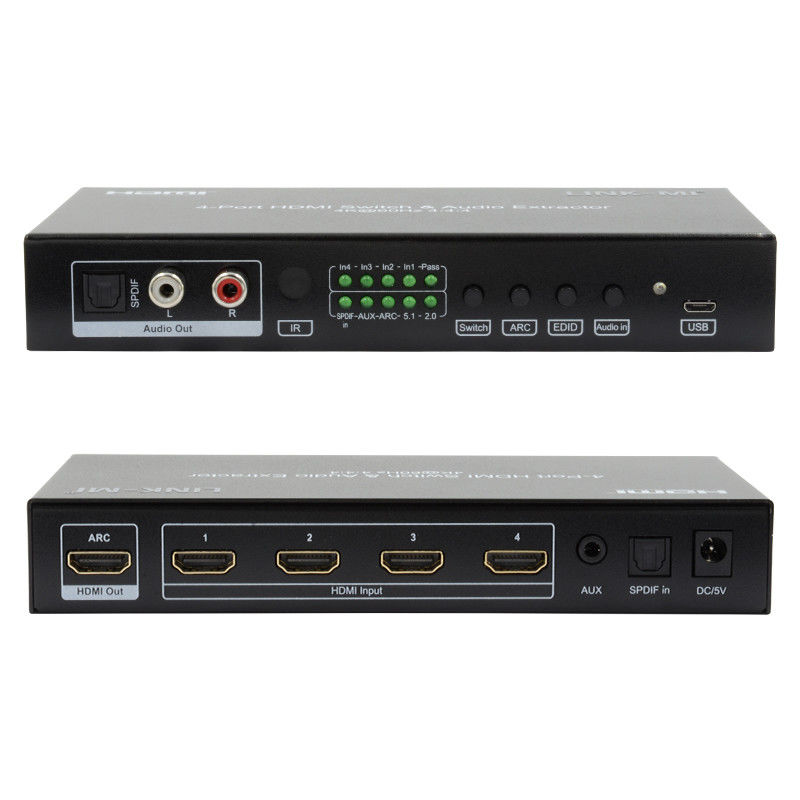

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SW07 4X1 HDMI Switch with Audio Extractor.pdf
