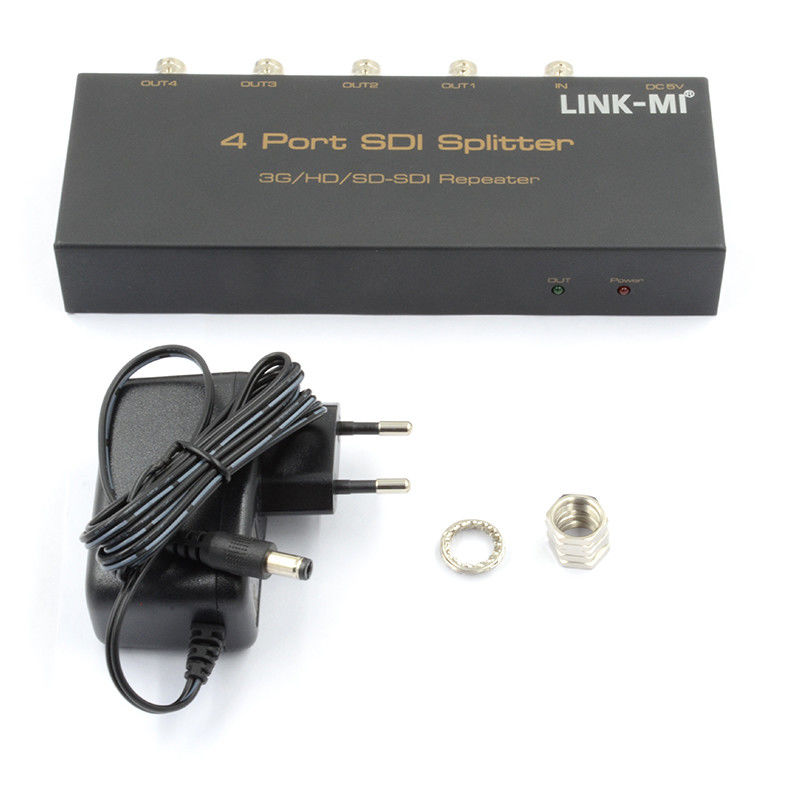

3G-SDI, HD-SDI, SD-SDI 1x4 Splitter HD SDI Repeater
Introduction
LINK-MI LM-SS14 4-Port 3G/HD/SDI-SDI Splitter/Repeater can easily distribute 1 SDI signal to 4 SDI Compliant Displays without any loss of signal, distortion and delay. It supports SD- SDI, HD-SDI and 3G-SDI format signals; also it can do amplify to the SDI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
1. One Signal distribute to four SDI signal out.
2. Support SD-SDI, HD-SDI and 3G-SDI Video Format.
3. SDI Supports1080P/1080I/720P/576I/ 480I Video Resolution.
4. Support SDI transmission Speed: SD-SDI:270MbPs,HD-SDI:1.485GbPs and 3G-SDI: 2.97GbPs.
5. Supported Max Cable Length(SYV-75-5):SD supports up to 400m,HD supports up to 200m, 3G supports up to 80～100m(Note: The cable
length will depend on the cable spec)
6. Support deep color 8bit, 10bit, 12bit
7. Support up to 3G-SDI
8. Audio and Video Output Simultaneously
9. Support Clock Recovery
10. No Any Drive Need, Support Hot-Plug, Plug and Play
11. Wide voltage input, It can support DC 5V~ 12V input
Specification
|
Support SDI Format
|
SD-SDI,HD-SDI and 3G-SDI
|
|
SDI resolution
|
1080P/1080I/720P/576I/ 480I
|
|
Support video color format
|
8bit/deep color 10bit,12bit
|
|
Audio Signal
|
SDI Built-in
|
|
SDI baud rate
|
270Mbps,1.485Gbps and 2.97Gbps
|
|
Coaxial cable Characteristic
impedance
|
75Ω |
|
Max working current
|
300mA/DC 5V
|
|
Power adapter format
|
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V~12V/2A
|
|
Operating Temperature range
|
-10 to +55℃
|
|
Storage Temperature range
|
-20 to +60℃
|
|
Operating Humidity range
|
10 to 90%RH (No Condensation)
|
|
Storage Humidity range
|
5 to 95%RH (No Condensation)
|
|
Dimension (L x W x H)
|
178X66X28 (mm)
|
|
Weight
|
418g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

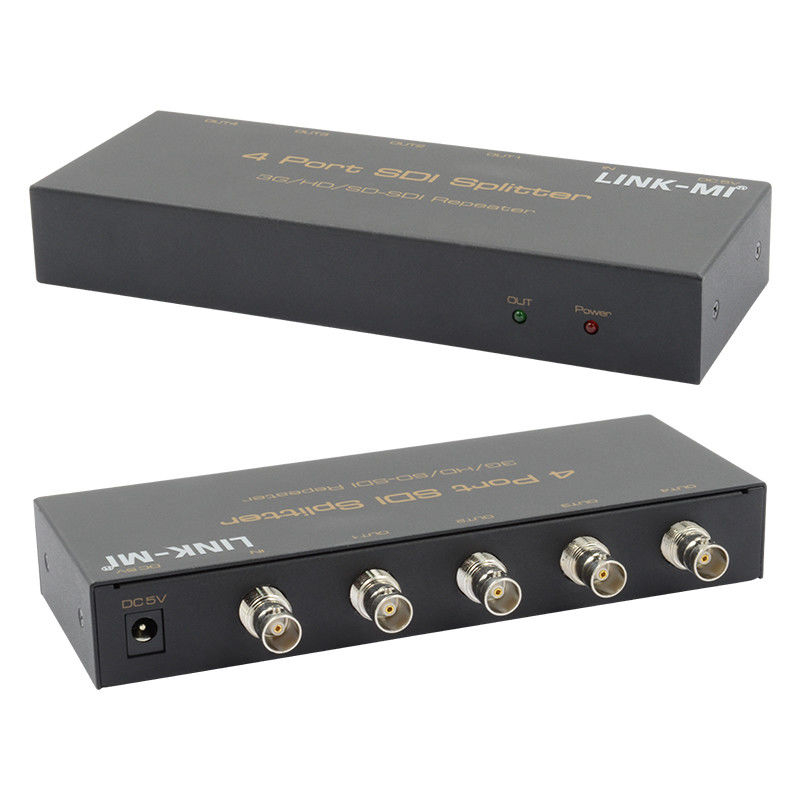

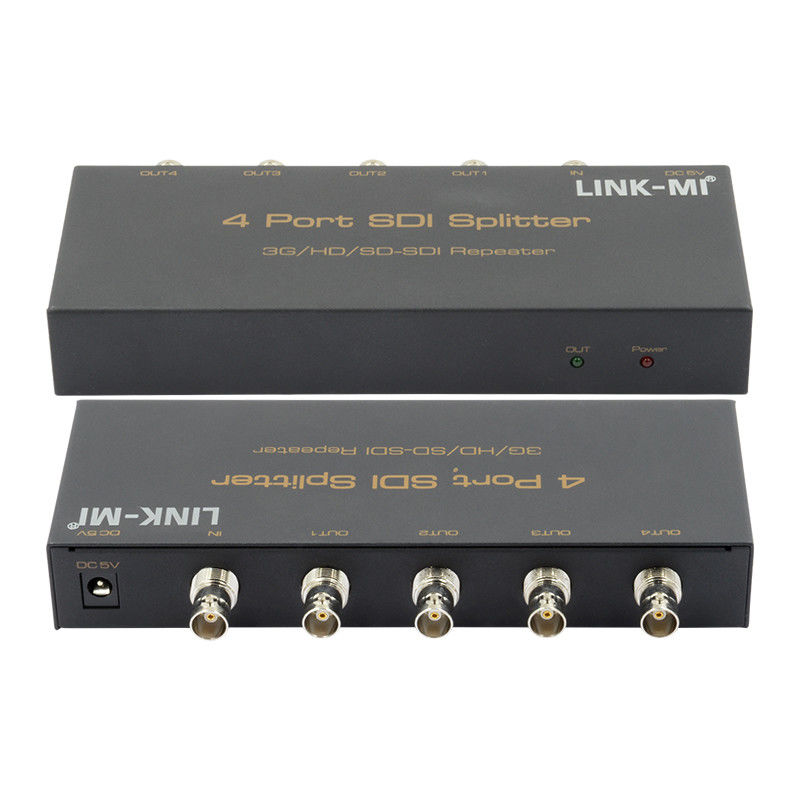

Panel Description
