5x1 HDMI Switch with remote, Support 3D, 4K2K
Introduction

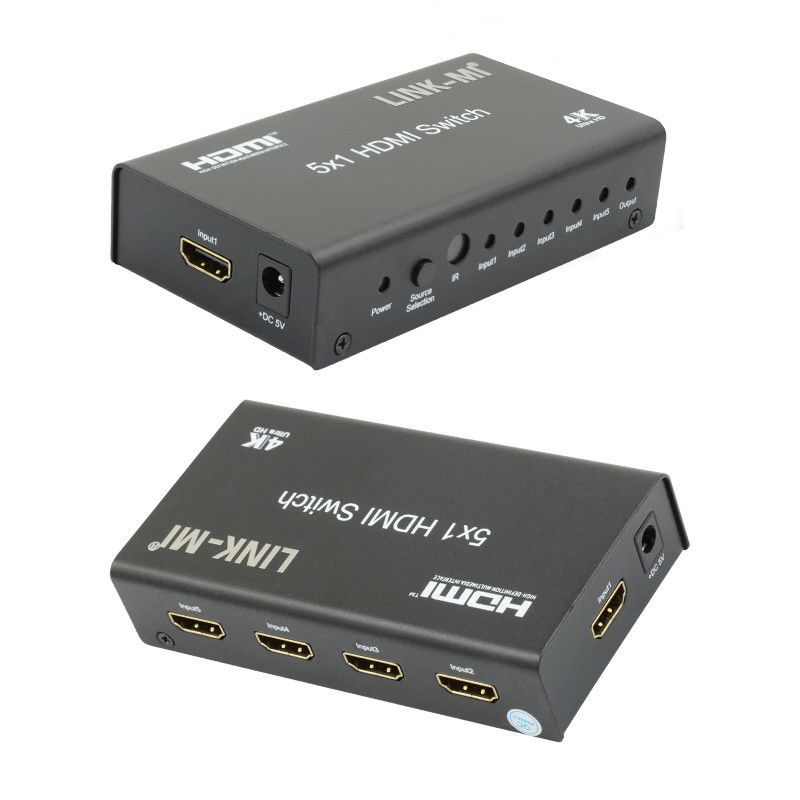

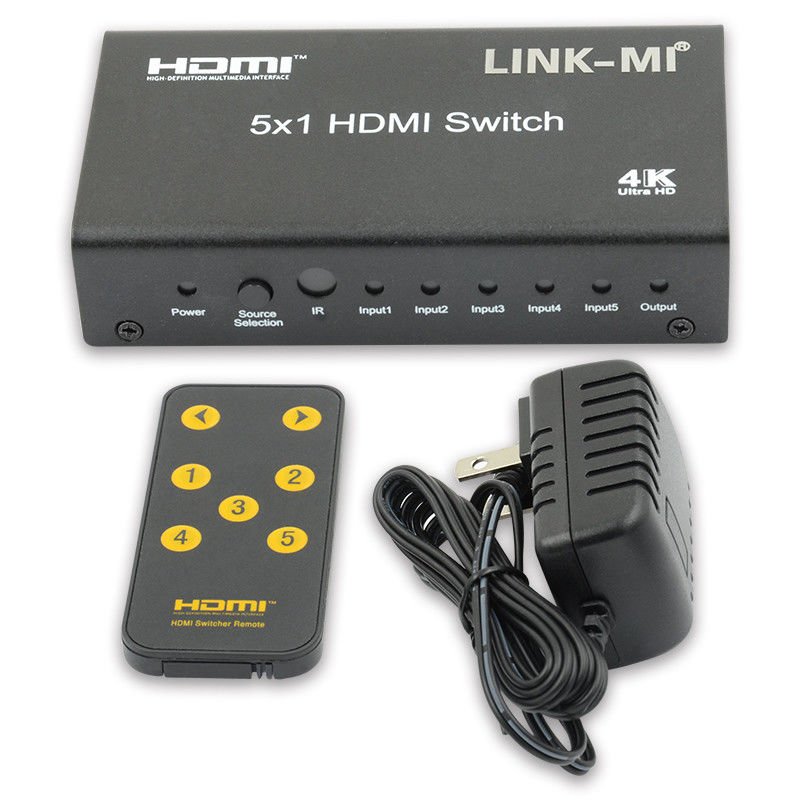

LINK-MI LM-SW04-4K2K is a 5x1 HDMI Switch which comes with remote. It supports 3D, 4K2K. User can switch any one of 5 different HDMI Signal input sources to 1 HDMI display.
Features
1. Select one of 5 different HDMI Signal input sources and switch to 1 HDMI display.
2. Manual or with remote controller to select input signals.
3. Support 36bit deep color display.
4. Support High Definition Audio: Dolby TrueHD, DTS-HD Master Audio.
5. Support Resolution up to Ultra HD 4Kx2K@30Hz, Full HD 1080p.
6. Support CEC.
Specification
|
Operating Temperature Range
|
-5 to +35℃(+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Input Video Signal
|
0.5-1.0 Volts P-P
|
|
Input DDC Signal
|
5 volts p-p(TTL)
|
|
Support Video format
|
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
|
|
Support Video Color Format
|
xv-YCC/deep color 36bit
|
|
Support Audio Format
|
DTS-HD Master Audio,Dolby true-HD etc.
|
|
Data transfer speed rate
|
10.2Gbps(Maximum)
|
|
Power consumption
|
1.5watts(Maximum)
|
|
Dimension (L×W×H)
|
115x62x25mm
|
|
Net Weight
|
212g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

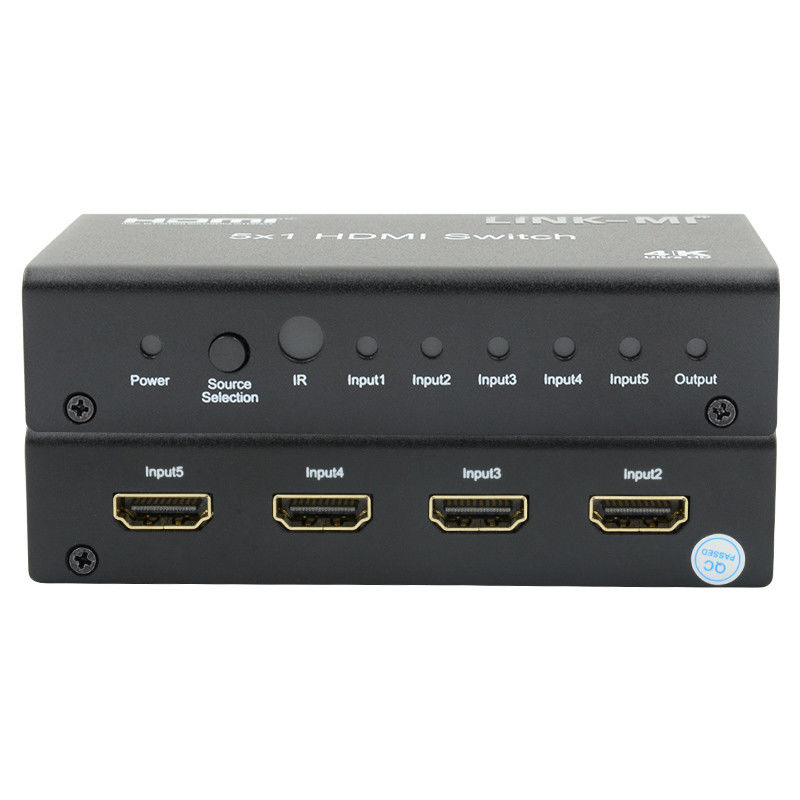

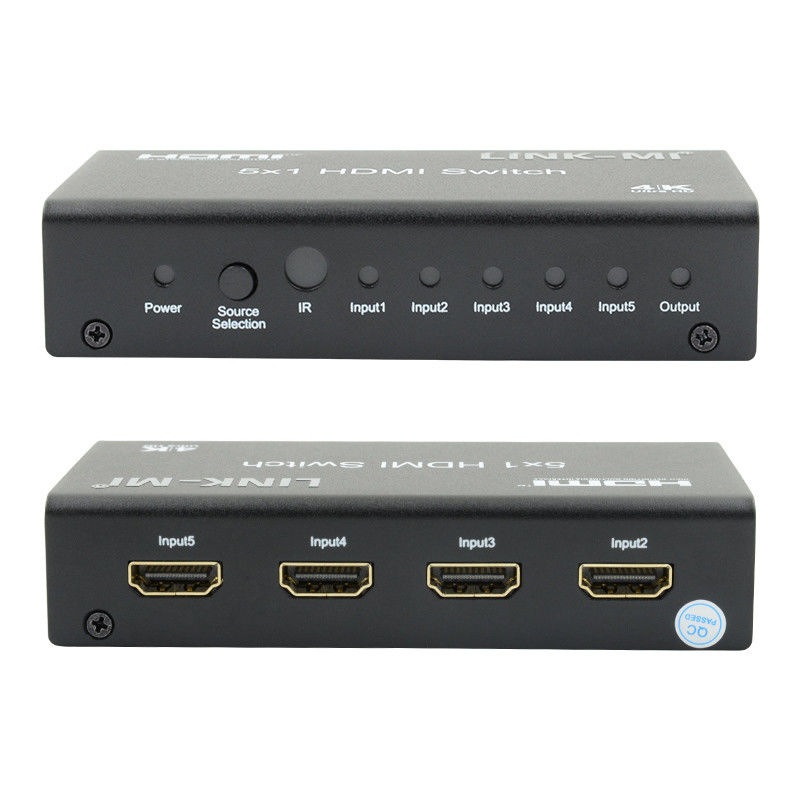

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SW04-4K2K 5x1 4K HDMI Switch.pdf
