60m Wall Plate HDMIExtender Over Single Cat5e/6 Cable Support 3D IR
Introduction
LINK-MI LM-EW60-3DIR is a HDMI Wall Plate Extender Over Single Cat5e6 Cable up to 60m transmission under 1080p. It supports 3D video format and comes with IR functions.
Features

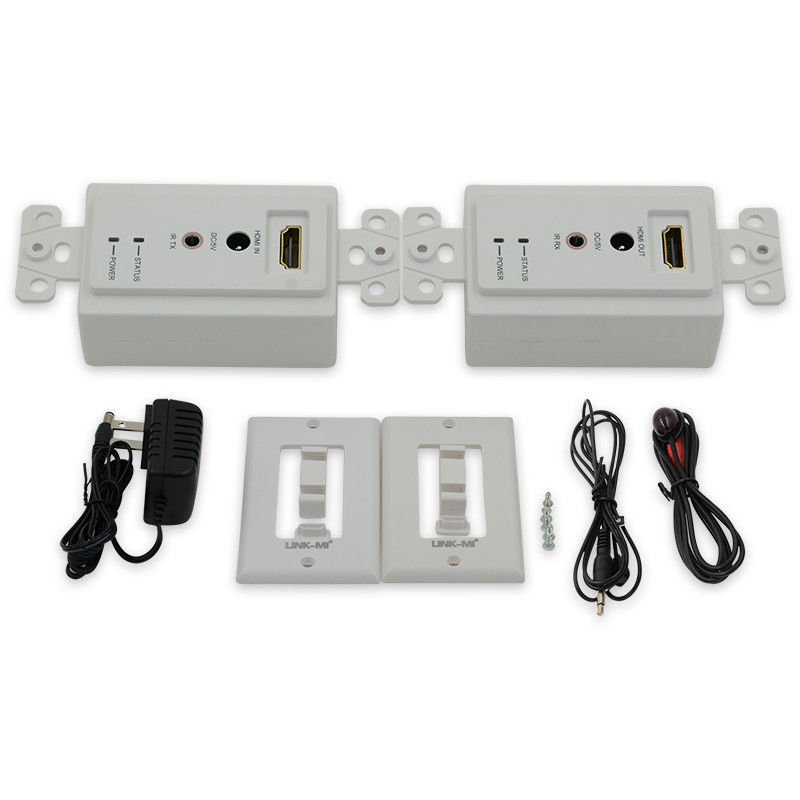

1. Each set includes one transmitter and one receiver
2. Following North American Wall Plate Standard
3. Modular design
4. Using single UTP cable ( cat5e/6 ) to substitute HDMI cable to achieve long distance transmission, the UTP cable follows the standard of IEEE-568B
5. Transmission distance reaches up to 60 meters under the video format of 1080p
6. Auto-adjustment of feedback, equalization and amplify
7. Signaling rates up to 2.25Gbits in support of 1080p display
8. With Infrared Control signal passing through function
9. Supports 3D Video format
Specification
|
Operating Temperature Range
|
-5 to +35℃(+23 to +95°F)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Input Video Signal
|
0.5-1.0 Volts P-P
|
|
Input DDC Signal
|
5 volts p-p(TTL)
|
|
Support Video Format
|
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P 3D video format
|
|
Video Output
|
HDMI
|
|
Support Audio Format
|
DTS-HD Master Audio, Dolby true-HD etc.
|
|
Transmission Distance
|
1080P 8-bit 60m(Maximum);
over CAT5E/CAT6 /24AWG/Solid(recommend to use 23AWG Ct6)
|
|
Power consumption
|
3watts(Maximum)
|
|
Dimension (LxWxH)
|
115x70x35mm
|
|
IR wavelengh &frequency
|
Wavelengh:940nm,frequency 38kHz
|
|
Net Weight
|
260g(Pair)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

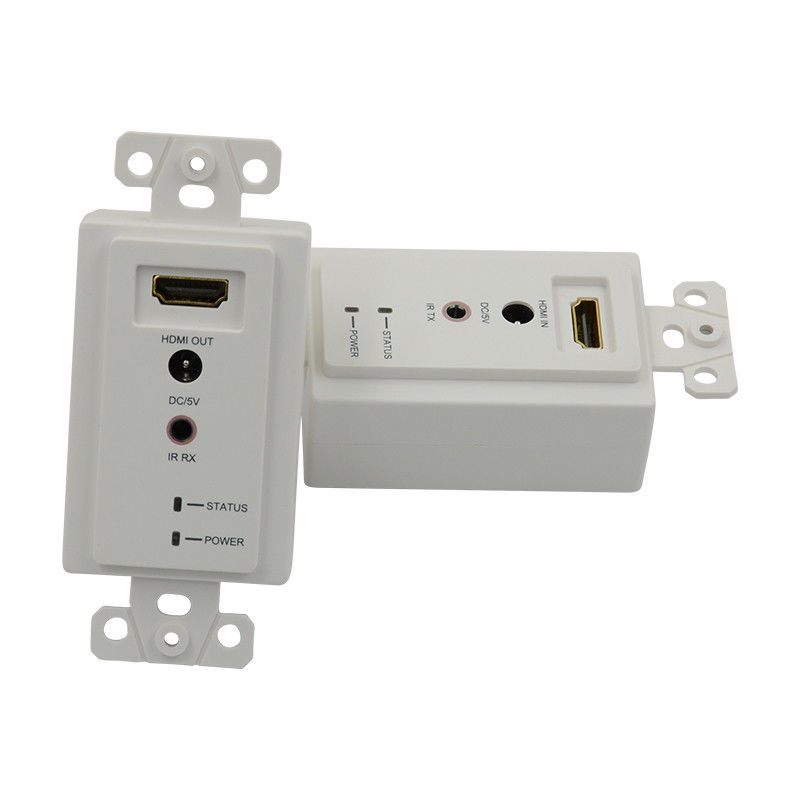

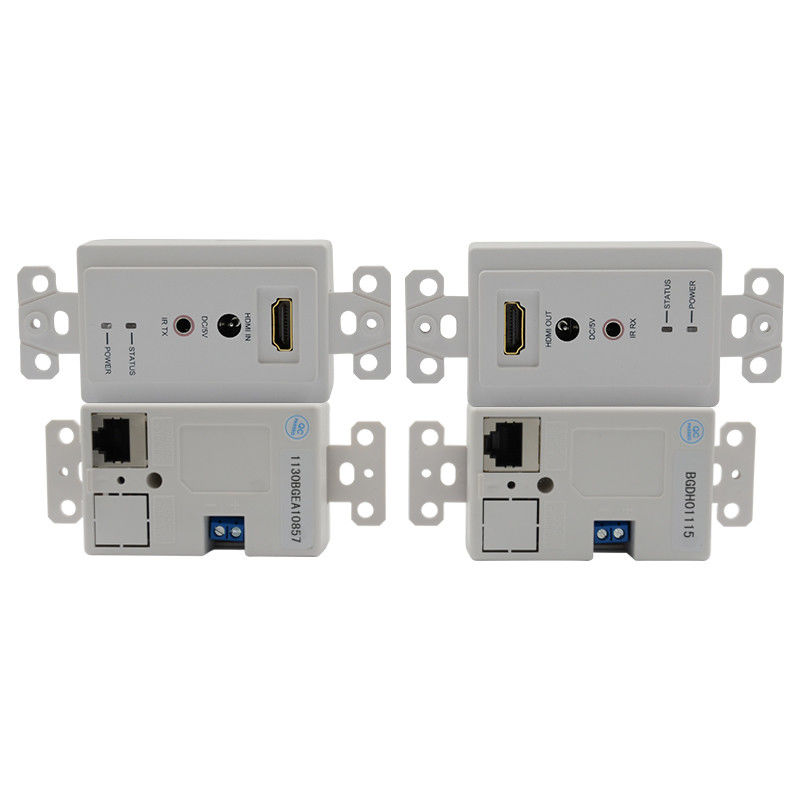

Panel Description
