50M HDMI+USB KVM Extender up to 50m 100m Support Dual POC USB2.0
Introduction

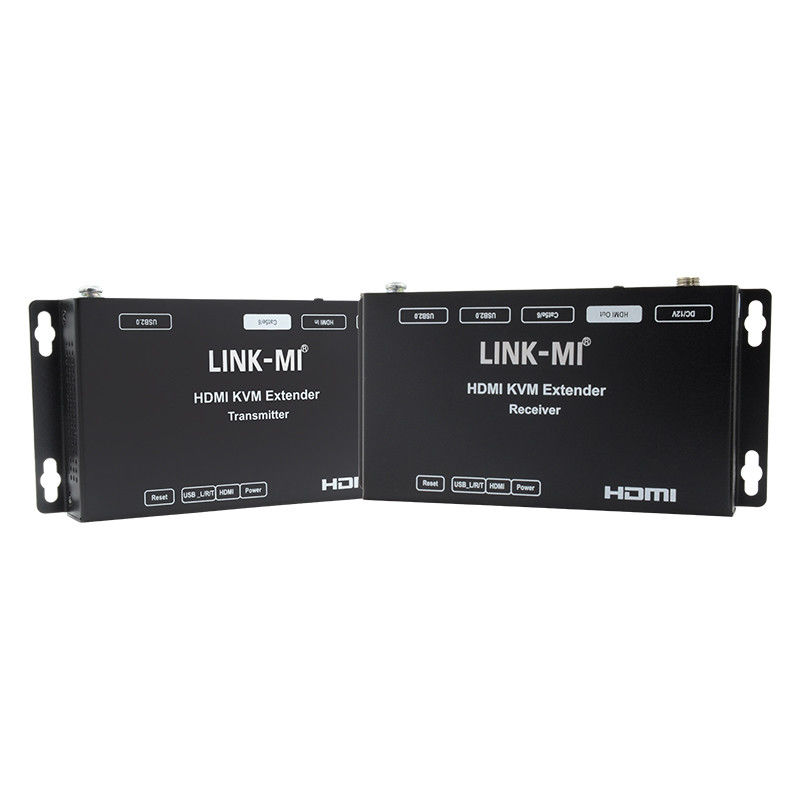

LINK-MI LM-EX46B allows HDMI signals to be transmitted over a Single CAT5e/6 cable. It can extend 1080p@60Hz over single Cat5e/6. The transmit distance is up to 100m over single Cat5e/6 cable, and 50m over single Cat5e/6 cable under USB mode. It supports PCM2.0 and USB2.0 pass through.
Features

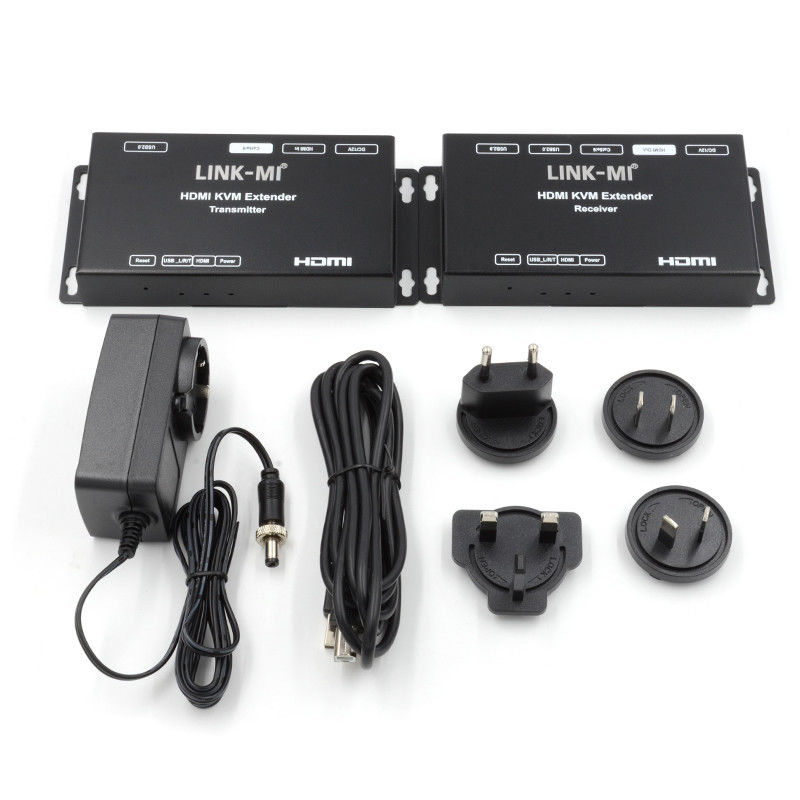

1. Each set includes one transmitter and one receiver
2. Transmit distance up to 100m over single Cat5e/6 cable under Non-USB mode
3. Transmit distance up to 50m over single Cat5e/6 cable under USB Mode
4. USB 2.0 pass through
5. Support Full HD 1080P@60Hz, and bandwidth 1.65Gbps.
6. Support Dual POC(RX powered by TX or TX powered by RX)
7. HDCP1.4 compliant
8. Support PCM2.0, audio sampling rate: 44KHz, 48KHz.
Specification
|
Operating Temperature Range
|
-10 to +45℃(14 to +113℉)
|
|
Storage Temperature Range
|
-15 to +70℃(5 to +158℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Support Video Format
|
DTV/HDTV: 480P/576P/720P/1080P
VESA:640x480, 800x600, 1024x768, 1280x1024,
1680x1050, 1280x720, 1360x768
|
|

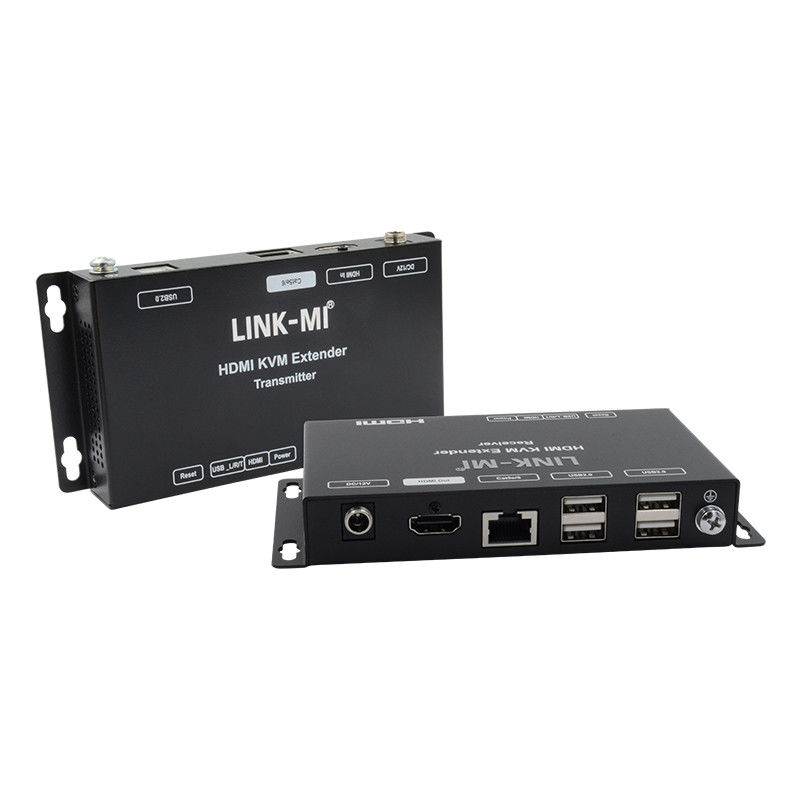

Connector on Transmitter
|
1x HDMI Input , 1x USB B Type
1xRJ45 Output
|
|
Connector on Receiver
|
1xRJ45 Input
1x HDMI Output, 4x USB A Type
|
|
Transmission Distance
|
100m (Max) over single Cat5e/6 /24AWG/Solid under Non-USB Mode
50m(Max) over Single Cat5e/6 /24AWG/Solid under USB Mode
|
|
USB Transmit speed
|
480M bit/s (Max)
|
|
Power consumption
|
4.8W( Max)
|
|
Dimension (L×W×H)
|
L84.2xW75.2xH27.5mm
|
|
Net Weight
|
Transmitter:257.5g ; Receiver:257.5g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

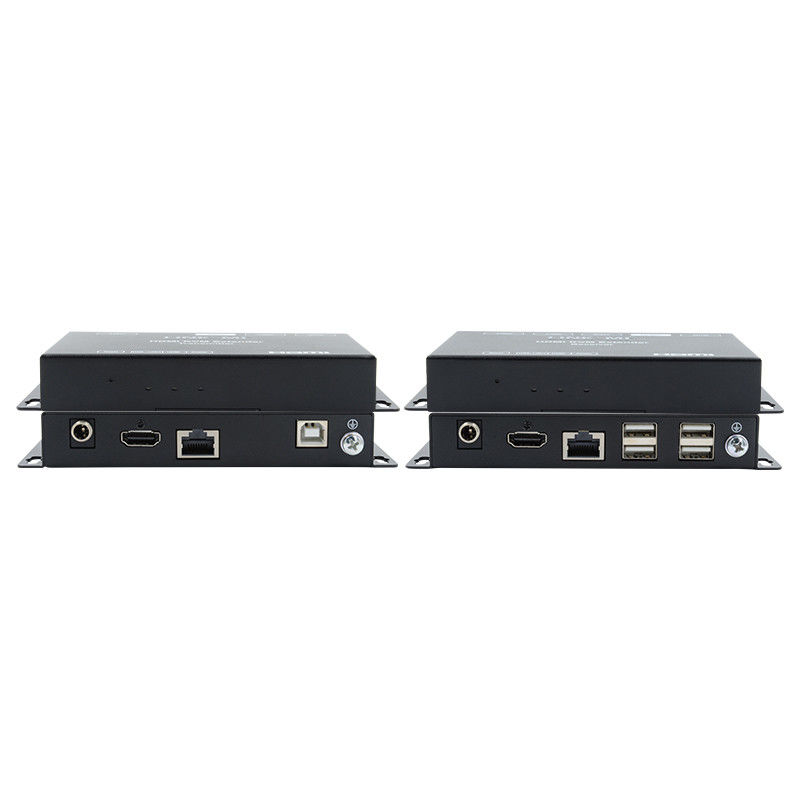

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EX46B 50M HDMI+USB KVM Extender.pdf
