120m 4K HDMI Extender over Cat6/6e Cable with HDMI loop out IR Control
Introduction
LINK-MI LM-120H-4K The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Feature
1. Support HDMI 1.4/HDCP1.4;
2. Support local loop-out;
3. Support 120m long distance transmission: CAT 5E/6 Cable (120M) HDMI Cable Loop-out;
4. Low power consumption, low temperature and high safety;
5. RX support 3.5MM left and right audio output (Optional);
6. Support IR control (Optional).
Specification
| Model No. |
LM-120H-4K |
| Length of CAT5e/CAT6 cable between Rx and TX |
120 meters |
| HDMI Input |
4k/1080p/720p/576p/576i/480p/480i |
| HDMI Output |
4k/1080p/720p/576p/576i/480p/480i |
| Max bandwidth |
340MHz |
| Max baud rate |
3x3.4Gbps |
| Input HDMI cable distance |
>10m AWG26 HDMI standard cable |
| Output HDMI cable distance |
>10m AWG26 HDMI standard cable |
| TX Max working current |
350mA |
| RX Max working current |
200mA |
| Power adapter format |
Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range |
(-15 to +55℃) |
| Operating Humidity range |
5 to 90%RH (No Condensation) |
| Dimension (L x WxH) |
98x78x28 (mm) |
| TX Weight |
300g |
| RX Weight |
300g |
| Note: Specifications are subject to change without notice. |
Connection Diagram

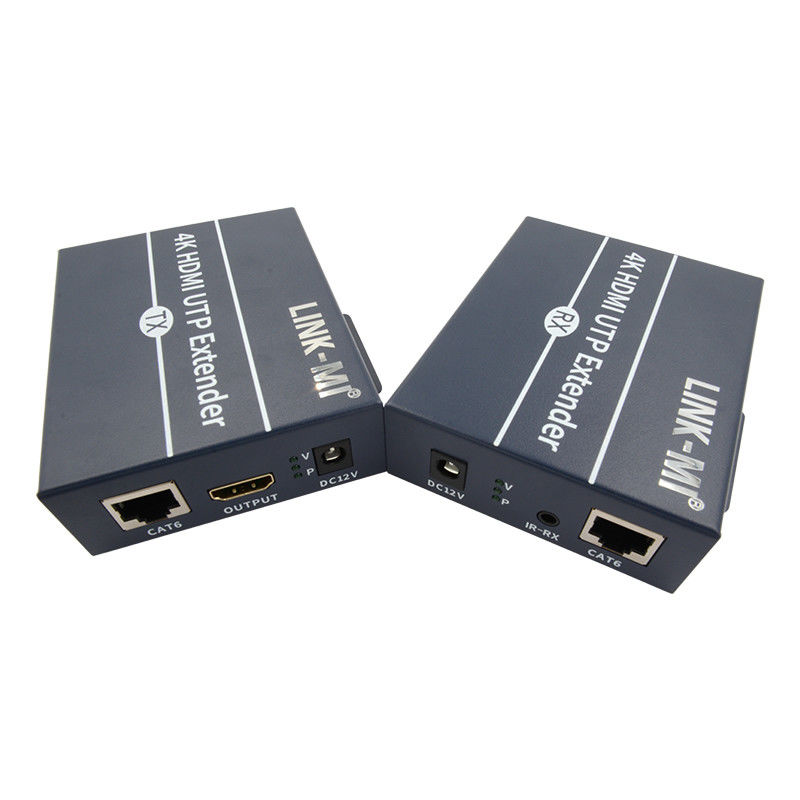

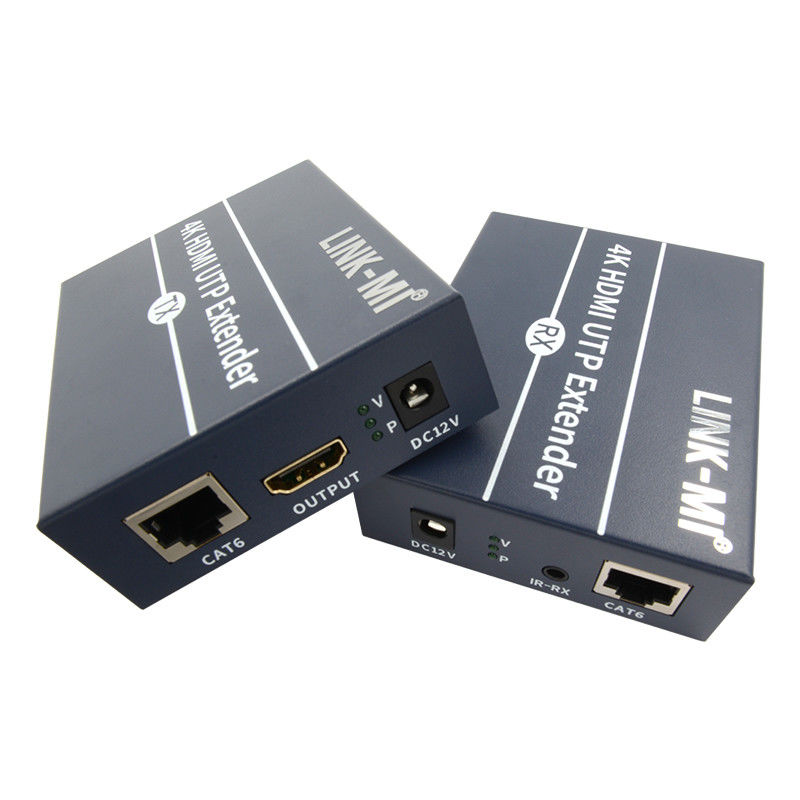

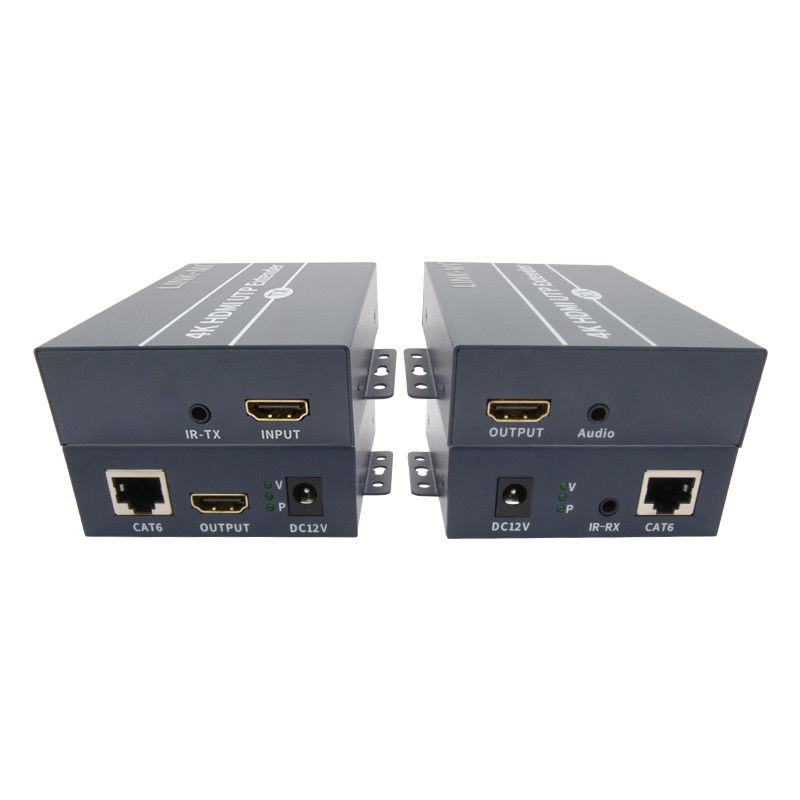

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
