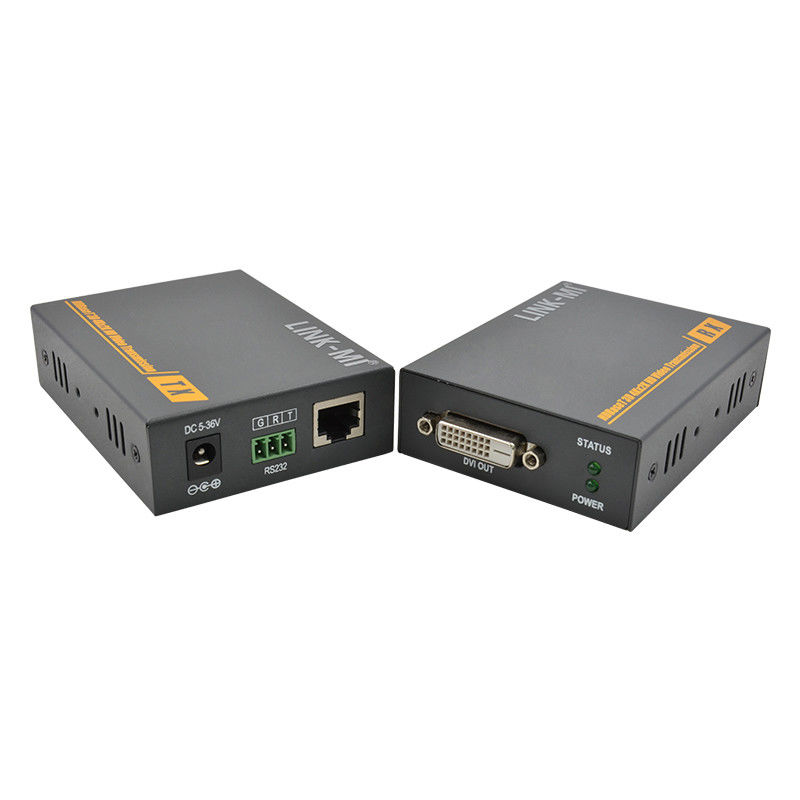

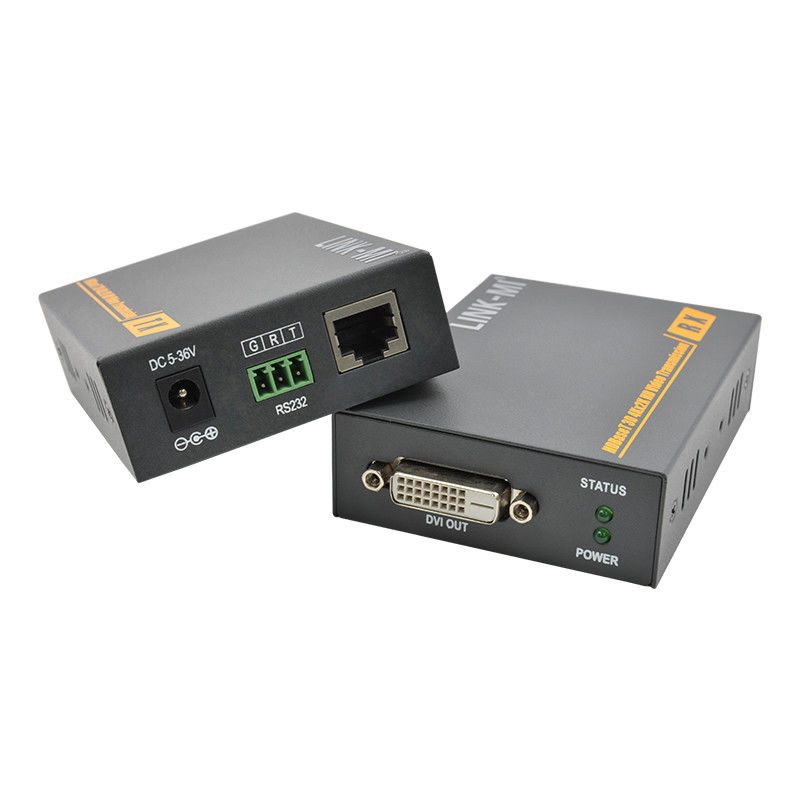

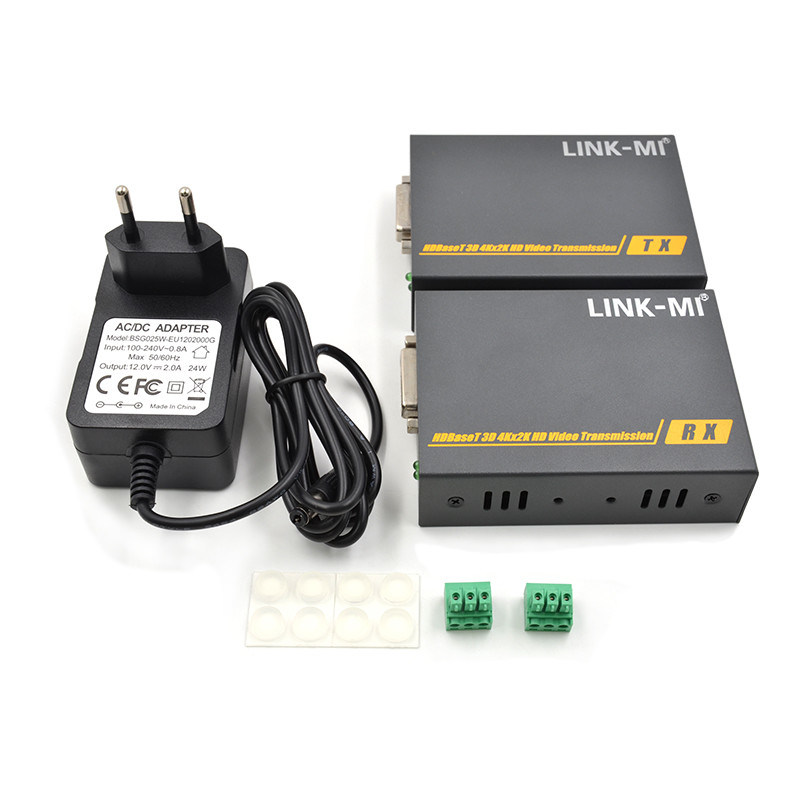

70M DVI HDBaseT Extender over Cat6/7 Cable Support 4K, RS232
Introduction
LINK-MI LM-HT201D The DVI extender is a standard HDBaseT extender which supports real 4K x 2K HD resolution. This HDBaseT extender transmits DVI signal up to 70meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24 bits deep color, RS232, DVI 10. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
1. Apply HDBaseT extend technology.
2. Uncompressed DVI video signal. Extend 1080p signal over cat6 up to 70mtrs.
3. Support Full HD 1080P@60Hz, 4K*2K, 3D
4. Support RS232 baud rate self-adaptive.
5. Compliance with DVI 1.0.
6. High compatibility, can auto-match source and display device.
7. Built-in automatic adjustment system, make the image smooth, clear and stable.
8. Simple to install, plug and play.
Specification
| Parameter |
Description |
| Video |
Standards |
DVI 1.0 |
| Maximum pixel clock |
225MHz |
| Maximum data rate |
10.2Gbps |
| Resolution |
1920x1080P@60Hz, 4Kx2K@30Hz |
| Connector |
DVI-D |
| Impedance |
100Ω |
| RS232 |
Interface |
Industrial terminal |
| Signal direction |
Bidirectional |
| Baud rate |
Self-adaptive, Max:115200bps |
| Data bits |
8 |
| KVM |
Interface |
PC: MINI-USB
Keyboard and mouse: USB-A
|
| Ethernet |
Interface |
RJ45 |
| Transmission distance |
1080P: CAT6---70m
4K*2K: CAT6---50m
|
| Other |
Power supply |
The power adapter: DC 9-36V |
| Power dissipation |
MAX 8W |
| Temperature |
Operating: -5℃~ +70℃ |
| Humidity |
Operating: 5% ~ 90% |
| Dimension |
94.5*71*26mm |
Connection Diagram

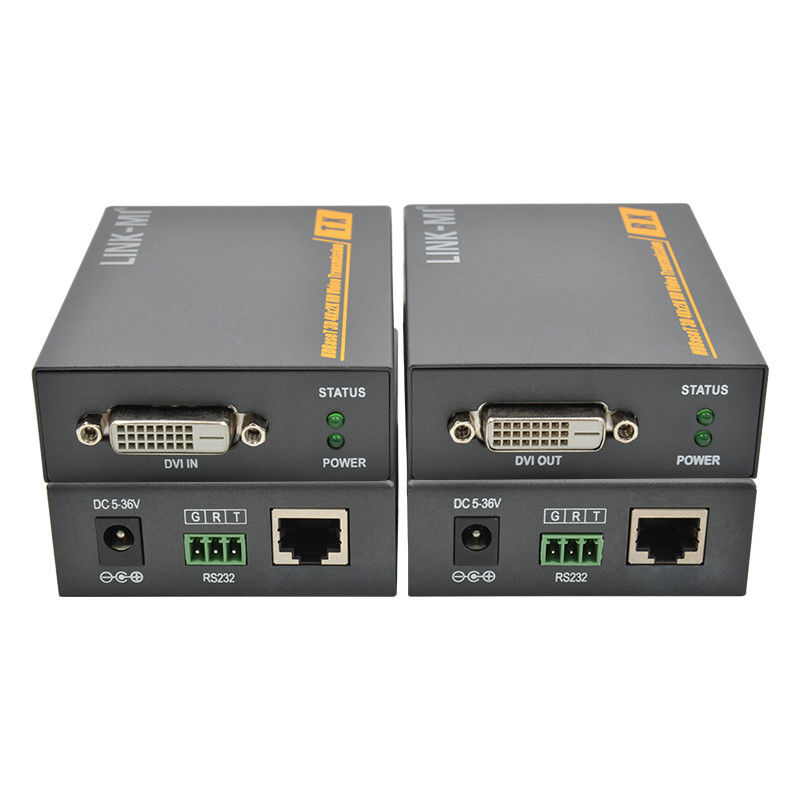

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-HT201D 70M DVI Extender HDBaseT.pdf
