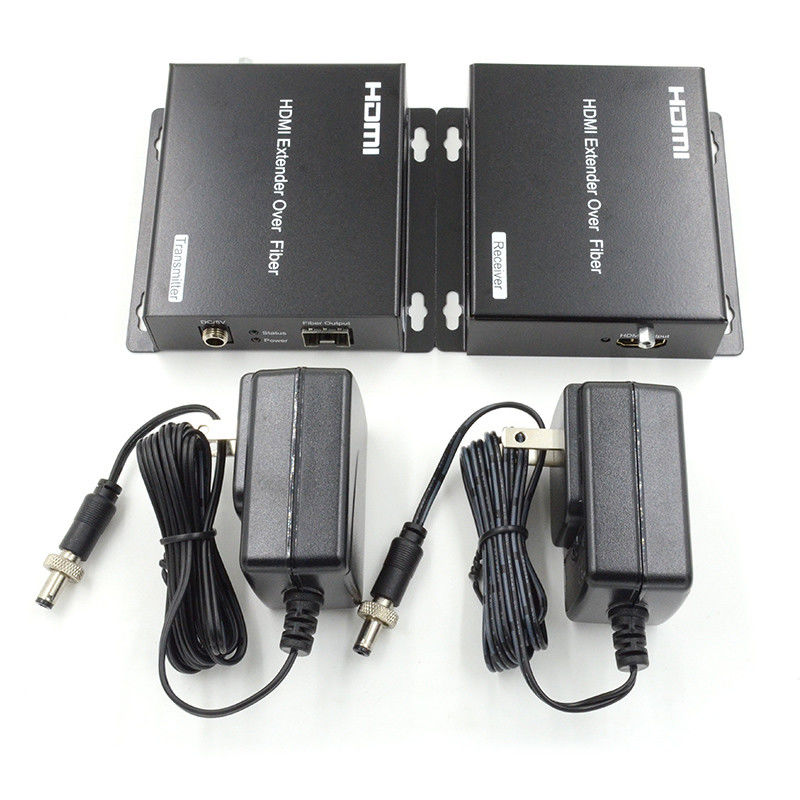

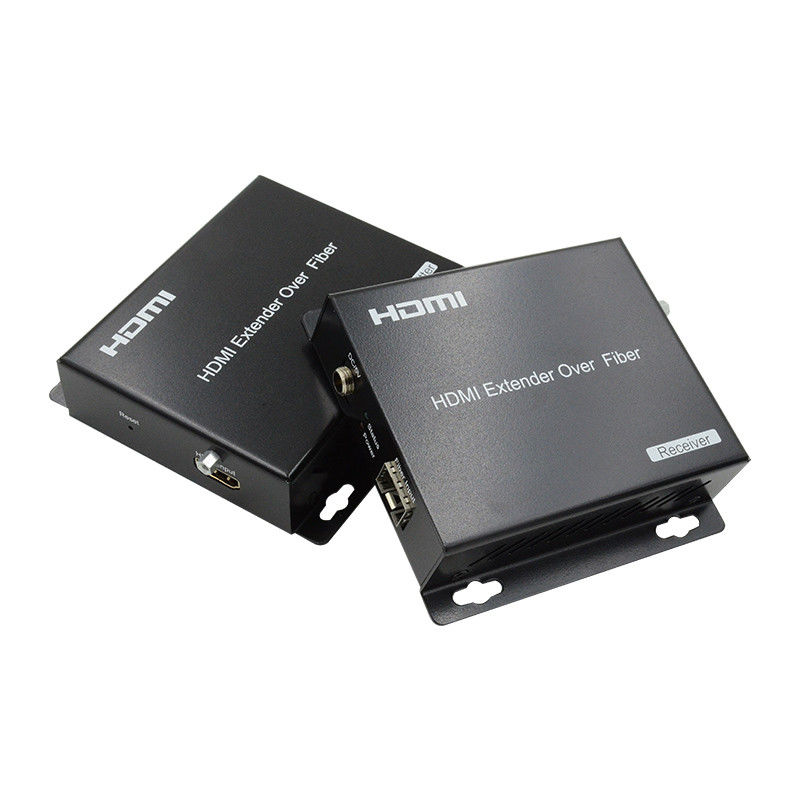

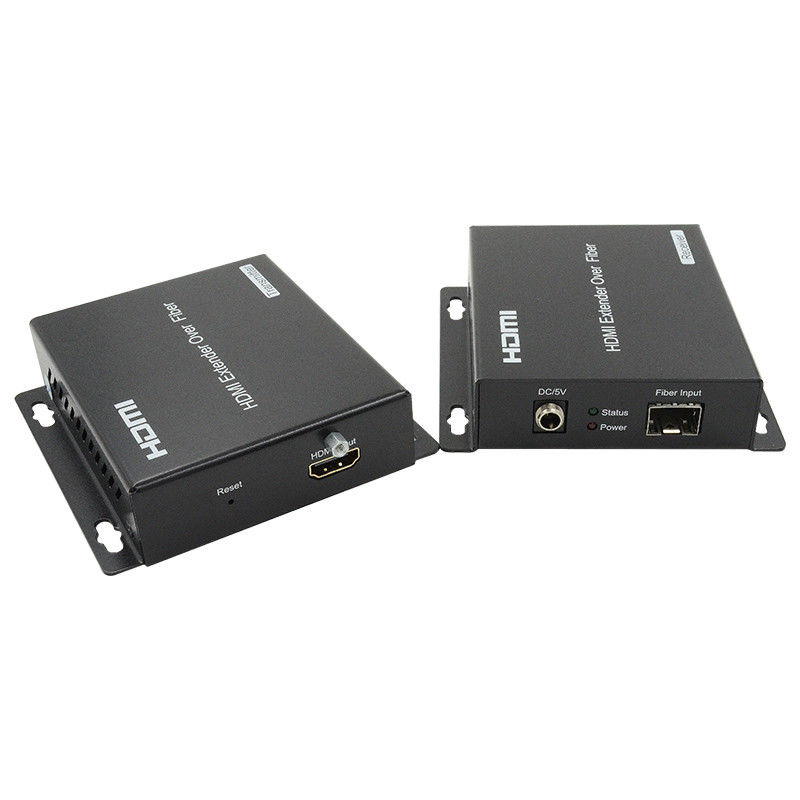

60KM Ultra HD 4K HDMI Extender Over Fiber with EDID
Introduction
LINK-MI LM-EF03 is a 4K HDMI Extender Over Fiber. It supports transmission distance up to 60km when using different fiber modules. It suports resolution up to 4K@60Hz and with Automatic EDID.
Features
1. Transmit from 1m to 60KM.
2. Support resolution up to Ultra HD 4kx2k@60hz, YUV4:2:0.
3. Support bandwidth up to 10.2Gbps.
4. Support Single /Multi mode, Single /Duplex fiber (Optional).
5. Support HDCP2.2 input, HDCP 1.4 output.
6. Support HDCP1.4 input, HDCP1.4 output.
7. With Automatic EDID for rapid integration of source and display.
8. Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
9. Locking power supplies.
10. Surface-mountable.
Specification
|
Operating Temperature Range
|
-5 to +35℃(+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Video Input(Transmitter)
|
1xHDMI Type A, 19-pin, female
|
|
Video Output(Receiver)
|
1xHDMI Type A, 19-pin, female
|
|
Link(Transmitter/ Receiver)
|
1m~60Km single / Multimode single / Duplex fiber optical cable
|
|
Module type required
|
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
|
|
Video Format
|
4Kx2K@60Hz, 1080P @60Hz, 1080i, 720P, 576P, 480P
|
|
Audio Format
|
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio
|
|
HDCP Input
|
HDCP 2.2, HDCP 1.4
|
|
HDCP Output
|
HDCP 1.4
|
|
Power consumption
|
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
|
|
Dimension (L×W×H)
|
Transmitter: 96*100*25mm
Receive: 96*100*25mm
|
|
Net Weight
|
475g (Pair)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

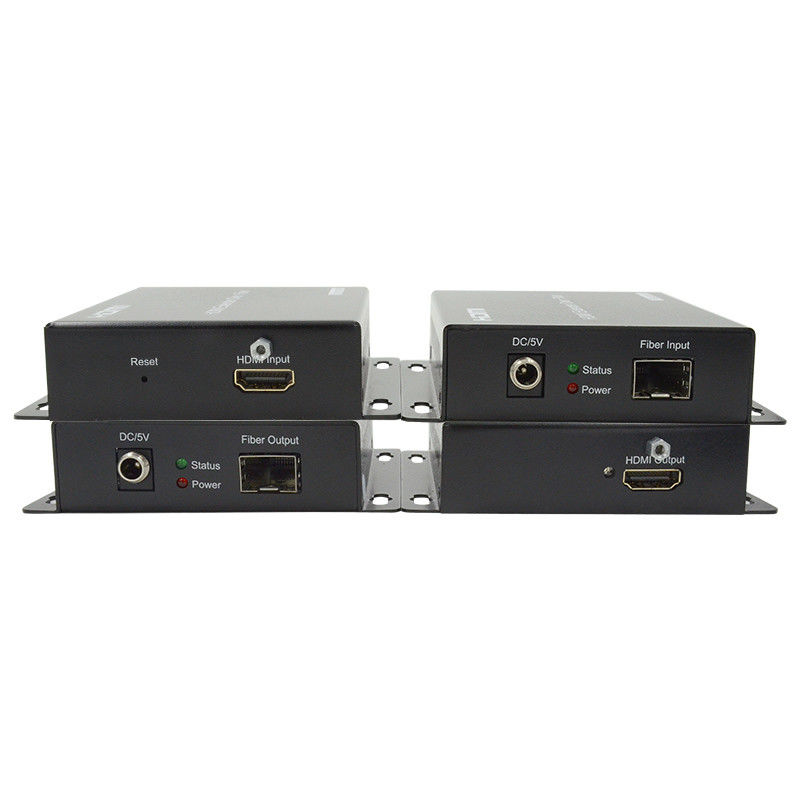

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EF03 4K Fiber Extender.pdf
