8X8 HDMI Matrix Extender up to 70m with 8 HDMI loop out 4K60Hz HDMI Video Switch

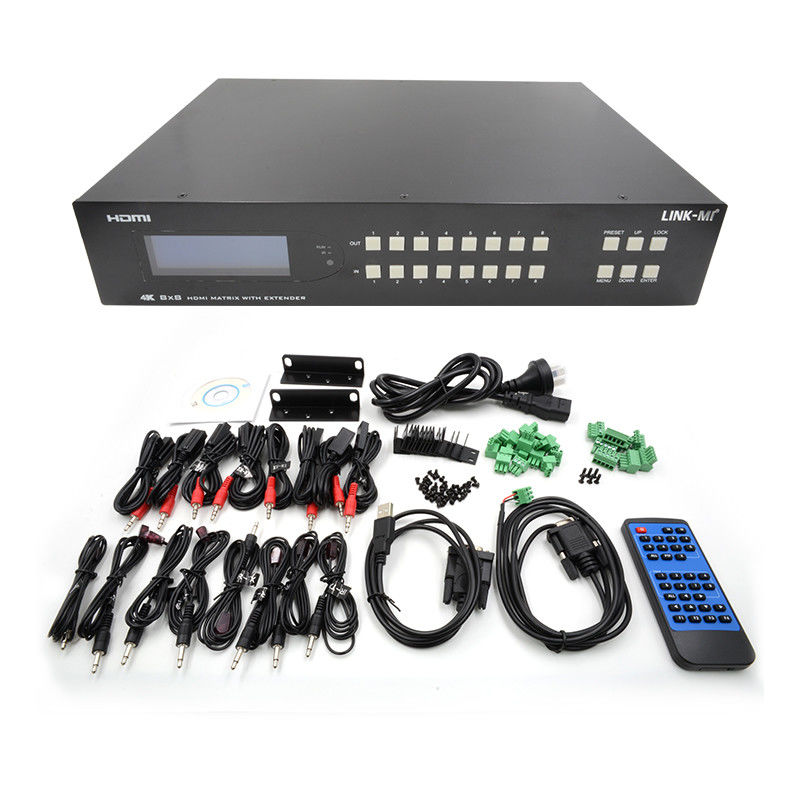

Introduction

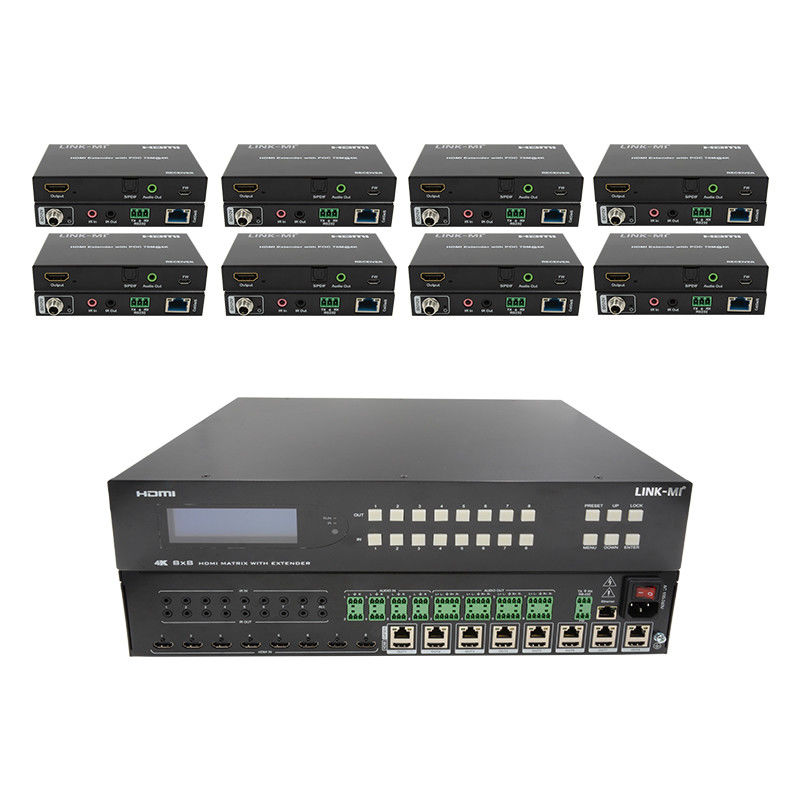

LINK-MI LM-MX20 is a 8x8 HDMI Matrix Switch over 65m Cat6 Cable. It supports resolution up to 4K@60Hz YUV4:4:4, 18G. It comes with 8x Analog Audio extraction and support 4K downscale to 1080p, smart EDID management.
Features
1. 8x HDMI input and 8x Ethernet output with 8x HDMI Loop out
2. HDMI 2.0 version support 4K@60Hz YUV4:4:4, 18G, deep color max 12bit, HD 8CH digital audio format
3. Extending 4K60Hz video signal to distances up to 65m over single Cat6 Ethernet cable
4. HDCP 2.2/1.4 compliant(follow input)
5. Support Dolby VisionD, HDR10, HDR-HLG
6. Support LPCM up to 7.1/24-bit/96 kHz, Dolby Atmos and DTS-X Atmos
7. Ethernet port support Telnet, UDP, Http, TCP/IP protocol
8. With wide-band Bi-Direction IR routed control(38~56KHz)
9. Support 8x Analog Audio extraction (5pin phoenix port)
10. Support 8x Analog Audio in (3pin phoenix port)
11. Support Panel Button with LCD, IR Remote control, RS232 Control, TCP/IP Control
12. Support 4K downscale to 1080p
13. Support smart EDID management
14. Support AC100~240V power supply, support 8x POC power output
15. Support 3Pin Phoenix terminal plug for FW updating
Specification
| Model No. |
LM-MX20 |
|
Operating Temperature Range
|
-5 to +40°C(23 to +104 °F)
|
| Storage Temperature Range |
-10 to +60°C(-14 to +140 °F)
|
|
Operating Humidity Range
|
5 to 90 % RH (no condensation)
|
|
Input Video Signal
|
0.5-1.0 volts p-p
|
|
Input DDC Signal
|
5 volts p-p (TTL)
|
|
Bandwidth
|
18Gbit/s
|
|
HDCP Compliant
|
HDCP2.2 and HDCP 1.4
|
|
Video Format Supported
|
4K@60Hz,YUV4:4:4 8bit 4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i |
|
Output Video
|
HDMI 2.0 Version
|
|
Audio Format Supported
|
LPCM up to 7.1/24-bit/96 kHz, Dolby Atmos and
DTS-X Atmos |
|
Maximum Transmission Distance
|
65m
|
|
Power Consumption
|
70 watts (Max.)
|
|
Dimensions
|
Matrix: L438 x W279 x H88 mm
Receiver: L110.2xW68.3xH18 mm
|
|
Mass (Main Unit)
|
5.38 KG
|
| Note: Specifications are subject to change without notice |
Connection Diagram

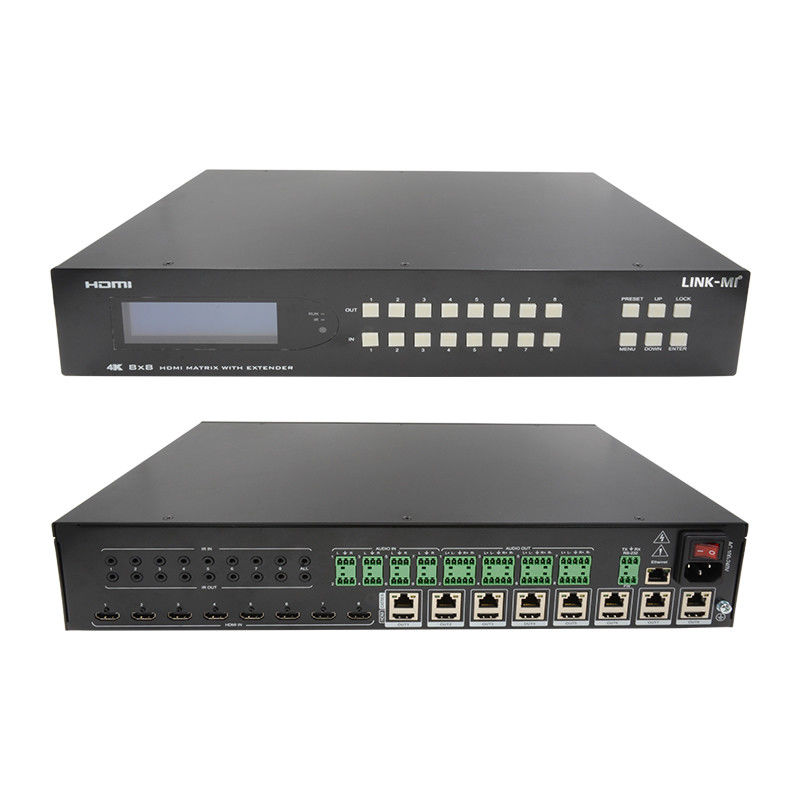

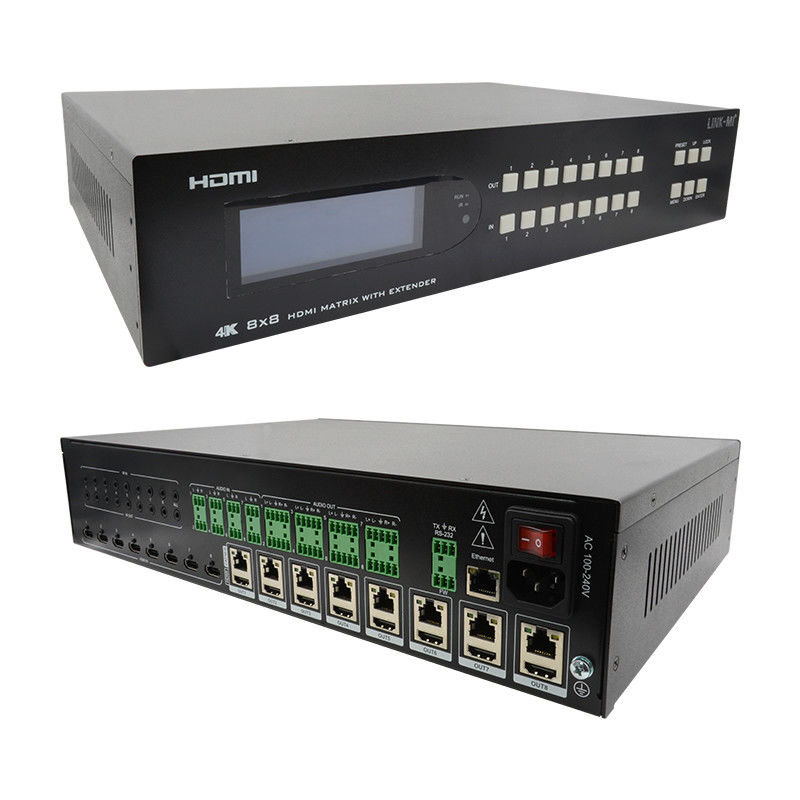

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-MX20 65m 8x8 HDMI 2.0 Matrix Extender.pdf
