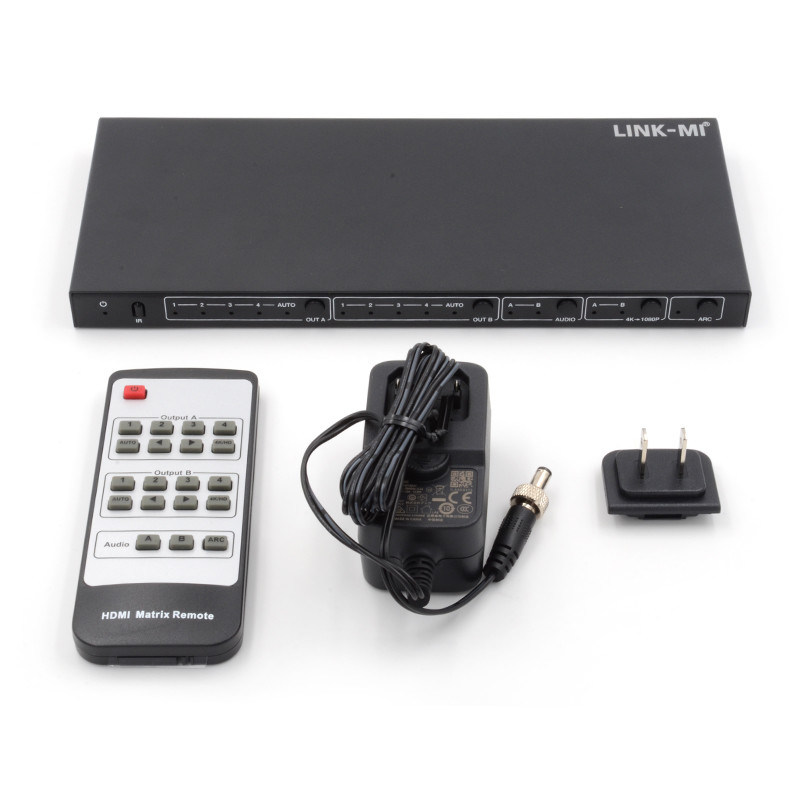

4X2 HDMI Matrix Switcher With Audio Extraction 4K60Hz Downscaler ARC EDID Function
Introduction
LINK-MI LM-MX42-AUDIO This high performance HDMI Matrix Switcher can switch any of four HDMI sources to two HDMI displays. It supports resolution up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output.
It supports 4K, 1080P downscale function if source is 4K but TV only supports up to 1080P. It also supports ARC and EDID (AUTO/COPY/STD) function. With its 18Gbps bandwidth and the additional features with latest HDMI standards. Flexible control via front panel buttons and IR remote.
Features
1. Support 4K@60Hz as specified in HDMI 2.0; HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
2. Support 4 HDMI inputs and 2 HDMI outputs
3. Video resolution up to 4K2K@60Hz YCbCr 4:4:4
4. Support 18Gbps uncompressed bandwidth on all HDMI
5. Support Dolby Vision, HDR 10+, HLG and CEC function
6. Support extract HDMI input source device audio of OUT A or OUT B to optical and analog L/R output
7. OUT A and OUT B support 4K to 1080P downscale function
8. Support ARC (Audio Return Channel) function
9. Support advanced EDID management including AUTO, COPY and STD
10. Control is via front panel buttons and IR remote
Specification
| Model No. |
LM-MX42-AUDIO |
| Technical |
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth |
18 Gbps |
| Video Resolution |
Up to 4K2K@50/60Hz(YCbCr 4:4:4),4K2K@30Hz.All
HDMI 3D TV format, etc. |
| Color Space |
RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth |
8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr4:2:0)]
8-bit [4K60Hz (YCbCr4:4:4)] |
| HDMI Audio Formats |
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True
HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD
Master Audio, DSD |
| Optical Audio Formats |
PCM2.0, Dolby Digital / Plus, DTS |
| L/R Audio Formats |
PCM2.0CH
(Note: If ARC function is turned on, the audio port will
mute.)
|
| ESD Protection |
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
|
Connections
|
| Input Ports |
4×HDMI Type A [19-pin female]
|
| Output Ports |
2×HDMI Type A [19-pin female]
1×L/R audio out [3.5mm Stereo Mini-jack]
1×OPTICAL audio out [S/PDIF]
|
|
Mechanical
|
| Housing |
Metal Enclosure |
| Color |
Black |
| Dimensions |
251mm(W)×105mm(D)×20mm(H) |
| Weight |
620g |
| Power Supply |
Input: AC100~240V 50/60Hz
Output: DC12V/1A
|
| Power Consumption |
3.8W (max) |
| Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140° |
| Relative Humidity |
20~90% RH (non-condensing) |
| Note: Specifications are subject to change without notice |

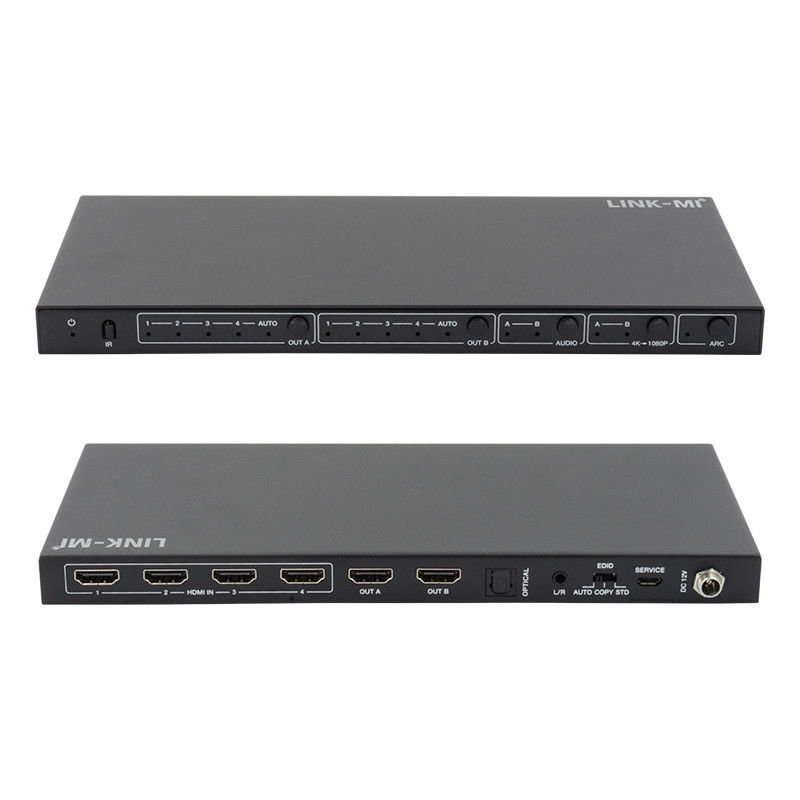

Connection Diagram

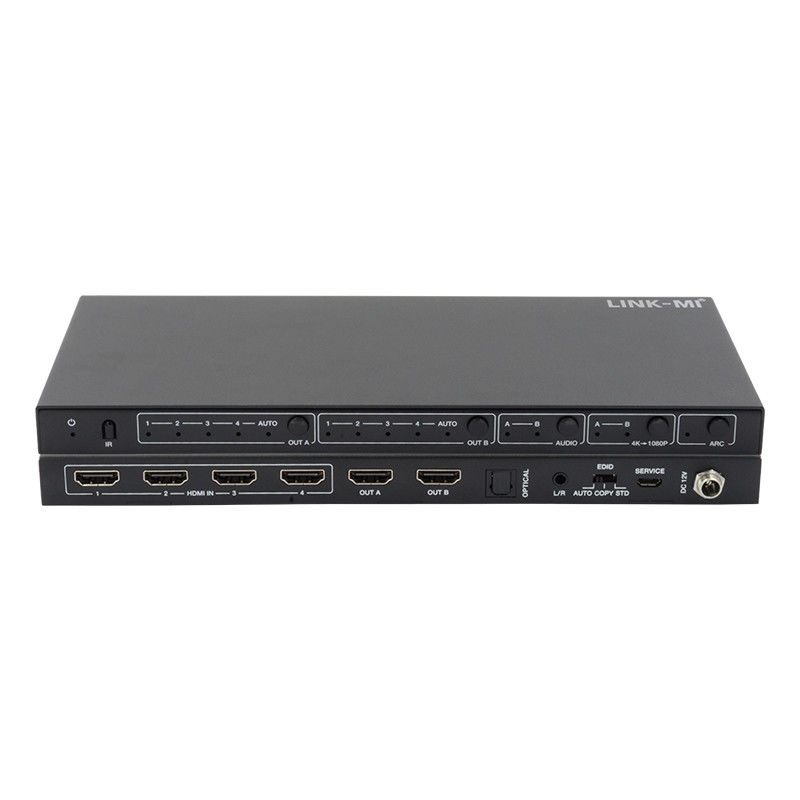

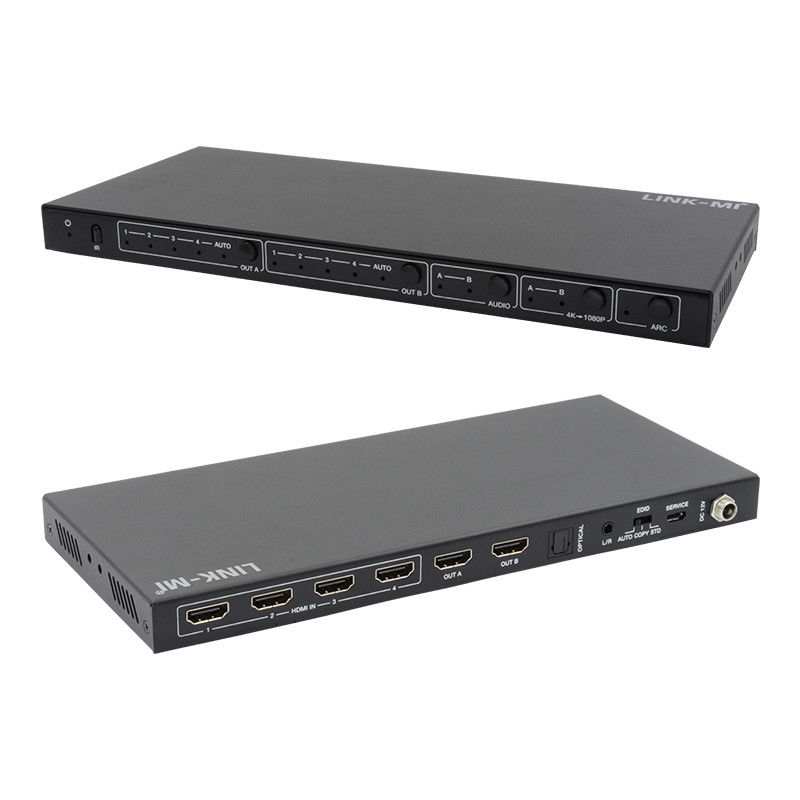

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
