HDMI ARC Audio Extractor for Audio Receiver/Amplifier Support L/R RCA CEC
Introduction

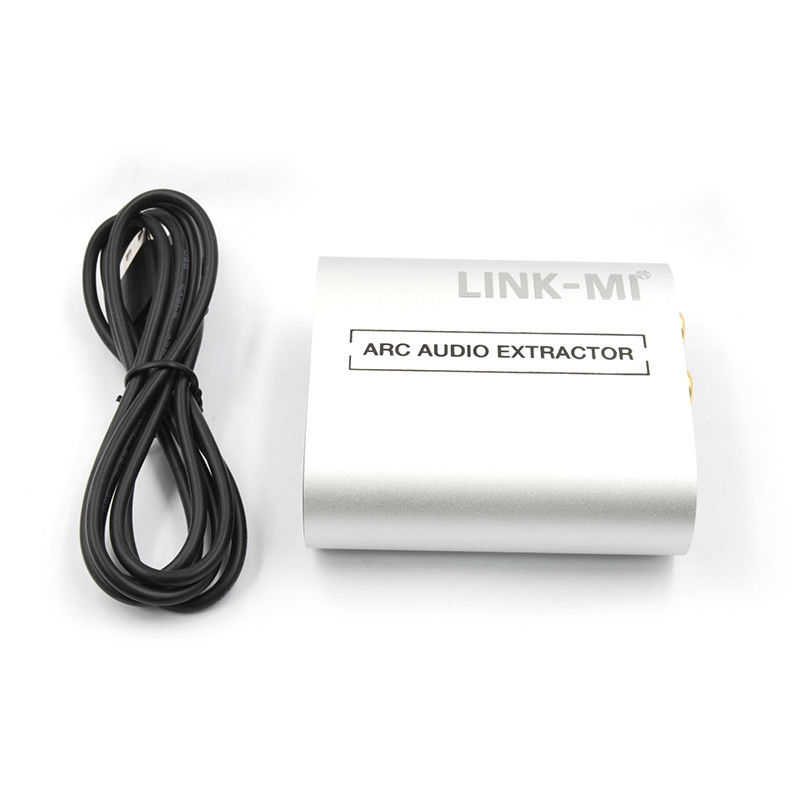

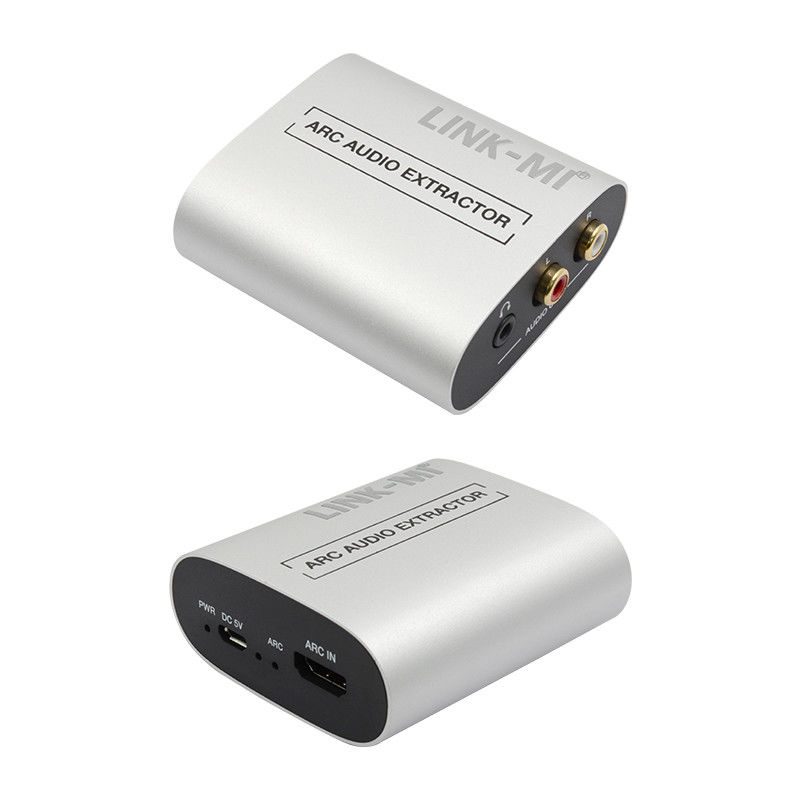

LINK-MI LM-AUE01 The HDMI ARC audio extractor can extract audio signal from ARC enabled HDTV to 2 channel analog stereo audio output, for audio receiver/amplifier/headphone applications. It supports PCM2.0 audio. TV remote can control the volume via CEC function.
Features
1. HDMI 1.4 compliant
2. Input: HDMI x 1; Output: 3.5mm L/R x1, RCA x 2
3. ARC Enabled: Extract audio signal from ARC
(Audio Return Channel) enabled HDTV to analog stereo output, for audio receiver/amplifier/head-phone applications
4. Support PCM audio to 2 channel stereo audio output
5. Support CEC function (TV remote can control the volume)
Specification
| Technical |
|
HDMI Compliance
|
HDMI 1.4
|
|
Vmax
|
2Vrms
|
|
SNR
|
＞90dB
|
|
THD+N Ratio
|
＜0.1%(V_max)
0.001%~0.01%(V_best)
|
|
Crosstalk
|
＞80dB
|
|
Frequency Response
|
20Hz~20kHz±1dB |
|
HDMI Audio Formats
|
PCM 2.0 |
|
L/R Audio Formats
|
Analog Stereo 2CH
|
| Connection |
|
Inputs
|
1x HDMI Type A [19-pin female]
1×Micro USB
|
|
Outputs
|
1x L/R Audio Out [RCA]
1x 3.5mm L/R
|
| Mechanical |
|
Housing
|
Aluminium Enclosure
|
|
Color
|
Silver
|
|
Dimensions
|
70mm[W] x 65mm[D] x 27mm[H]
|
|
Weight
|
80g
|
|
Power Supply
|
USB 5V/500mA
|
|
Power Consumption
|
0.86W (Max)
|
|
Operation
Temperature
|
32 - 104°F / 0 - 40°C
|
|
Storage temperature
|
-4 - 140°F / -20 - 60°C
|
|
Relative Humidity
|
20 - 90% RH (no condensation)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

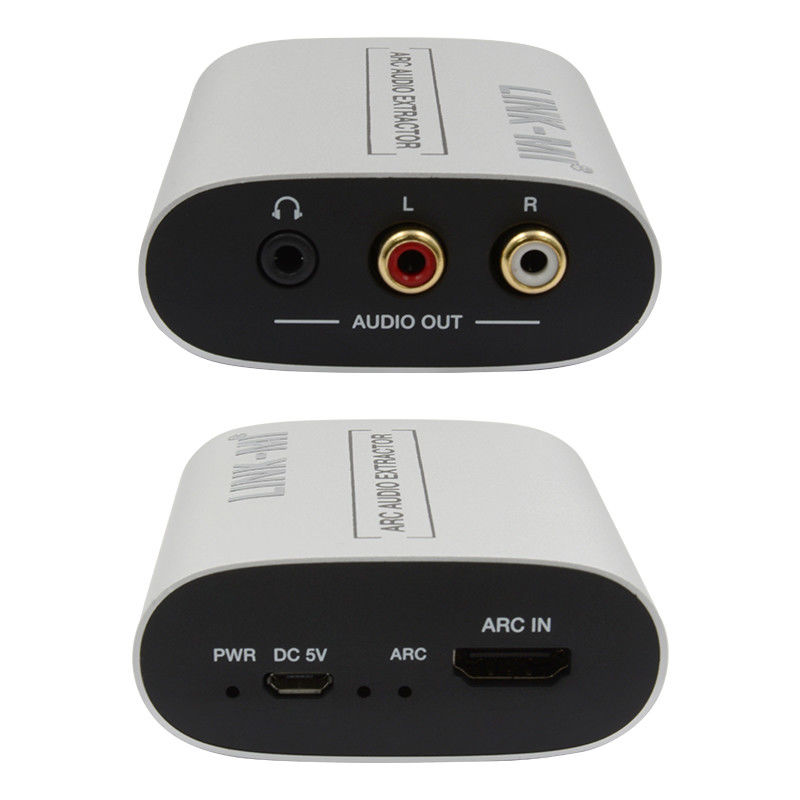

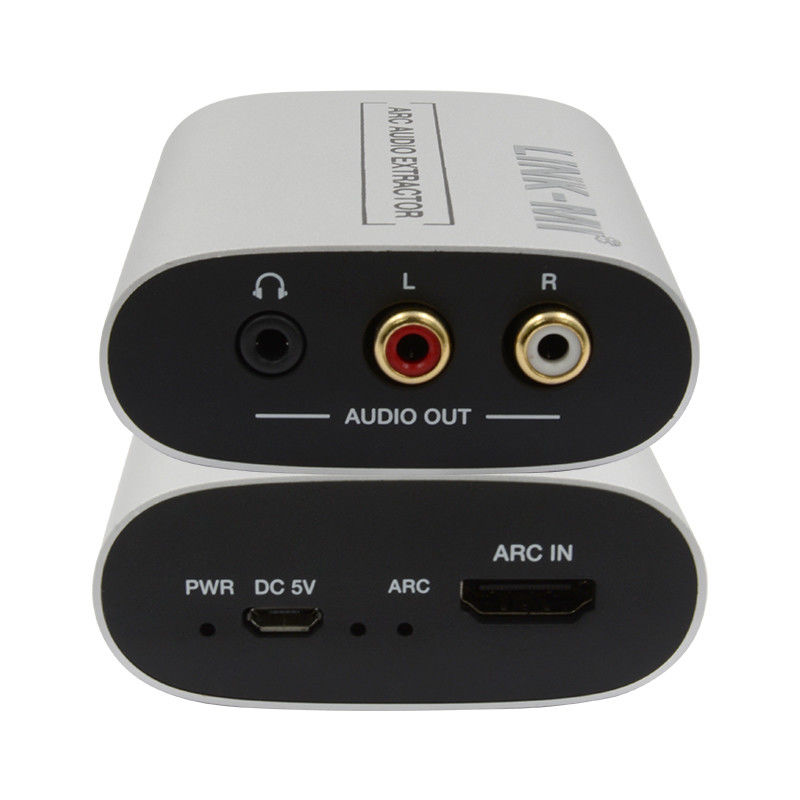

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-AUE01 HDMI ARC Audio Extractor.pdf
