18Gbps HDMI Extractor Extractor 4K@60Hz CEC EDID HDMI eARC Converter
Introduction
LINK-MI LM-AUE02 The 18Gbps HDMI eARC audio extractor supports dedicated HDMI output for extracting audio only. It allows user to use the existing AV Receiver to receive 4K2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range) pass-through and eARC/ARC.
Features
1. HDMI 2.0b and HDCP 2.3 / 1.x compliant
2. Support 18Gbps video bandwidth
3. Support video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
4. Support VESA format up to QSXGA@60Hz
5. HDR, HDR10, HDR10+, Dolby Vision pass-through
6. Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby digital plus, Dolby True-HD, DolbyAtmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
7. Built-in Equalizer, Retiming and Driver
8. Dedicated HDMI output for audio only with 720p black screen
9. Support eARC/ARC audio (from TV) extract to HDMI audio output
10. Support CEC function and advanced EDID management
Specification
| Technical |
|
HDMI Compliance
|
HDMI 2.0b
|
|
HDCP Compliance
|
HDCP 2.3 / 1.x
|
|
Video Bandwidth
|
18 Gbps
|
|
Video Resolution
|
Up to 4k2k@60Hz 4:4:4
|
|
Color Depth
|
8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit (4K2K@60Hz
YCbCr 4:2:2/4:2:0)
|
|
Color Space
|
RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
|
HDMI Audio Formats
|
PCM 2.0, LPCM 5.1 / 7.1,
Dolby Digital, Dolby Digital plus,
Dolby TrueHD, Dolby Atmos,
DTS 5.1, DTS ES 6.1, DTS HRA,
DTS HD Master, DTS:X
|
|
ESD Protection
|
Human body model —
±8kV (air-gap discharge) &
±4kV (contact discharge)
|
| Connection |
|
Input
|
1x HDMI Type A [19-pin female]
|
|
Output
|
2x HDMI Type A [19-pin female]
|
| Mechanical |
|
Housing
|
Aluminium Enclosure
|
|
Color
|
Silver
|
|
Dimensions
|
65mm[W] x 70mm[D] x 27mm[H]
|
|
Weight
|
83g
|
|
Power Supply
|
USB 5V / 500mA
|
|
Power Consumption
|
1.75W (Max)
|
|
Operation
Temperature
|
32 - 104°F / 0 - 40°C
|
|
Storage temperature
|
-4 - 140°F / -20 - 60°C
|
|
Relative Humidity
|
20 - 90% RH (no condensation)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

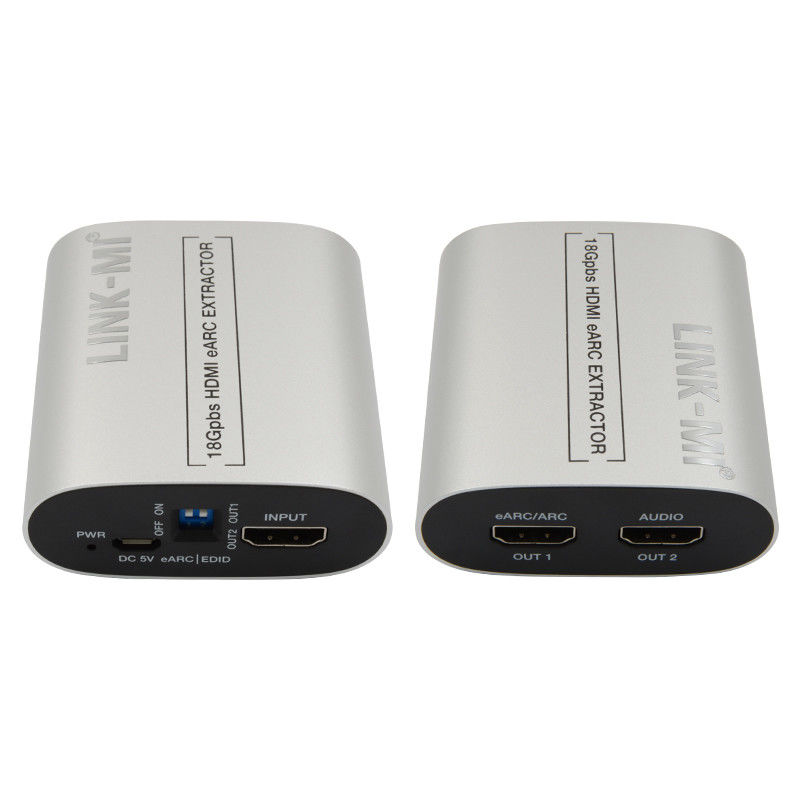

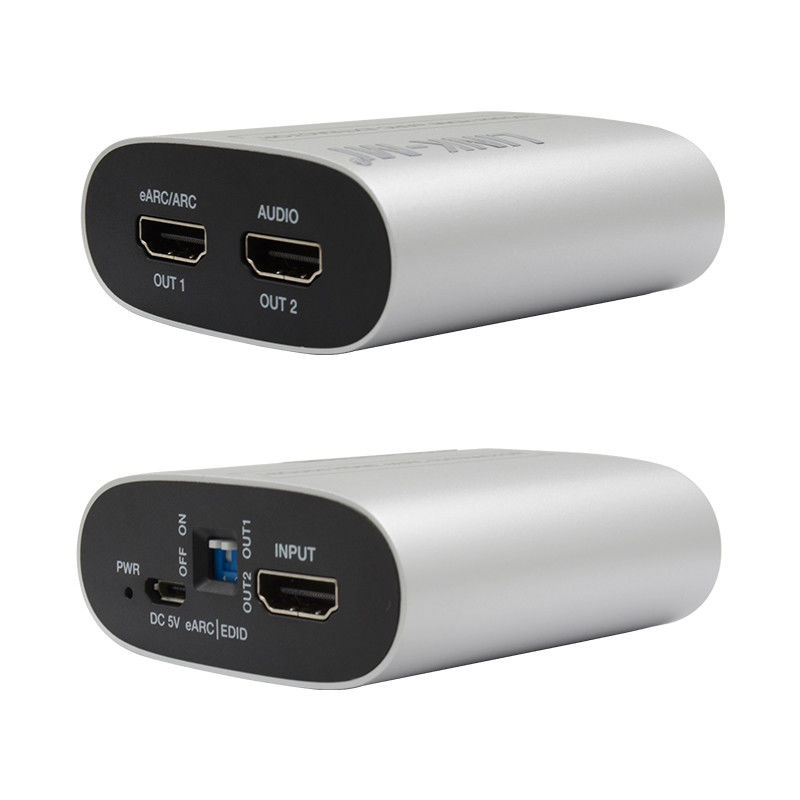

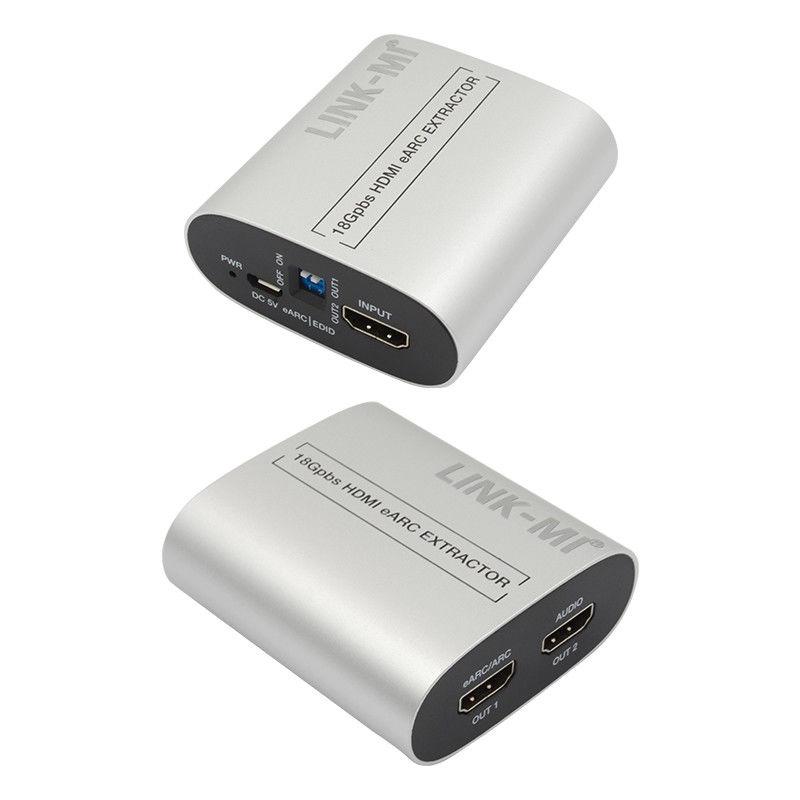

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-AUE02 18Gbps HDMI eARC Extractor.pdf
