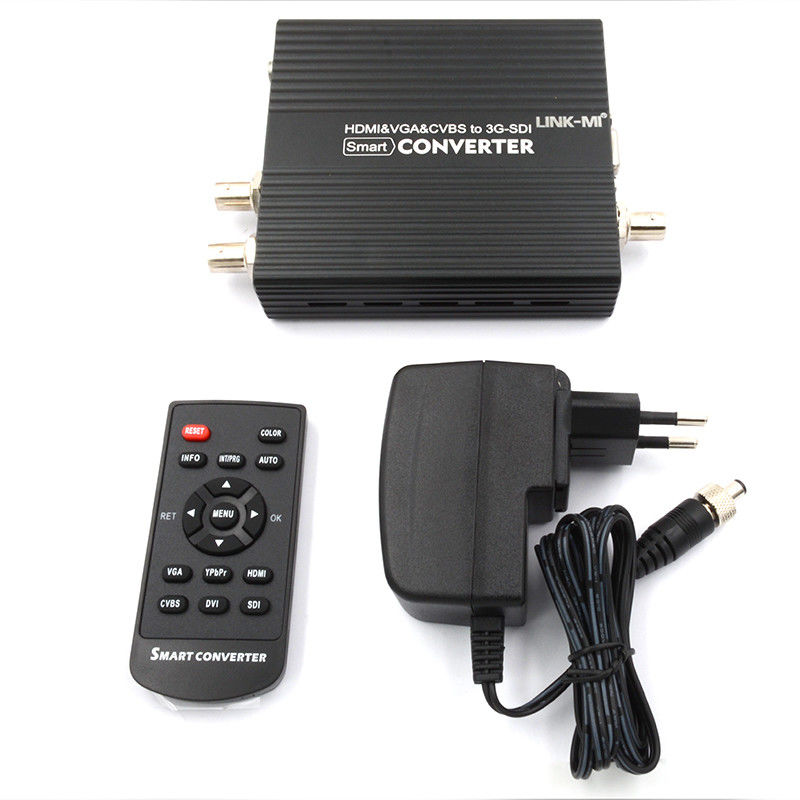

HDMI&VGA&CVBS to 3G SDI Multifunction Video Converter
Introduction
LINK-MI LM-SC5325 HDMI&VGA&CVBS-SD/HD/3G SDI video converter is a high-quality, high-performance video signal conversion products. It supports HDMI 1.4/HDCP 1.1, supporting HDMI, VGA and CVBS signal input and compatible with SD/HD/3G SDI signal. After professional design manufacturing craft, our converter is completely in conformity with SMPTE standard with
broadcast grade quality, in the meantime, supporting transmission distance up to 200m HD-SDI, 3G-SDI signals up to 120 meters [Note: Meets Belden 1694A cable standards, SDI
standard signal indicators]. Unlike the traditional converter products in current market, our converter with built-in a professional image conversion processing chip, firstly it will process
the image enhancement, noise reduction, de-interlacing (optional) function of SDI image before converting to. It supports image enhancement processing, denoising, deinterlacing
(optional), smart resolution conversion and frame rate conversion, adjustable saturability/luminance/contrast ratio setting, through automatic scaling and frame rate conversion, converting any form video to standard SD/HD/3G-SDI signal, compatible with common HDMI, VGA and CVBS signal.
Features
1. Support all type SDI resolution
2. SMPTE 425M (A and B level), SMPTE424M, SMPTE292M, SMPTE259M-C
3. Carry 2 channel SDI signal out
4. Support for OSD menu operation interface
5. Automatically detect the HDMI EDID information adaptive best mode
6. Support all formats asymmetric conversion
7. The signal lost blue screen warning
8. VGA input format can be specified 720p/1080p
9. Automatically embed HDMI audio signal to SDI signal
10. User selectable input format
Specification
|
Model
|
HDMI & VGA & AV to SD/HD/3G-SDI
|
| HDMI Input |
1xHDMI
|
|
VGA Input
|
1xVGA
|
|
AV (CVBS) Input
|
1xBNC-F
|
|
Input Signal Type
|
SD-SDI(270Mbps), HD-SDI(1.485Gbps),3G-SDI(2.97Gbps)
|
| Support Input Format |
SD:525i@ 59.94Hz,625i@ 50Hz HD:720p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/30Hz 720p@ 50Hz/ 59.94Hz/ 60Hz1080i@50Hz/59.94Hz/ 60Hz1080p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz 3G:1080p@ 50Hz/ 59.94Hz/ 60Hz |
|
SDI Signal Range
|
0.8Vp-p
|
|
SDI Impedance
|
75ohms
|
|
SDI Coupling Type
|
AC Coupling
|
|
Max. Output Coax Length
|
Belden1694A
SD-SDI 400m/1300ft; HD-SDI 200m/ 600ft;
3G-SDI 140m/450ft
|
|
SDI Out Interface
|
2xBNC SDI
|
|
Frequency Bandwidth
|
165MHz/upto standard with HDCP HDMI1.3
|
|
Power Supply
|
5V~24VDC
|
|
Power Consumption
|
3-6Watts
|
|
Operating Temperature
|
-10°C-60°C/14°F -140°F
|
|
Storage Temperature
|
-30°C-70°C/-22°F-158°F
|
|
Relative Humidity
|
20-90%RH(Non-condensation)
|
|
Dimension
|
158 × 120× 36 mm /6.22 × 4.72× 1.42 in
|
|
Weight
|
300g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

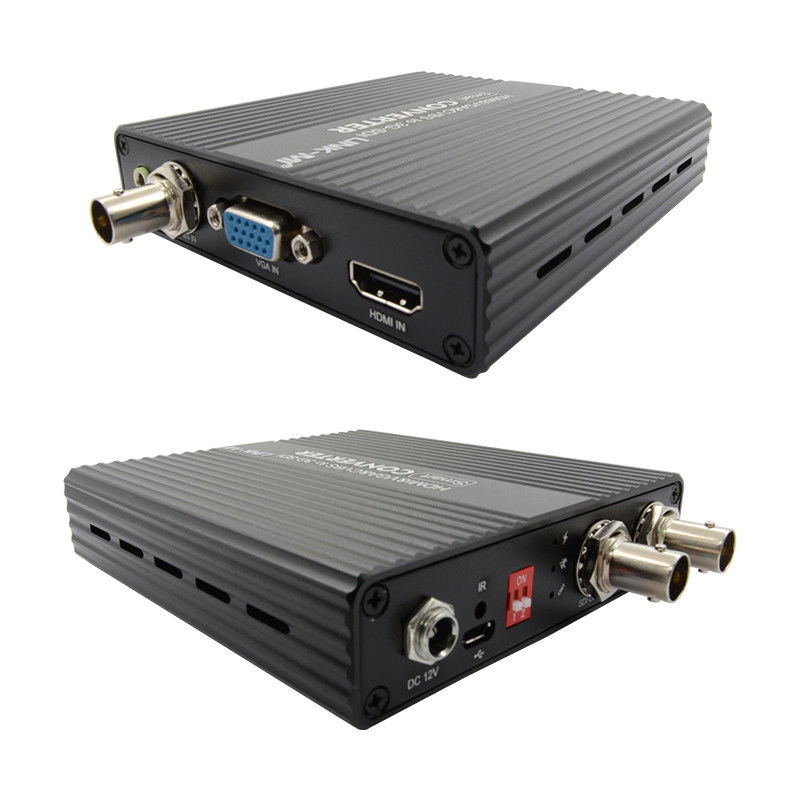

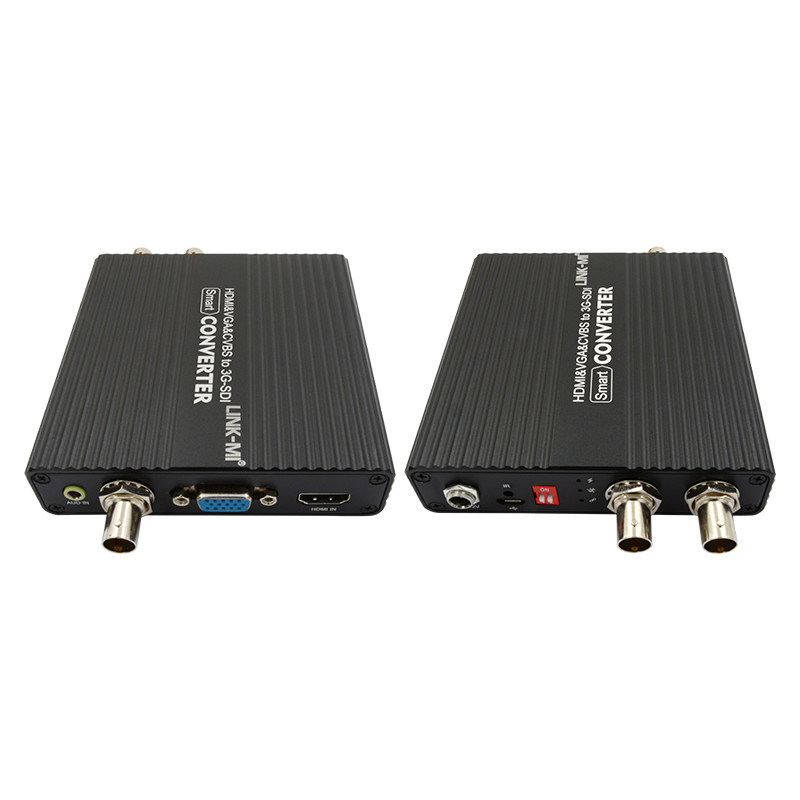

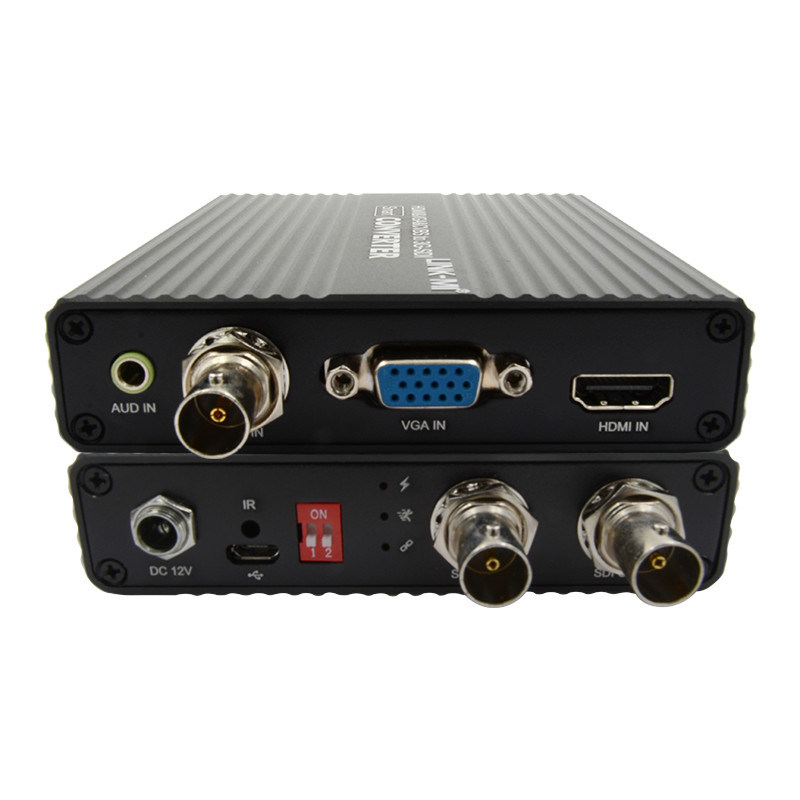

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SC5325 HDMI&VGA&CVBS to SDI Converter (NEW).pdf...
