Local Adjustable 100m VGA Cat5e/6 Extender
Introduction

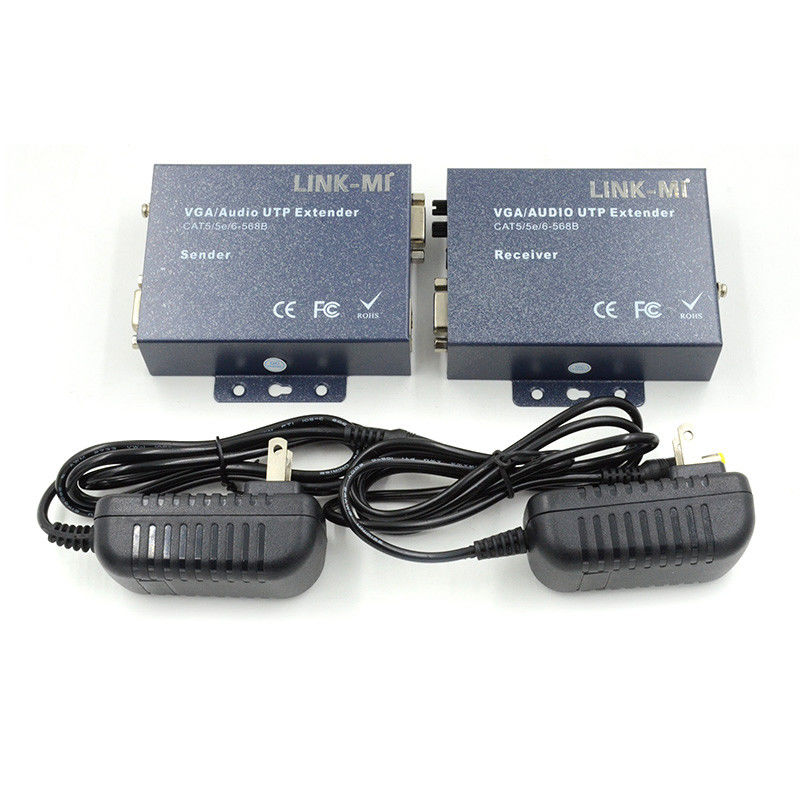

LINK-MI LM-101TR-1 100M VGA Audio Extender transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.
Features
1. Ideal solution for digital signage applications.
2. Supports local and remote VGA monitors.
3. Supports resolutions to 1920x1440.
4. Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.
5. Built-in lightning and ESD surge protection.
6. Available with optional stereo audio.
7. Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
8. Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.
Specification
| Local Unit |
1) Host Connection
2) Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
3) Male/Female 15-pin HD connector for computer connection.
4) Optional stereo audio support - 3.5mm stereo plug.
5) Local Access
6) Crisp and clear 1920x1440 video resolution.
7) Female 15-pin HD connector for local VGA monitor.
8) Optional stereo audio support - 3.5mm stereo jack.
|
| Remote Unit |
1) Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
2) Female 15-pin HD connector.
3) Optional 3.5mm stereo audio connection.
|
| Video Quality Adjustment |
1) Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video extender.
|
|
Environmental
|
1) Operating temperature: 32°F to 100°F (0°C to 38°C).
2) Storage temperature: -20°F to 140°F (-30°C to 60°C).
3) Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
|
| Dimensions |
1) L*W*H (mm): 95*97*28mm(Sender)
95*97*28mm(Receiver)
2) Weight(Kg):0.9KG
|
|
Power
|
1) 220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).
2) Power Consumption: 6W (each - local and remote unit).
3) Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.
|
Connection Diagram

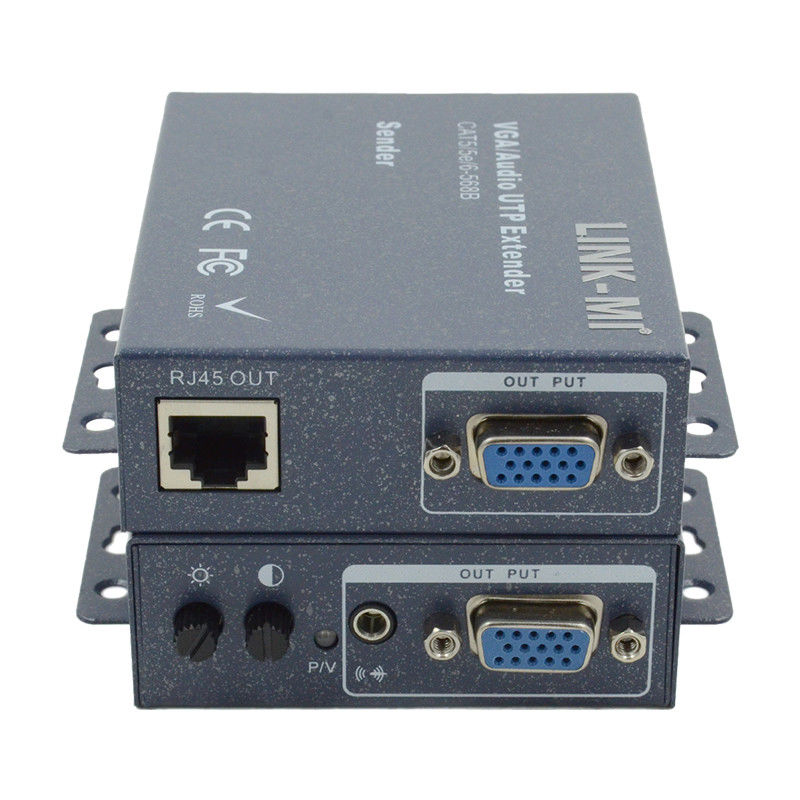

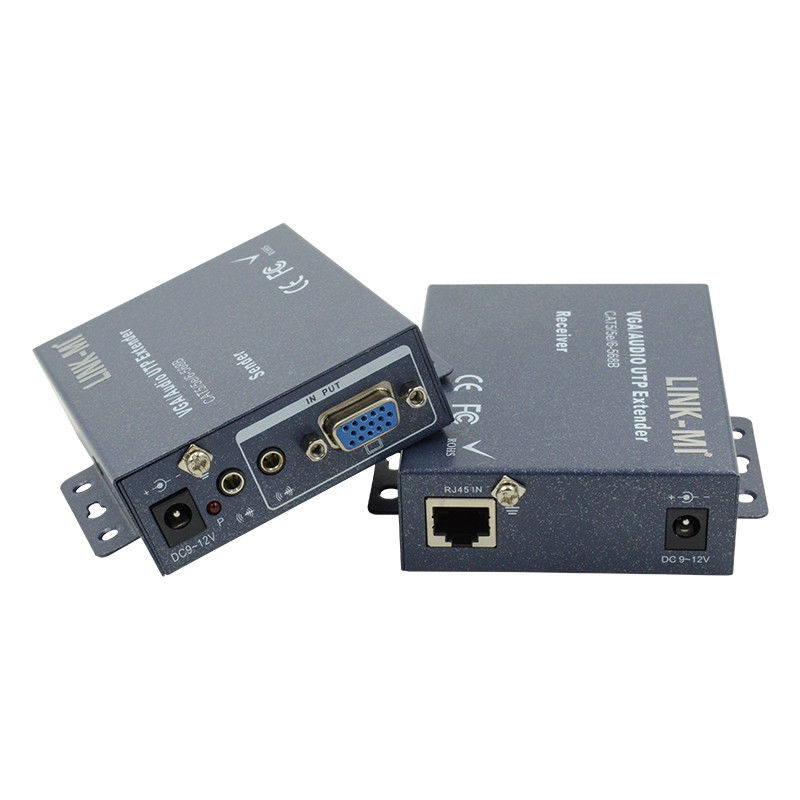

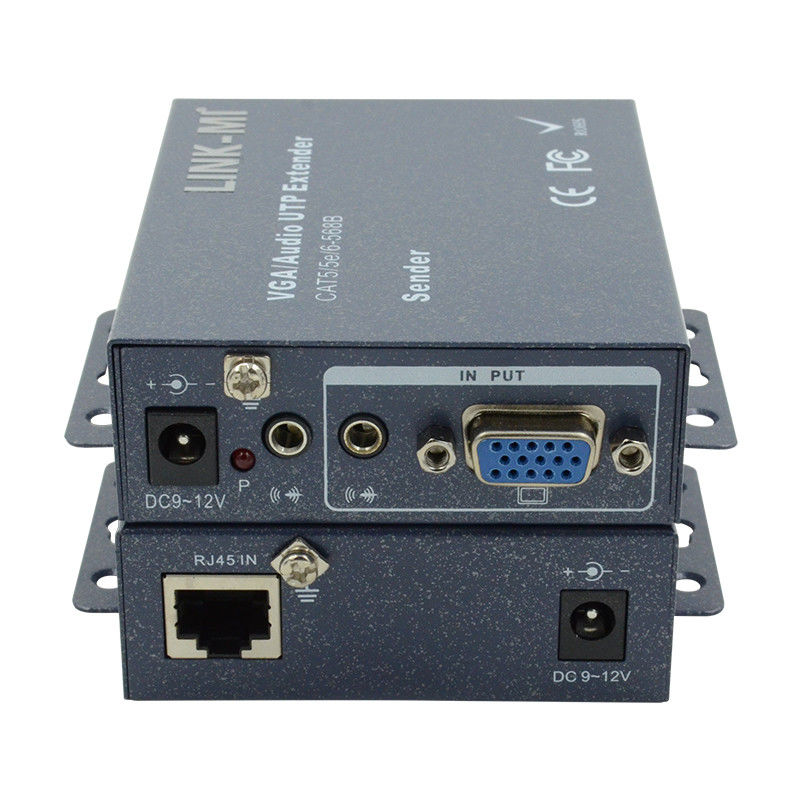

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
