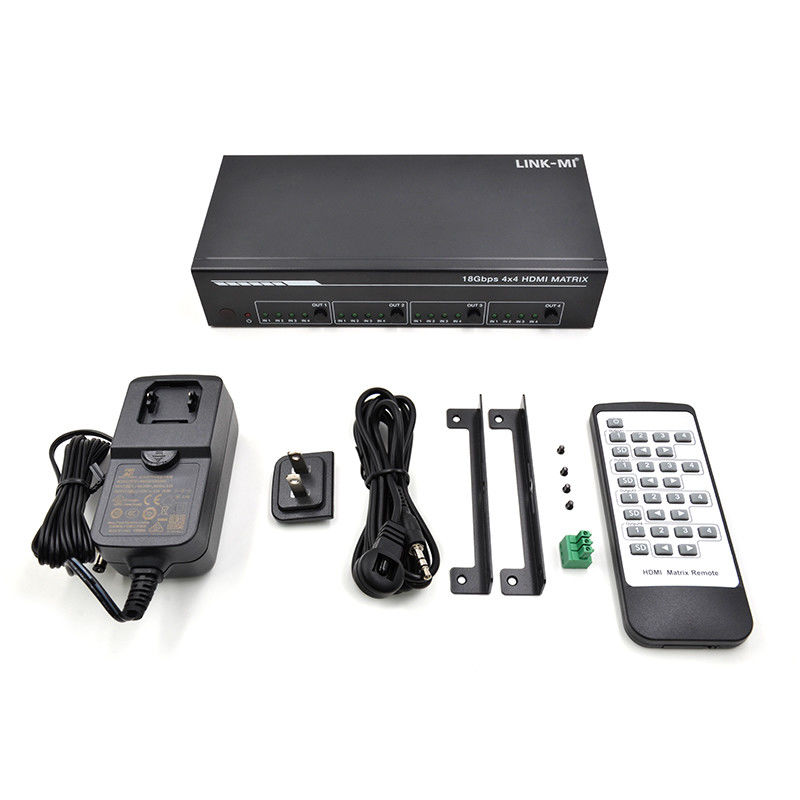

4X4 HDMI Matrix Switch 4K Video Switcher Support Downscaler with Audio ARC
Introduction
LINK-MI LM-MX44D This high performance HDMI Matrix Switcher can switch any of these four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. De-embedded audio as analog L/R and coaxial is available for both outputs.
The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. With its 18Gbps bandwidth and the additional features with latest HDMI standards. This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/IP.
Features
1. HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
2. Four 18G HDMI 2.0 video inputs support up to 4K60 444 resolution
3. Four 18G HDMI 2.0 video outputs support up to 4K60 444 resolution
4. Four outputs can be individually scaled for 4K→1080p
5. De-embedded audio to analog L/R and Coaxial ports output
6. ARC audio return to the coaxial ports output only
7. Built-in Web GUI for TCP/IP control
8. Advanced EDID management supported
9. Four methods of control: Front panel, RS-232, IR remote and TCP/IP
10. Compact design for easy and flexible installation
11. Support 3D, HDR
Specification
| Model No. |
LM-MX44D |
| Technical |
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth |
18 Gbps
|
| Video Resolution |
4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200 |
| Output Scaling |
4K to 1080p |
| 3D Support |
Yes |
| Color Space |
RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth |
8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]
8-bit [4K60Hz (YCbCr 4:4:4)] |
| HDMI Audio Formats |
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Coaxial Audio Formats |
PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| L/R Audio Formats |
PCM2.0CH |
| HDR Support |
HDR10, HDR10+. Dolby Vision, HLG
|
| ESD Protection |
Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge) |
| Connections |
| Input Ports |
4x HDMI Type A [19-pin female] |
| Output Ports |
4x HDMI Type A [19-pin female]
4x L/R audio out [3.5mm Stereo Mini-jack]
4x COAX audio out [RCA] |
| Control ports |
1x TCP/IP [RJ45]
1x RS-232[3-pin phoenix connector]
1x IR EXT [3.5mm Stereo Mini-jack] |
|
Mechanical
|
| Housing |
Metal Enclosure
|
| Color |
Black
|
| Dimensions |
220mm (W)×105mm (D)×44mm (H)
|
| Weight |
792g
|
| Power Supply |
Input: AC100~240V 50/60Hz
Output: DC12V/2.5A (Locking connector)
|
| Power Consumption |
10W (max), 1.56W (Standby)
|
| Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F
|
| Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F
|
| Relative Humidity |
20~90% RH (non-condensing)
|
| Resolution / Cable Length |
HDMI IN / OUT
4K60 - Feet / Meters: 10ft / 3M
4K30 - Feet / Meters: 30ft / 10M
1080P60 - Feet / Meters: 42ft / 15M
|
|
The use of “Premium High Speed HDMI” cable is highly recommended.
|
Connection Diagram

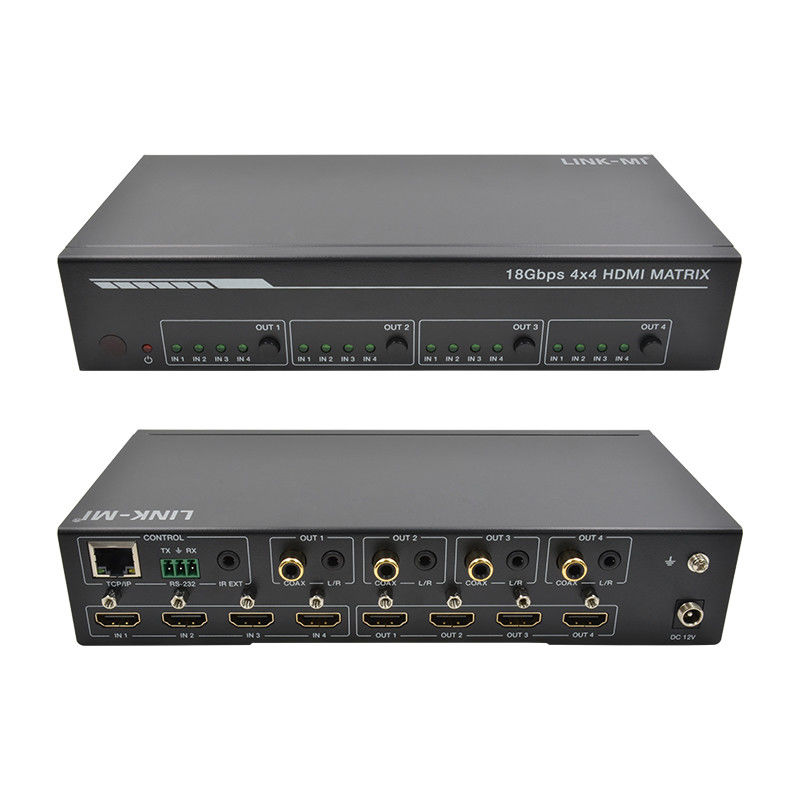

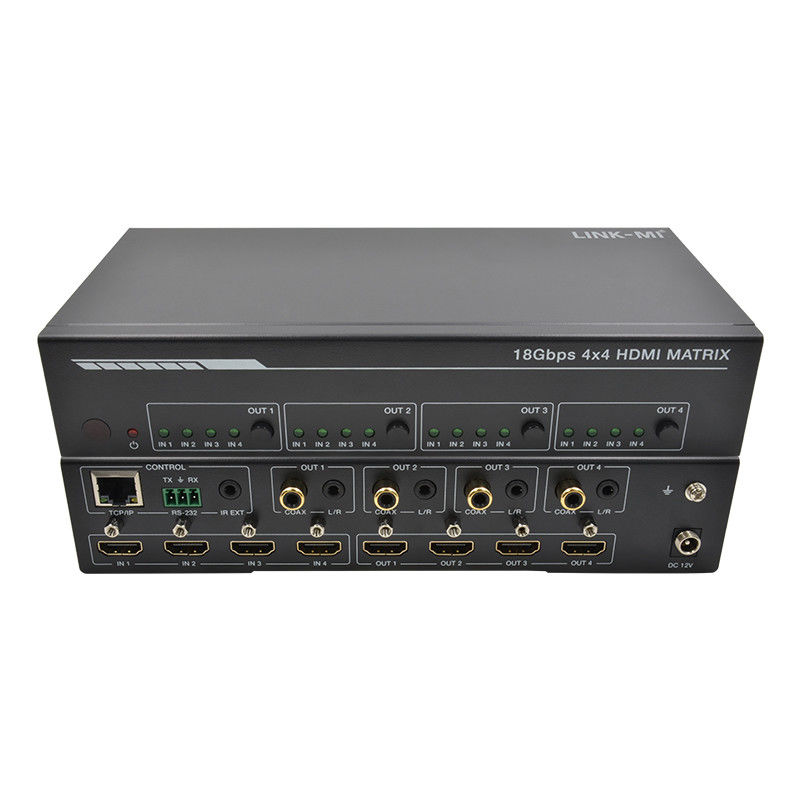

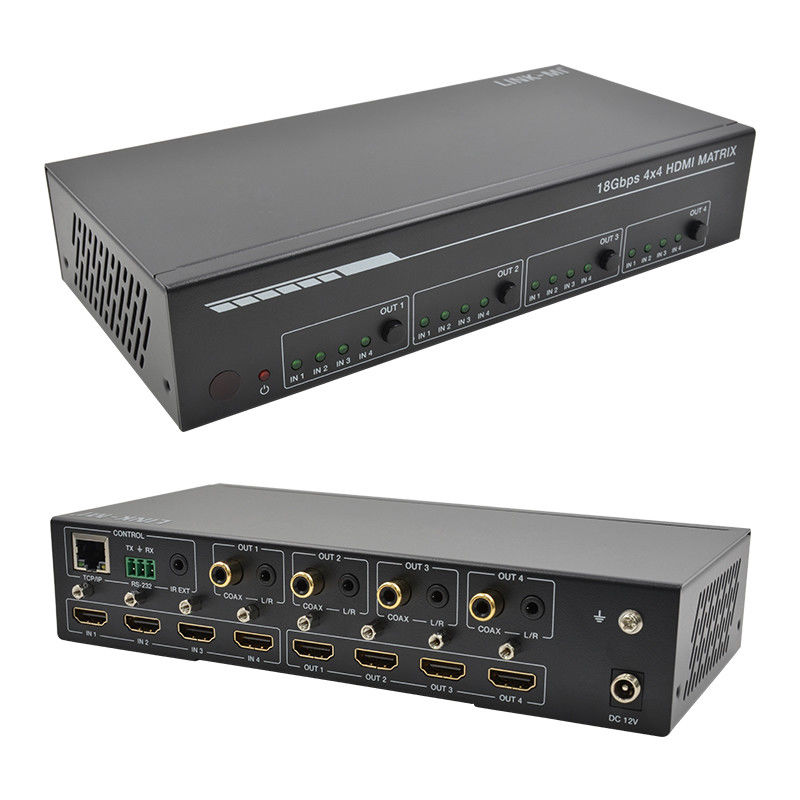

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
