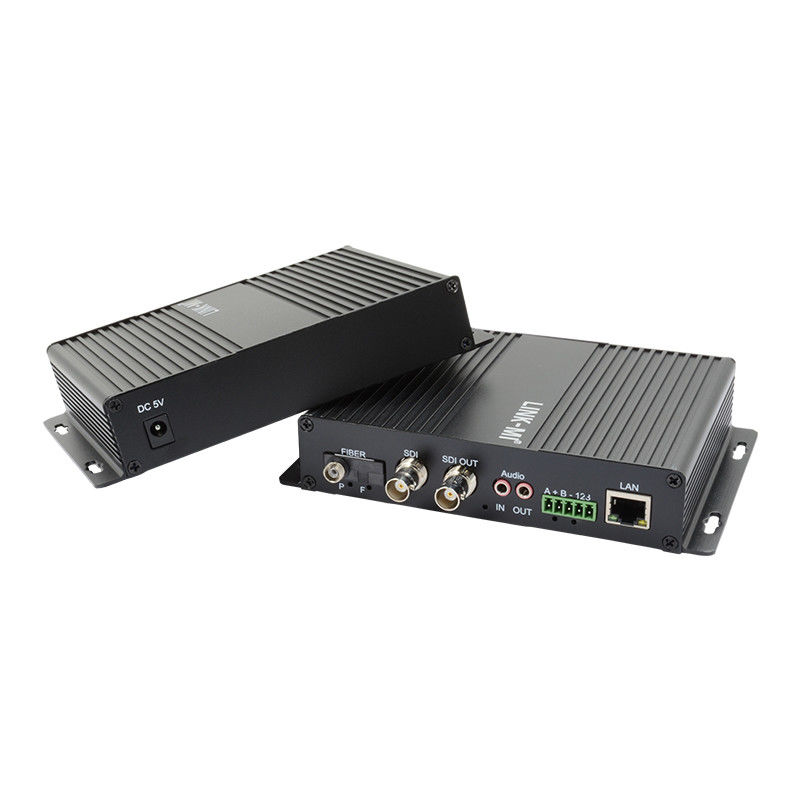

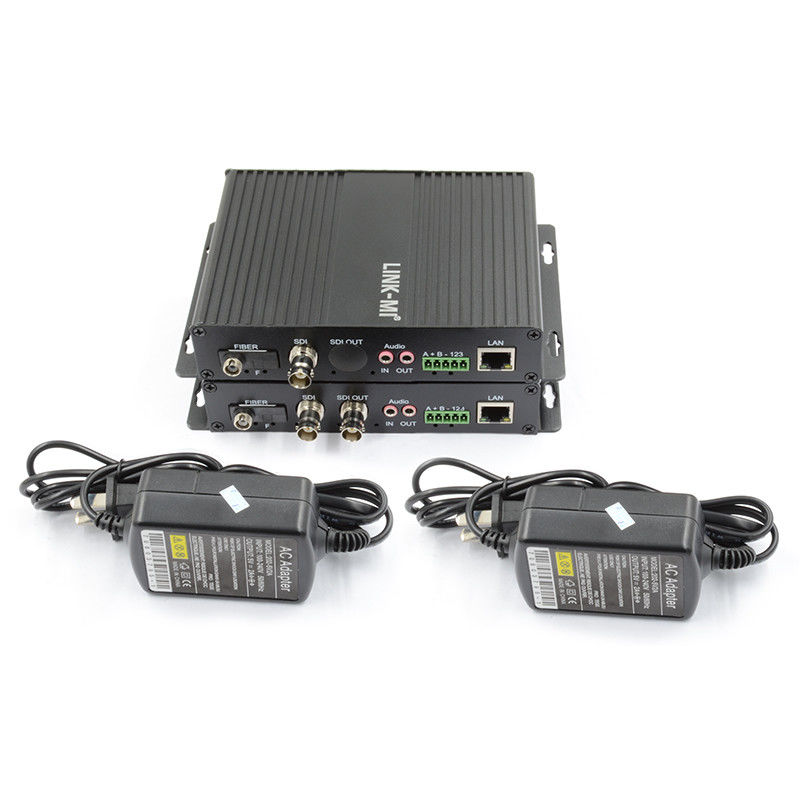

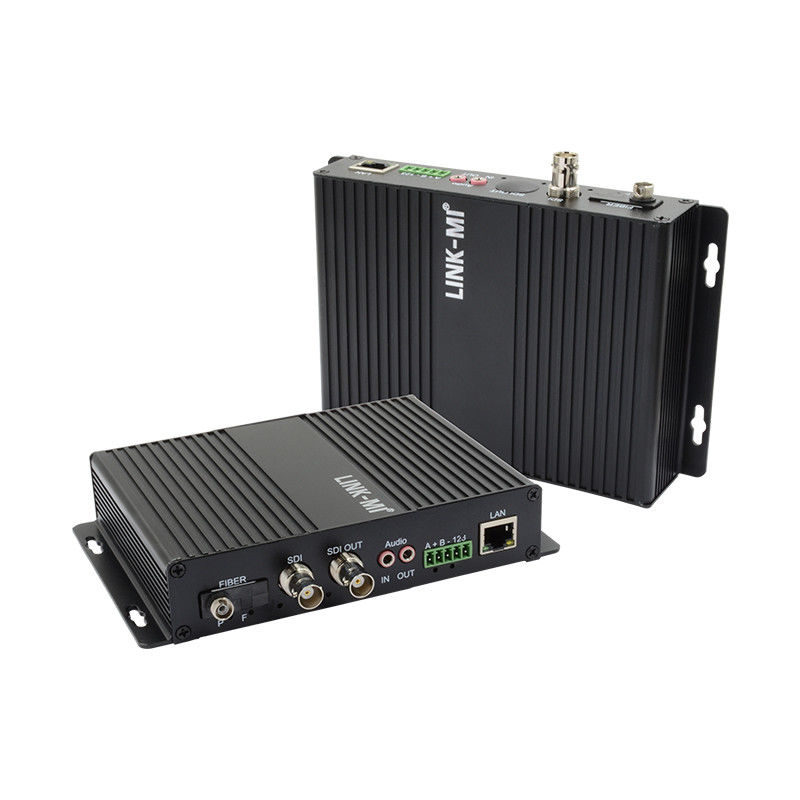

SDI Data Media Fiber Converter
Introduction
LINK-MI LM-SF02 The HD/3G-SDI to fiber converter includes a transmitter and receiver, which is a low cost transfer device for unidirectional HD/3G-SDI video, 1ch 10/100M ethernet and 1ch rs422 data over a single mode and multimode optical fiber cable transfer. It is designed by digital optical transfer technology and supports SMPTE292M /SMPTE259M /SMPTE424 signal. And the receiver can be put into a standard19”3.5U rack mount chassis, which supports 16PCS receiver insert cards with 2pcs 90~240V power supply.
Features
1. 3G/ HD-SDI video (embedded audio signal) over a fiber with lossless long-distance transmission
2. Support 1CH unidirectional or bidi RS485 or RS422 or RS232 control data transmission , 1ch full duplex 10/100M Ethernet.
3. ASIC integrated designed technology with core independent intellectual property rights
4. Advanced circuit design, full hardware program to ensure the reliability of equipment, consistency and stability
5. Widely used in TV live broadcast, high-definition video conferencing, high-definition video surveillance and other fields
6. Support single-mode or multi-mode fiber transmission (the user needs to confirm the transmission cable type)
7. Provide commonly used LC/FC / SC / ST fiber interface
8. Maximum transmission distance up to 120KM over single mode fiber
9. 3G-SDI high digital Video and audio signal optical transmission
10. Adapt to SDI 270Mbps, 1.485Gbit Speed and 3G automatically
11. Accept customerization and OEM business mode.
Specification
| Optical |
| Wavelength |
multi-mode 850nm / 1300nm, single-mode 1310nm / 1550nm |
| Output Power |
-10~-4dBm |
| allowable chain loss range |
18dBm~35dBm |
| Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
| Light receiving sensitivity |
<=30dBm |
| Optical connector |
LC FC,ST,SC (selectable) ,single or dual fibers |
| Distance |
0~500M (MM) / 0~80KM (SM) |
| Video-SDI |
| Signal Type SDI |
SMPTE 424M, SMPTE 292M, SMPTE 259M |
| Video Format |
1920*1080P60;1920*1080P50;1920*1080P30;1920*1080P25
1920*1080P24;1920*1080I601920*1080I50;1280*720P60;1280*720P50;525i ;625i
|
| Data Rates |
270Mbit/s - 1.48Gbit/s, 3Gbit/s |
| Cable Equalization |
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s,80m @ 3Gbit/s
|
| Connector |
BNC 75 Ohm |
| Video-General |
| Input Power |
5V, 0.2-2.0A |
| Power consumption (maximum) |
Transmitter: 2.5W Receiver: 2.5W |
| Operating temperature |
-20°C to 60°C |
| Storage temperature |
-40°C to85°C |
| Operating humidity |
0 ~ 95% (non-condensing) |
| Case color |
Black |
| Case material |
aluminum |
| Dimension |
15.5x12x3.2CM |
| Net Weight |
1Kg per pair |
| Case material |
Aluminum |
| MTBF: |
>100000 hours |
| Data |
| Data protocol |
RS422 |
| Data rate |
0~500 Kbps |
| Error rate |
< 10-9 |
| Connector |
Phoenix Terminal |
| Ethernet |
| Work mode |
Full duplex/half duplex |
| Data Rate |
10/100Mbps(AUTO) |
| connection terminal |
RJ45 |
| Note: Specifications are subject to change without notice |
Connection Diagram

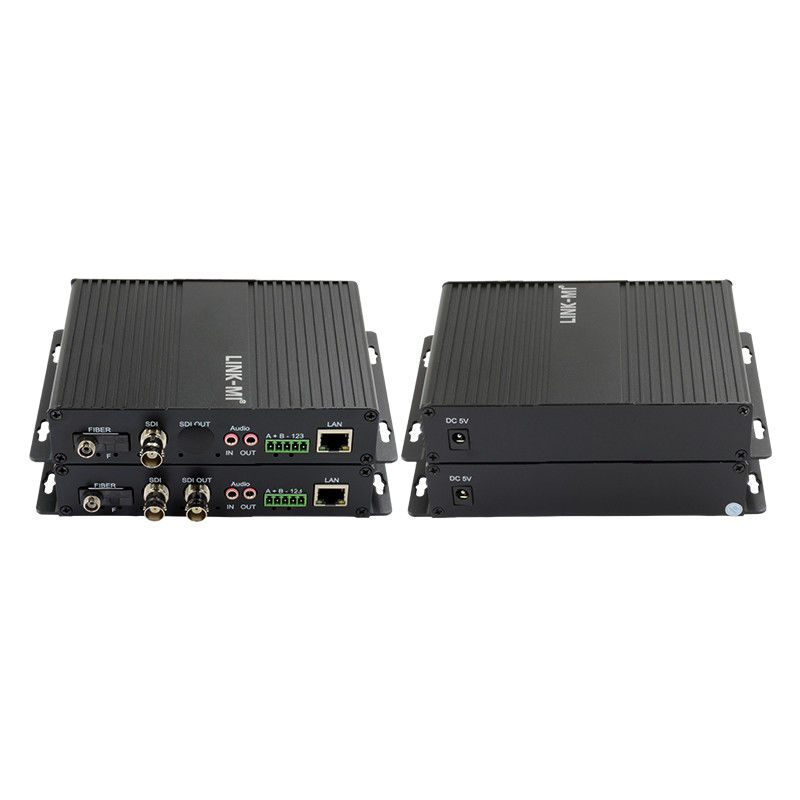

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SF02 20KM SDI Data Media Fiber Converter Extend...
