4ch multifunctional /HD-SDI To Fiber Converter
Introduction

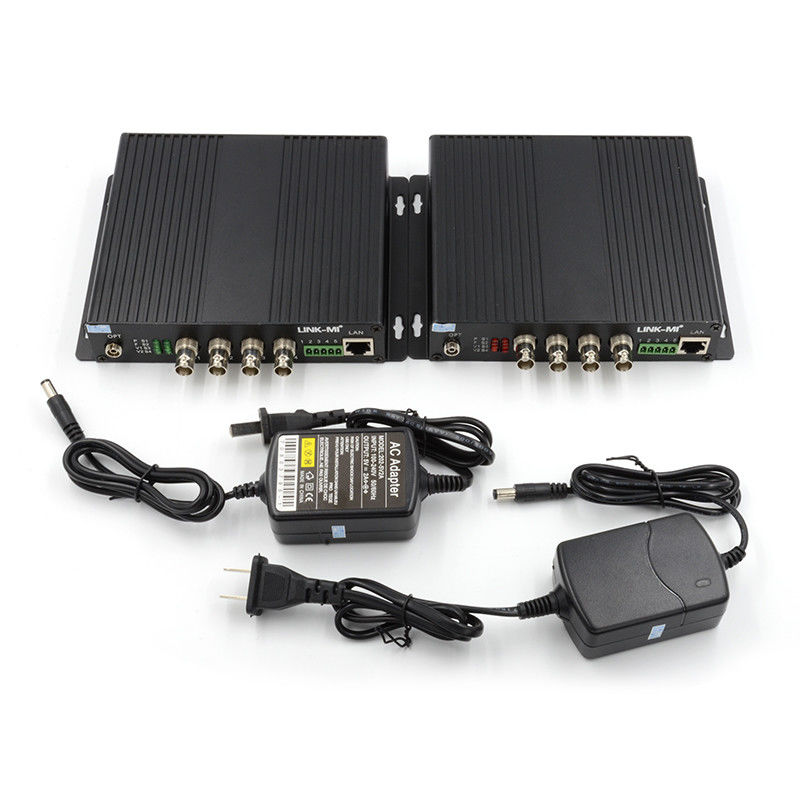

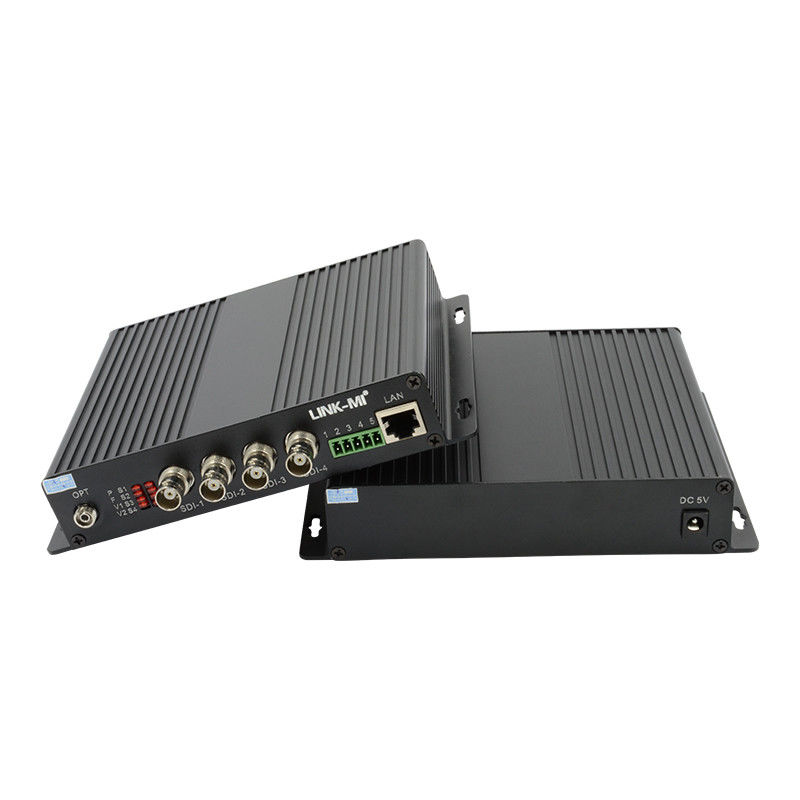

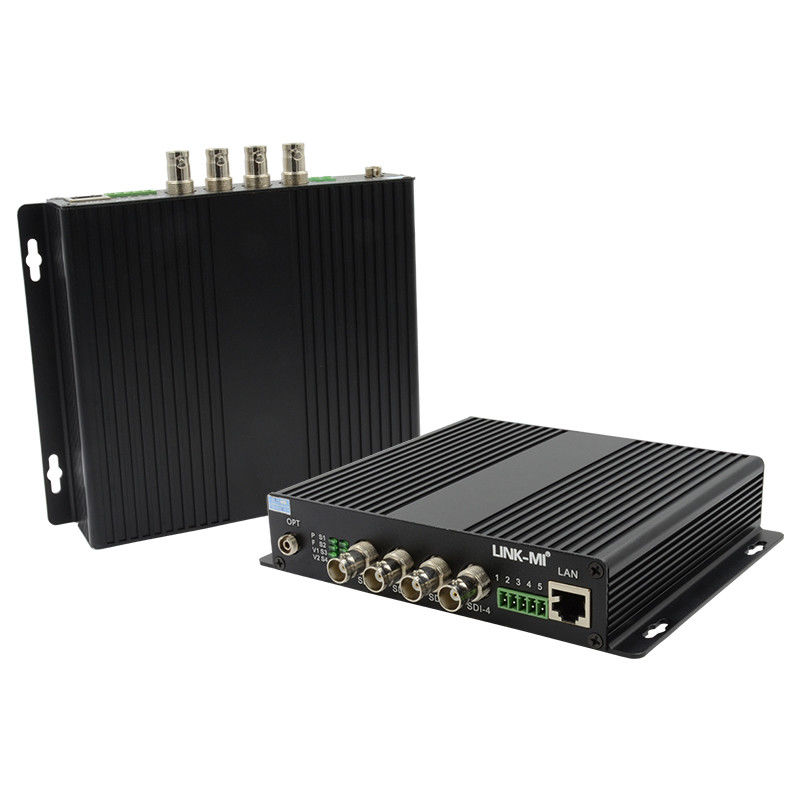

LINK-MI LM-SF44N The SDI video to fiber converter is an ideal and economic solution for broadcast or surveillance applications. It receives HD-SDI, RS485/RS232 and ethernet signals electrically input, perfectly converts them to single mode optic signals. The SDI series fiber video converter are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.
Features
1, Compatible with SMPTE-424M,SMPTE344M,SMPTE-292MHD-SDI and SMPTE-259M SD-SDI standard signals, supporting 1485Mb/s and 270Mb/s, 2.97Gbps rate
2, support 1ch 10/100M ethernet with RJ45 interface and 1ch bidirectional/ unidirectional RS485/RS232 with Phoenix terminal interface, up to 115.2Kb/s baud rate
3, Support 1080P@,30, 25, 24, 1080I@60, 50, 720P@60, 50, 30, 25, and other video formats.
4, Input with cable equalization function to compensate for cable transmission loss
5, Built-in ESD and surge protection circuit to prevent static electricity and lightning damage
6, Provide optical disappearance alarm, remote power failure alarm, output signal status indication, and input signal lock status indication
7, Stand-alone type or card-type installed in 19'' 4U rack-mount chassis.
Specification
| Opitcal: |
| Wavelength |
1310nm,1550nm |
| Serial digital video input/output voltage |
Typical Max value 800mVp-p, 600~1000mVp-p |
| Fiber Type |
50/125u multimode,62.5/125u multimode,9/125u single mode,single fiber or dual fibers |
| Video Signal Return loss |
≤-15dB@5MHz～1.5GHz,-10dB@1.5GHz～3GHz |
| Optical connector |
SC,FC |
| Distance |
0~500M (MM) / 0~100KM (SM,selectable) |
| Data: |
| Data protocol |
Unidirectional or Bidirectional RS485 or RS422 or RS232,selectable |
| Data rate |
0~115.2 Kbps |
| Error rate |
< 10-9 |
| Connector |
Industrial standard terminal block (also can be configured with interfaces such as DB9/DB25) |
| Ethernet: |
| Work mode |
Full duplex/half duplex |
| Data Rate |
10/100Mbps(AUTO) |
| Connection terminal |
RJ45 |
| Video: |
| |
SDI Input |
| Signal Type SDI |
MPTE259M,292M,344M,424M |
| Data Rates |
143Mbit/s – 2.97Gbit/s |
| Cable Equalization |
≤140meters of Belden 1694A at 1.485Gbps
≤400meters of Belden 1694A at 270Gbps
|
| Connector |
BNC 75 Ohm |
| General: |
| Input Power |
5 V DC |
| Power consumption (maximum) |
5W |
| Operating temperature |
0°C to 55°C |
| Storage temperature |
-20°C to 70°C |
| Operating humidity |
0 ~ 95% (non-condensing) |
| Dimension For The Converter(TX&RX) |
173x150x32MM |
| Dimension For The Package of 1 Pair |
320x247x61MM |
| Net Weight |
1.75KG |
| Gross Weight |
2KG |
| Case material |
Aluminum |
Connection Diagram

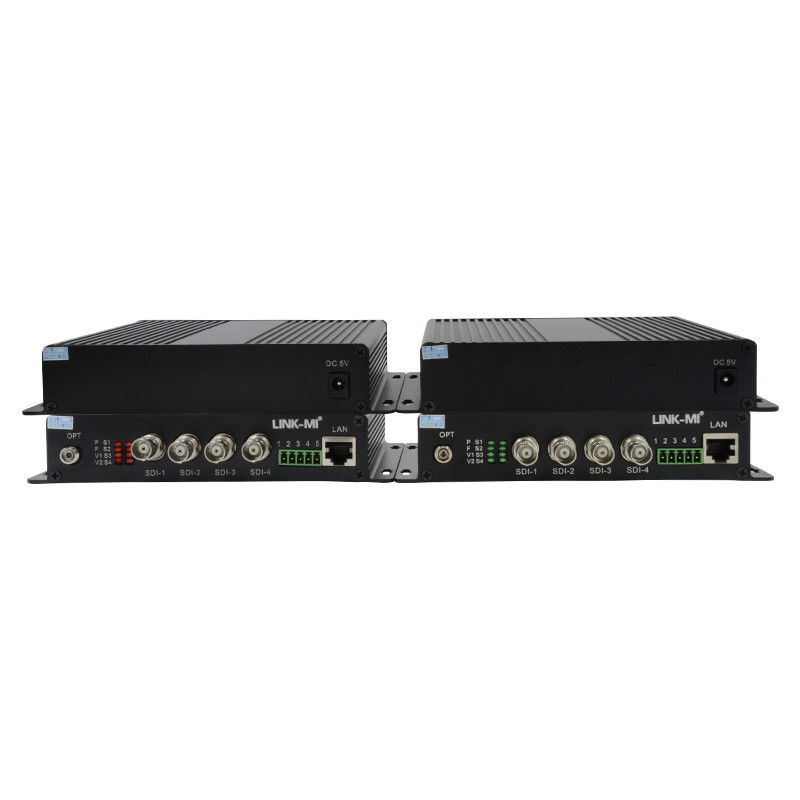

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
