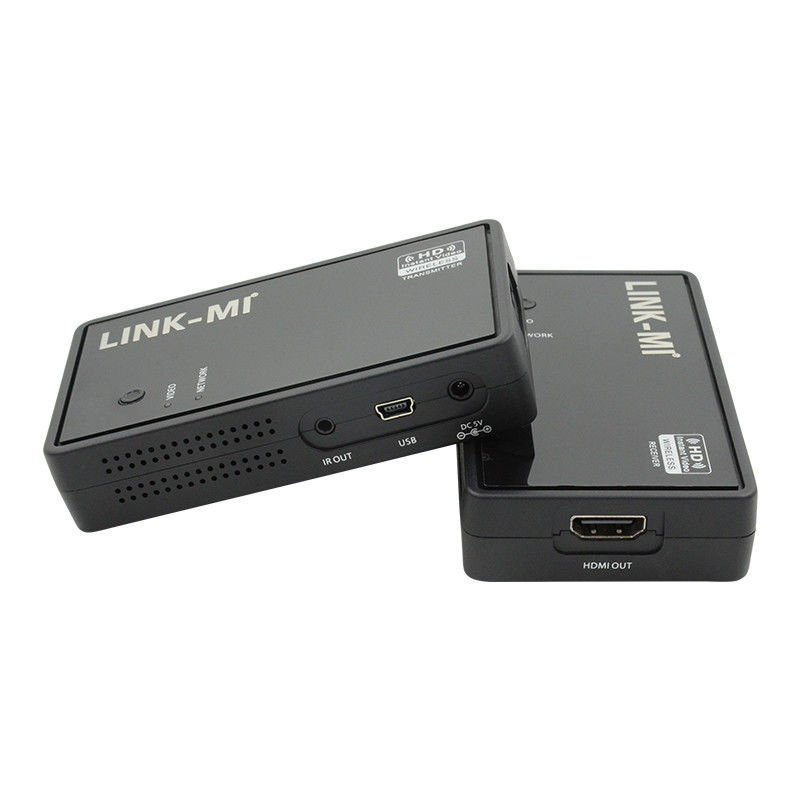

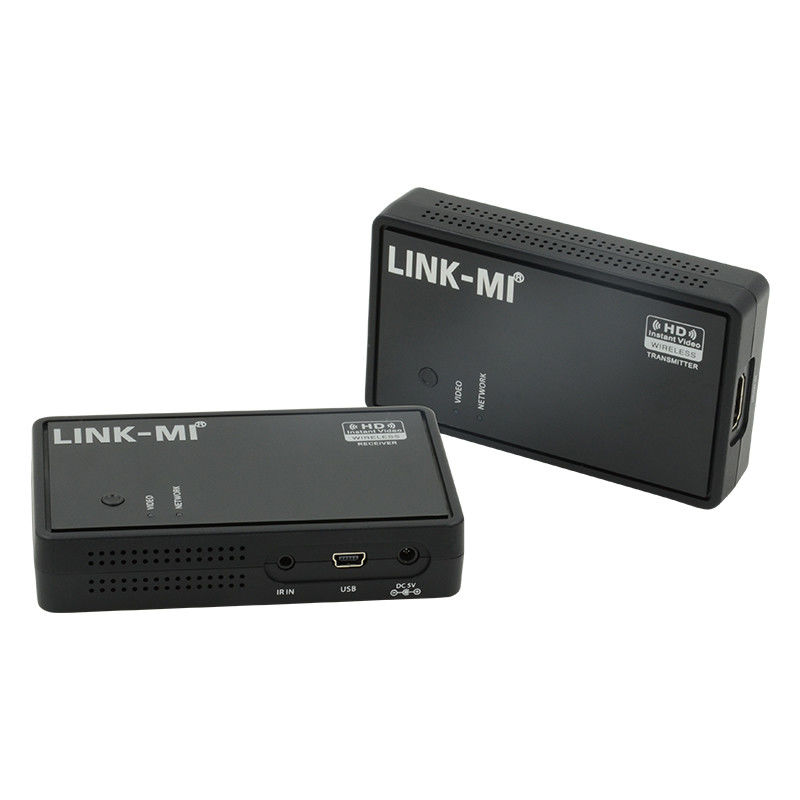

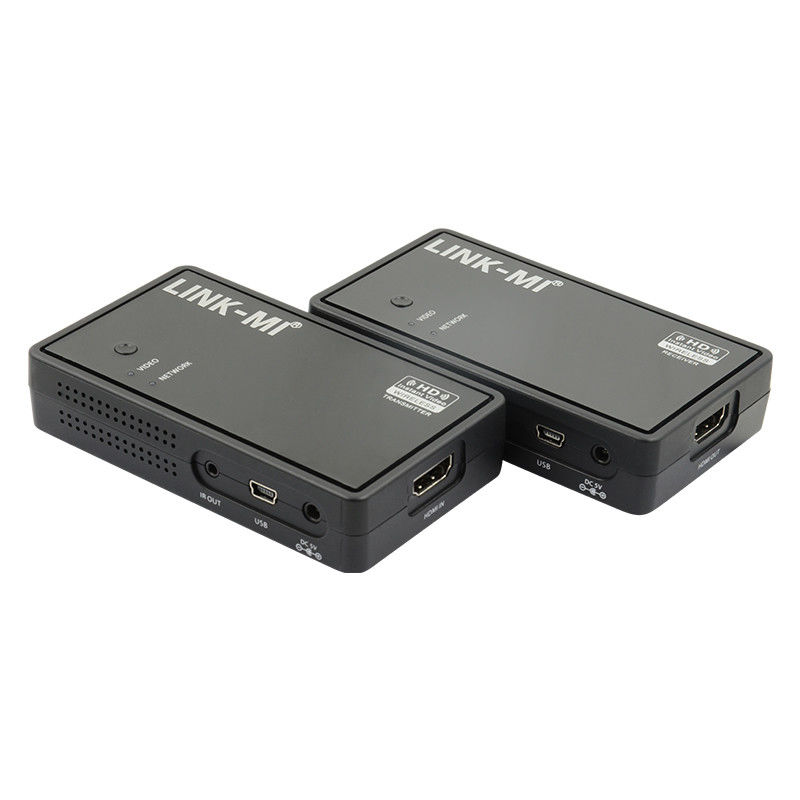

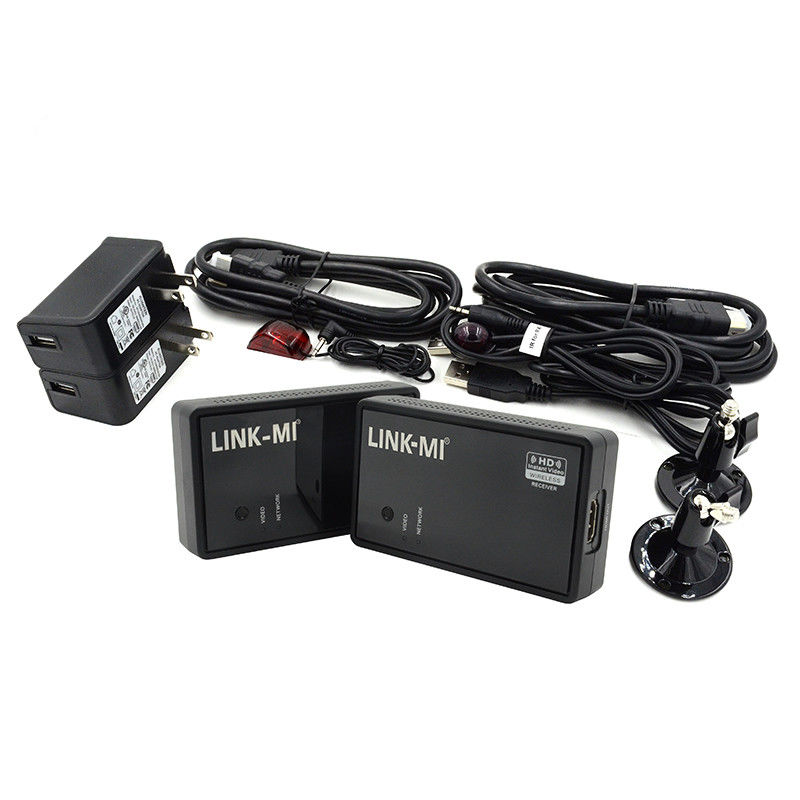

50m WIFI Wireless HDMI Transmitter and Receiver Wireless Extender
Introduction
LINK-MI LM-WHD05 Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source, such as PC/HDTV to display devices includes HDTV/HD Monitor over the 5GHz band, with very low latency.
It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.
This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.
Features
1. Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.
2. 5GHz Wireless HD Video Transmission
3. Supports Multi resolution up to 1080p
4. HDMI Input / Output, support multi devices with HDMI
5. Low latency <100ms
6. Effective Range: 50m ( Line of sight )
7. WPS Transmitter – Receiver Pairing
8. Plug & Play – full hardware design, no software is required
9. AES128/256 Encryption
Specification
| Item |
Transmitter |
Receiver |
| Frequency |
5GHz |
| RF Communication |
2x2 MIMO |
| Modulation Mode |
OFDM |
| Bandwidth |
20MHz/40MHz |
| Transmission Range |
50m |
| Frequency Stability |
±20PPM |
| Wireless Standard |
802.11n |
| Transmission Power |
802.11n ( HT20@MCS7): 12dBm |
| EVM |
802.11n ( HT20@MCS7): 12dBm≤-26dBm |
| Receiving Sensitivity |
802.11n ( HT20@MCS7): -70dBm |
| 802.11n ( HT40@MCS7): -65dBm |
| System Latency |
≤100ms |
| Antenna |
2x2 4dBi Built-in Antenna |
| Encryption |
AES128/256 |
| Network Mode |
AP |
Station |
| Standard Protocol |
HDMI 1.3, HDMI 1.4 3D, HDCP 2.0 |
| Power Supply |
DC 5V/2A |
| Power Consumption |
5 Watts |
3 Watts |
| Dimensions |
101x59x21mm |
| Video Formats |
HD: 1080p, 1080i, 720p, 576p, 480p PC: VGA ( 640x480 ), SVGA ( 800x600 ), XGA ( 1024x768 ) |
| Video Compress Formats |
H.264 |
| Audio Formats |
PCM, AAC, Dolby Digital 2.0 |
| Audio Compress Formats |
AAC |
| Operating Temperature Range |
0 to 40℃ |
| Storage Temperature Range |
-20 to 80℃ |
| Operating Humidity Range |
15-85%RH |
| Note: Specifications are subject to change without notice |
Connection Diagram
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-WHD05 50M Wireless HDMI Extender.pdf
