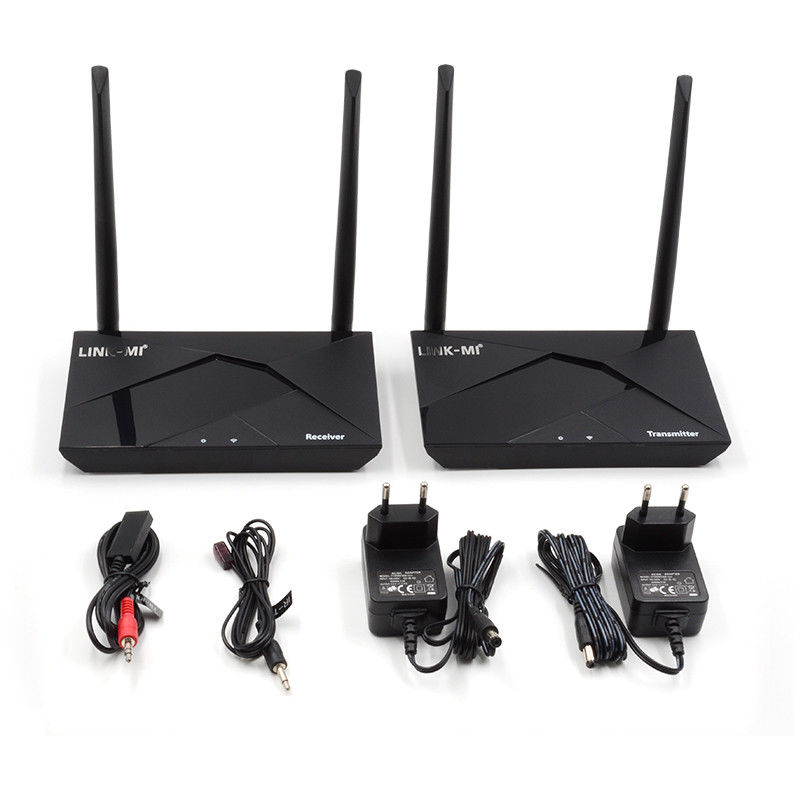

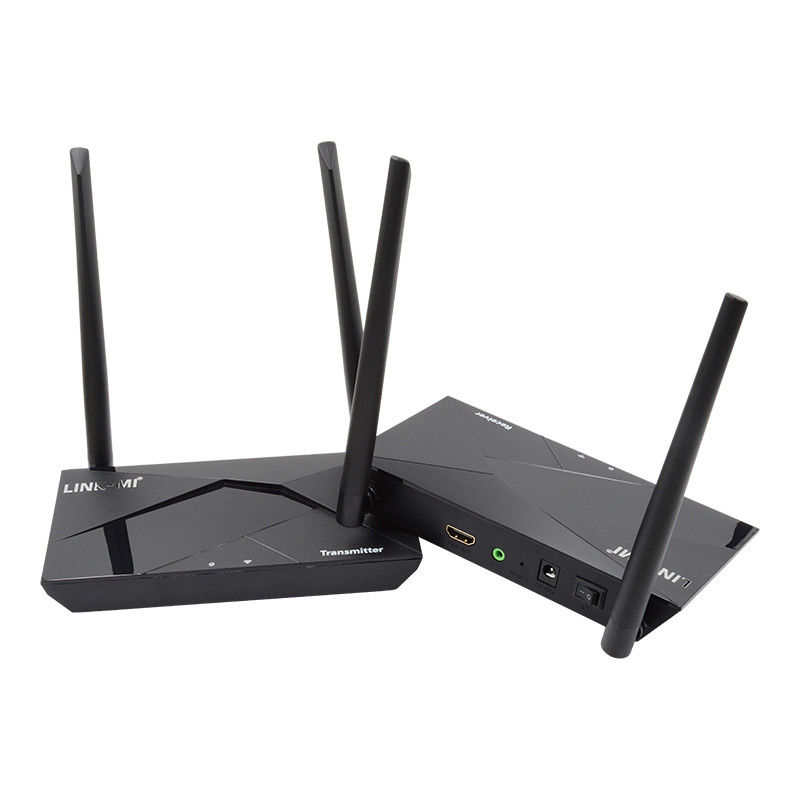

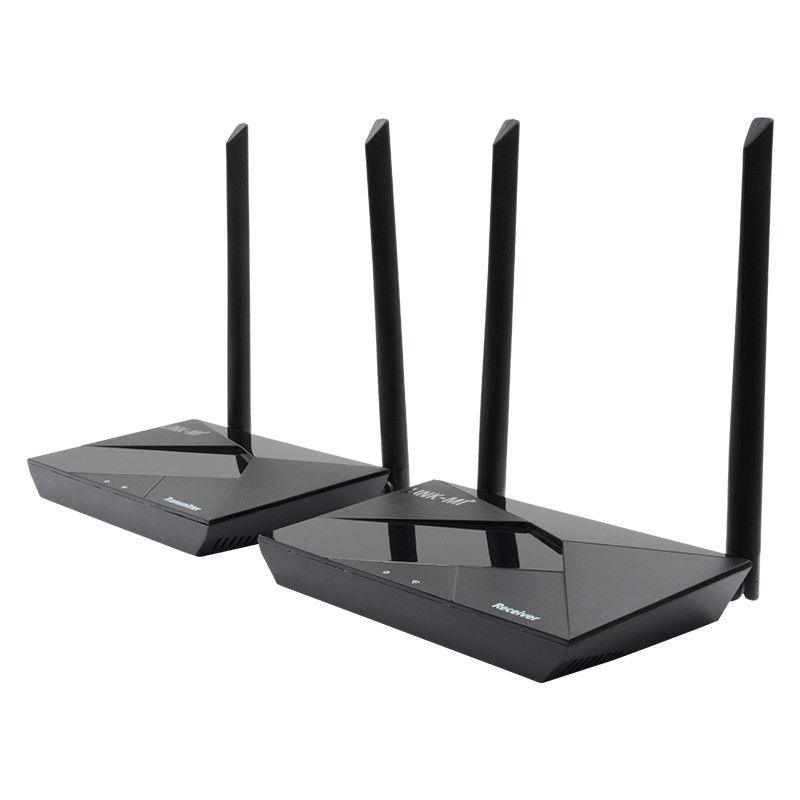

100M HDMI Extender over Wireless with loop out Support 1080P@60Hz
Introduction
LINK-MI LM-WEX100 supports 100m/328ft wireless transmission with one HDMI loop out. The highest input and output resolution are up to 1080P@60Hz YUV 4:4: 8-bit. It is compatible with HDMI and HDCP.
Features
1. Support the highest Resolution up to 1080P@60Hz YUV 4:4:4 8bit(both of input and output)
2. Support the longest distance to 100M wireless transmitted under certain conditions, like open space/horizontal height of equipment, etc
3. Support HDCP 1.4, compatible with HDCP 2.2 Blu-Ray player, decryption output
4. Support 100-230V voltage input, DC12V power supply
5. With prompt to video output interface
6. Support IR control with long distance
7. Built in reset button
Specification
|
Operating Temperature Range
|
0 to +40℃(+32 to +104℉)
|
|
Operating Humidity Range
|
10 to90%RH (No Condensation)
|
|
Connectors on Transmitter
|
HDMI Receptacle x 2 (1xHDMI input, 1xHDMI loop output)
Power DC Receptacle x 1
IR Receptacle x 1(for IR TX )
|
|
Connectors on Receiver
|
HDMI Receptacle x 1
IR Receptacle x 1(for RX cable)
|
|
Resolution outputs
|
1080p/1080i/720p/576p/480p
|
|
Audio format supported
|
Uncompressed audio PCM 2.0
|
|
Output Video Signal
|
HDMI
|
|
Dimension (L×W×H)
|
TX: L170xW114.8xH26mm; RX: L170xW114.8xH26mm
|
|
Power supply
|
DC 12V 1A Power supply
|
|
Power consumption
|
4W(MAX)
|
|
Transmission Distance
|
1080p up to 100m
|
|
Net Weight
|
TX: 200g; RX:180g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

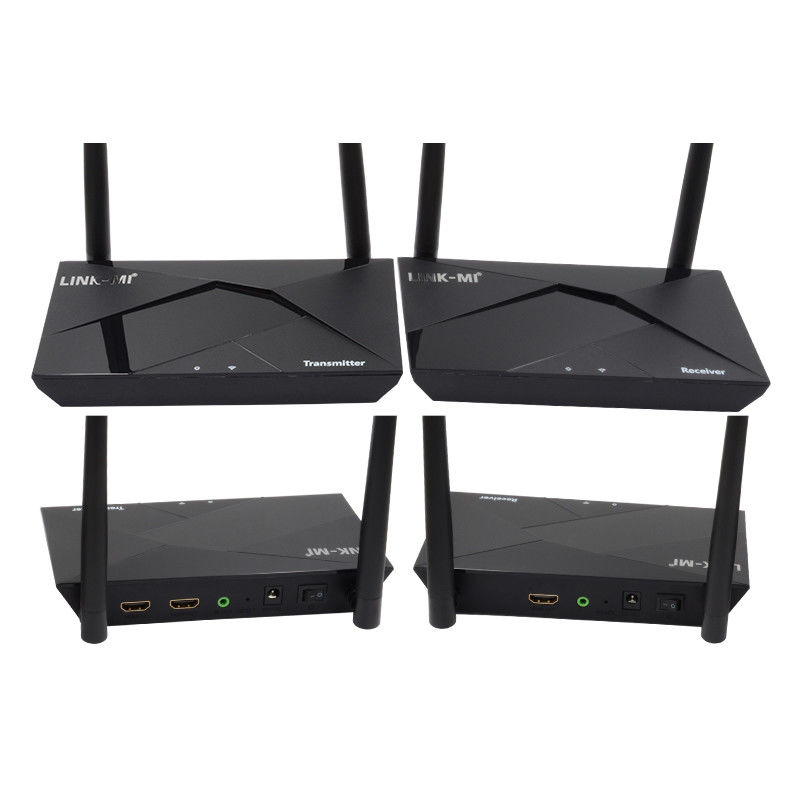

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-WEX100 100m Wireless HDMI Extender.pdf
