30M HDMI Extender over 60GHz Wireless Support 4K@30Hz
Introduction

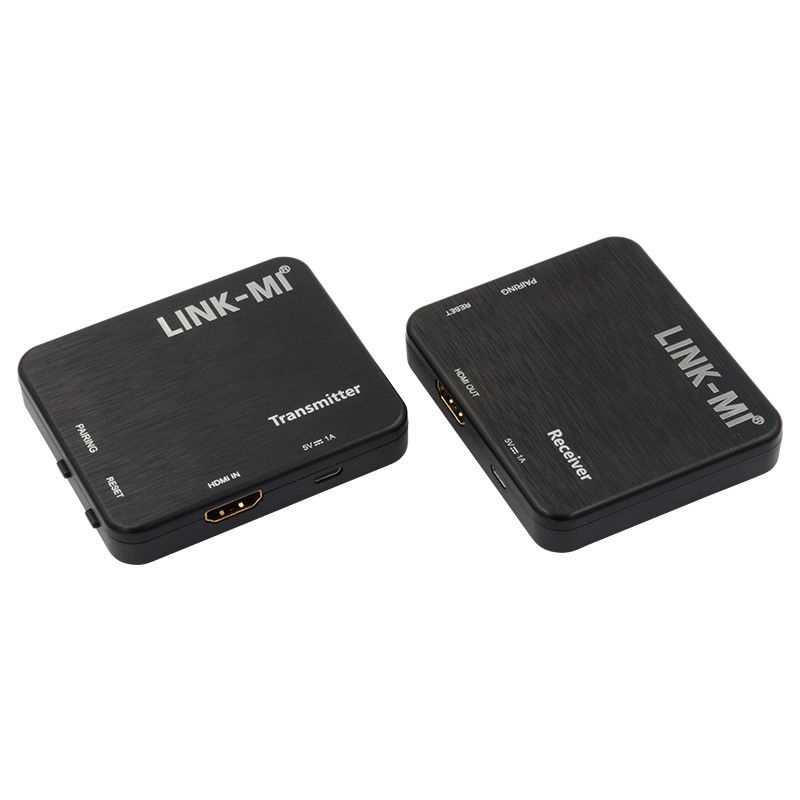

LINK-MI LM-WEX30B Wireless 60G HD Transceiver include Transmitter and Receiver, it extend high definition video and audio to any HDTV display up to 30 meters without latency. The highest resolution is up to 1080p Full HD, 4K@30Hz YUV 4:4:4 8bit. It supports Many to one(7 TX max to 1 RX), One to many(1 TX to 2 RX max). The Wireless 60G HD is specifically designed to transmit within a room.
Features
1. 60Ghz wireless extender
2. Support the highest Resolution up to 4K@30Hz YUV 4:4:4 8bit
3. Support the longest transmission distance to 10M wireless under 4K30HZ, 30m under 1080P@60Hz with certain conditions, like open space/horizontal height of equipment, etc
4. Support HDCP1.4,compatible with HDCP2.2 Blu-Ray player, follow the output HDCP. But there will be no image if the sink is decrypted.
5. Support 100-230V voltage input, DC5V power supply
6. Support Many to one(7 TX max to 1 RX), One to many(1 TX to 2 RX max)
7. Reset and pairing button for both TX and RX
8. No Latency
Specification
| Operating Temperature Range |
0 to +40℃(+32 to +104℉) |
| Operating Humidity Range |
10 to 90%RH (No Condensation) |
| Connectors on Transmitter |
HDMI Receptacle x 1
Power USB x 1
|
| Connectors on Receiver |
HDMI Receptacle x 1
Power USB x 1
|
| HDMI input/output port |
HDMI Type A 19-pin |
| HDMI Version |
HDMI1.4/HDCP1.4 |
| Resolution outputs |
4k@30hz/1080p//720p/480p |
| Frequency |
60GHz |
| Frequency width |
100MHz |
| RF power |
10dBm MAX |
| Antenna |
Matrix style Antenna |
| Audio format supported |
PCM 2.0,Dolby True HD,DTS-HD master audio |
| Latency |
< 3ms |
| Power supply |
DC 5V 1A Power supply |
| Power consumption |
3.5W(MAX) |
| Transmission Distance |
10m under 4K@30Hz, 30m under 1080P@60Hz |
| Dimension (L×W×H) |
TX: L80xW68xH16.5mm; RX: L80xW68xH16.5mm |
| Net Weight |
TX: 55g; RX:55g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

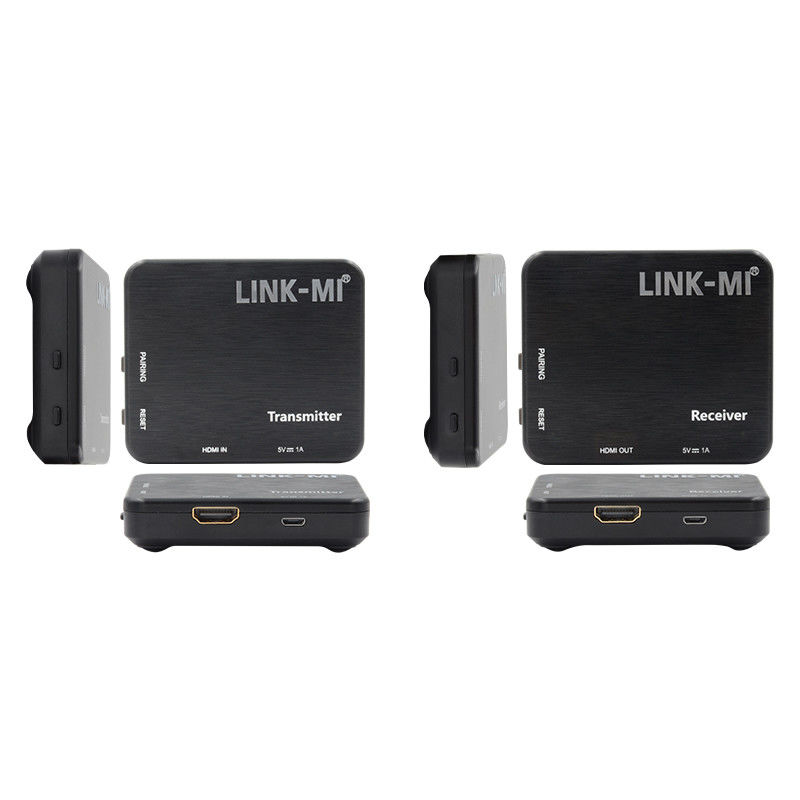

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-WEX30B 4K Wireless HDMI 10-30M 60GHz.pdf
