100m HDMI over Wireless Extender Support Point to Multicast Up to 4 Receivers
Introduction

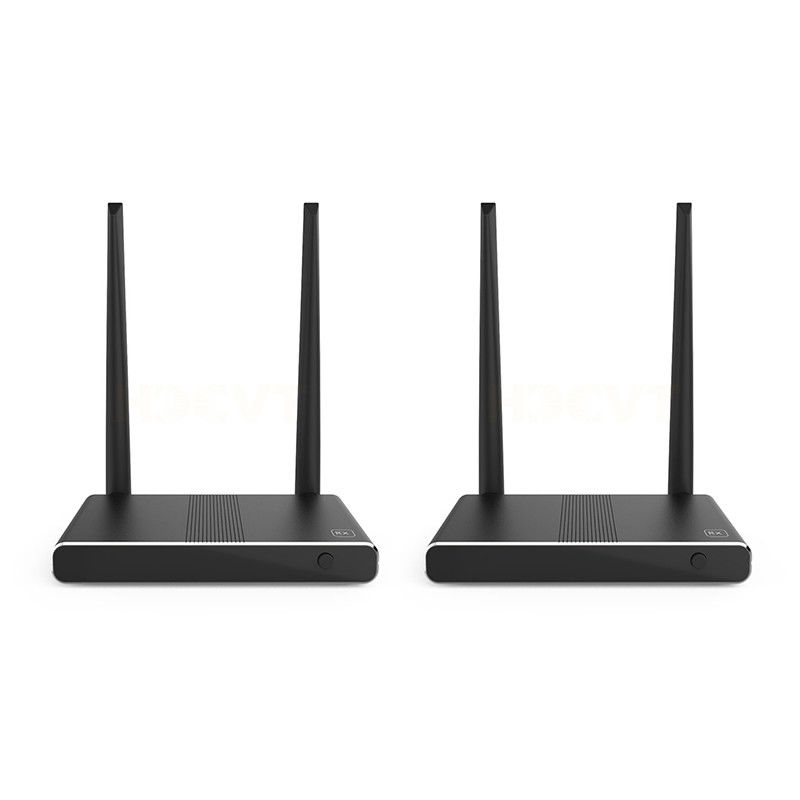

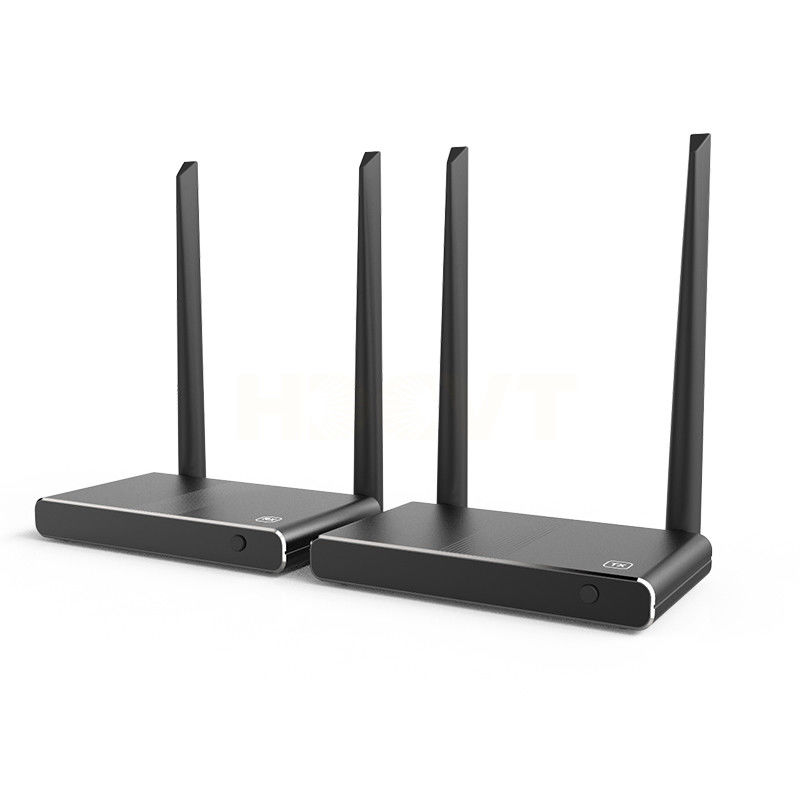

LINK-MI LM-WE01 The HDMI over wireless kit extends high-definition video and audio to any HDTV displays up to 100 meters away. It supports up to 4 displays to show one source content synchronously and resolutions up to 1080P. The extender transmits the vivid real time video and audio signals with very low latency, allowing users to view the content in other rooms of the house or office. It also allows users to control source device from display unit via source device's remote control.
Features
1. Full HD 1080p transmits up to 100 meters wirelessly in open space.
2. Supports Point-to-Point and Multicast transmission(up to 4 receivers)
3. Extends infrared remote to control source device from display side.
4. USB HID transmission from display to source.
5. Simple Plug and Play,no software installation required.
Specification
|
Technical
|
|
HDMI Compliance
|
HDMI 1.4b
|
|
HDCP Compliance
|
HDCP 1.4
|
|
Video Bandwidth
|
6.75 Gbps
|
|
Video Resolutions
|
up to 1080P@50/60Hz
|
|
Color Space
|
RGB, YCbCr 4:4:4, YCbCr 4:2:2
|
|
Color Depth
|
8-Bit
|
|
HDMI Audio Formats
|
LPCM 2CH
|
|
Modulation Method
|
BPSK/QPSK/16-QAM/64-QAM
|
|
Wireless Standard
|
802.11a/b/g/n
|
|
Wireless Band
|
2.4GHz, 5GHz ISM Band
|
|
Operation Range
|
Up to 100 meters in open space
|
|
ESD Protection
|
Human body model — ±8kV (air-gap discharge) & ±4kV (contact dischrg)
|
|

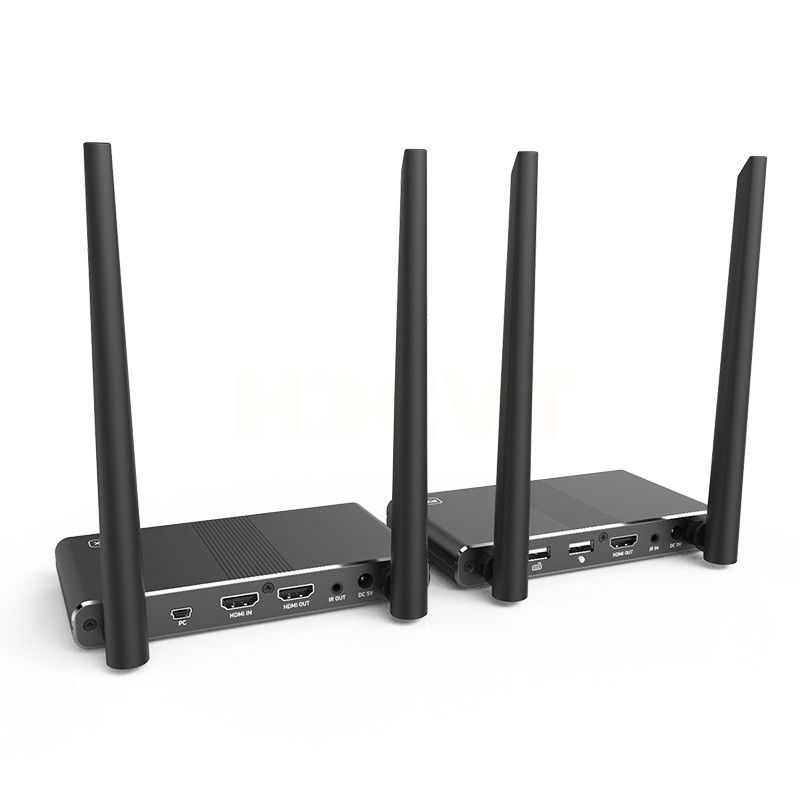

Connections
|
|
Transmitter
|
Inputs: 1x HDMI Type A [19-pin female]
Outputs: 1x HDMI Type A [19-pin female]
1x USB [Mini USB Type ]
1x IR Out [3.5mm Stereo Mini-jack]
|
|
Receiver
|
Inputs: 2x USB [USB Type A]
1x IR In [3.5mm Stereo Mini-jack]
Outputs: 1x HDMI Type A [19-pin female]
|
|
Mechanical
|
|
Housing
|
Aluminum Enclosure
|
|
Color
|
Black
|
|
Dimensions
|
142mm [W] x 80mm [D] x 19mm [H]
|
|
Weight
|
TX: 270g RX: 260g
|
|
Power Supply
|
Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
|
|
Power Consumption
|
3W (Max)
|
|
Operation Temperature
|
32-104°F/0-40°℃
|
|
Storage temperature
|
-4-140°F/-20-60°℃
|
|
Relative Humidity
|
20-90% RH (no condensation)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

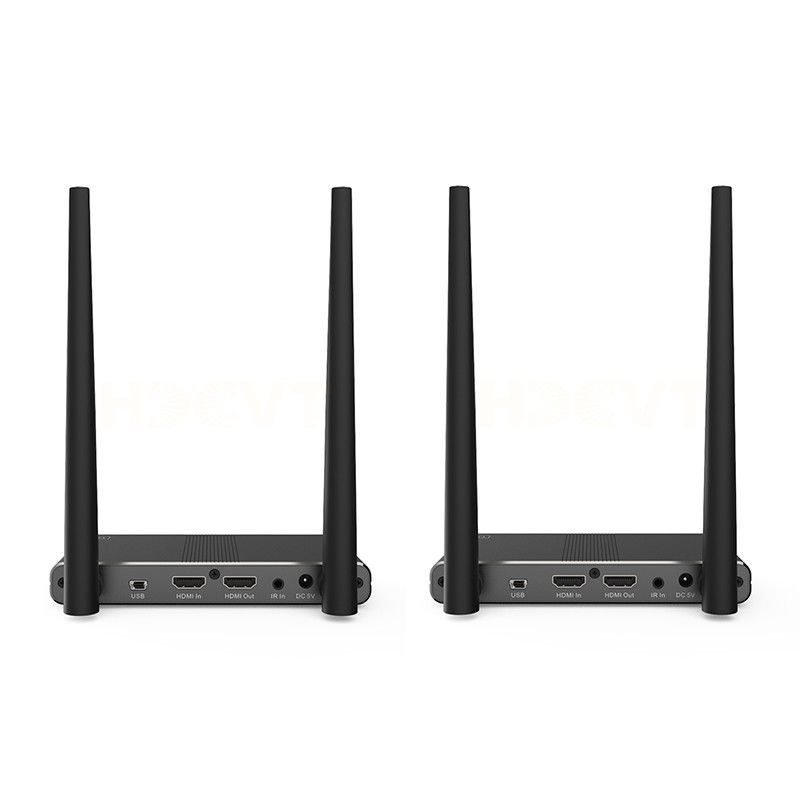

Panel Description
