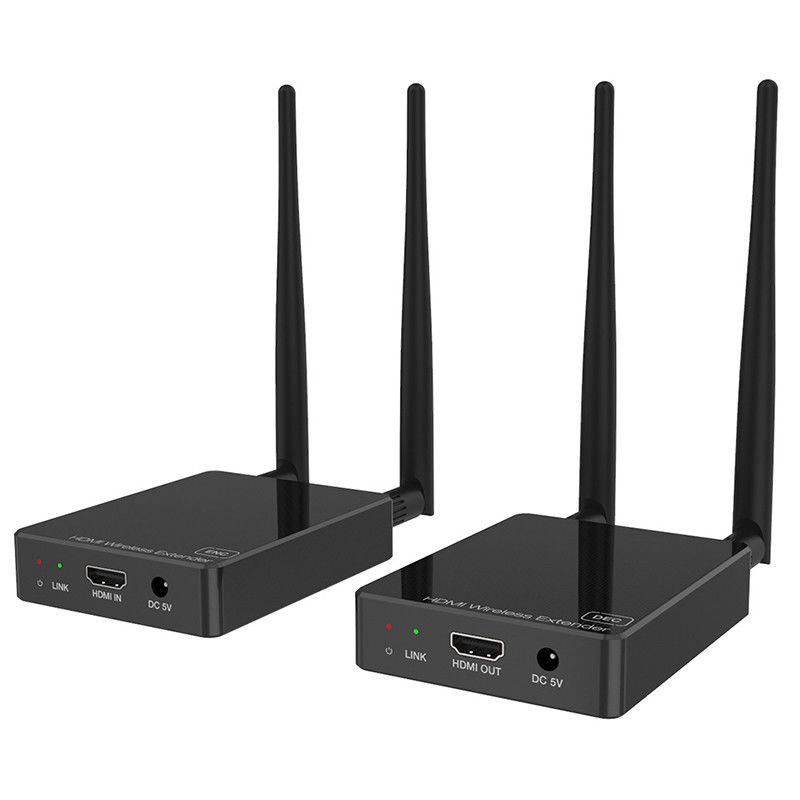

100m HDMI Wireless Extender with one-way IR Wireless Video Transmission System
Introduction
LINK-MI LM-WE02 This product is based on H.265 standard solution for distribution one HD source to one HD display. It extends distance up to 330ft/100 meters between transmitter and receiver via wireless transmission (An open environment without Wi-Fi interference), and supports one-way IR control simultaneously. It offers high quality configurable, low-bandwidth H.265 compression video and supports resolution up to 1080P@60Hz. This wireless extender is designed special to transmit high definition video & audio within one room.
Features
1. HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
2. Supports one HDMI HD source to one HDMI HD display via wireless transmission
3. With one-way IR control
4. Video resolution up to 1080P@60Hz
5. Transmission distance: One-to-one connects transmission distance up to 330ft/100m. (An open environment without Wi-Fi interference.)
6. Audio format supports PCM 2.0CH 32KHz/44.1KHz/48KHz
7. H.265 high performance code supported, adopting high bit rate mode2
8. End-to-end delays under 150Ms
9. Compact design for easy and flexible installation.
Specification
| Technical |
| HDMI Compliance |
HDMI 1.3 |
| HDCP Compliance |
HDCP 1.4 |
| Video Bandwidth |
6.75Gbps |
| Video Resolution |
1080p, 1080i, 720p, 720i, 480p, 480i, the maximum
up to 1920×1080@60Hz
The PC resolution is up to 1920×1200@60Hz
|
| Color Space |
RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth |
8/10/12-bit |
| HDMI Audio Formats |
PCM 2.0CH 32KHz/44.1KHz/48KHz |
| ESD Protection |
Human body model —
±8kV (Air-gap discharge) & ±4kV (Contact discharge)
|
| Connections |
| Transmitter |
Inputs: 1x HDMI Type A [19-pin female]
1x SERVICE [Micro USB, Update port]
Outputs: 1x IR OUT [3.5mm Stereo Mini-jack]
2x WiFi OUT [WiFi antenna]
|
| Receiver |
Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
2x WiFi IN [WiFi antenna]
1x SERVICE [Micro USB, Update port]
Outputs: 1x HDMI Type A [19-pin female]
|
| Mechanical |
| Housing |
Plastic Enclosure |
| Color |
Black |
| Dimensions |
Transmitter / Receiver:
76mm [W] x 98mm [D] x 21mm [H]
|
| Weight |
Transmitter / Receiver: 100g |
| Power Supply |
Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A
|
| Power Consumption |
Transmitter : 2.25W, Receiver: 1.8W |
| Operating Temperature |
32 - 104°F / 0 - 40°C |
| Storage Temperature |
-4 - 140°F / -20 - 60°C |
| Relative Humidity |
20 - 90% RH (no condensation) |
| Resolution / Cable Length |
1080P60Hz -Feet / Meters |
| HDMI IN / OUT |
42ft / 15M |
| The use of ‘Premium High Speed HDMI’ cable is highly recommended. |
Connection Diagram

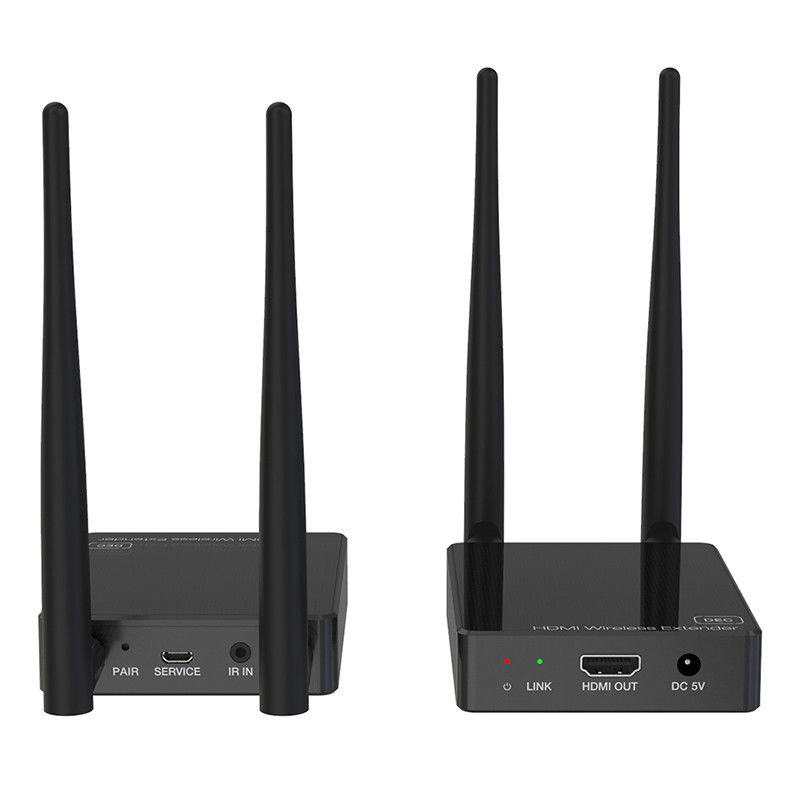

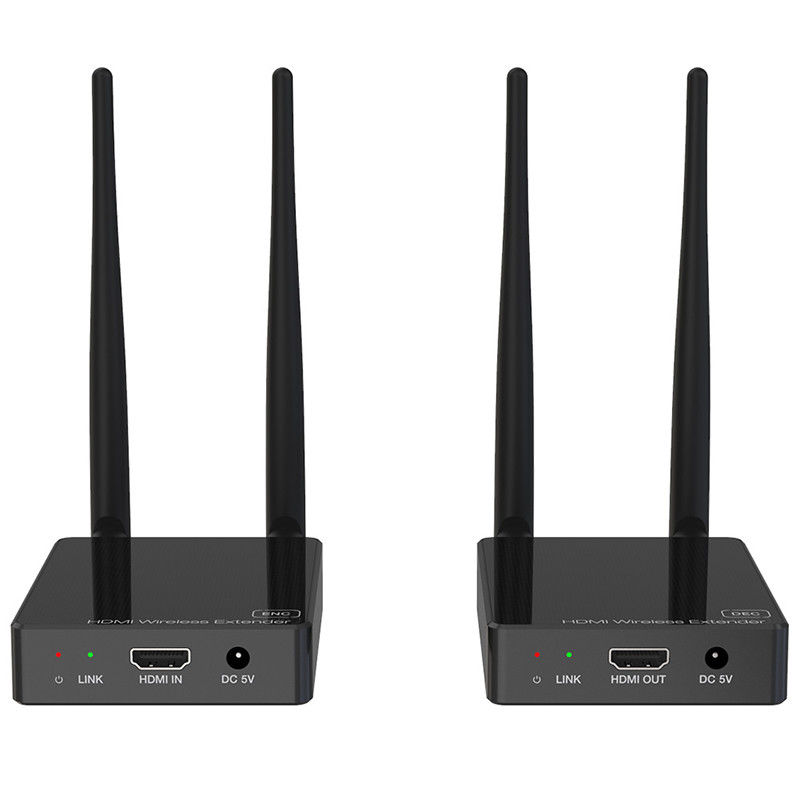

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-WE02 100M HDMI Wireless Extender with IR_V1.2.p...
