400M Wireless 3G SDI/HDMI Extender Wireless Video Transmission Kits
Introduction

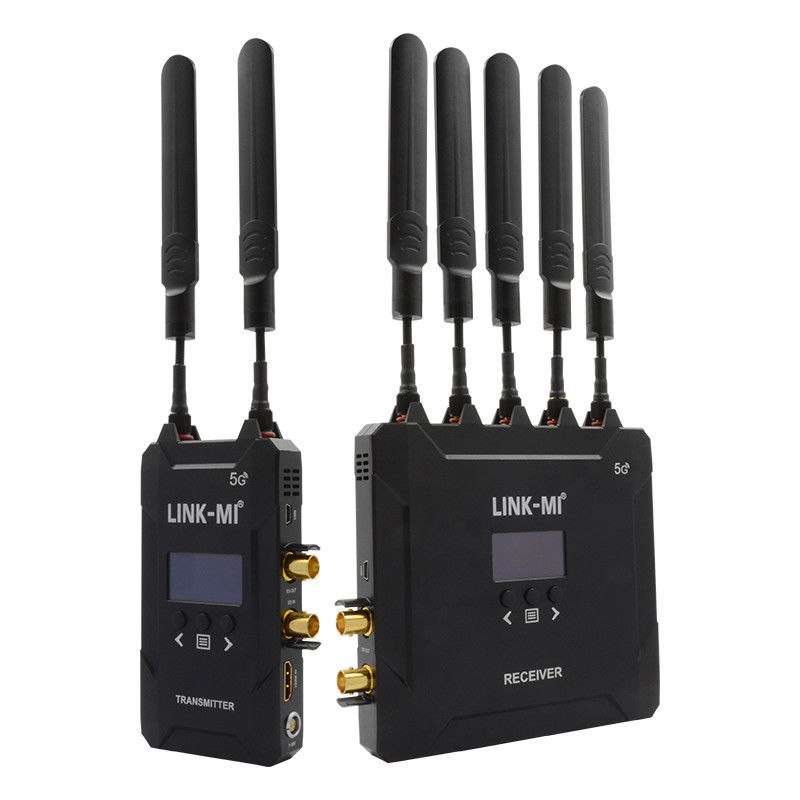

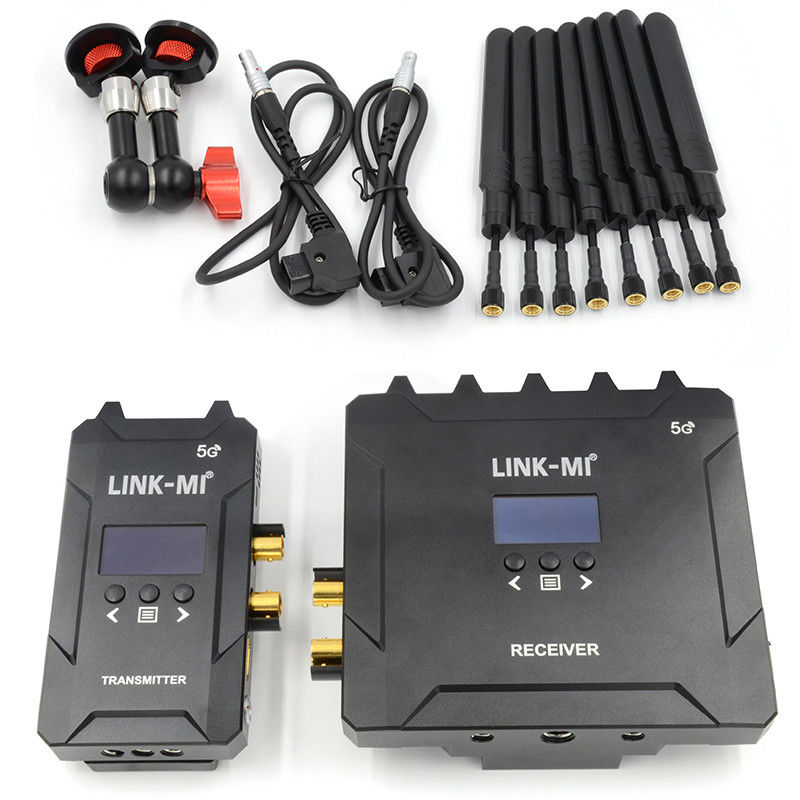

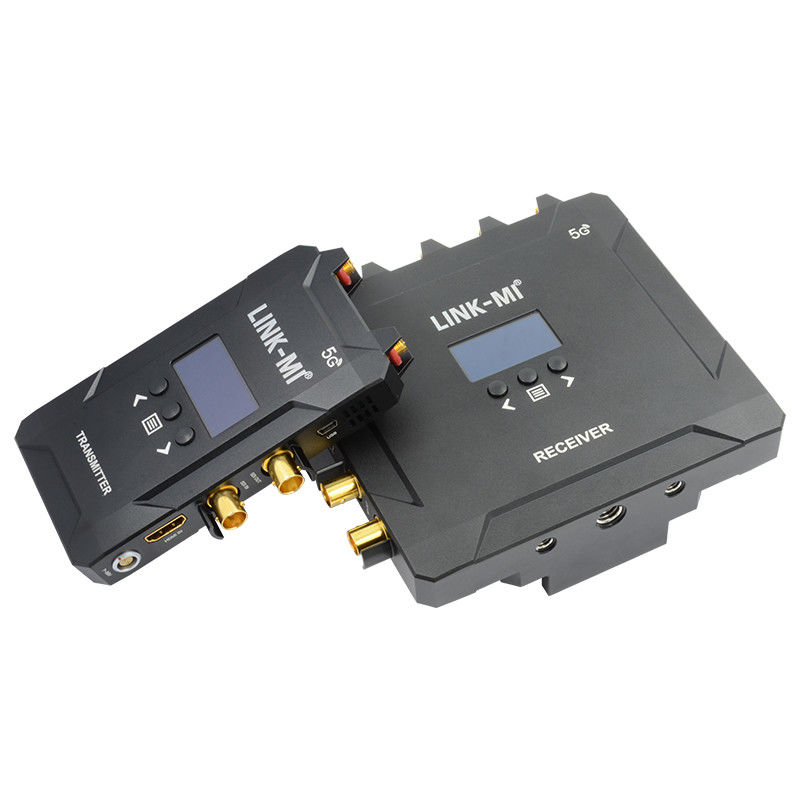

LINK-MI LM-WHS400 This Wireless HD HDMI/SDI transmission products that use the highest level of wireless communication technology enable transmit lossless, uncompressed, no-delay 3G SDI or full HD HDMI signals .This product includes a transmitter and a receiver, and is equipped with 3G/HD SDI interface and full HD HDMI interface. The transmitter has two antennas and the Receiver has five antennas.The antennas’ operate frequency is 5.1GHz~5.9GHz, and the frequency can be changeable through the software configuration to adopt the wireless regulatory requirements in the world.
Features
1. HDMI 1.3 compliant
2. Support SMPTE 425M , SMPTE 424M, SMPTE 292M Standard
3. Support HDMI and 3G-SDI inputs and outputs
4. Support point to point, and point-to-multiple network topology
5. Support resolutions up to 1080P@60Hz, zero delay and no compression
6. Support 5GHz ISM frequency band, maximum 10 frequency channels selected by buttons with OLED display
7. Maximum transmission range is 1300ft(400 meters)
8. Support display DC power status, video status and receiver RSSI by OLED
9. Support Wide range power supply,range from 7V to 36V
10. Support Optional Sony F970,V-mount and G-mount, battery buckle, convenient for field battery install and replacement
11. Support ±8 KV ESD protection level (HBM, Contact discharge)
12. Industrial case, stable, reliable and convenient
Specification
| Item |
Description |
| Interface |
Transmitters |
Receiver |
| SDI input(BNC female);SDI Loop out(BNC female);HDMI input(Type A female);DC input(2pin LEMO female) |
SDI output(BNC female);HDMI output (Type A female);DC input(2pin LEMO female) |
| Power |
<6.5W TX or <6W RX |
| Video bandwidth |
Maximum TMDS clock frequency 148.5MHz, 4.45Gbps |
| Resolution and distance |
1080P@60Hz 1300ft |
| Audio formats |
SDI embedded 4 channel 24 bit/48KHz |
| Bandwidth |
40MHz |
| Frequency Band |
5.0 GHz~ 5.9GHz, Configurable with China,American,Japan,Europe etc. |
| Transmission Power |
Maximum 21dBm |
/ |
| Receive sensitivity |
/ |
-75dBm |
| SDI Meta Data |
Time code(LTC VITC1 VITC2);Remote Control(Trigger); |
| ESD Level |
HBM +/-8kv (Contact Discharge) |
| Dimension |
(L x W x H): 80.30mm x 34.60mm x 134.40mm |
(L x W x H): 156.60mm x 43.00mm x 141.40mm |
| Net Weight |
0.232kg per unit (No antenna included) |
0.512kg per unit (No antenna included) |
| Temperature |
0 ~ 40 °C (operation), -20~60 °C (stock) |
| Note: Specifications are subject to change without notice |
Connection Diagram

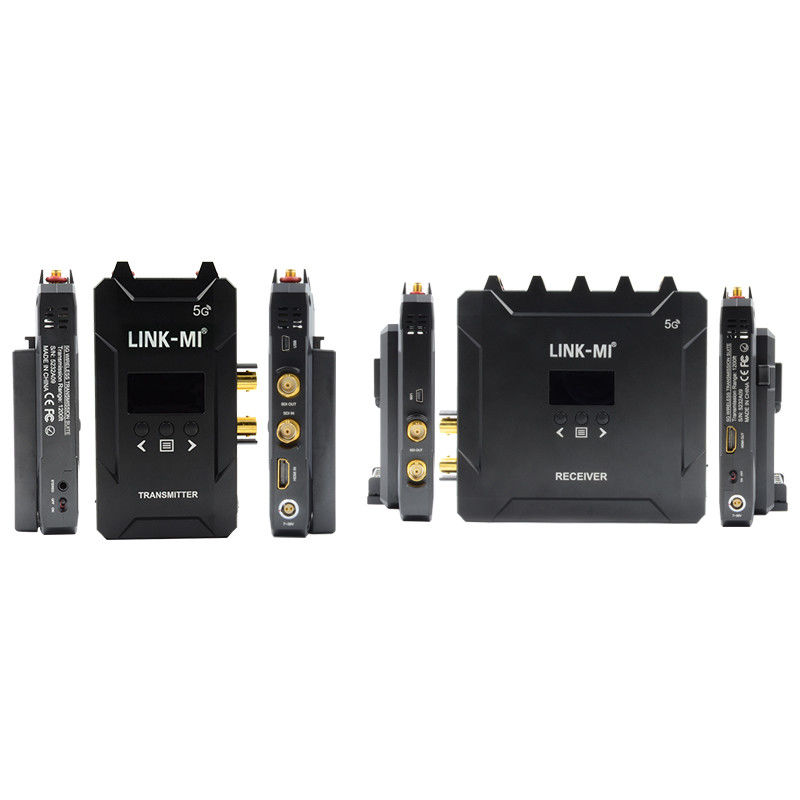

Panel Description
