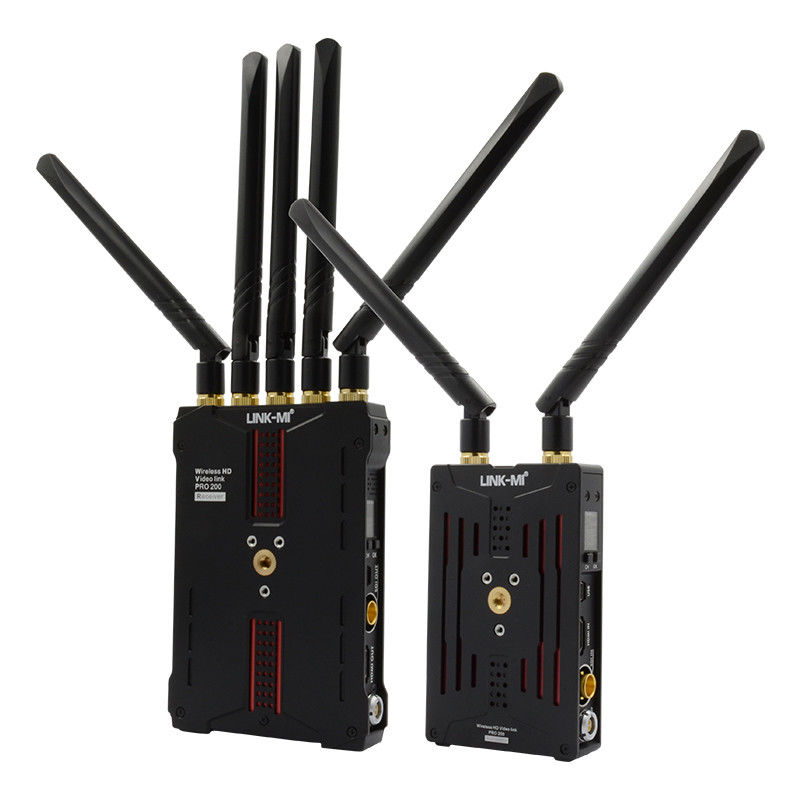

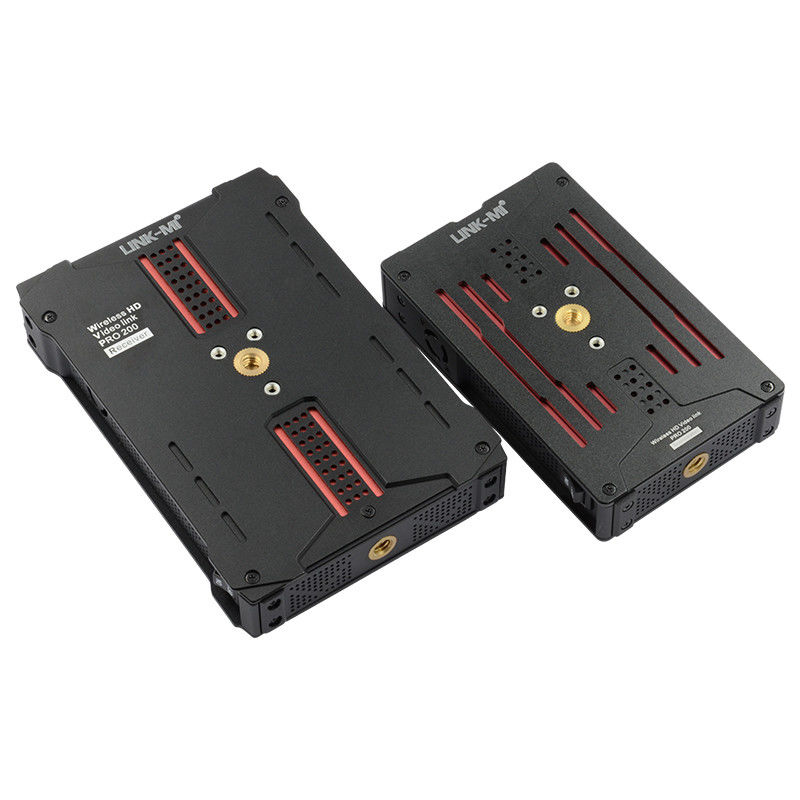

200m Wireless HDMI Extender HD Video Link System Wireless Video Transmistter Receiver
Introduction
LINK-MI LM-PRO200 is widely used in live broadcasting. There are some problems existed in the process of cable wiring such as high cost and short-life. Also cable trod by crowd with insufficient protection is another problem, which even lead to live broadcasting incidents. LINK-MI provides you safe and convenient solution - Wireless Transmitter and Receiver for live broadcasting. The long distance transmission system, supplied with high-capacity Li-battery and plug & play, can totally meet requirements for both indoor and outdoor shooting.
Features
1. The product with its transmission distance of up to 200 meters can meet the demands of film shooting, television broadcasting, live events, large conference, etc.
2. The product delivers uncompressed real-time 1080P/60Hz full HD video (4:2:2, 10bit).l
3. Support HDMI, HD-SDI, 3G-SDI.
4. Full hardware design, plug & play;
5. Support manual setting for channel switching and broadcast mode.
6. Support SDI time code transmission (time code format: ATC_VITC, ATC_LTC).
7. Support SDI camera recording trigger function (Start/Stop Flag) transmission.
8. Comply with EDID Structure 1.1 and support HDMI 1.3.
9. Support AES128/256 bit image encryption.
Specification
| Item |
Specification |
| Frequency |
Image transmission: 5.1~5.9GHz |
| Bandwidth |
40MHz |
| Video Formats |
1080P 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720P 50/59.94/60
576P 576i 480p 480i
|
| Audio Formats |
PCM |
| Time Code |
ATC_VITCATC_LTC |
| Transmission distance |
Up to 200m |
| Transmitter |
| Antenna |
External antenna * 2 |
| Transmission Power |
17dBm |
| Interface |
HDMI input,SDI input, Mini-USB,Lemo(0B/2pin)
DC in, Antenna RPSMA, Power switch
|
| Mechanical Interface |
V-mount, 1/4" fixing screw hole |
| LED Digits Display |
Display the working channel |
|
Working Voltage
Power Consumption
|
7V~36V 7W |
| Size(mm) |
117.5*72*27.5mm |
| Temperature |
-10~50 C(Working)；-40~80 C( Storage) |
| Receiver |
| Antenna |
External antenna *5 |
| Receiver Sensitivity |
-70dBm |
| Interface |
HDMI output, SDI output, Mini-USB,Lemo(0B/2pin) DC in,
Antenna RPSMA,Power switch
|
Mechanical Interface
LED Digits Display |
V-mount, 1/4" fixing screw hole
Display the working channel |
| Working Voltage |
7V~36V |
| Power Consumption |
5~6W |
| Size(mm) |
144*95*27.5mm |
| Temperature |
-10~50 C(Working)；-40~80 C( Storage) |
| Note: Specifications are subject to change without notice |
Connection Diagram

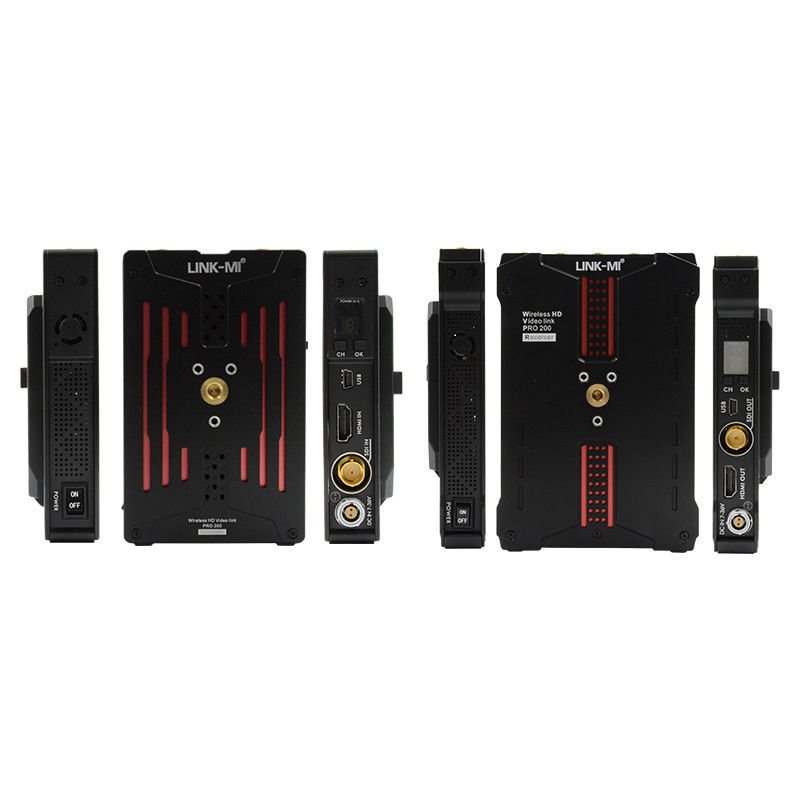

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-PRO200 Wireless 200m HDMI SDI Transmission Kits...
