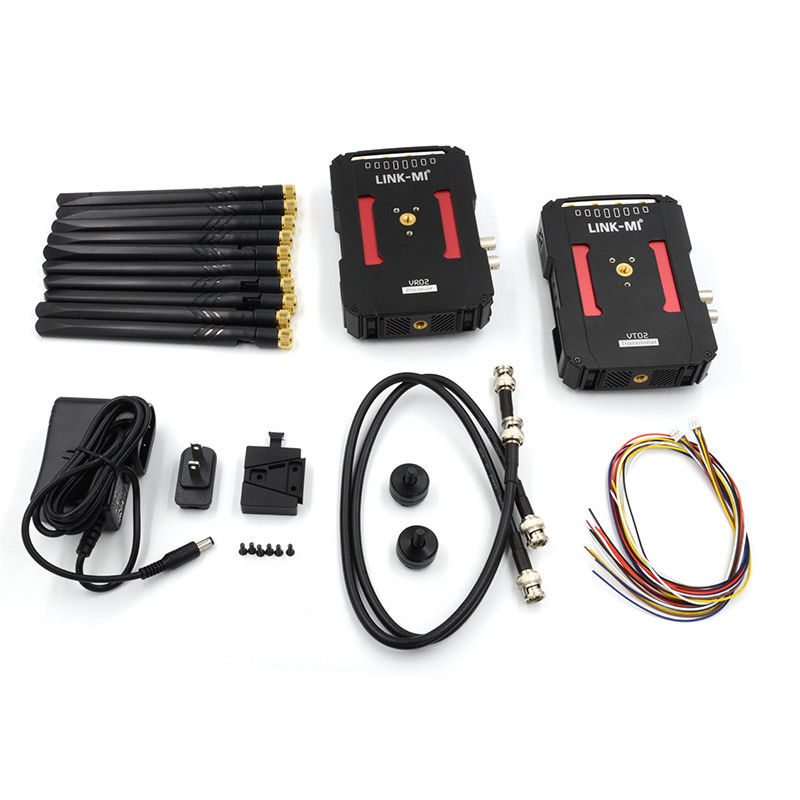

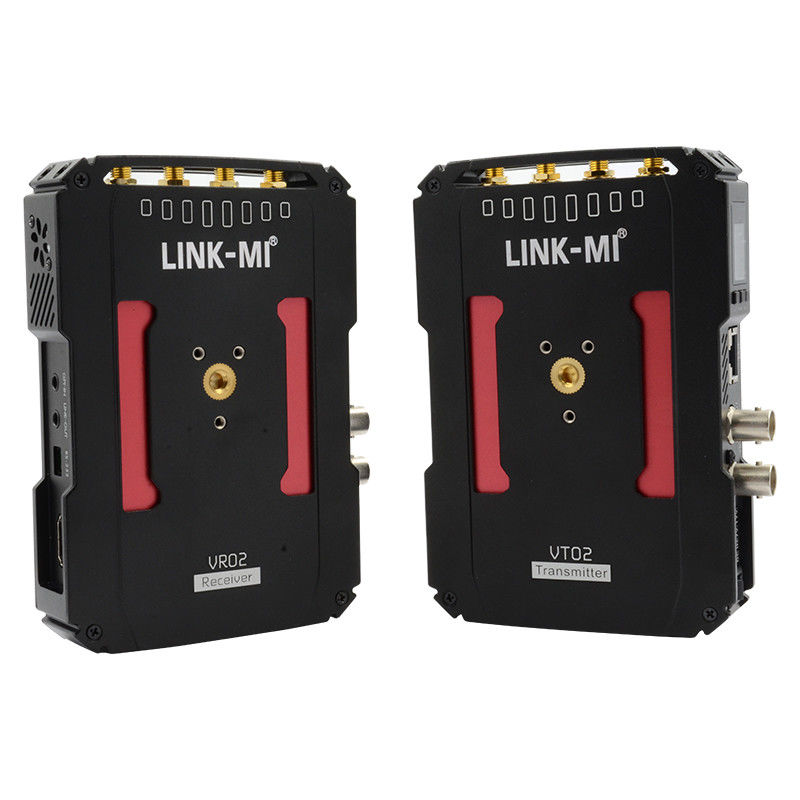

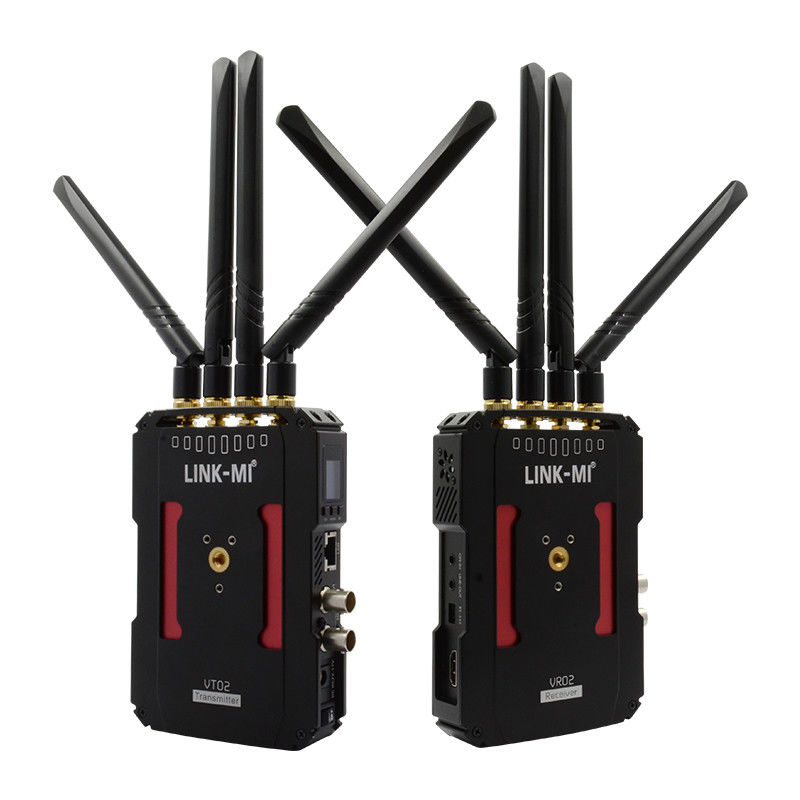

800m Wireless HD Video Transmission Kit For Live Broadcast
Introduction
LINK-MI LM-VT800 The wireless transmission system can help a variety of video transmission platform to achieve easy to carry, install fast, real zero-wiring, plug & play, change the traditional site wiring and get rid of cumbersome cabling,enhanced video transmission system Flexibility.
Features
1. Wireless full HD video transmission;
2. Min 50ms low latency enables no waiting for wonderful image receiving;
3. Reliable overvoltage protection for better ensuring the safety of power supply;
4. Supports both HDMI and SDI interfaces for video input/output;
5. Full hardware design; plug & play; eliminates the hassle of running wires, simple and convenient;
6. Transmission distance: up to 800 meters under the point-to-point mode(with 5dBi antenna in open space).
Specification
| TX |
|
Operating Frequency
|
5190MHz, 5230 MHz, 5270 MHz, 5310 MHz, 5510 MHz, 5550 MHz, 5590 MHz, 5630 MHz, 5670 MHz, 5755 MHz, 5795 Mhz
|
|
Antenna Mode
|
4*4 5dBi External antenna
|
|
Modulation Mode
|
OFDM
|
|
Transmission power
|
17dBm
|
|
EVM
|
<-28dB
|
|
Receiving Sensitivity
|
<-70dBm
|
|
Bandwidth
|
40MHz
|
|
Wireless Protocol
|
802.11n
|
|
Network encryption
|
WPA2/WPS
|
|
Network Mode
|
point-to-point private protocol, RTSP protocol
|
|
Transmission Distance
|
point-to-pointUp to 800m LOS,
|
|
Transmission Delay
|
50ms(min)
|
|
Transmission Rate
|
Max 300Mbps
|
|
Pairing Function
|
Support
|
| Frequency Hopping |
Manual
|
|
HDMI Protocol
|
Support HDMI 1.3
|
|
Video Resolution
|
1080p , 1080і , 720p , 576p , 576і , 480p , 480i (up to 1080P/60Hz)
|
|
Audio Format
|
PCM
|
|
Video Compression Format
|
H.264
|
|
External Audio
|
Support line-in audio input
|
|
IO port signal return
|
Support Tally signal return
|
|
Interface
|
Standard HDMI input*1, SDI port*2 (1 input, 1 Loop Through), 232 interface*1, DC 5.5 power supply input*1, CH button*1, MODE OLED*1, OK button*1, LINE IN*1 , RJ45 interface *1, Tally socket*1,
|
|
Operating Power Supply
|
DC12V/2A (with Part 6677)
|
|
Power Supply Range
|
7-17V
|
|
Power Consumption
|
8-12W
|
| RX |
|
Operating Frequency
|
5190MHz, 5230 MHz, 5270 MHz, 5310 MHz, 5510 MHz, 5550 MHz, 5590 MHz, 5630 MHz, 5670 MHz, 5755 MHz, 5795 Mhz
|
|
Antenna Mode
|
4*4 5dBi External antenna
|
|
Modulation Mode
|
OFDM
|
|
Transmission power
|
17dBm
|
|
EVM
|
<-28dB
|
|
Receiving Sensitivity
|
<-70dBm
|
|
Bandwidth
|
40MHz
|
|
Wireless Protocol
|
802.11n
|
|
Network encryption
|
WPA2/WPS
|
|
Network Mode
|
point-to-point private protocol |
|
Transmission Distance
|
point-to-pointUp to 800m LOS
|
|
Transmission Delay
|
50ms(min)
|
|
Transmission Rate
|
Max 300Mbps
|
|
Pairing Function
|
Support
|
|
Frequency Hopping
|
Manual
|
|
HDMI Protocol
|
Support HDMI 1.3
|
|
Video Resolution
|
1080p , 1080і , 720p , 576p , 576і , 480p , 480i (up to 1080P/60Hz)
|
|
Audio Format
|
PCM
|
|
Video Compression Format
|
H.264
|
|
External Audio
|
Support line-in audio output |
|
IO port signal return
|
Support Tally signal return |
|
Interface
|
Standard HDMI output*1, SDI output* 2 (2 channel simultaneous output),power supply input*1, CH button*1, 232 interface*1MODE OLED *1, OK button*1,RJ45 interface *1, Tally socket*1, |
|
Operating Power Supply
|
DC12V/2A |
|
Power Supply Range
|
7-17V |
|
Power Consumption
|
7-9W |
| Note: Specifications are subject to change without notice. |
Connection Diagram

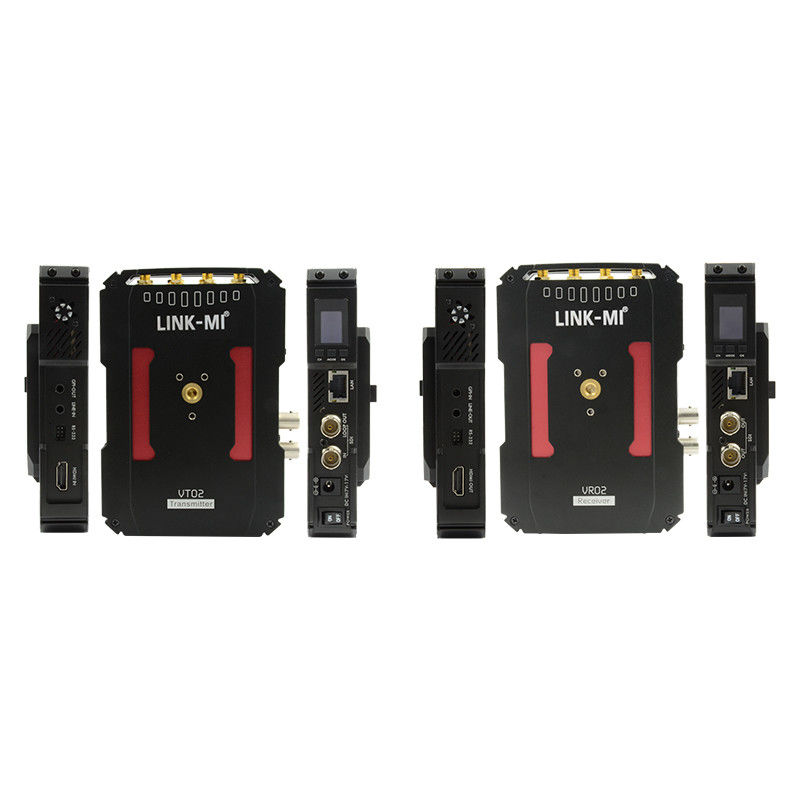

Panel Description
