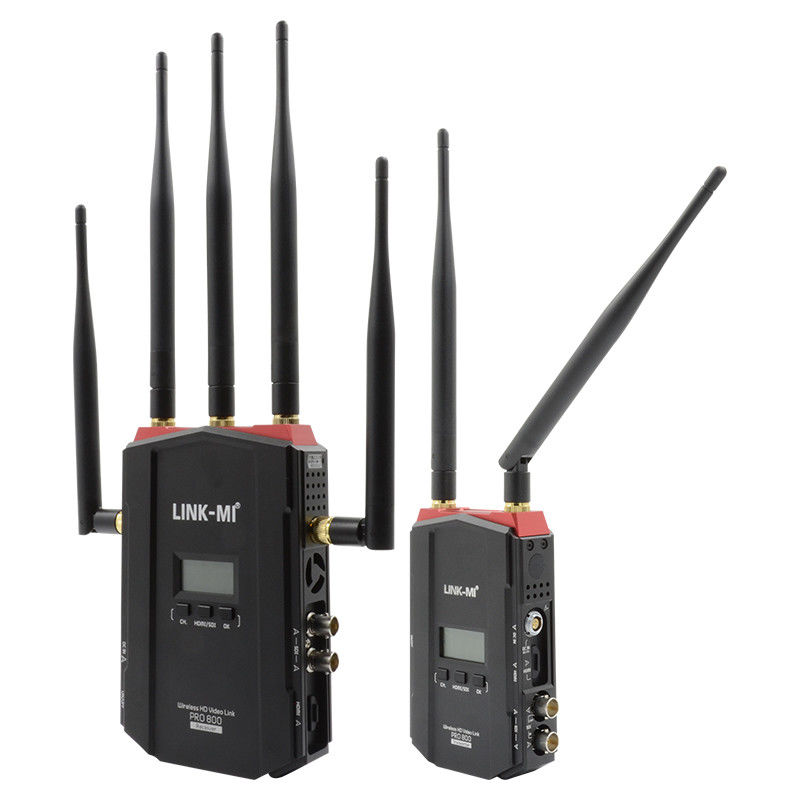

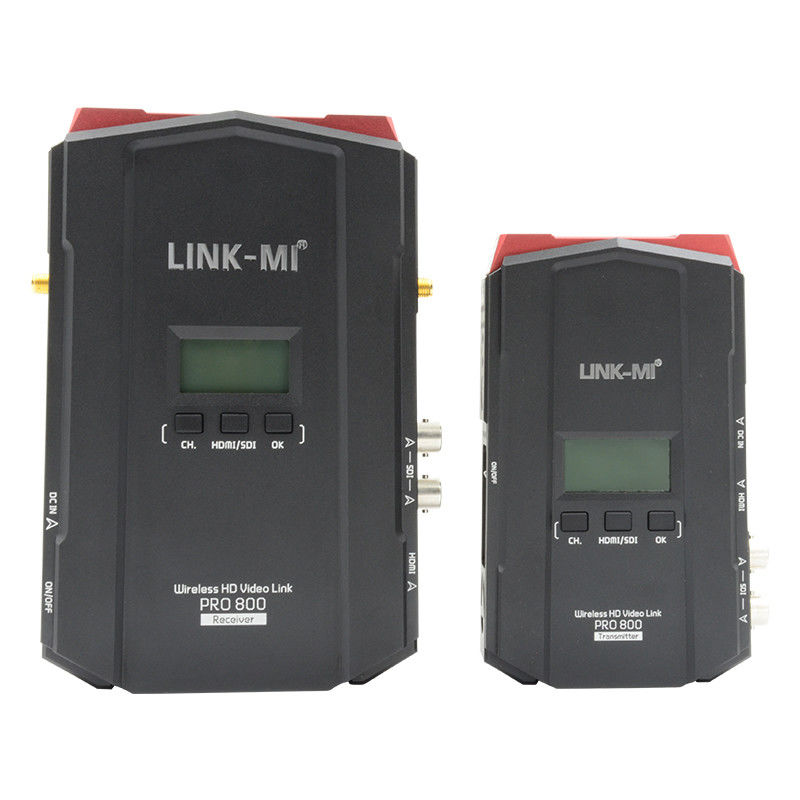

800m/2625ft Wireless HD Video Link System Wireless Video Transmitter Receiver
Introduction
LINK-MI LM-PRO800 Wireless 800m/2625ft HDMI/SDI Video Transmission Kits can be used in film production, live broadcasting, wedding and major conference.
As the widely use of Iive broadcasting, there are some problem exsited in the process of cable wiring, such as the high cost and short-Iife usage of the cable. AIso, the cable trod by the crowd under insufficient site protection is the major cause of cable performance, even Iead to the live broadcast accident.
LINK-MI LM-PRO800 provides you with more convenient and safer solution for Iive broadcasting. The Iong distance transmission system applied with the high-capacity Li-battery, plug-and-play setting, can fully meet requirement of outdoor and indoor shooting. Especially, no cable wiring will bring the safer and more professional experience to you!
Features
1. The Wireless HD Video Link System can be used in film production, live broadcasting
2. 5GHz ISM Band Wireless HD Video Transmission
3. Supports multiple channel switching and broadcast mode for 1 transmitter to multiple receivers
4. Supports up to 1080p/60Hz resolution, HDMI/HD-SDI/3G-SDI 4:2:2, 10bits color depth
5. Uncompressed picture quality with very low latency <1ms
6. Effective Range:800m/2625ft ( line of sight )
7. HDMI 1.3 with EDID support
8. Plug & Play - fully hardware design, no software is required
9. AES128/256 Encryption
Specification
| ITEM |
Specification |
| Frequency |
5.1-5.9 (GHz) |
| Bandwidth |
40MHz |
| Video Formats Supported |
1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60
576p 576i 480p 480i
|
| Audio Formats Supported |
PCM, DTS-HD, Dolby TrueHD |
| Time Code |
SMPTE-12M |
| Transmission range |
800m ( MAX) |
| Transmitter |
| Antenna |
External Antenna X 2pcs |
| Transmission Power |
20dBm |
| Functional Interface |
HDMI input; SDI input; SDI Loop output; Mini USB;
LEMO Power IN; Antenna RPSMA Socket, Power ON/OFF
|
| Locating Structure |
1/4’’Hot-shoe connection; V-Mount* Optional |
| LCD screen |
Wireless Channel Info; SDI/ HDMI Signal Info |
| Working Voltage |
6V-17V |
| Power Consumption |
12W |
| Dimensions |
119x79x32 mm |
| Temperature |
-10~60℃ (Operating); -40~80 ℃ (Storage) |
| Receiver |
| Antenna |
External Antenna X 5pcs |
| Receiving Sensitivity |
-70dBm |
| Functional Interface |
SDI Dual output; HDMI output; Mini USB; LEMO Power IN;
Antenna RPSMA Socket, Power ON/OFF
|
| Locating Structure |
1/4’’ Hot-shoe connection; V-Mount* Optional |
| LCD screen |
Wireless Channel Info; SDI/ HDMI Signal Info |
| Working Voltage |
6V~17V |
| Power Consumption |
7~8W |
| Dimensions |
155x111x32mm |
| Temperature |
-10~60℃ (Operating); -40~80 ℃ (Storage) |
| Note: Specifications are subject to change without notice |
Connection Diagram

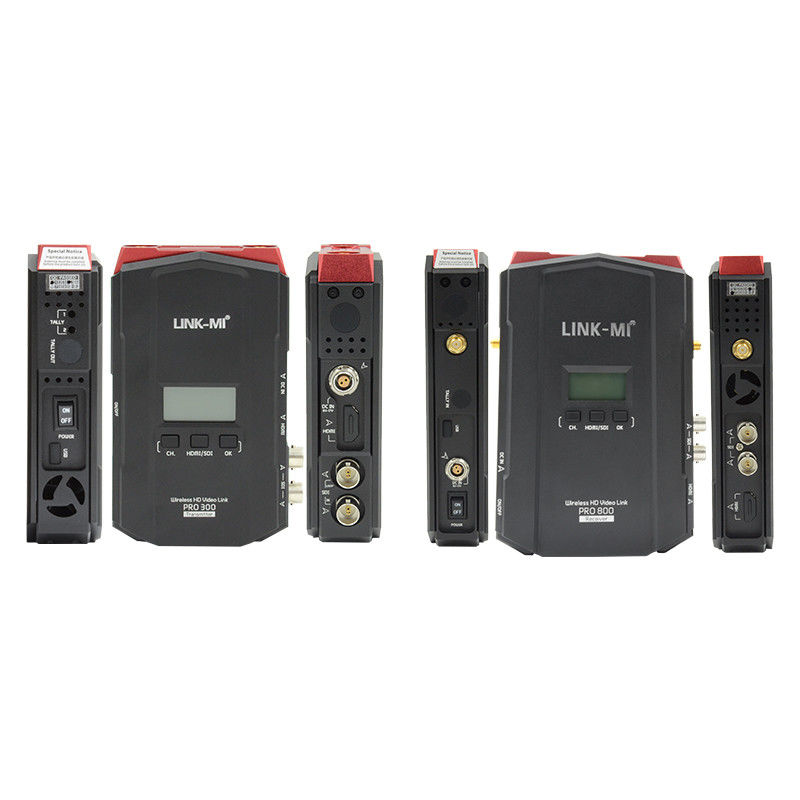

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-PRO800 Wireless 800m HDMI SDI Transmission Kits...
