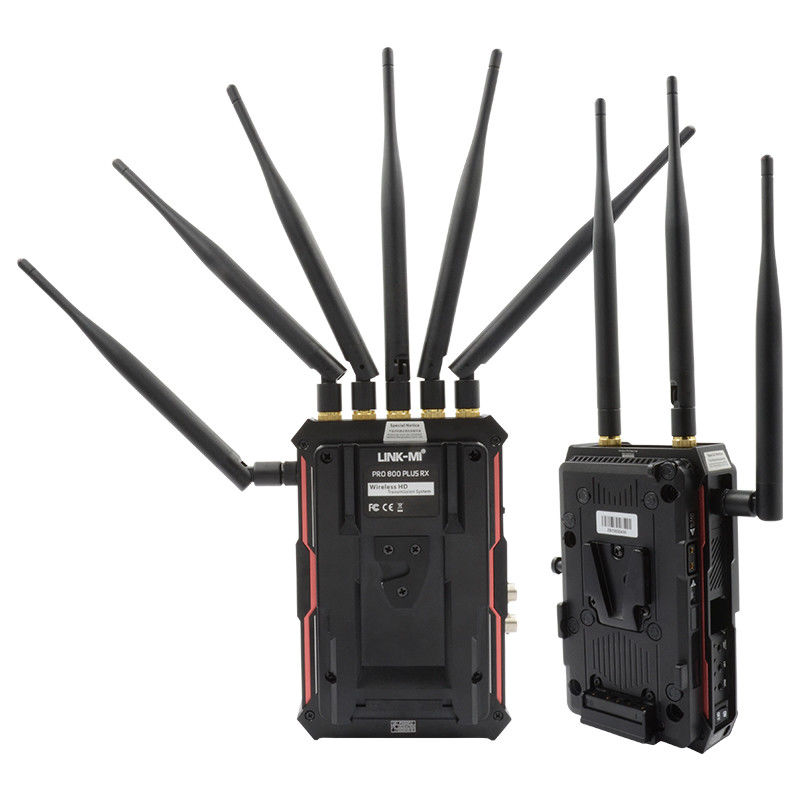

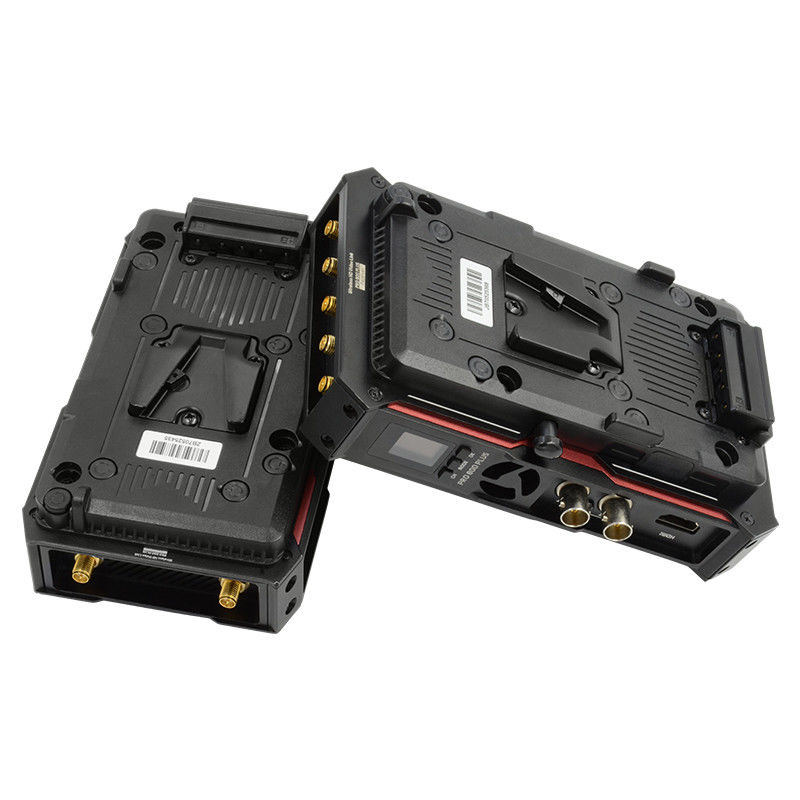

800m HDMI/SDI Wireless Video Extender Wireless Transmitter Receiver for Film Shooting
Introduction
LINK-MI LM-PRO800 Wireless 800m/2625ft HDMI/SDI Video Transmission Kits can be used in film production, live broadcasting, wedding and major conference.
As the widely use of Iive broadcasting, there are some problem exsited in the process of cable wiring, such as the high cost and short-Iife usage of the cable. AIso, the cable trod by the crowd under insufficient site protection is the major cause of cable performance, even Iead to the live broadcast accident.
LINK-MI LM-PRO800 provides you with more convenient and safer solution for Iive broadcasting. The Iong distance transmission system applied with the high-capacity Li-battery, plug-and-play setting, can fully meet requirement of outdoor and indoor shooting. Especially, no cable wiring will bring the safer and more professional experience to you!
Features
1. Transmission distance up to 800m(visual range), satisfying various requirements,such as film shooting, amusement live broadcast ,wedding show and conference etc.;
2. Support point to point intercom and Tally function, distance up to 300m(visual range);
3. Support 1080P/60Hz,4:2:2,10 bit, uncompressed real time HD video transmission with zero latency;
4. Support HDMI/HD-SDI/3G-SDI interfaces;
5. Plug and Play, no complicated settings needed;
6. Support frequency channel change, 1 TX to multiple RXs transmission;
7. Support SDI Time Code (format ATC_VITC, ATC_LTC) transmission;
8. Support SDI camera record function(Start/stop Flag) transmission;
9. Comply with EDID 1.1, Support HDMI 1.3 ;
10. AES128/256bit encryption;
11. Intercom support auto frequency channel hopping when jammed.
Specification
| ITEM |
Specification |
| Frequency |
5.1-5.9 (GHz) |
| Bandwidth |
40MHz |
| Video Formats Supported |
1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60
576p 576i 480p 480i
|
| Audio Formats Supported |
PCM, DTS-HD, Dolby TrueHD |
| Time Code |
SMPTE-12M |
| Transmission range |
800m ( MAX) |
| Transmitter |
| Antenna |
External Antenna X 2pcs |
| Transmission Power |
20dBm |
| Functional Interface |
HDMI input; SDI input; SDI Loop output; Mini USB;
LEMO Power IN; Antenna RPSMA Socket, Power ON/OFF
|
| Locating Structure |
1/4’’Hot-shoe connection; V-Mount* Optional |
| LCD screen |
Wireless Channel Info; SDI/ HDMI Signal Info |
| Working Voltage |
7V~36V |
| Power Consumption |
12W |
| Dimensions |
153.2*93*67.7mm |
| Temperature |
-10-50°C(Working);-40-80°C( Storage) |
| Receiver |
| Antenna |
External Antenna X 5pcs |
| Receiving Sensitivity |
-70dBm |
| Functional Interface |
SDI Dual output; HDMI output; Mini USB; LEMO Power IN;
Antenna RPSMA Socket, Power ON/OFF
|
| Locating Structure |
1/4’’ Hot-shoe connection; V-Mount* Optional |
| LCD screen |
Wireless Channel Info; SDI/ HDMI Signal Info |
| Working Voltage |
7V~36V |
| Power Consumption |
7~8W |
| Dimensions |
162.7*107.5*68.3mm |
| Temperature |
-10~60°C(Working ); -40~80°C( Storage ) |
Connection Diagram

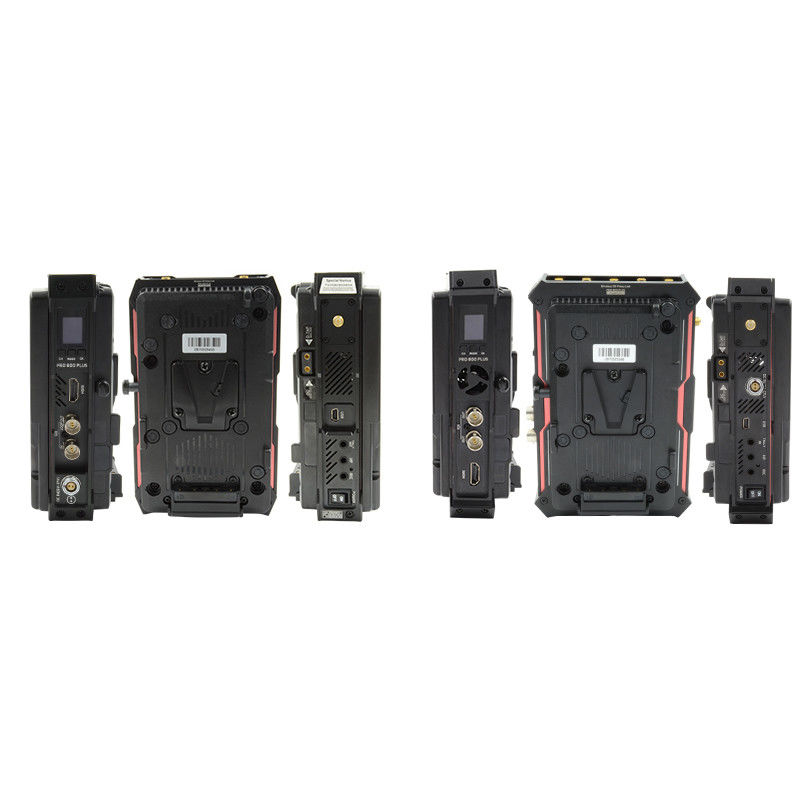

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-PRO800 PLUS Wireless 800m HDMI SDI.pdf
