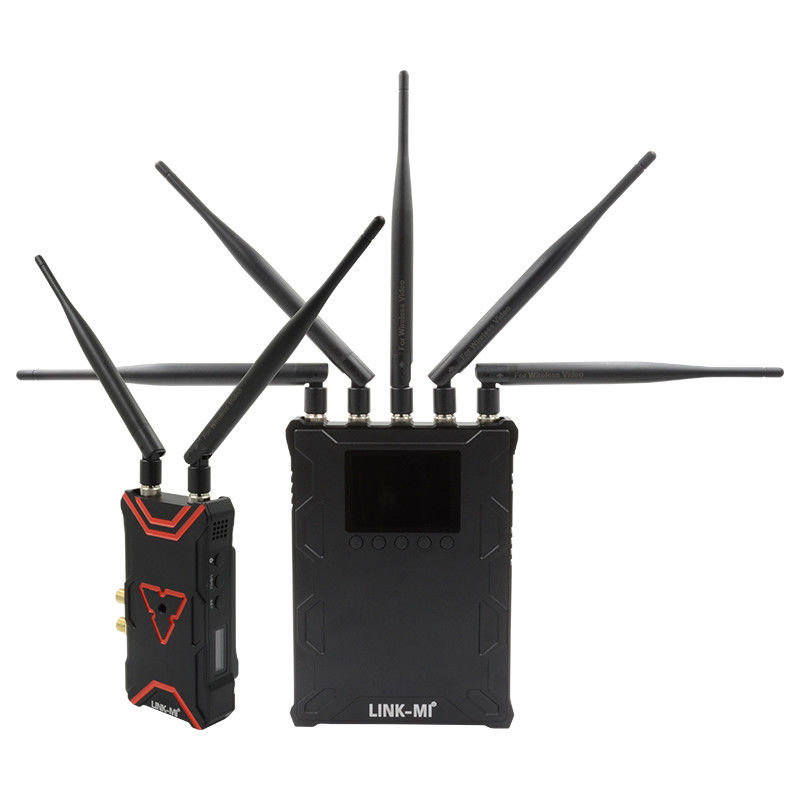

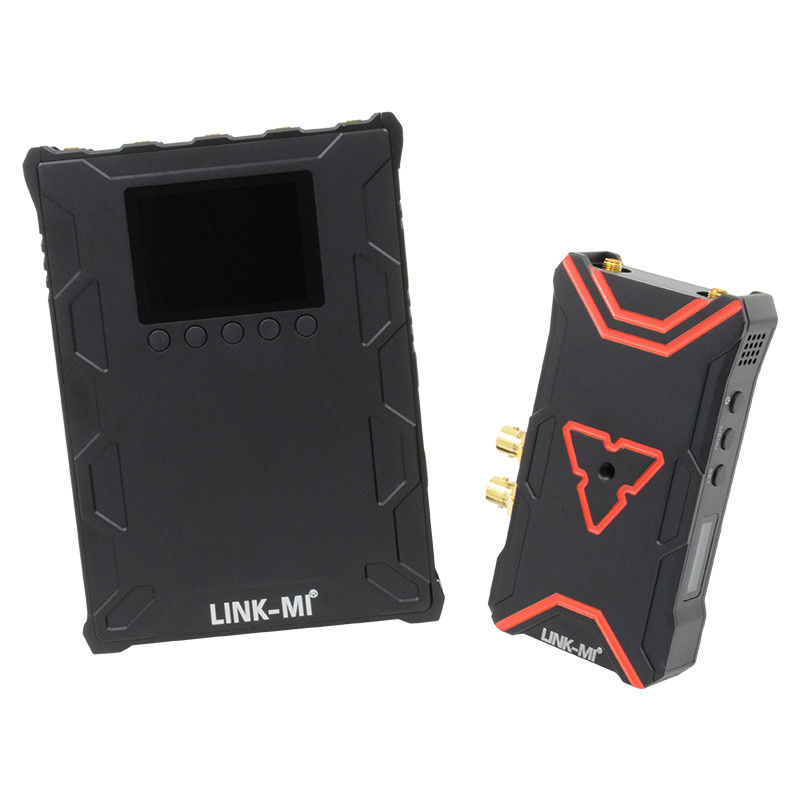

Low Latency 500M SDI Wireless Extender with Loop out OLED 5G Wireless Video Transmission Kits
Introduction
LINK-MI LM-SD500 is to apply for signal transmitting terminal. It is to apply for receiving terminal. LM-SD500 repeaters is a equipment of HD-SDI signal data transmission, which can support transmitting HD-SDI signal data for 500 meters.
Features
1. Uncompressed 3G/HD/SD-SDI , up to 1080p 50/60
2. Less than 1 frame latency There is no discernible video delay and you can use it as real time on-location monitoring.
3. Operating range: Up to 1640ft (line of sight), the transmission distance may be different, depend on surroundings, radio wave conditions, buildings block, etc.
4. Operating band: 5GHz ISM band
5. Multicast support Support one transmitter to multi receivers. User can set channel to pair both the transmitter and receivers.
6. AES 128 encryption
7. OLED shown in work status
8. All-Metal Shell Both transmitter and receiver adapt metal shell which is durable and solid.
9. Simple connection The wireless system is plug-and-play designed, without any software configuration.
Specification
| Item |
Specification |
| Frequency |
5.1-5.9(GHz)*Subject to different RF regulations in different regions. |
| Bandwidth |
40MHz |
| Video Formats Supported |
1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60
576p 576i 480p 480i
|
| Audio Formats Supported |
PCM, DTS-HD, Dolby TrueHD |
| Transmission Range |
Up to 1640ft(Line of sight) |
| Transmitter |
| Antenna |
External Antenna × 2pcs |
| Transmission Power |
17dBm |
| Functional Interface |
SDI Input; SDI Loop Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; |
| Mounting Structure |
1/4” Hot-shoe connection |
| OLED Display |
Wireless Channel Info; video status; Battery info. |
| Working Voltage |
9-18V by DC input, F970 battery |
| Power Consumption |
7-8W |
| Net Weight(with antenna) |
300g |
| Dimensions |
130×69×24mm |
| Temperature |
-10-50℃(Operating); -40-80℃(Storage) |
| Receiver |
| Antenna |
External Antenna × 5pcs |
| Receiving Sensitivity |
-70dBm |
| Functional Interface |
SDI Dual Output; HDMI Output; Mini USB;
LEMO Power IN; Antenna RPSMA Socket;
Power ON/OFF
|
| Locating Structure |
1/4” Hot-shoe connection |
| OLED Display |
Wireless Channel Info; SDI/HDMI Input Info; Signal Status; Power Info |
| Working Voltage |
9-18V by DC input, SONY V-mount battery |
| Power Consumption |
7-8W |
| Net Weight(with antenna) |
800g |
| Dimensions |
176×135×33mm |
| Temperature |
-10-50℃(Operating); -40-80℃(Storage) |
| Note: Specifications are subject to change without notice |
Connection Diagram

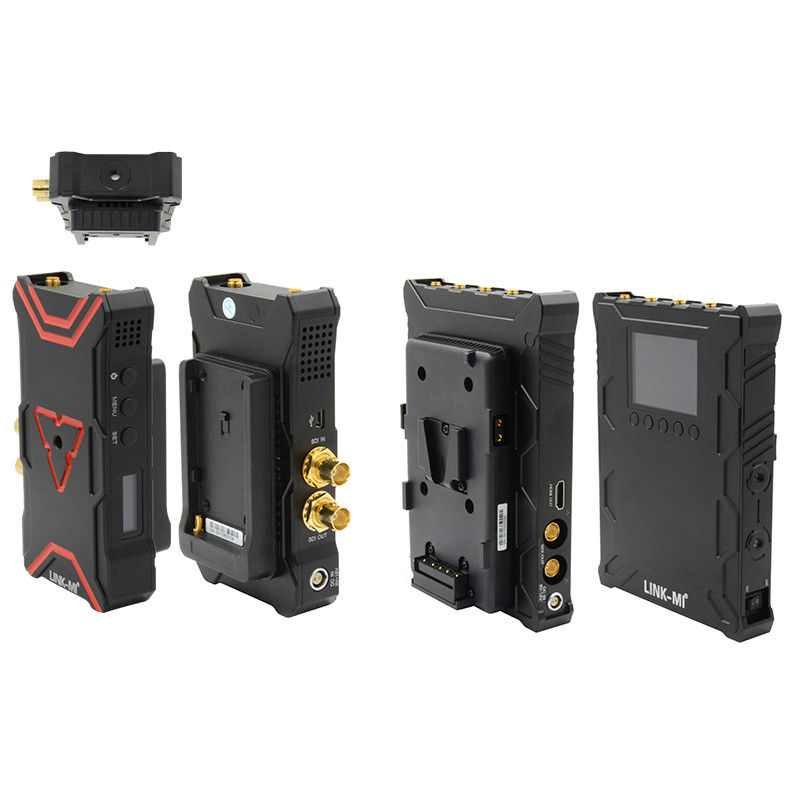

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-WS500 Wireless SDI 500m.pdf
