16 in 16 out HDMI Matrix Switch 4K 16X16 Video Matrix Support VGA/DVI/SDI Signal Input
Introduction

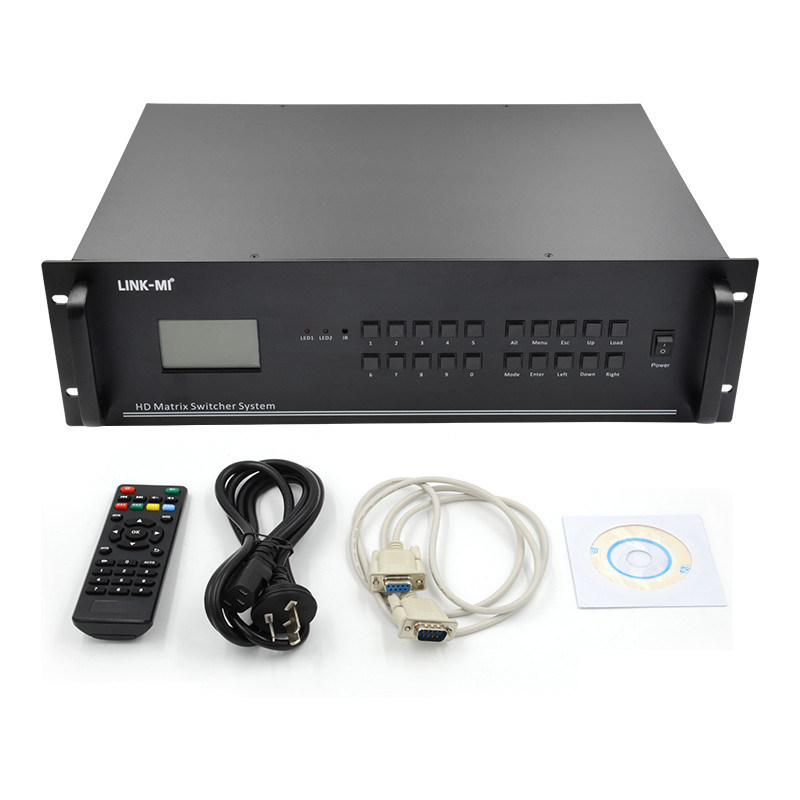

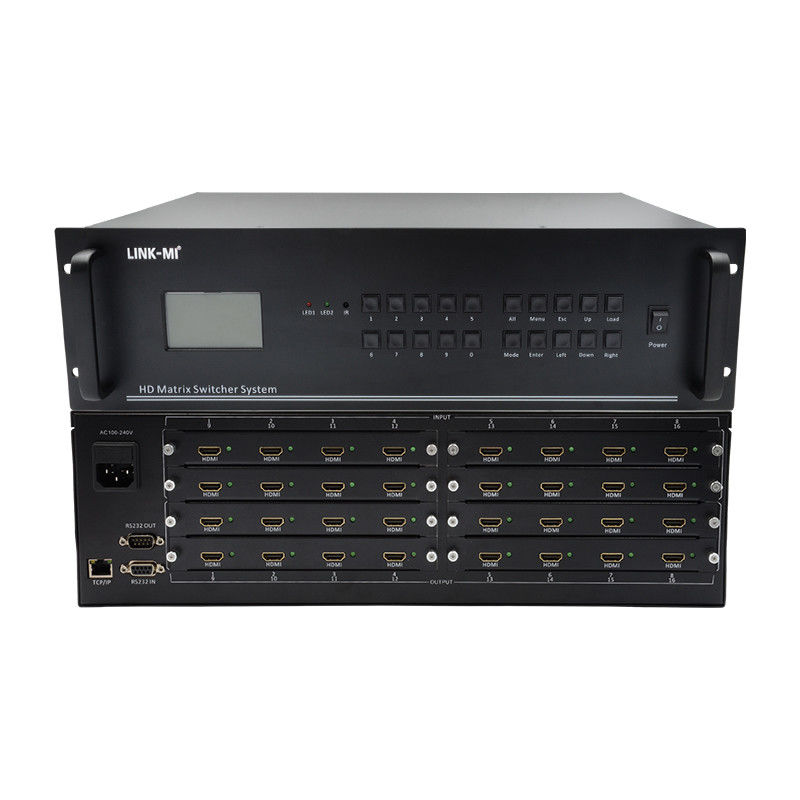

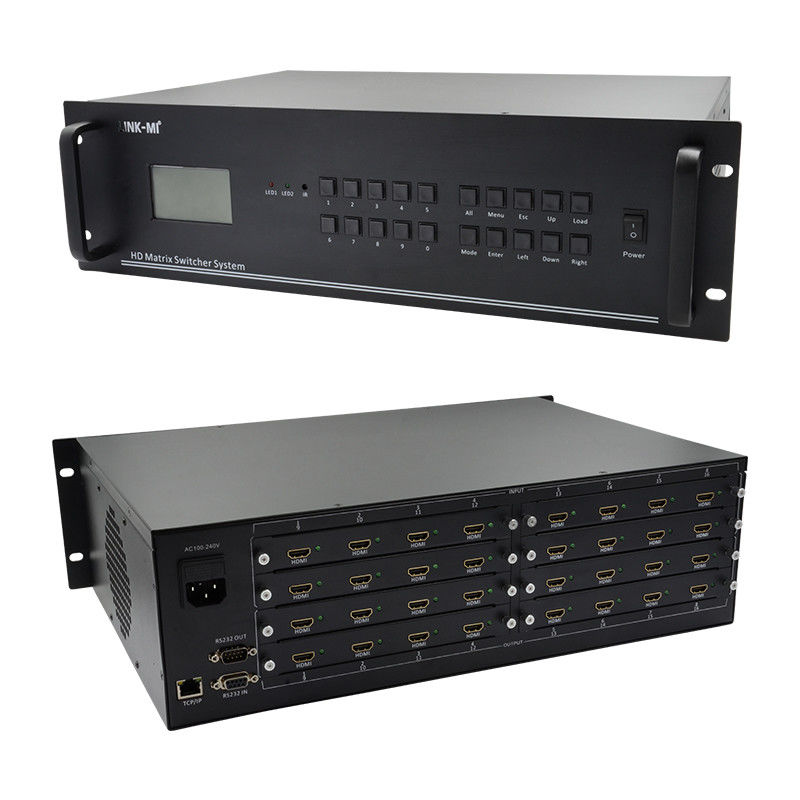

LINK-MI LM-MX16H 4K 16x16 Matrix Switcher is a high-performance video signal professional switching device for cross-switching of multiple video signal input and output. It adopts advanced high-performance image processing chip to minimize signal transmission attenuation, image and the sound signal can be high fidelity output.
The Matrix is mainly used in broadcasting and television engineering, multimedia conference halls, large-screen display engineering, television teaching, command and control centers and other occasions. This product supports chassis keys, infrared remote control, RS-232 serial port, TCP/IP (non-standard) and open control code for central control.
Features
1. Integrated structural design, standard 16 HDMI input and 16 HDMI output, compatible with HDMI, DVI signal format, support HDCP1.4 Version;
2. Support the highest resolution: 3840x2160P@30Hz;
3. Support EDID transparent transmission function, and also set fixed EDID identification information;
4. Interface bandwidth 3.4Gbps (total bandwidth 10.2Gbps);
5. Support Blu-ray DVD or other devices that require HDCP decoding;
6. With power-down memory function and power-off field protection function;
7. Multiple control ways: standard chassis button, infrared remote control, RS-232 serial port, central control, optional TCP-IP control;
8. Power supply: 100~240V AC, 50/60HZ.
Specification
| Model No. |
LM-MX16H |
|
Video input
|
|
Input
|
HDMI 1.4 , HDCP1.4
|
|
Input connector
|
HDMI 1.4
|
|
Input resistance
|
50Ω
|
|
Video output
|
|
Output
|
HDMI,DVI,VGA
|
|
Output connector
|
HDMI 1.4
|
|
Output impedance
|
50Ω
|
|
Video signal
|
|
Gain
|
0 Db
|
|
Video signal
|
HDMI,DVI,VGA
|
|
Maximum support resolution
|
3840*2160@30HZ,1920*12000@60HZ,1920*1080@60HZ,Backward compatible
|
|
EDID management
|
Support EDID transparent transmission function and EDID binding function
|
|
HDCP management
|
Supports high bandwidth digital content protection HDCP 1.4 standard.
|
|
Audio signal
|
|
Digital audio
|
Support HDMI audio transmission
|
|
Control section
|
|
Serial control port
|
9-pin female RS-232 connector
|
|
Infrared remote control
|
Default infrared remote control
|
|
Front panel control
|
Button
|
|
protocol
|
TCP/IP by controlling PTNET (programmable panel)
|
|
Conventional
|
|
Power supply
|
100VAC ~ 240VAC, 50/60Hz
|
|
Temperature
|
-20 ~ +70℃
|
|
Humidity
|
10% ~ 90%
|
|
Power consumption
|
75W
|
|
Chassis size
|
486x400x266 mm (LxWxH)
|
|
Product weight
|
13.8kg
|
| Note: Specifications are subject to change without notice |
Connection Diagram

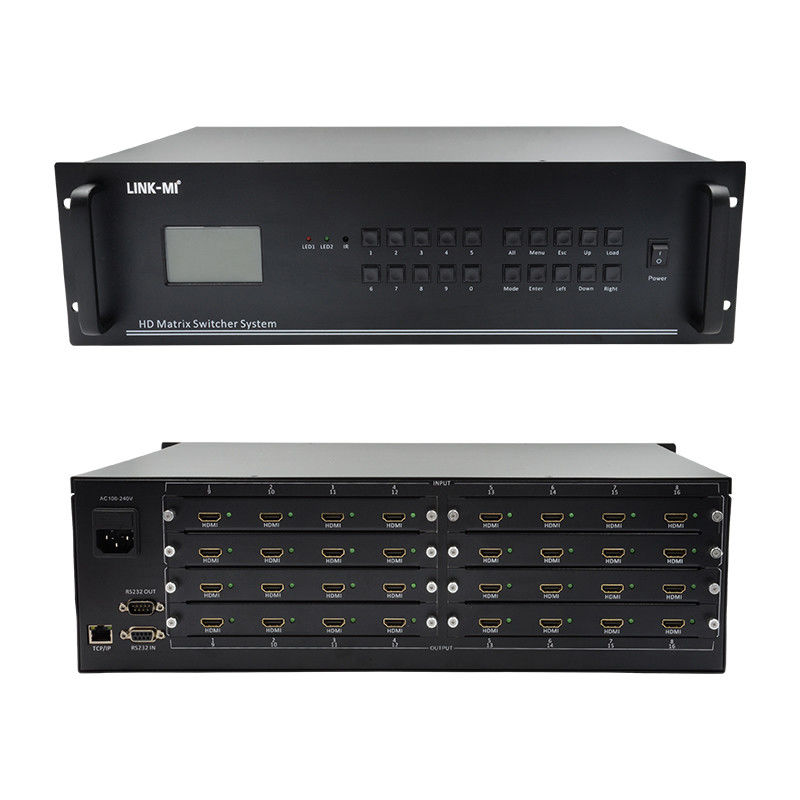

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-MX16H 16x16 Hybrid Matrix Switcher System.pdf
