HDMI Repeater 30m Support 4K@60Hz HDMI2.0 Video Extender
Introduction

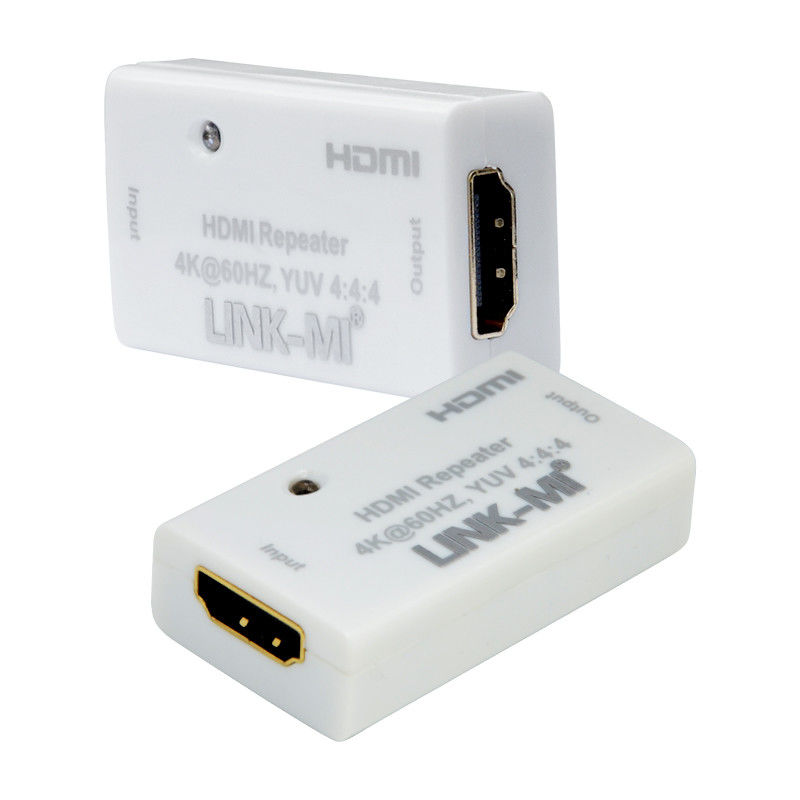

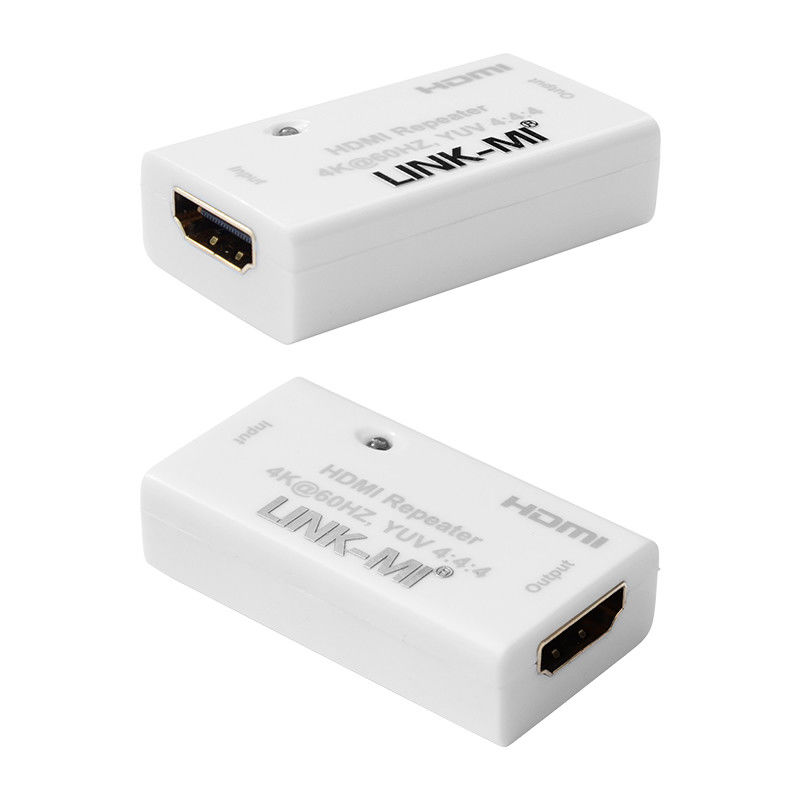

LINK-MI LM-EX29 is a HDMI 2.0 Reapeater with 1 HDMI input and 1 HDMI output. It supports 4K@60Hz, YUV 4:4:4, supports transmission distance up to 30m. It's in compact size. No need power supply.
Features
1. Bandwidth up to 18Gbps, Resolution up to 4Kx2K@60Hz, YUV 4:4:4
2. Transmitter up to 25m under 4K@60Hz, 30m under 4K@30Hz
3. Support 3D
4. CEC Pass through
5. HDCP 2.2/1.4 Compliant
6. Compact size
7. Power consumption is less the 1W
8. No need power supply
Specification
| Model No. |
LM-EX29 |
|
Video Format Supported
|
DTV/HDTV:
Video Format Supported
480i/576i/480P/576P/720P/1080i/1080P/
4Kx2K@60Hz/YUV 4:4:4
3D video support
|
|
Data transfer speed rate
|
18Gbps(Maximum)
|
| Video Output |
HDMI
|
|
Support Video Color Format
|
xv-YCC/deep color 36bit
|
|
Support Audio Format
|
DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
|
|
Input Video Signal
|
0.5-1.0 Volts P-P
|
|
Input DDC Signal
|
5 volts p-p(TTL)
|
|
Power consumption
|
1watts(Maximum)
|
|
Dimension (L×W×H)
|
49.2x27x13.2mm
|
|
Net Weight
|
0.01g
|
|
Operating Temperature Range
|
-5 to +35℃(+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
Connection Diagram

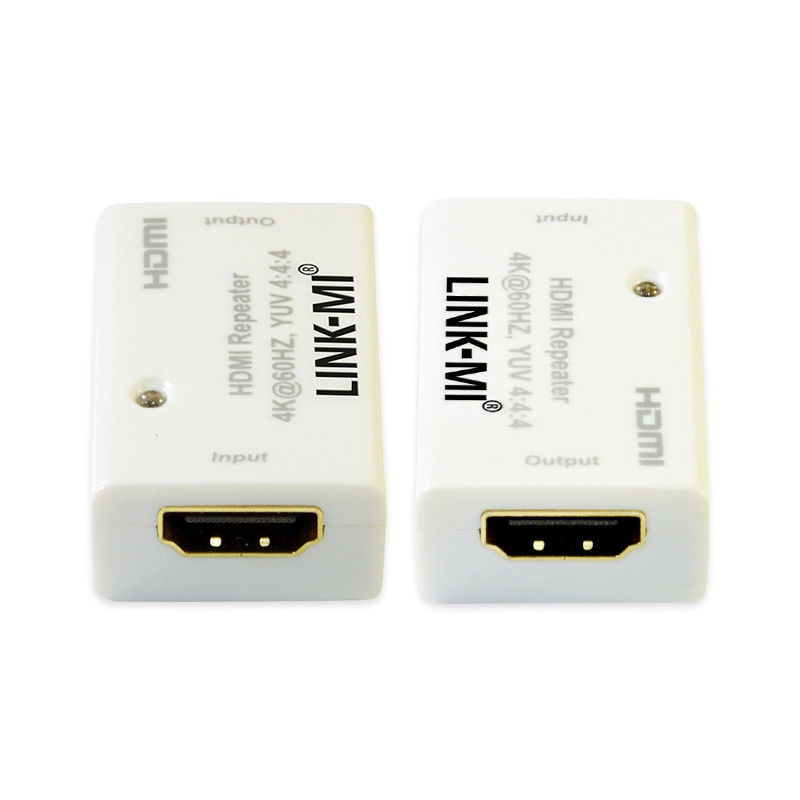

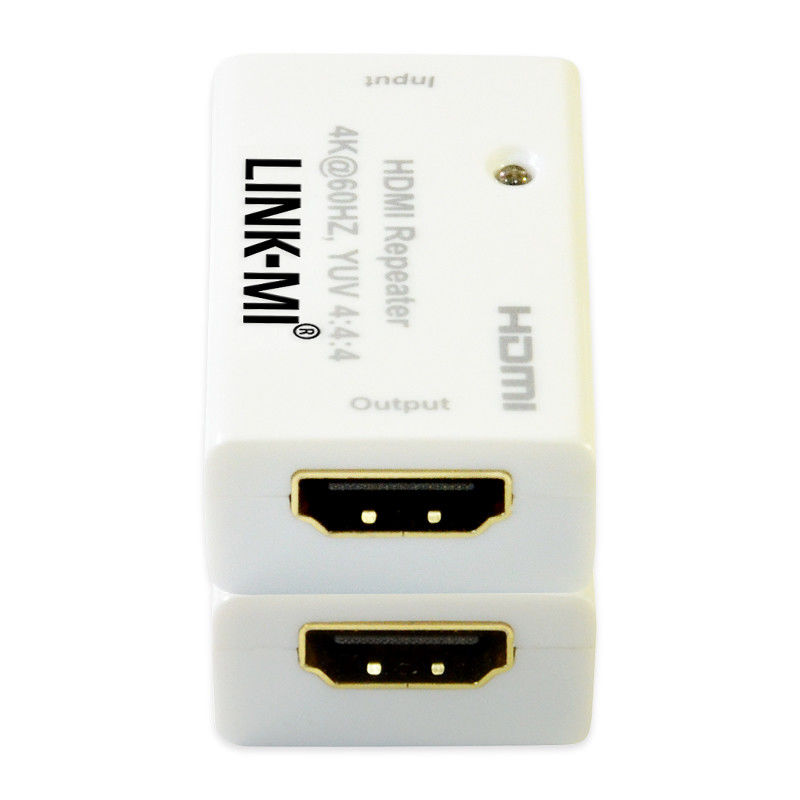

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EX29 30m HDMI 2.0 Repeater 4K@60Hz YUV 444.pdf
