50M HDMI Repeater Support 4K@60Hz HDMI2.0 3D CEC Video Extender
Introduction
LINK-MI LM-EX39 is a HDMI 2.0 4K Repeater. It supports 1 HDMI input and 1 HDMI output. It supports transmission up to 50m, supports CEC, 3D.
Features
1. Bandwidth upto 18Gbps, Resolution upto 4Kx2K@60Hz, YUV 4:4:4
2. Transmit upto 25m under 4Kx2K@60Hz, YUV 4:4:4, 50m under 1080P@60Hz
3. 1xHDMI in, 1xHDMI out, 1xDC receptacle
4. Connect the included DC to USB AM cable when the power is insufficient
5. HDCP 2.2 Compliant
6. CEC Pass through
7. Support 3D
8. No need power supply
Specification
| Model No. |
LM-EX39 |
| Input |
1x HDMI |
| Output |
1x HDMI |
|
Maximum Range
|
4K@60Hz, YUV 4:4:4, 25m (15m to source + 10m to display)
4K@30Hz, 40m (25m to source + 15m to display)
1080P@60Hz, 50m (30m to source + 20m to display)
|
| Maximum Resolution |
4K@60Hz, 4:4:4
|
|
Data transfer speed rate
|
18Gbps(Maximum)
|
| HDMI Compliance |
Up to HDMI2.0
|
|
HDCP Compliance
|
Up to HDCP2.2
|
|
Support Video Color Format
|
Deep color 36bit
|
|
Support Audio Format
|
DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
|
|
Power consumption
|
1watts(Maximum)
|
|
External Power Source (optional)
|
5V 150mA on DC receptacle
|
|
Dimension (L×W×H)
|
52x45x21mm
|
|
Net Weight
|
128g |
|
Operating Temperature Range
|
-5 to +55℃(+23 to +131℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
Connection Diagram

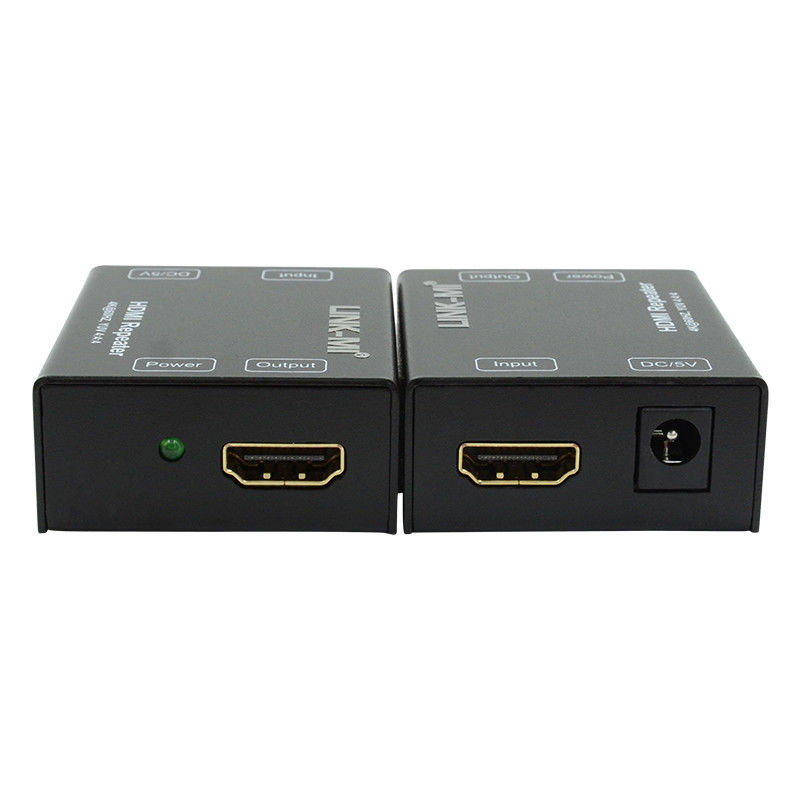

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EX39 50m HDMI 2.0 Repeater 4K@60Hz YUV 444.pdf
