200M Extender HDMI Over TCP / IP 1080P Support Point To Point Point To Multi Point

200M Extender HDMI Over TCP / IP 1080P Support Point To Point Point To Multi Point

200M Extender HDMI

Extender HDMI 1080P

tcp ip extender

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-200HC

Contact Us

Request A Quote
Product Details
Model No.:
LM-200HC
Resolutions:
480p,720p,1080p
Audio:
Sample Rate:32kHz,44.1kHz And 48kHz Code L
Fiber Optic Interface:
SC/FC Optional
Fiber Optic Transmission Distance:
20KM As Standard, 40KM/80KM Etc. Can Be Customized
Adapter:
DC:5V/1A
The Max Power Consumption:
HDMI Sender:3W HDMI Receiver:3W
Weight:
200g × 2
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
White/Brown/Color Box
Delivery Time
5-7 work days
Payment Terms
T/T, Western Union, PayPal, Bank Transfer
Product Description

200M HDMI Extender Over TCP/IP 1080P Support point to point, point to multi point



Introduction

LINK-MI LM-200HC 200M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 200 meters away from your DVD or computer source by using one CAT5e/6 cable. At the same time, it's convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to-multipoint mode and cascade connection mode.



Features

1. Support HDCP1.4

2. Support local loop out

3. Support 200m long distance transmission

4. Optional IR function

5. Support point-to-point mode, one point to multi point mode

6. Decoding Mode MJPEG

7. 802.3 Ethernet standard

8. Pure hardware design, plug and play, no additional software is required



Specification

Resolutions

480p,720p,1080p

Audio

Sample rate:32kHz,44.1kHz and 48kHz code

Fiber optic interface

SC/FC optional

Fiber optic transmission distance

20KM as standard, 40KM/80KM etc. can be customized

Adapter

DC:5V/1A

The Max Power consumption

HDMI sender:3W  HDMI receiver:3W

Size(L-W-H)

98*78*28mm

Weight

200g × 2

Operating Temperature/Humidity

0℃-45℃/10%-80%RH(no condensation)

Storage Temperature/Humidity

-10℃-70℃/5%-90%RH(no condensation)

Note: Specifications are subject to change without notice

Connection Diagram

200M Extender HDMI  Over TCP / IP 1080P Support Point To Point Point To Multi Point 0

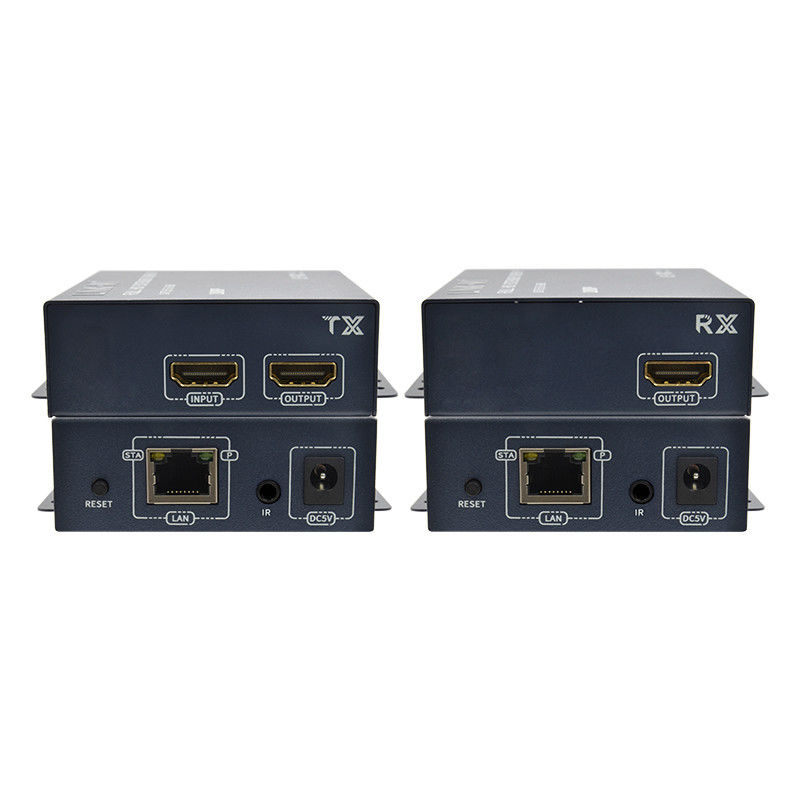

Panel Description

200M Extender HDMI  Over TCP / IP 1080P Support Point To Point Point To Multi Point 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
