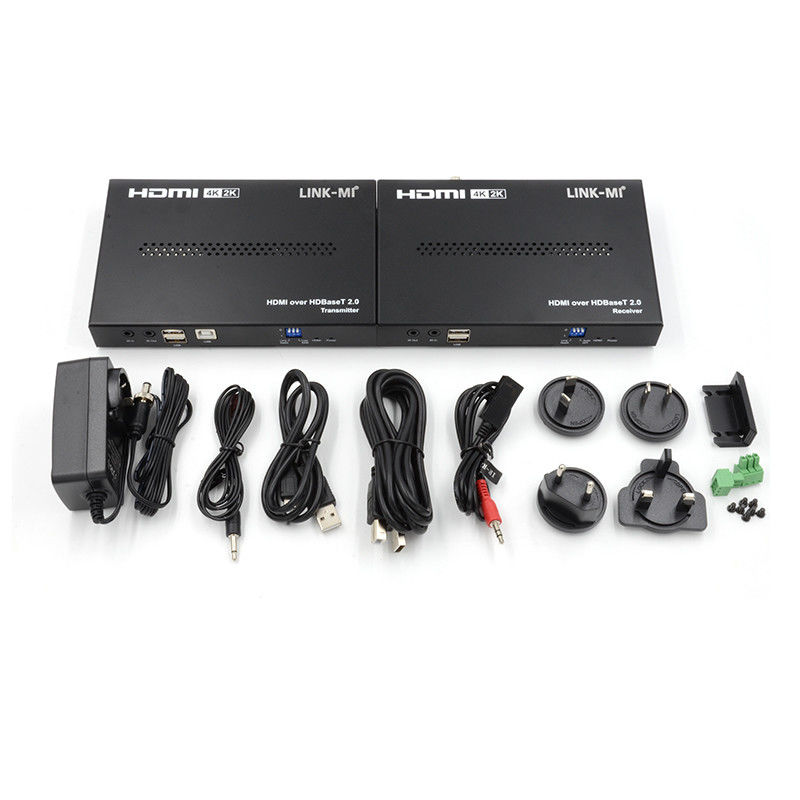

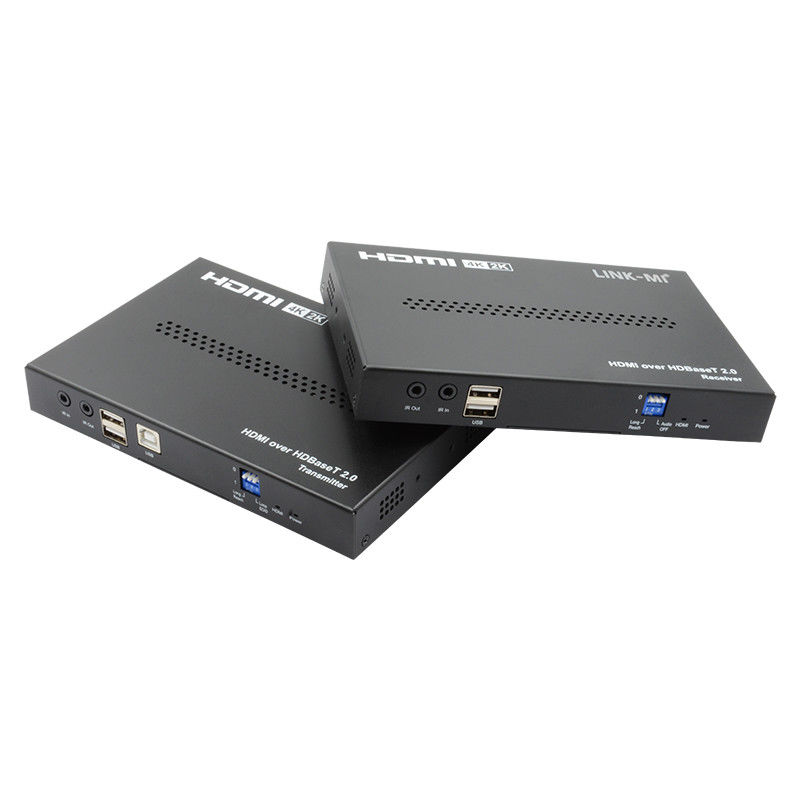

100M HDBaseT Ultra Slim Extender Kit HDMI 2.0 4K2K@60Hz
Introduction
LINK-MI LM-EX55 allows HDMI signals to be transmitted over a Single CAT5e/6 cable. This solution has the added features of RS232 and 2-way IR control functionality over the same CAT5e/6 cable. It can extend 4K@60Hz YUV4:4:4 over a HDBaseT link and upto 100M. The slimmest HDBaseT design, making it perfect to mount behind ultra thin TVs.
Features
1. Bandwidth up to 18Gbps, resolution up to 4K2K@60hz YUV 4:4:4
2. Transmit up to 150m under 1080p,100m under 4K
3. Support HDR10
4. Support USB 2.0
5. Support Bi-directional wide band IR and RS232 Pass through
6. Support Dual POC (Receiver powered by transmitter or transmitter powered by Receiver)
7. Support HDCP2.2/ HDCP1.4 Compliant
8. Support Copy local and remote EDID functionality
9. Supports audio extractor rate up to 192kHz
10. Support PCM7.1,Dolby,DTS
11. With micro USB port for firmware upgrade
Specification
| Operating Temperature Range |
-5 to +40°C (23 to +104 °F) |
| Operating Humidity Range |
5 to 90 % RH (no condensation) |
| Input Video Signal |
0.5-1.0 volts p-p |
| Input DDC Signal |
5 volts p-p (TTL) |
| Video Format Supported |
DTV/HDTV;
4K/1080P/1080i/720P(50HZ)/576P/480P/576i/480i
|
| Output Video |
HDMI 2.0+HDCP1.4/2.2 |
| Output Audio |
Support PCM,DTS-HD, Dolby-HD |
| Maximum Transmission Distance |
150 meters for 1080P, 100 meters for 4K |
| Power Supply |
24V1A |
| Poc |
Power from TX to RX over Cat5/6 cable |
| Power Consumption |
14Watts |
| Dimensions |
172.4mmH×113.2mmW×24mmD |
| Mass (Main unit) |
1.1Kg (Pairs) |
| Note: Specifications are subject to change without notice |
Connection Diagram

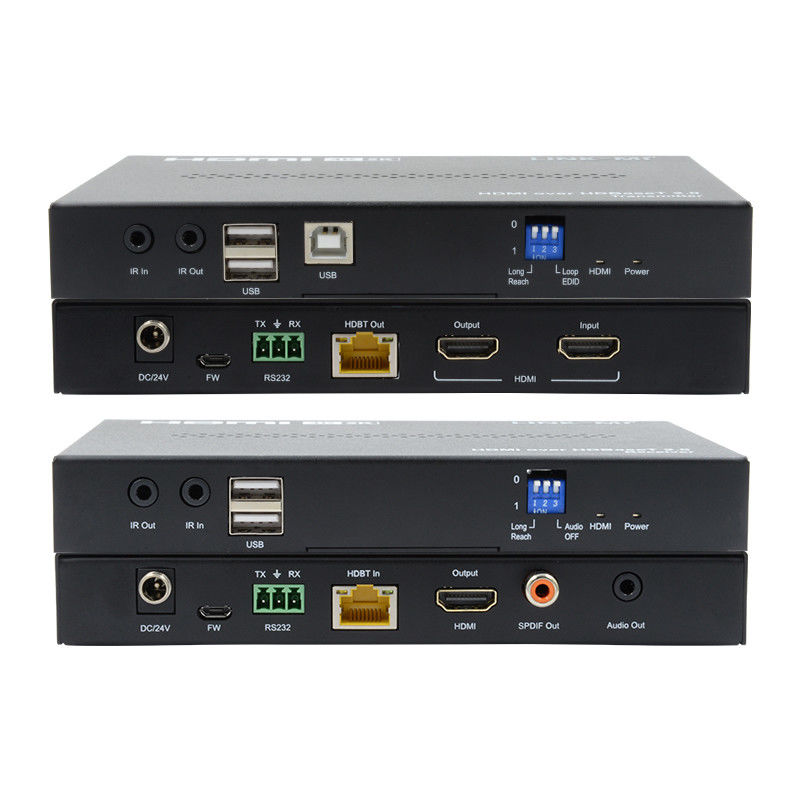

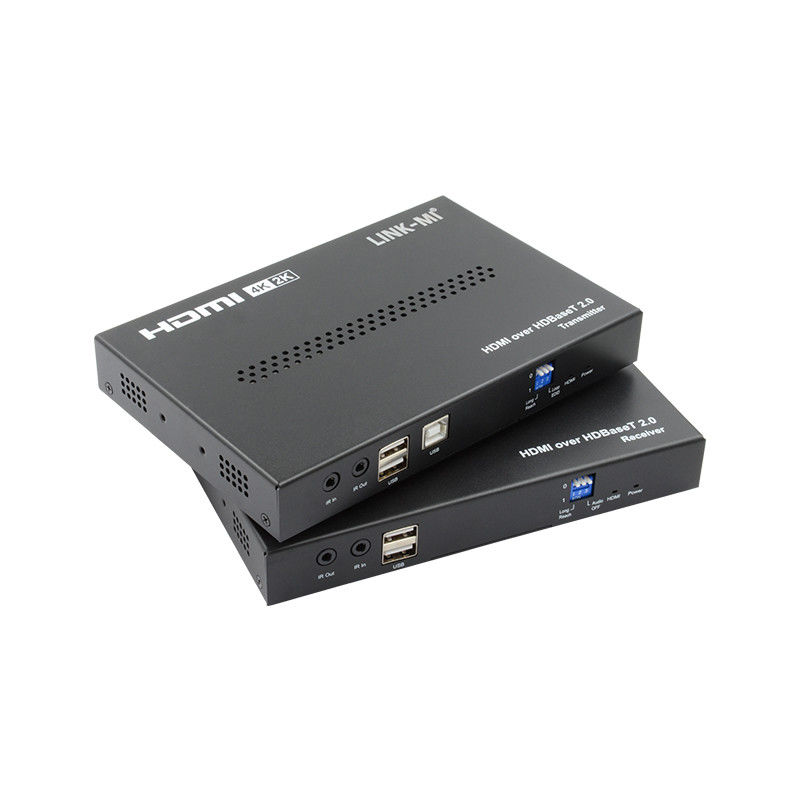

Panel Description
