100M HDMI Extender 4K Ultra Video Extender
Introduction
LINK-MI LM-EX100-4K2K is a high-performance HDMI Image transmission devices, its main feature is a network cable HDMI Images without compression, delay-free transmission 100M distance, maximum support 4k*2k ultra high resolution transmission while supporting IR Bidirectional transmissionof infrared remote controlsignals and RS-232 Serial bi-directional transmission of the signal.
Features
1. Supports full HD 1080p@60Hz,3D, 4K × 2K/30HZ HDMI Signal transmission
2. 1080p Full HD signal through Cat6a Lines can be extended 100m
3. Theuse of HDBaset Technical support HDMI Imagesignal extendered without compression and without delay;
4. Support bi-directional infrared signals back to the serial port RS-232 Two-way signal transmission
5. SupportHDCP/CEC/24 -Bitcolordepth
6. Support uncompressed audio LPCM and compressed audio DTS-HD, Dolby True HD
7. The use of POC Power supply, just as one end of the extender or the receiver for 12V power supply
Specification
| Project |
Parameter description |
| HDMI signal |
HDMI1.4, HDCP2.2, support for the CEC, 24-bit color depth, 4Kx2K |
| Transfer Protocol |
HDBaseT |
| Supported resolution |
480i/480P/576i/576P/720P/1080i/1080P/3D/4K×2K |
| Audio |
LPCM,DTS-HD,Dolby True HD |
| Network cable |
CAT5E,CAT6,CAT6A,CAT7 |
| Transmission distance |
CAT5e/CAT6 |
100m |
Up to 1080P60Hz 36bpp |
| 70m |
1080p@60Hz 48bpp,1080p60Hz 3D,4K×2K 30Hz |
| CAT6a/CAT7 |
110m |
Up to 1080P60Hz 36bpp |
| 75m |
1080p@60Hz48bpp,1080p@60Hz3D,4K×2K 30Hz |
| Infrared return |
Support 20-60kHz broadband infrared remote control, support bi-directional infrared transmission |
| RS-232 Transmission |
Supports serial RS-232 bi-directional transmission |
| Power supply |
DC12V/ 2 A *1pcs |
| Power consumption |
No more than 8w |
| Product size |
101 (L)× 79 .5(W)×2 6 (H)mm *2pcs |
| Body material |
Metal |
| Net weight |
TX: 250 g RX: 250 g |
| Color |
Titanium Crystal grey |
| Note: Specifications are subject to change without notice |
Connection Diagram

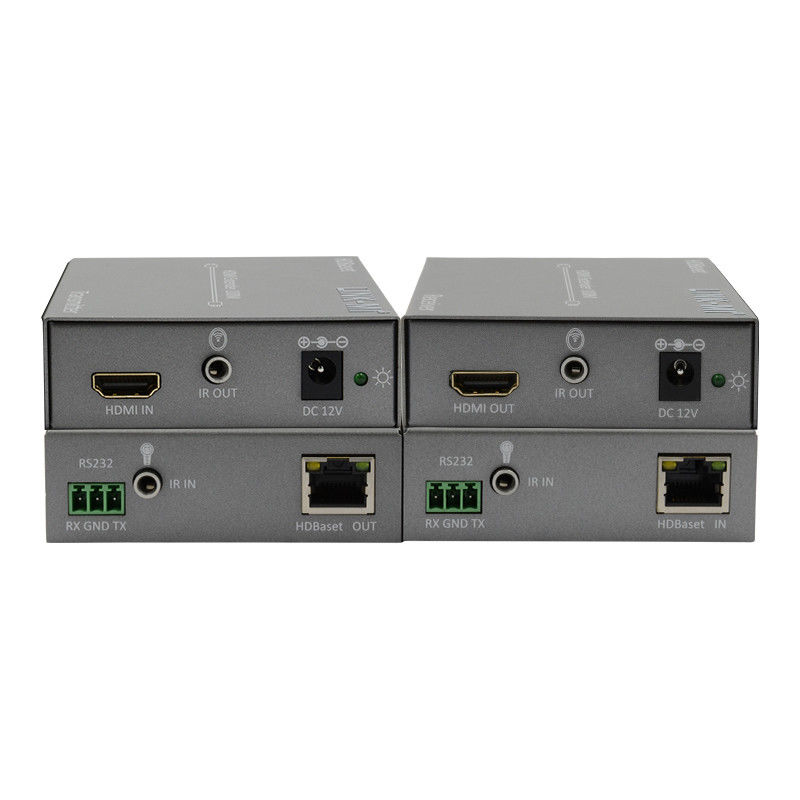

Panel Description
FAQ
