16X16 HDMI Matrix with Analog SPDIF Audio Support 4K@60Hz, HDMI2.0
Introduction

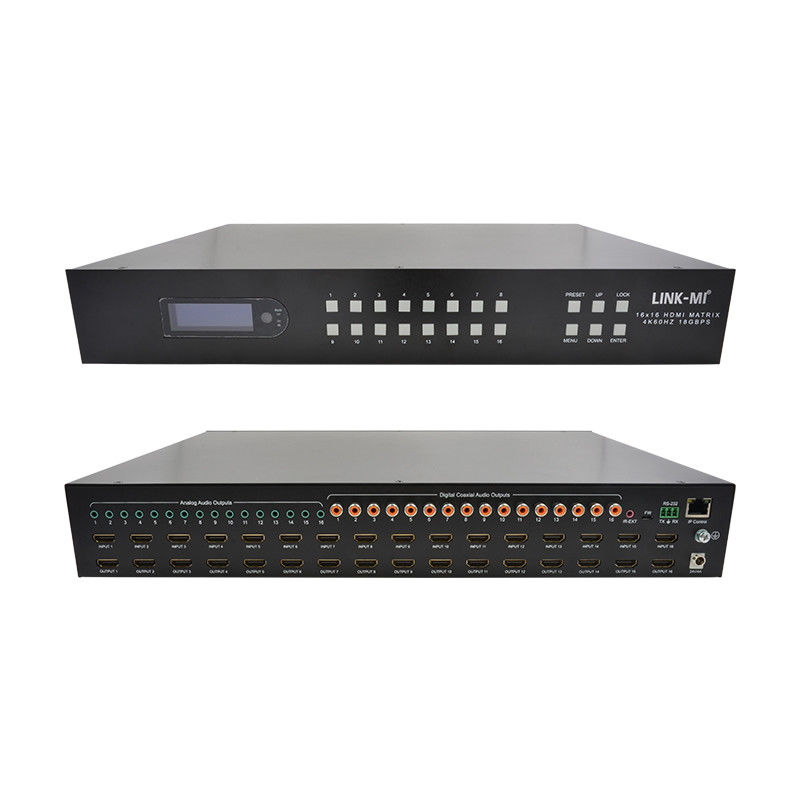

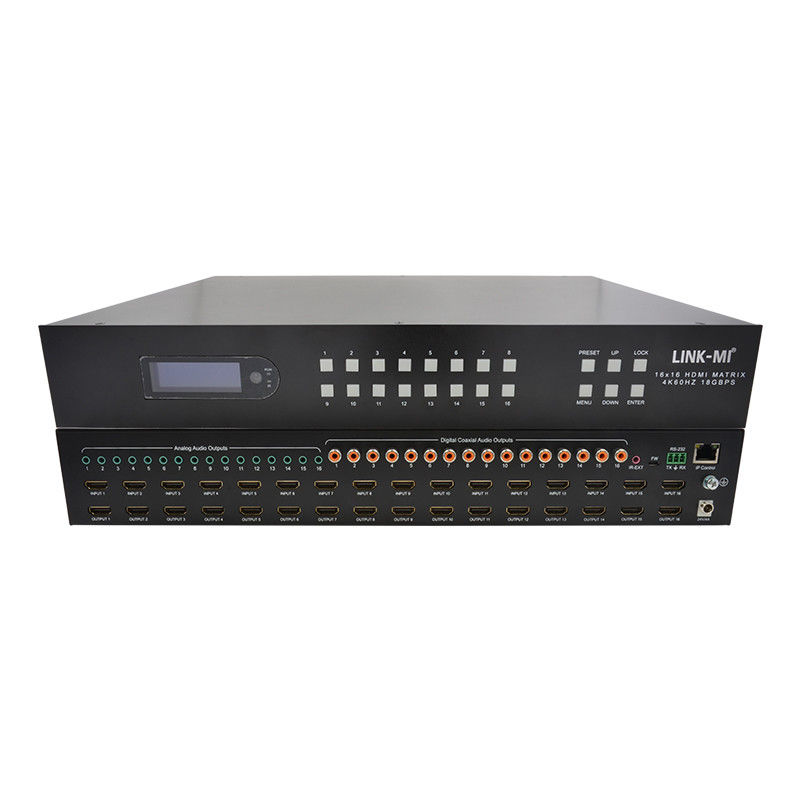

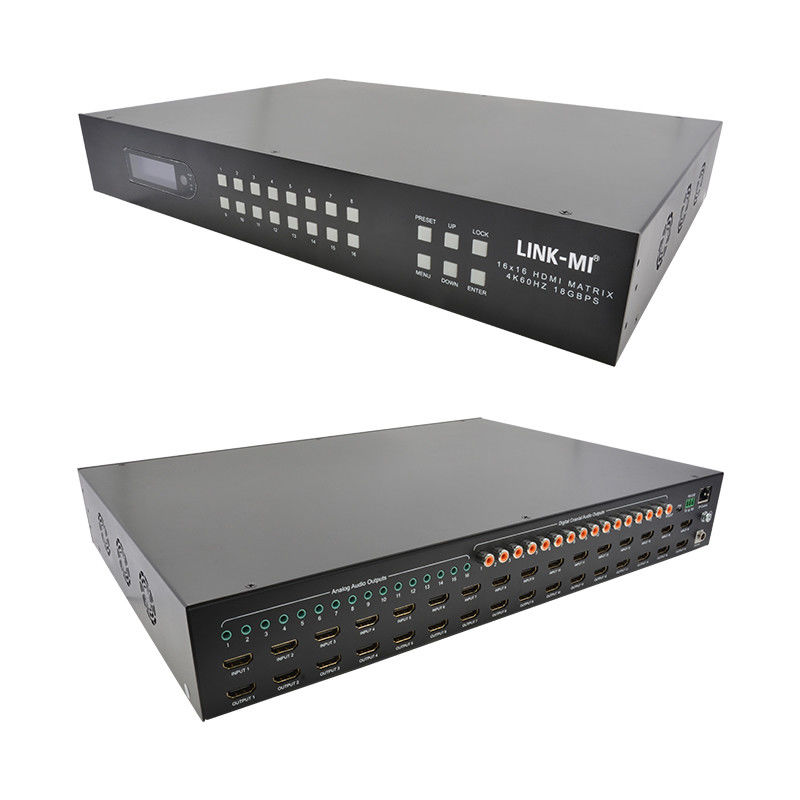

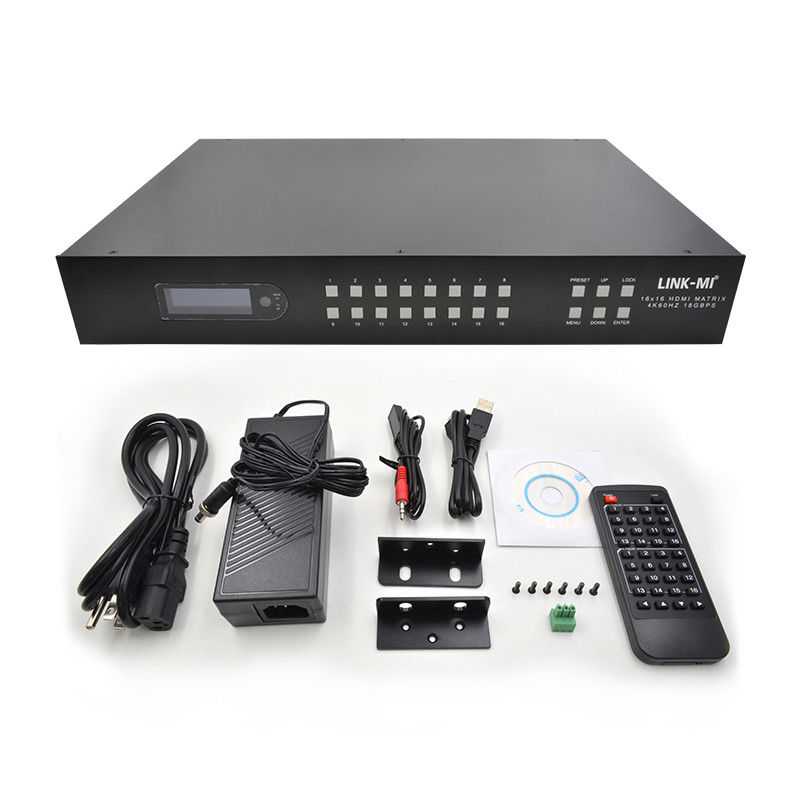

LINK-MI LM-MX16B 16X16 HDMI Matrix with Analog SPDIF Audio Support 4K@60Hz, HDMI2.0
Features
1. 16 x HDMI 2.0 input & 16 x HDMI 2.0 output
2. HDMI 2.0 version support 4K@60Hz YUV4:4:4, 18Gbps, Deep color 8bit
3. HDCP 2.2/1.4 compliant (follow input)
4. Supports Dolby Vision, HDR10, HLG
5. Supports LPCM up to 7.1, Dolby Atmos and DTS-X Atmos, 192KHz
6. Supports 16 x Analog & 16 x SPDIF Audio Matrix
7. Supports Analog Audio Volume control from level 1 ~ 10
8. Supports Panel Button with LCD, IR Remote control, RS232 Control, TCP/IP Control
9. Supports 4K downscale to 1080p (Only for outputs)
10. Supports smart EDID management
11. Supports FW updating through RS-232 port
Specification
| Model No. |
LINK-MI LM-MX16B |
|
Operating Temperature Range
|
-5 to +40°C(23 to +104 °F)
|
|
Storage Temperature Range
|
-10 to +60°C(-14 to +140 °F)
|
|
Operating Humidity Range
|
5 to 90 % RH (no condensation)
|
|
Input Video Signal
|
0.5-1.0 volts p-p
|
|
Input DDC Signal
|
5 volts p-p (TTL)
|
|
5 volts p-p (TTL)
|
18G
|
|
Video Format Supported
|
4K@60Hz,YUV4:4:4 8bit
4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i
|
|
HDCP Compliant
|
HDCP 2.2 and HDCP 1.4
|
|
Output Video
|
HDMI 2.0 Version
|
|
Audio Format Supported
|
LPCM up to 7.1, Dolby Atmos and DTS-X Atmos
|
|
Power Consumption
|
80watts (Max.)
|
|
Dimensions
|
L438xW310xH66 mm
|
|
Mass (Main Unit)
|
5.38 KG
|
Connection Diagram
Panel Description
