4K 40M HDBaseT HDMI+VGA Wallplate Extender
Introduction

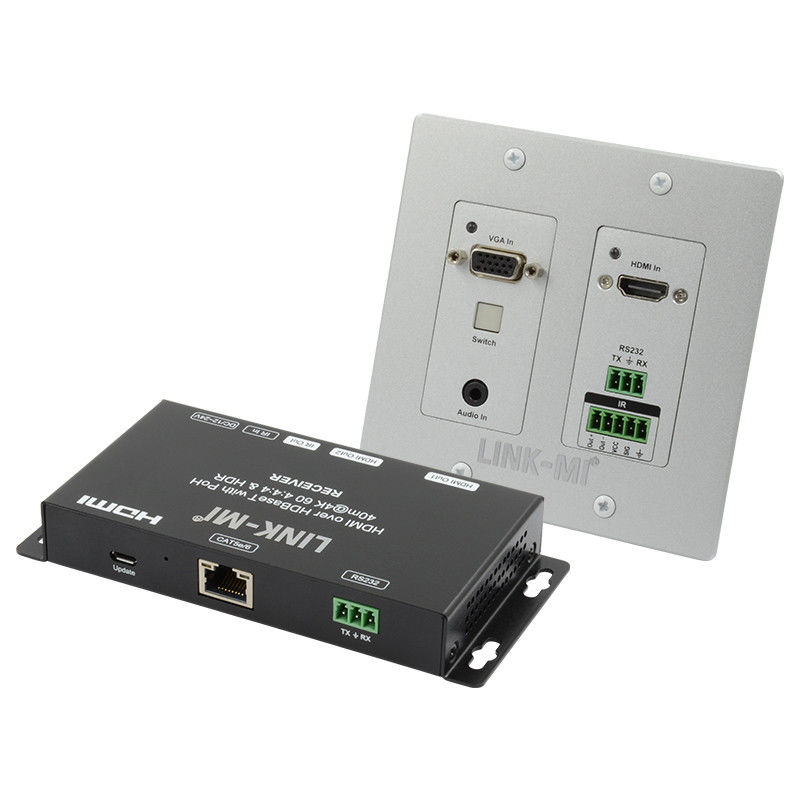

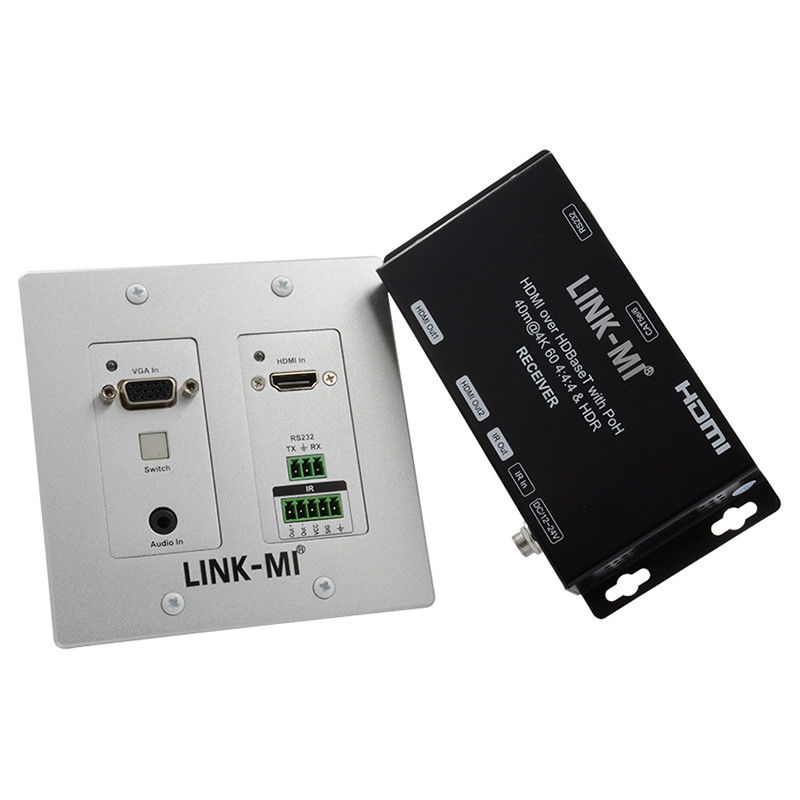

LINK-MI LM-EW53 4K 40M HDBaseT HDMI+VGA Wallplate Extender
Features
1. Transmitterin North American standard Wall plate .
2. Bandwidth up to 18Gbps, resolution up to 4k @60hz YUV4:4:4, VGA resolution reach up to 1920*1200.
3. Support Dolby TruHD, DTS-HD Master Audio,7.1 audio channel.
4. Transmit up to 70m under 1080p, 40m under 4k
5. Support HDR10, 3D
6. Support VGA or HDMI in, Switch by the Switch button on the faceplate
7. Bi-directional wide band IR (20-60KHZ)and RS232 Pass through
8. Dual POC(Receiver powered by transmitter or transmitter powered by Receiver)
9. HDCP2.2/HDCP1.4 Compliant
10. Support 2.0 Analog Audio embedded.
Specification
| Operating Temperature Range |
-10 to +40°C (14 to +104 °F) |
| Operating Humidity Range |
5 to 90 % RH (no condensation) |
| Input Video Signal |
0.5-1.0 volts p-p |
| Input DDC Signal |
5 volts p-p (TTL) |
| Video Format Supported |
DTV/HDTV;
4K/1080P/1080i/720P(50HZ)/576P/480P/576i/480i,VGA resolution .
|
| Output Video |
HDMI 2.0+HDCP1.4/2.2 |
| Output Audio |
Support DTS-HD, Dolby-HD,71. channel. And support 2.0 analog audio in. |
| Maximum Transmission Distance |
70 meters for 1080P, 40 meters for 4K |
| Power Supply |
24V1A |
| Poc |
Power from TX to RX over Cat5/6 cable |
| Power Consumption |
16.5Watts |
| Dimensions |
TX: 116mmH×115.5mmW×49.2mmD
RX: 139.4mmH×66.8mmW×20mmD
|
| Mass (Main unit) |
Transmitter:260.6g ; Receiver:270g |
Connection Diagram
