100M Adaptive VGA Audio CAT5 Extender(Adaptive)
Introduction

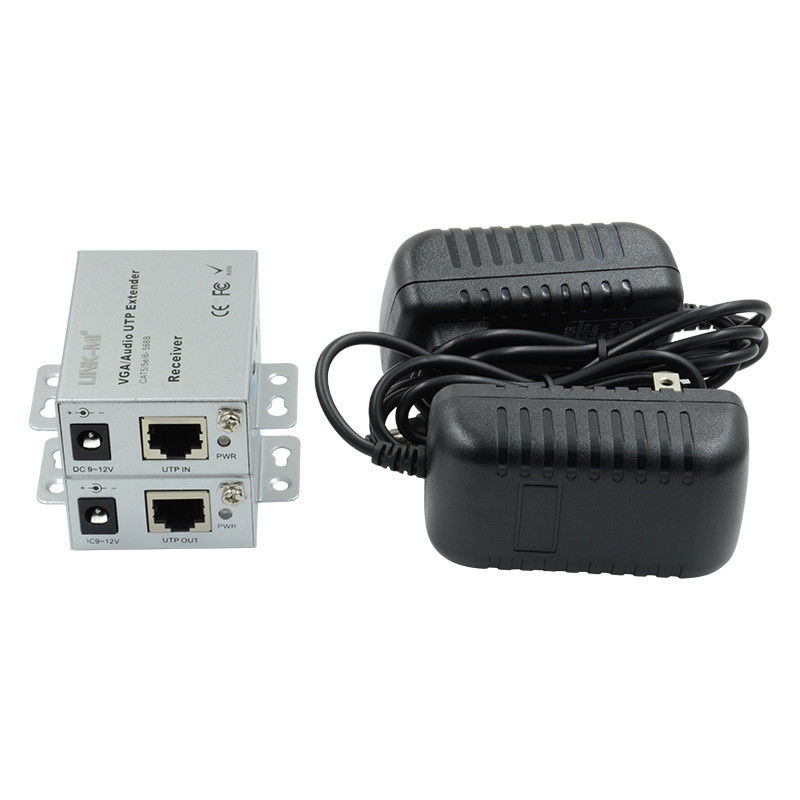

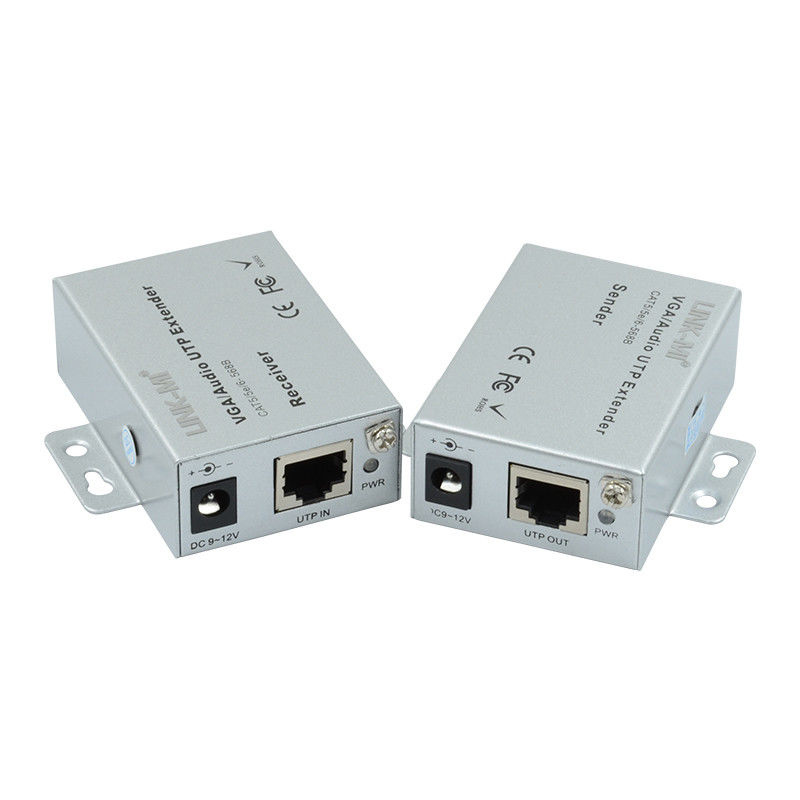

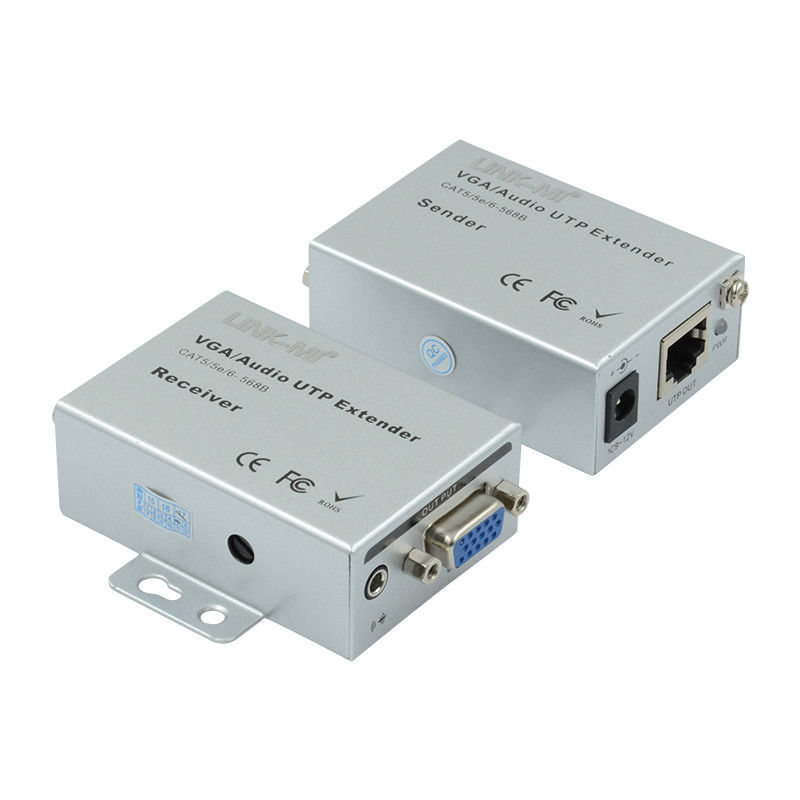

LINK-MI LM-101TRSC The 100M VGA Audio Extender transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.
Features
1.Ideal solution for digital signage applications.
2.Supports local and remote VGA monitors.
3.Supports resolutions to 1920x1440.
4.Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.
5.Built-in lightning and ESD surge protection.
6.Available with optional stereo audio.
7.Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
8.Optional VESA mounting bracket is available for mounting the remote unit to the back of a
flat panel monitor.
Specification
| Local Unit |
1. Host Connection
2. Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
3. Male/Female 15-pin HD connector for computer connection.
4. Optional stereo audio support - 3.5mm stereo plug.
5. Local Access
6. Crisp and clear 1920x1440 video resolution.
7. Female 15-pin HD connector for local VGA monitor.
8. Optional stereo audio support - 3.5mm stereo jack.
|
|
Remote Unit
|
1. Supports resolutions up to 1920x1440; refer to the resolution chart
below for resolutions at different lengths.
2. Female 15-pin HD connector.
3. Optional 3.5mm stereo audio connection.
|
| Video Quality Adjustment |
Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video extender. |
| Environmental |
1. Operating temperature: 32°F to 100°F (0°C to 38°C).
2. Storage temperature: -20°F to 140°F (-30°C to 60°C).
3. Operating and Storage Relative Humidity: 17 - 90% non-condensing
RH.
|
| Dimensions |
1. L*W*H (mm): 64*45*23mm(Sender)
64*45*23mm(Receiver)
2. Weight(Kg):0.7KG
|
|
Power
|
1. 220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).
2. Power Consumption: 6W (each - local and remote unit).
3. Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.
|
Connection Diagram

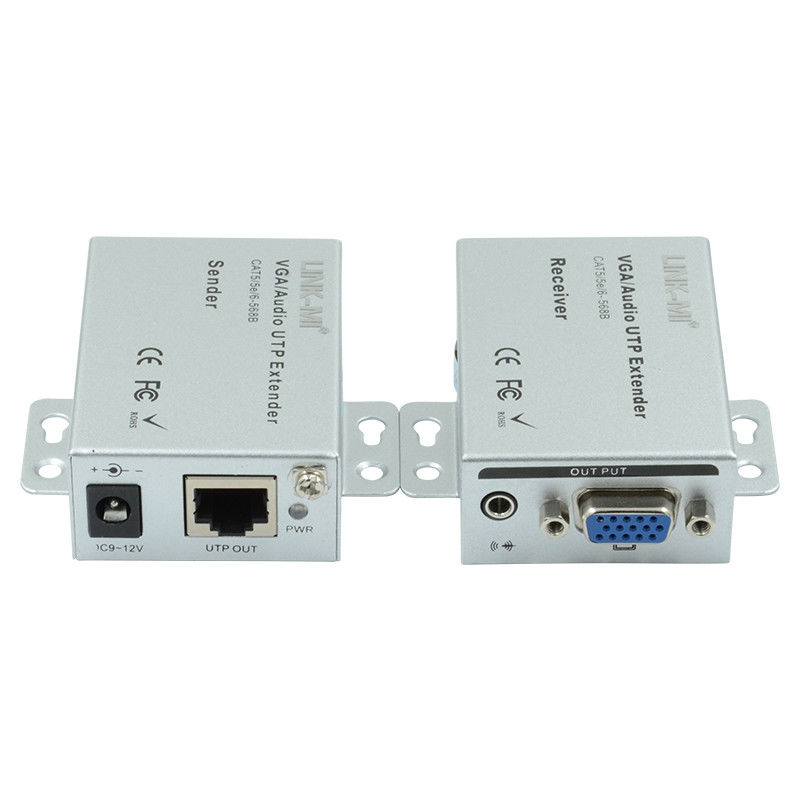

Panel Description
