HDMI 200M EXTENDER MANUAL
Introduction

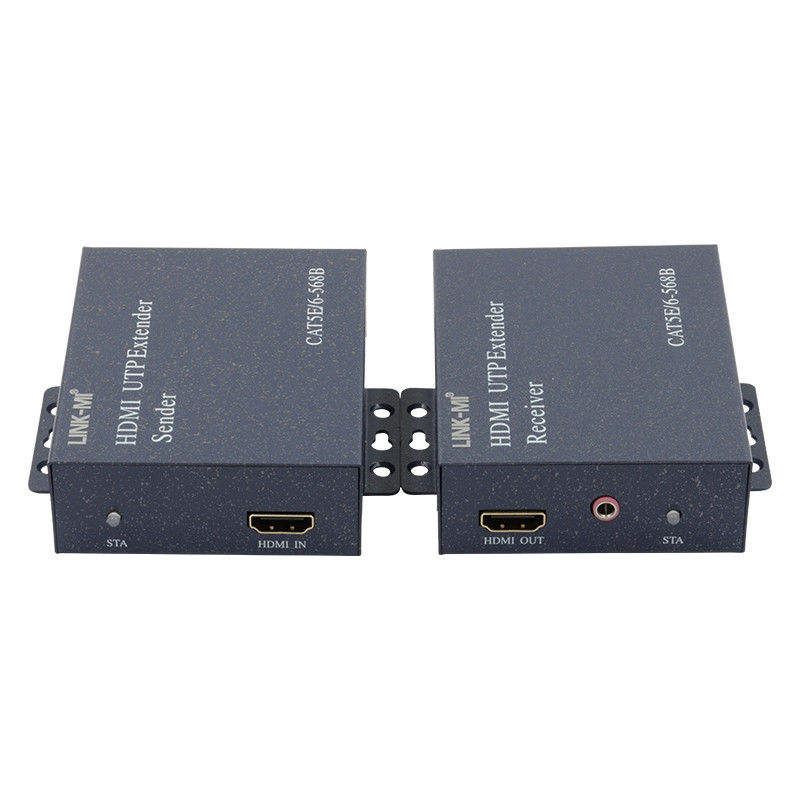

LINK-MI LM-200H The HDMI extender, used for HD and non-condensed signal up to 200 meters, consists of a sender and a receiver. This product through a CAT5/5e/6 or above Copper twisted pair (line sequence: white w/orange . orange. white w/green . blue . white w/blue. green. white w/brown . brown) extends those up to 1920 * 1080 @ 60HZ range resolution HD video, independent audio to the remote, as far as 200 meters, in the meantime, the transmitter provides a HDMI output port for local display. Different with conventional TCP/IP protocol 100 meters extender is this product image is a zero delay transmission, without image compression reduction is better; the products imported by the United States, real-time transmission of video and audio fidelity, anti-interference circuit built-in lightning protection, which greatly improves the stability of products already working life. the product can transmit the high fidelity and real-time video, audio, signal.Anti-interference circuit built-in lightning protection also greatly improves the product’s stability and operating life. This product is widely used in the field of computer, home theater, monitoring, education, bank securities system etc..
Features
1.Transmit HDMI signal up to 200m over a single CAT5/5e/6 cable.
2.Support video resolution up to 1920×1080@60Hz.
3.Support local and remote HDMI monitors.
4.Built-in lightning protection.
Specification
| Items |
Description |
| Function |
Transmission Signal Type |
HDMI,Independent Digital Audio |
| Transmission Channel |
1 Line |
| Transmission Distance |
200m |
| Power Section |
Power Supply Mode |
External Power Supply |
| Adaptive Voltage Range |
5VDC 1A |
|
HDMI Performance
And Interface
|
Support HDMI Version |
HDMI1.3 |
| Support HDCP Version |
HDCP1.2 |
| HDMI Resolution |
1920*1080@60HZ downward Compatibility |
| Peak Transfer Rate |
1.65Gbps |
| Audio Signal Transmission Format |
Digital Audio |
| Interface |
RJ45 Cable Cat5e/Cat6 and Above |
|
Performance
adjustment
|
Picture effect |
Receiver Length Knob Can Adjust the Screen Effect
to the Best
|
| Protection Level |
Electrostatic Protection |
1A Contact Discharge 3 Level
1b Air Discharge Level 3
Implementation Standard: IEC61000-4-2
|
|
Operational
Environment
|
Working Temperature |
0~40℃ |
| Storage Temperature |
-20～70℃ |
| Humidity (No Condensation) |
0～95% |
| Organism Attribute |
Dimensions (L * w * h) |
97*98*28mm |
| Material |
Engineering Grade Steel |
| Weight |
0.8KG |
| Security |
Continue Working Time Before
Breakdown
|
>30000 hours |
Connection Diagram

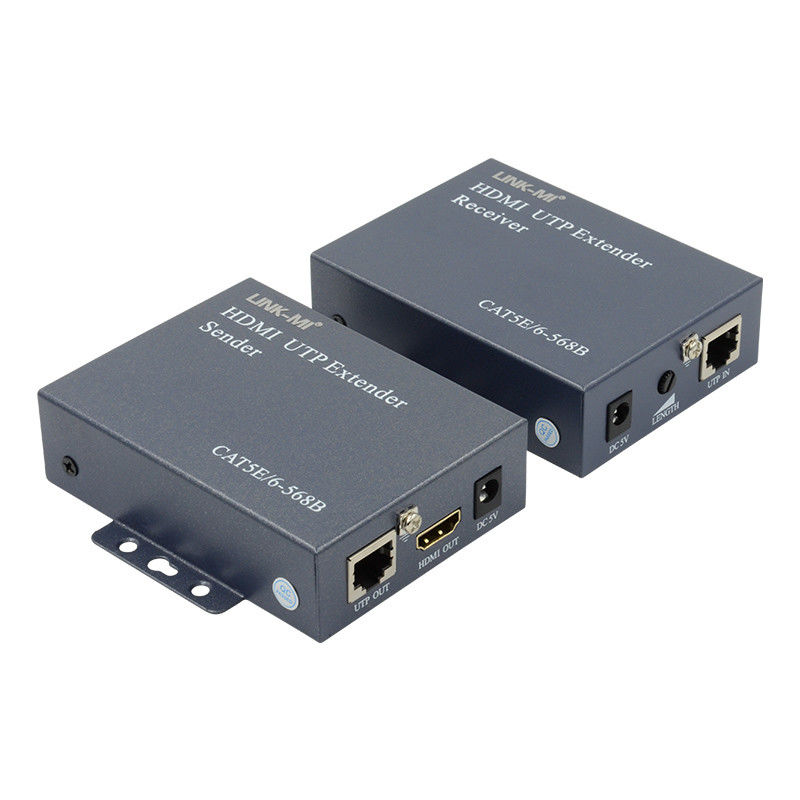

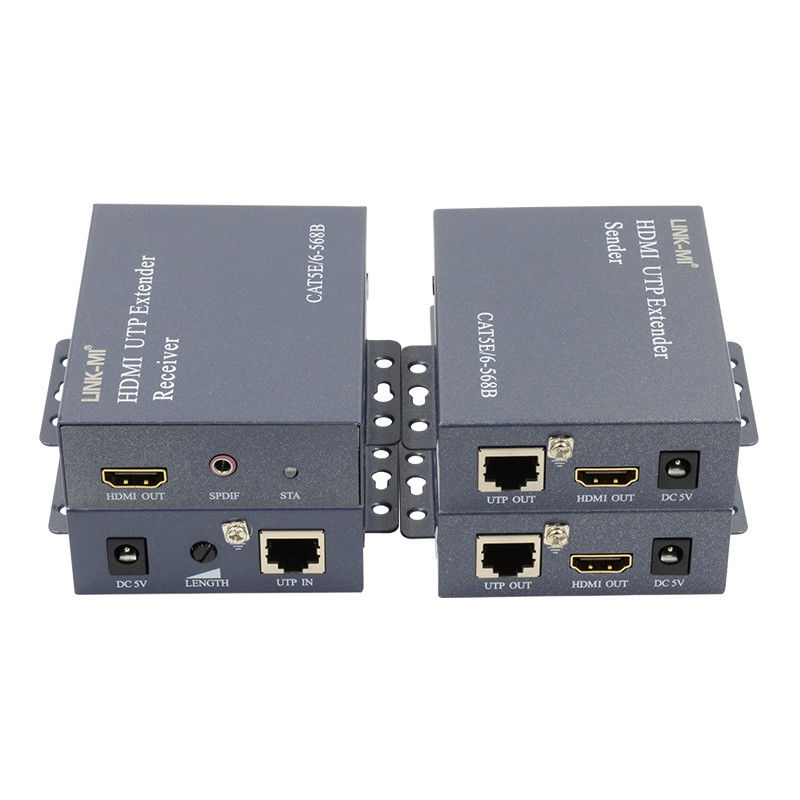

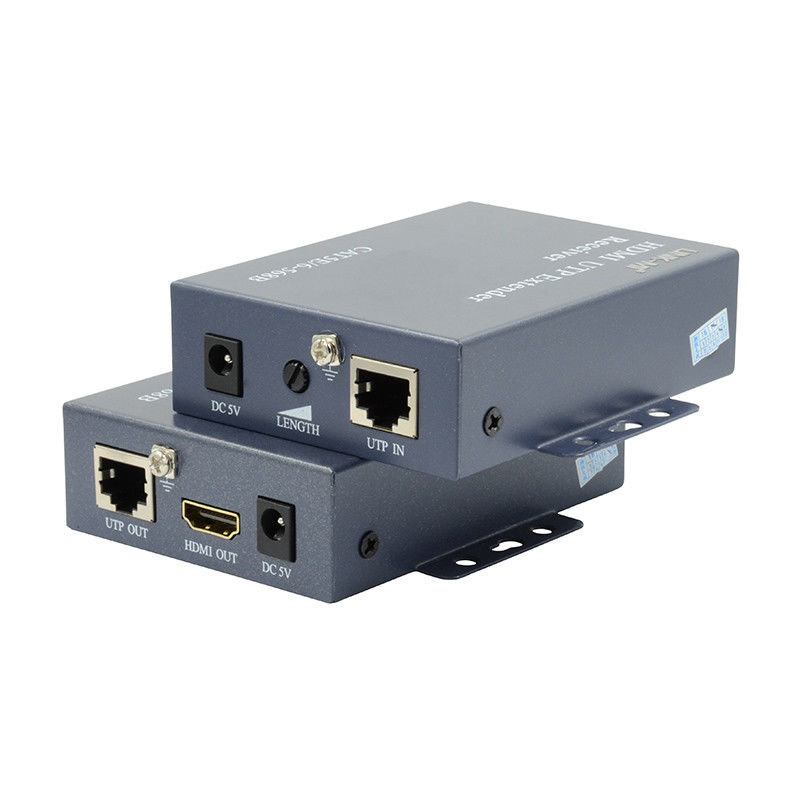

Panel Description
