HDMI 1x4 TV WALL
Introduction

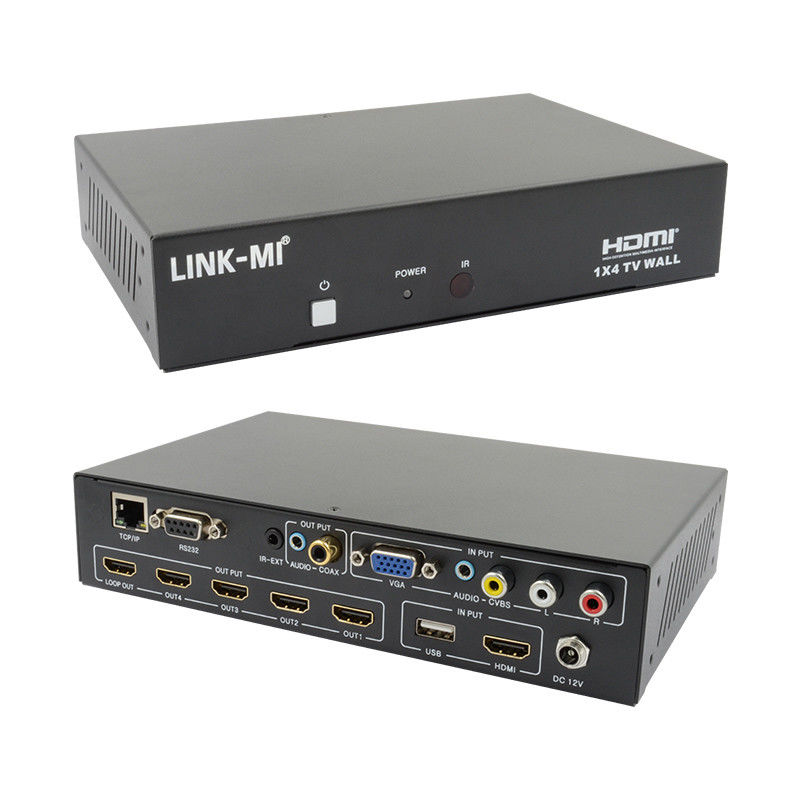

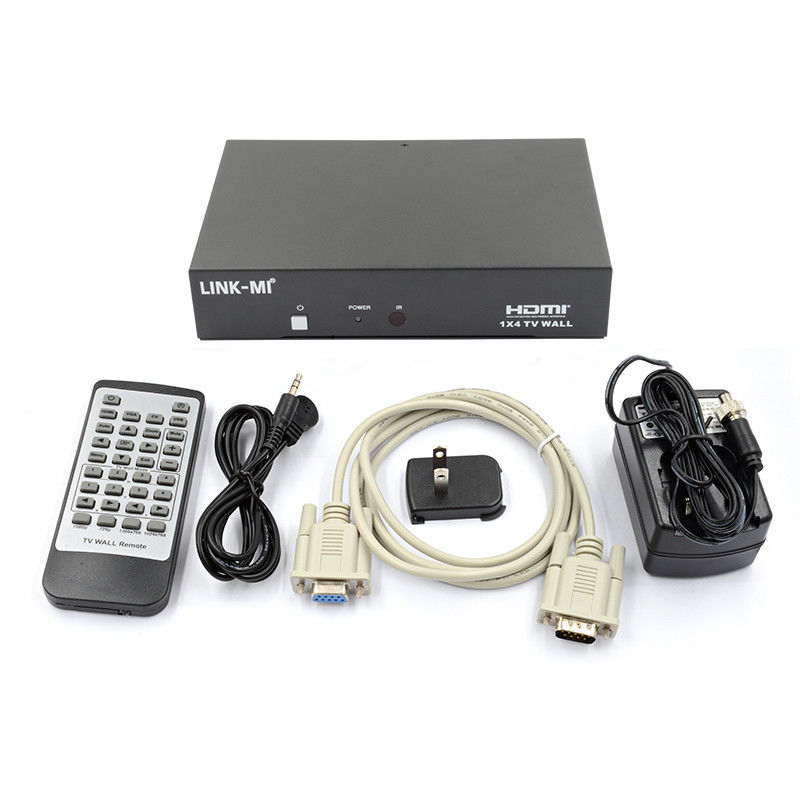

LINK-MI LM-TV04L The 1 by 4 HDMI TV Wall support CVBS/VGA/HDMI/USB play input sources to be freely arranged on 4 displays. The embedded scaler converts signals from the input sources to match the native resolution of monitors,
lat panel displays, projectors as well as user-selectable output settings up to 1920x1080. All the operation and control can be done through IR, Ethernet and RS-232. The HDMI TV Wall is widely used in KTV, hotels, bars, leisure centers, shopping malls, television stores ,cinemas, products display, media advertising, building, education and training, Brand stores, airports,
subway, etc
Features
1.Compliant with HDMI1.3a, DVI1.0;
2.Output source signal to 4 displays (2 by 2 Video wall) as a full image with adjustable Bezel Correction;
3.Supports IR, Ethernet and RS232 controls;
4.Supports cascade to 9 dispay(3 by 3 video wall) mode;
5.Supports CVBS/VGA/HDMI input and USB movie, picture and music playback;
6.Advanced video De-interlacer for improving 480i and 576i SD video input;
7.Support input formats:
CVBS: PAL, NTSC, SECAM with stereo audio input;
VGA:640x480@60Hz, 800x600@60Hz, 1024x768@60Hz.
Specification
| Video Bandwidth |
225MHz/6.75Gbps |
| Input ports |
1x HDMI (Female type), 1xUSB,
1xVGA,1xCVBS+L/R
|
| Output ports |
5 x HDMI (Female type) ,1xCoaxial, 2xL/R |
| HDMI Cable Distance |
15M/8-bit 1080p |
| ESD Protection |
Human body model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)
|
| Power Supply |
12V/2.5A DC (US/EU standards, CE/FCC/UL certification) |
| Dimensions (mm) |
250mm (W) X 118mm(D) X 32mm(H) |
| Weight (g) |
1050 g |
| Chassis Material |
Metal |
| Silkscreen Color |
Black |
| Operating Temperature |
0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F |
| Storage Temperature |
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F |
| Power Consumption |
7.5W |
| Relative Humidity |
20~90% RH (non-condensing) |
Connection Diagram

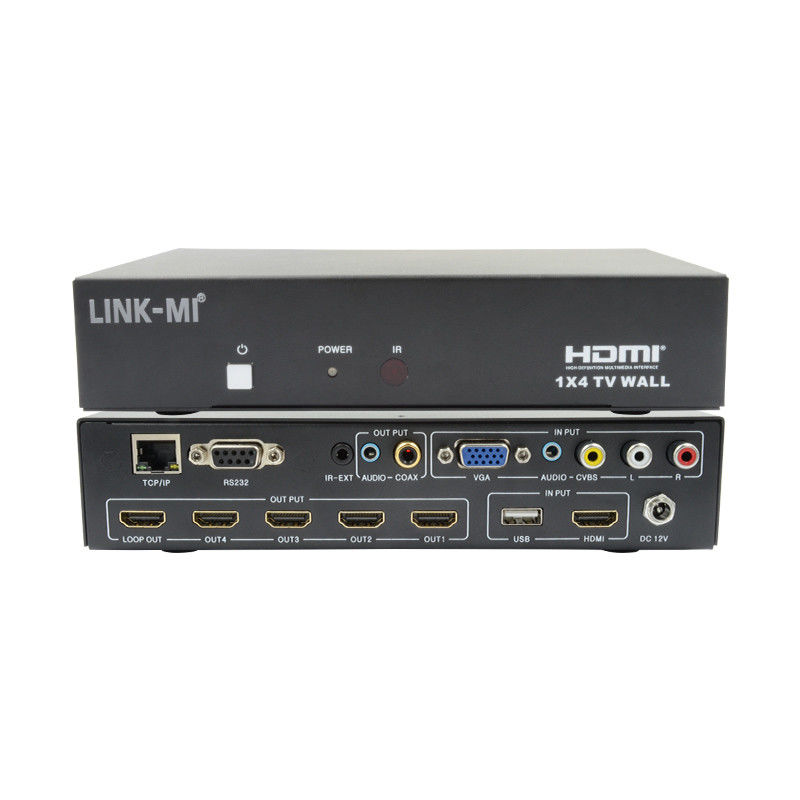

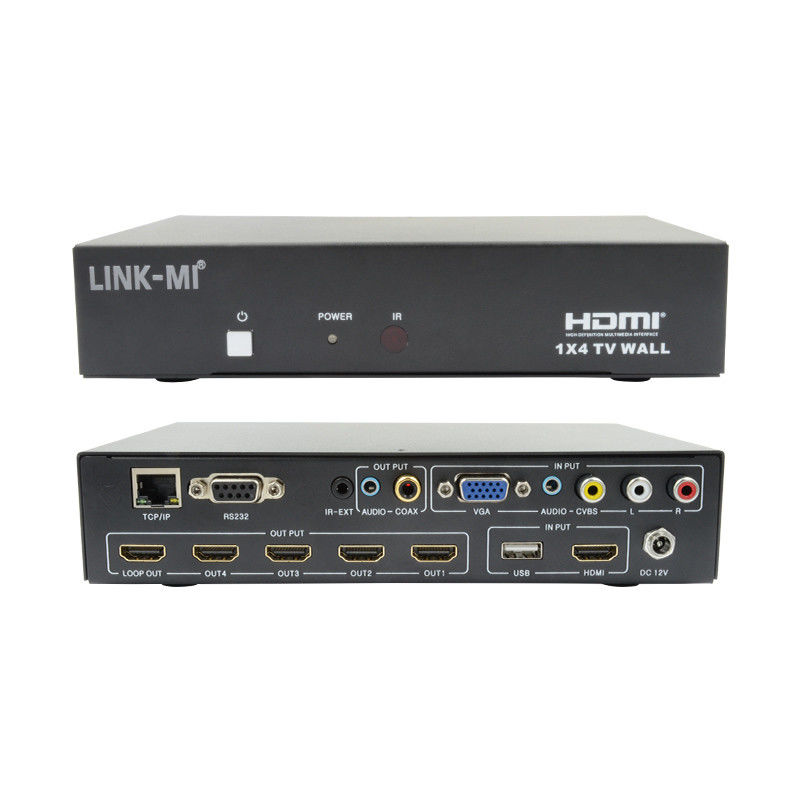

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
